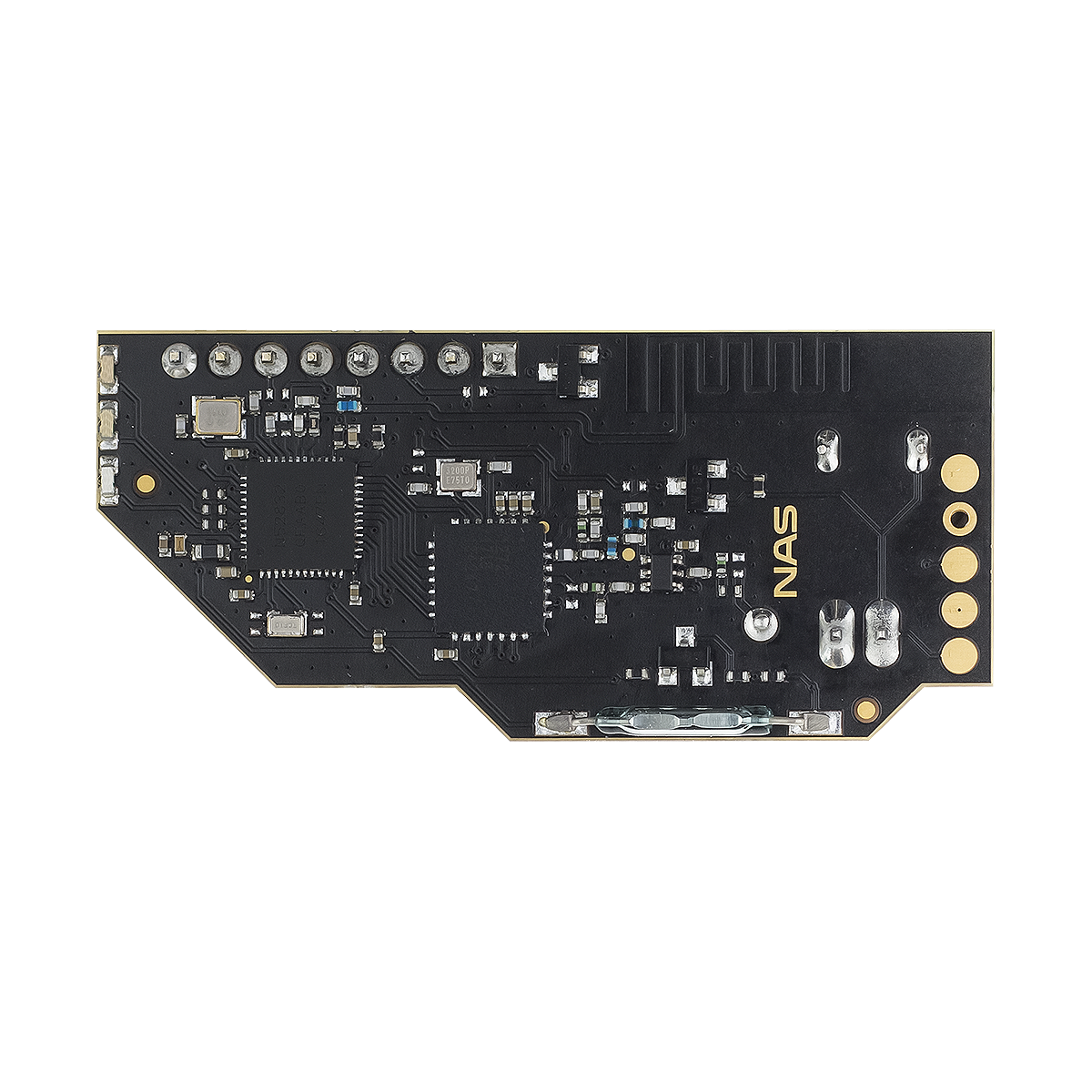

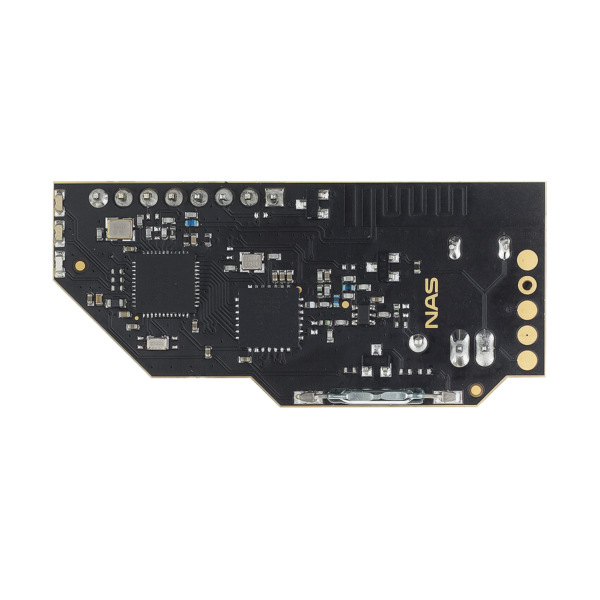

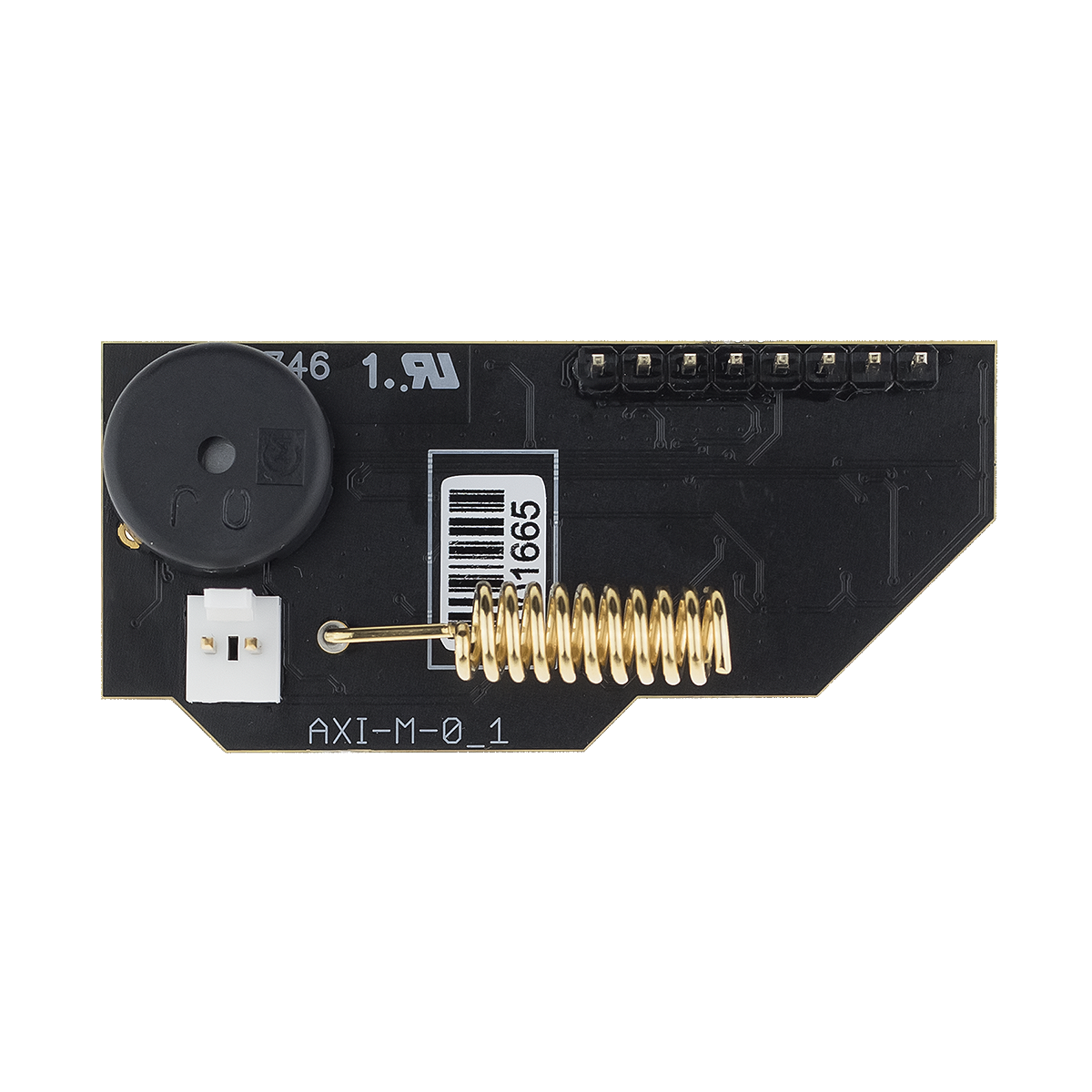

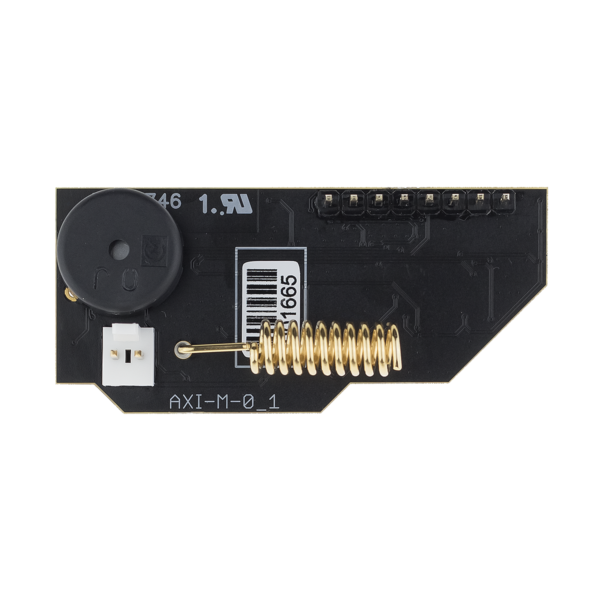

LoRaWAN® Qalcosonic Module

LoRaWAN® Qalcosonic Module enables the acquisition of metering data from Axioma Qalcosonic E1 and F1 series meters. Real-time consumption data is gathered as well as processed automatically and accessible from your LoRaWAN® provider.

LoRaWAN® Qalcosonic  Module is designed to be attached to the existing meter as internal module.

Compatibility

  • Axioma Qalcosonic E1 and F1 series meters
  • Danfoss SonoMeter™ 30
  • Apator INVONIC H

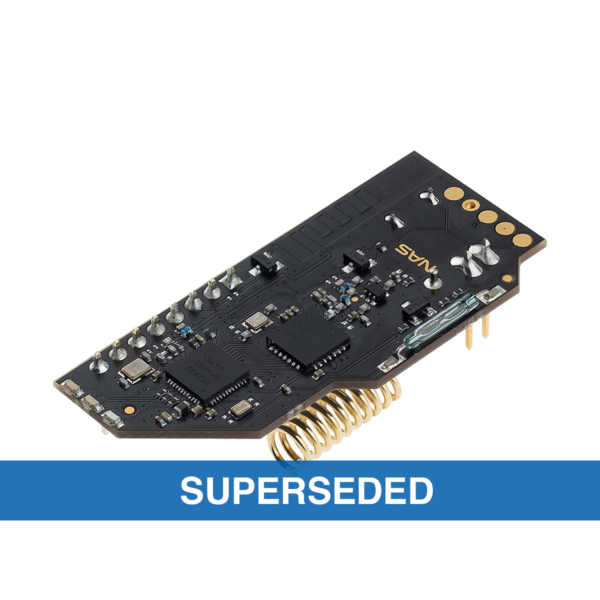

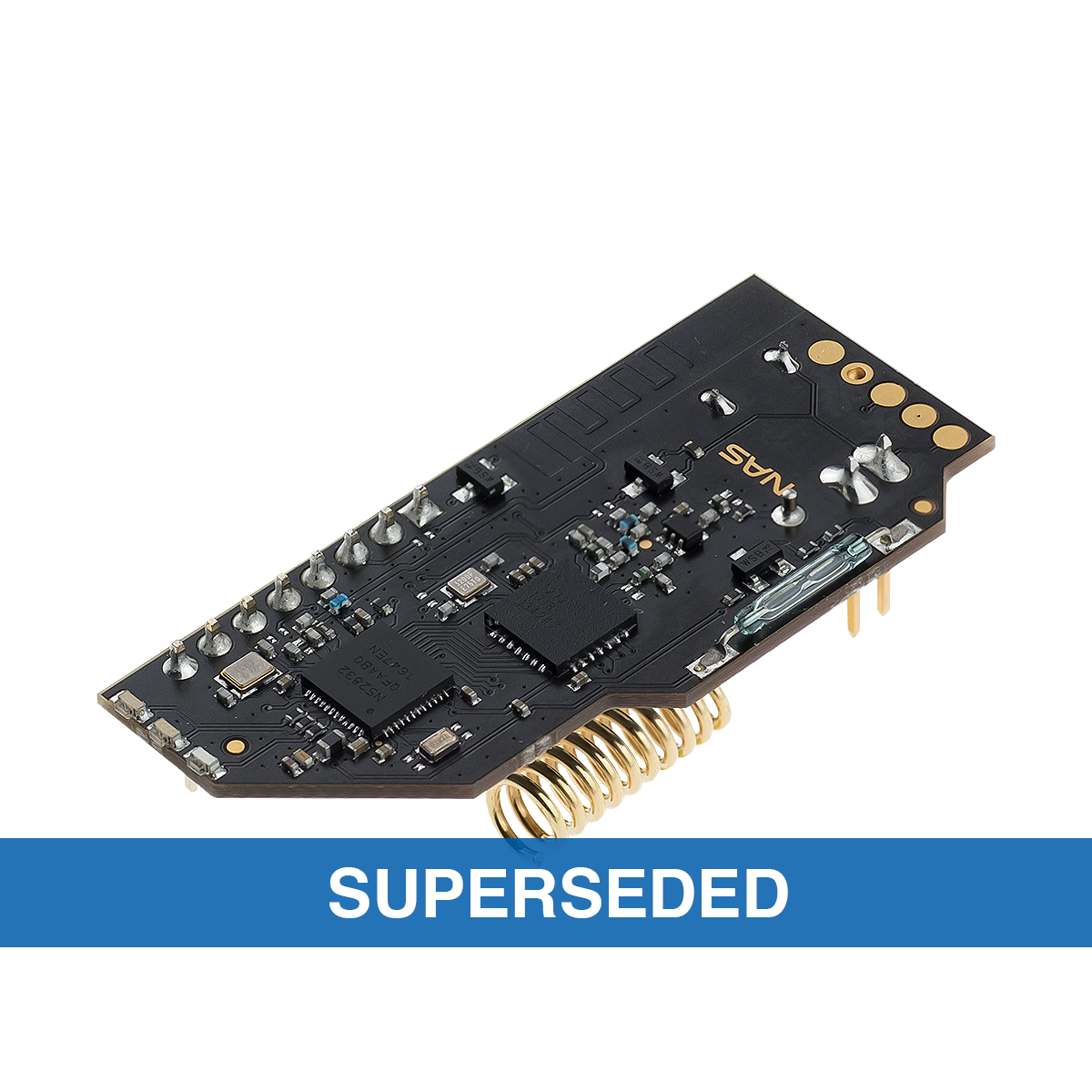

No longer available. Replaced with IM3071.

Category:

Features

  • Long range wireless data transmission
  • Metering
  • Configurable reporting interval
  • Secure communication
  • Easy installation
  • Maintenance free – install &  forget

Additional information

Width

5.5 mm (1 mm*)

Height

50 mm

Length

66.6 mm (20 mm*)

Weight

5.1 g

Operating temperature

-40°C … +60°C

Communication range

Up to 15km**

Tx power

up to +20dBm

Rx Sensitivity

-140dBm

Download

Qalcosonic Module data sheet

Description

*Without antenna
**Communication range is dependent on the location of the sensor and nearest base station.

						*For specific order code please see the data sheet. Samples available under MOQ quantity.
					LoRaWAN® is a registered trademark of Semtech Corporation.
