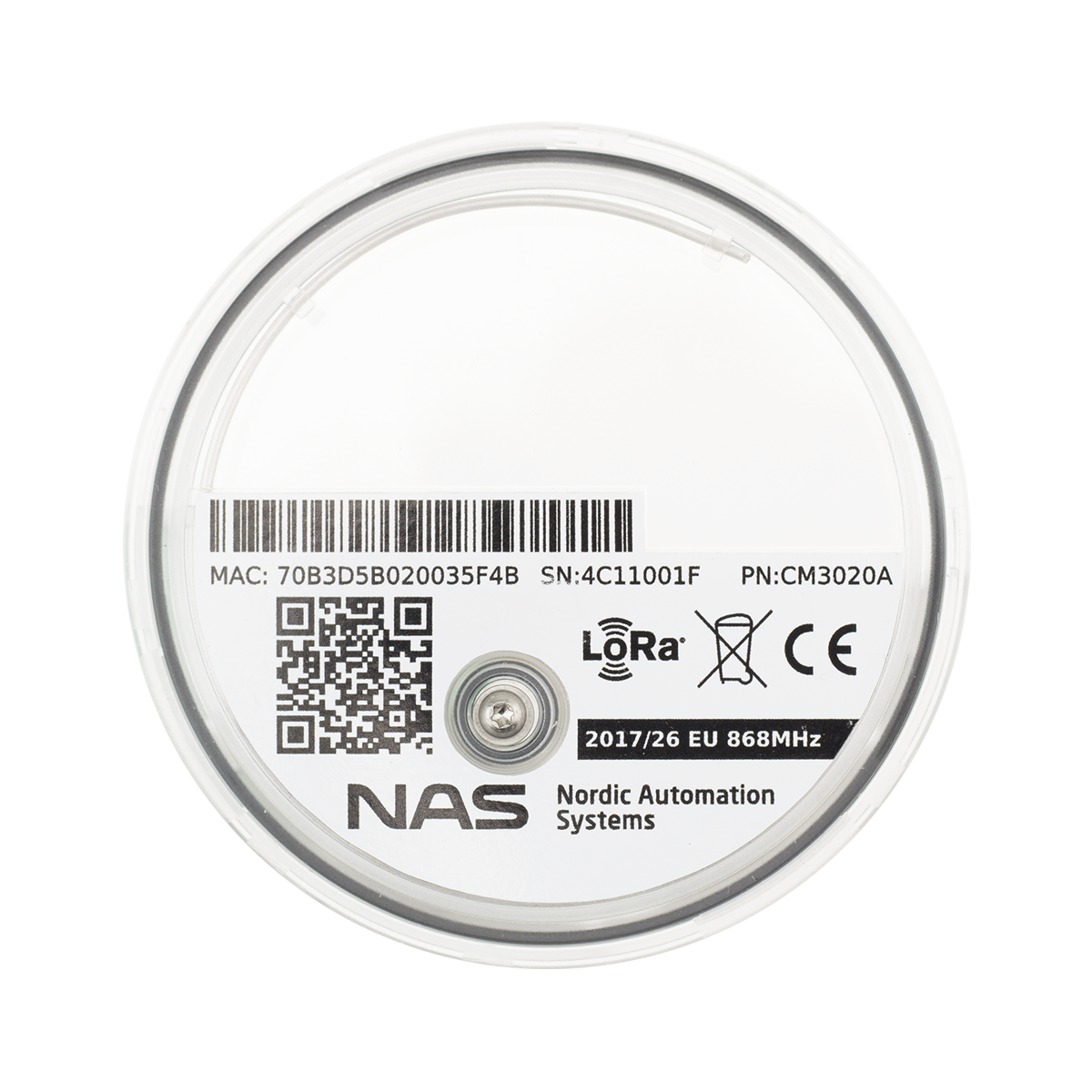

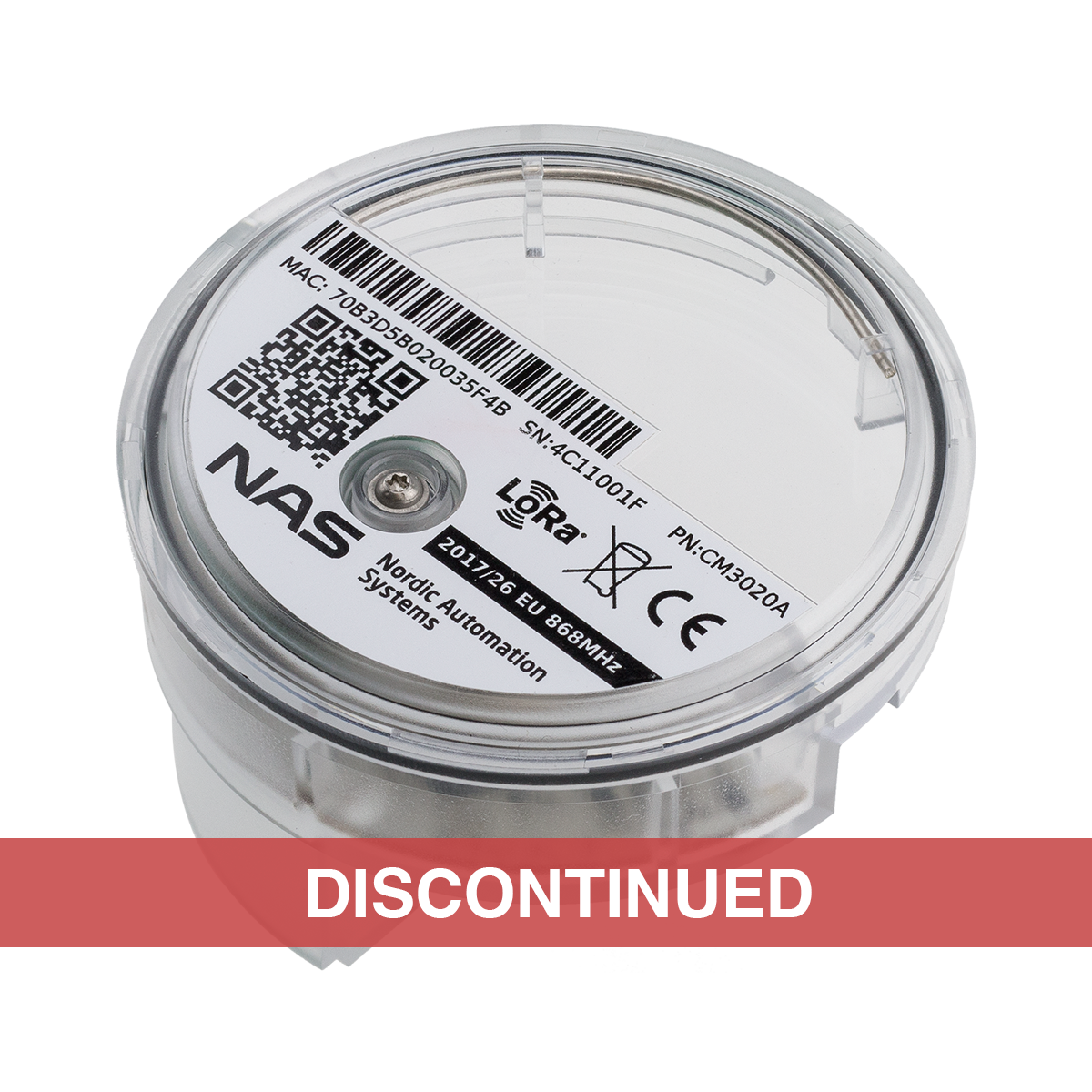

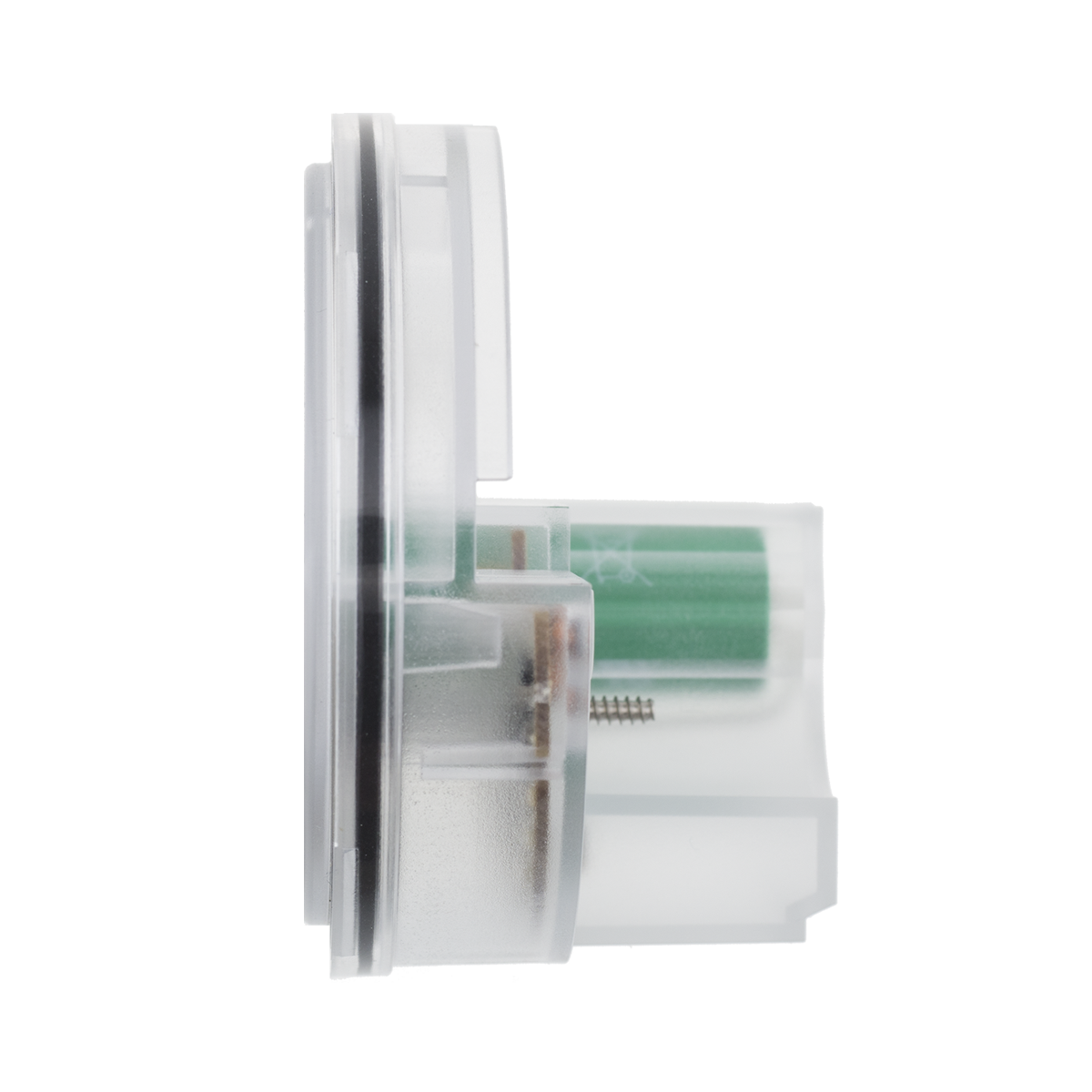

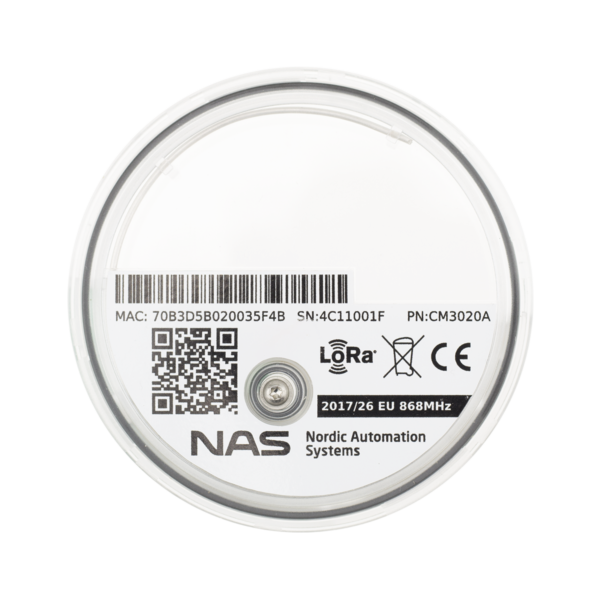

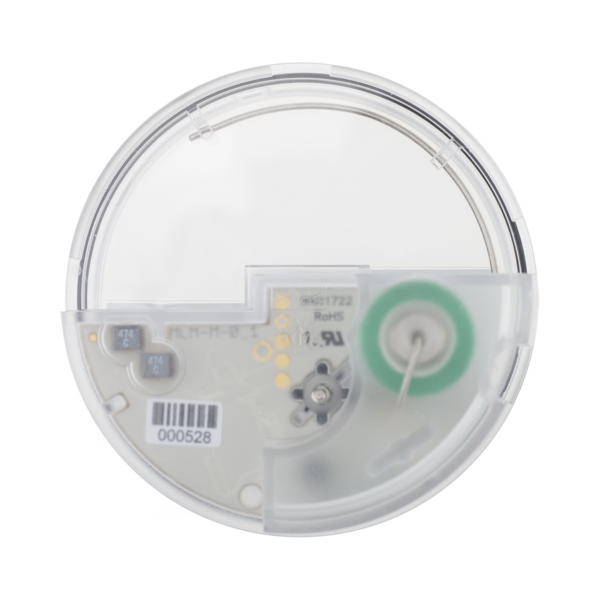

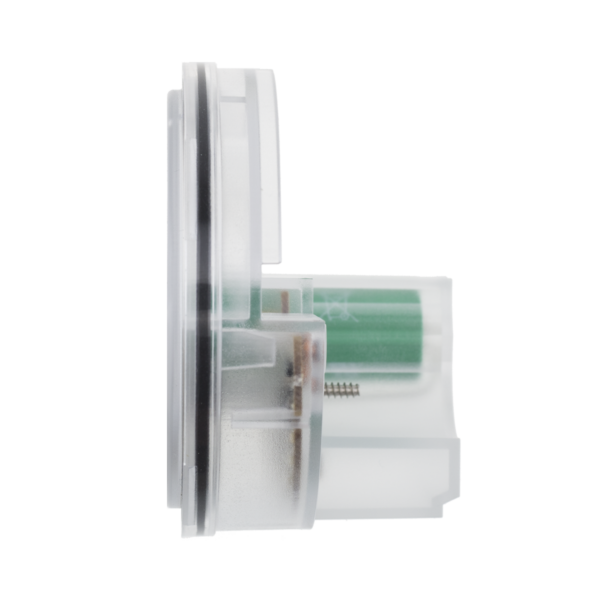

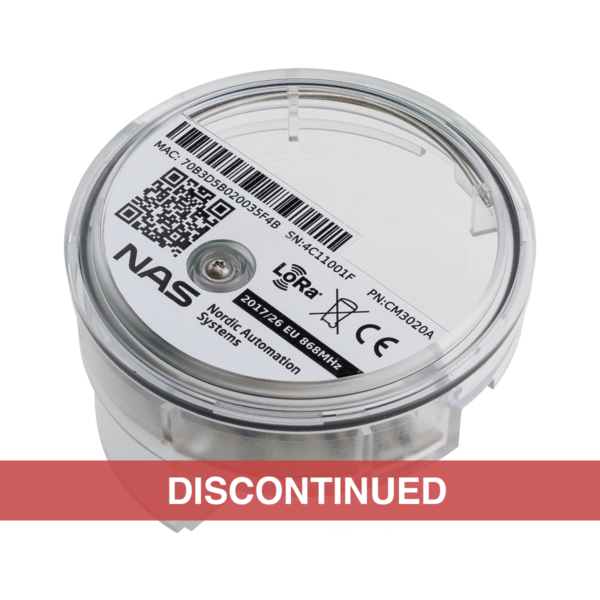

LoRaWAN™ Modularis Module

LoRaWAN™ Modularis Module water meter sensor enables the acquisition of water consumption data and transmits it wirelessly to the available LoRaWAN™ network.

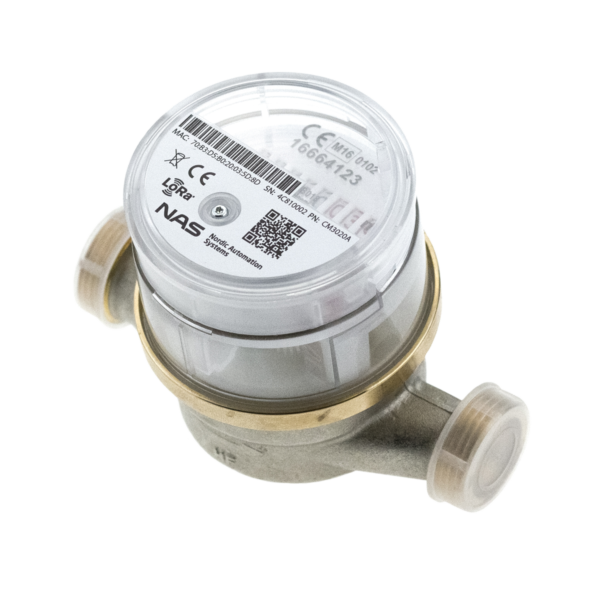

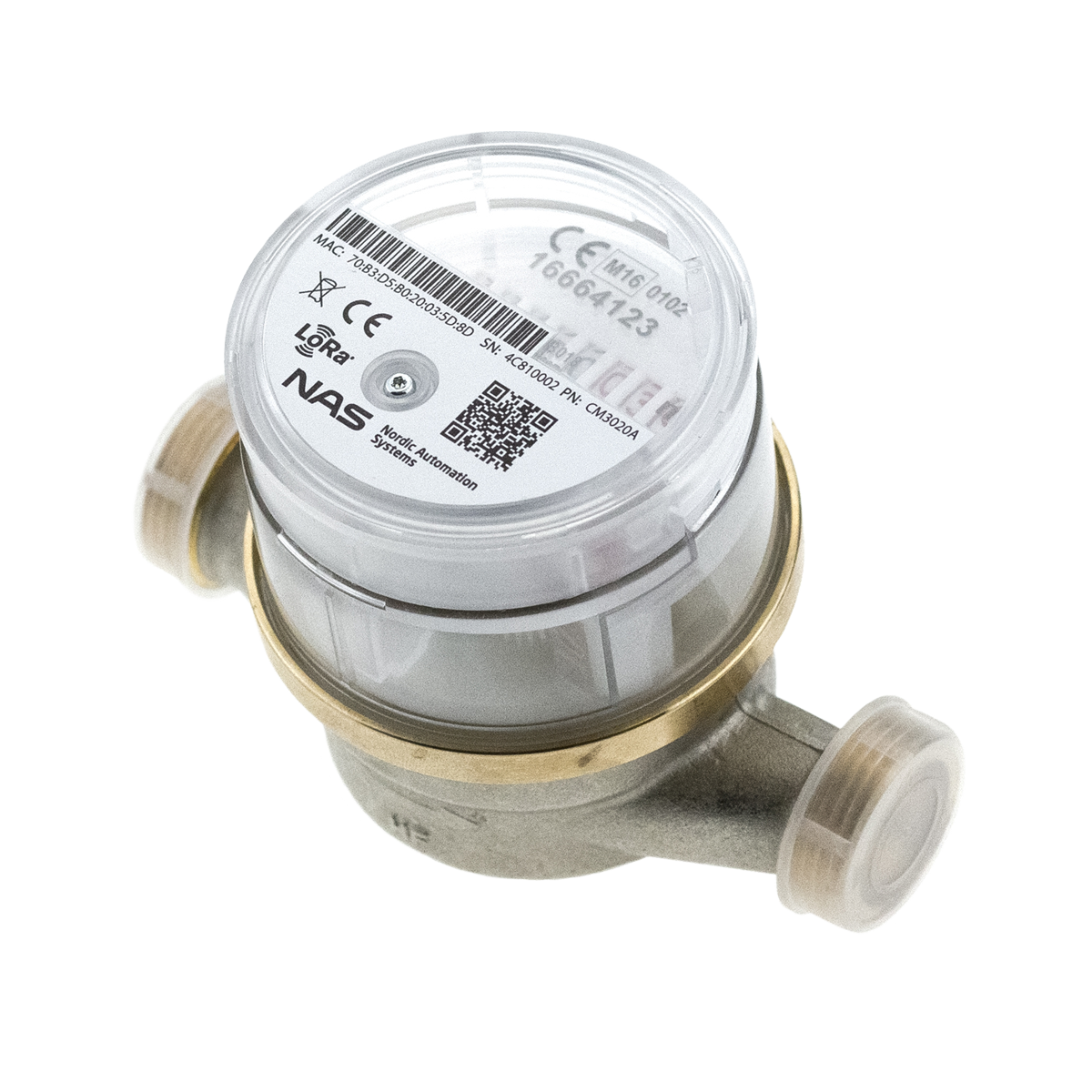

LoRaWAN™ Modularis Module is meant to be attached to the Modularis (compatible) water meter.

Compatibility

  • Wehrle Modularis meters
  • Bernhardt Modularis compatible meters
  • Maddalena CD SD PLUS EVO
  • Maddalena VTZ
  • Simens WFW30/WFK30 series

Ordering code CM3020*

Category:

Features

  • Long range wireless data transmission
  • Pre-installed long-life battery
  • Water metering
  • Configurable reporting interval
  • Maintenance free – install &  forget
  • Easy installation
  • Average life 8 years*
  • Secure communication
    *Lifetime depends from device location and reporting interval.

Additional information

Physical

Diameter

64.0 mm

Height

39.2 mm

Weight

60 g

IP Rating

IP68

Operational

Operating temperature

-20°C … +65°C

Tx power

up to +20dBm

Communication

LoRaWAN™

Rx Senitivity

-140dBm

Activation type

OTAA

Download

Wehrle Modularis Module data sheet

Wehrle Modularis Module quick start guide

bool(true)
*For specific order code please see the data sheet. Samples available under MOQ quantity. LoRaWAN™ is an unregistered trademark of Semtech Corporation.
