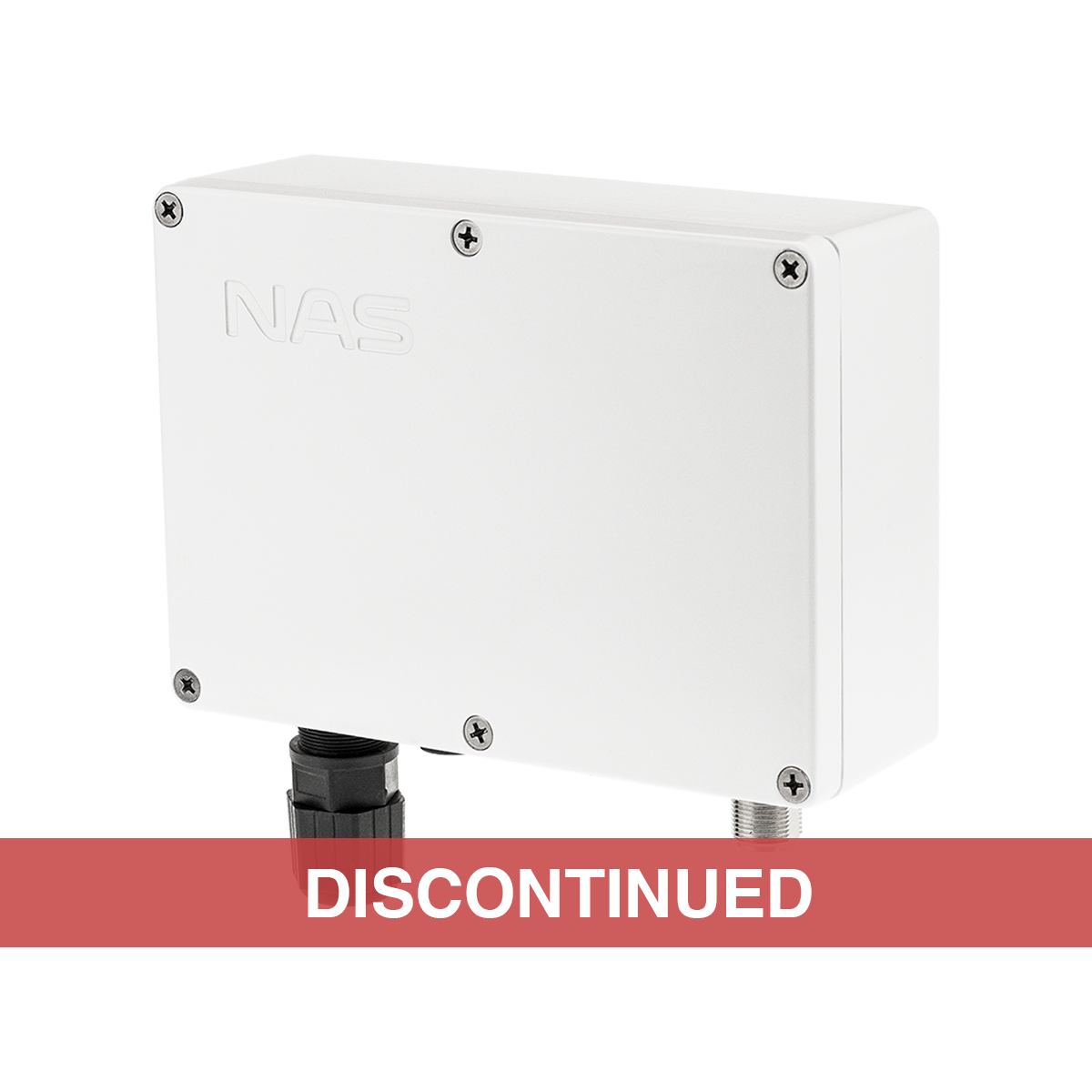

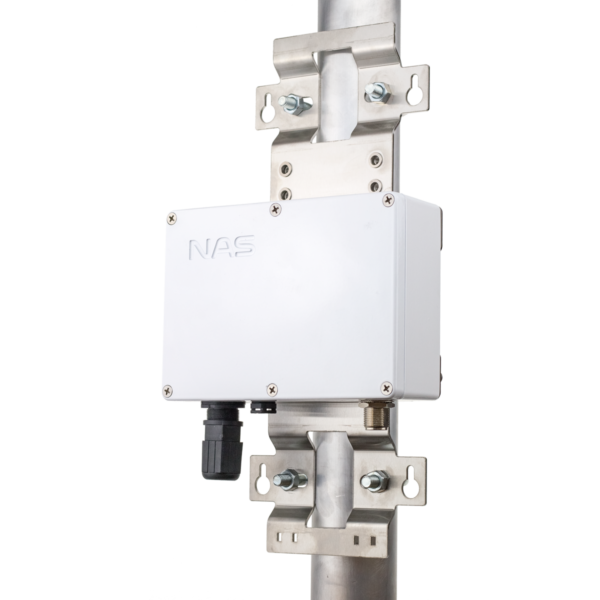

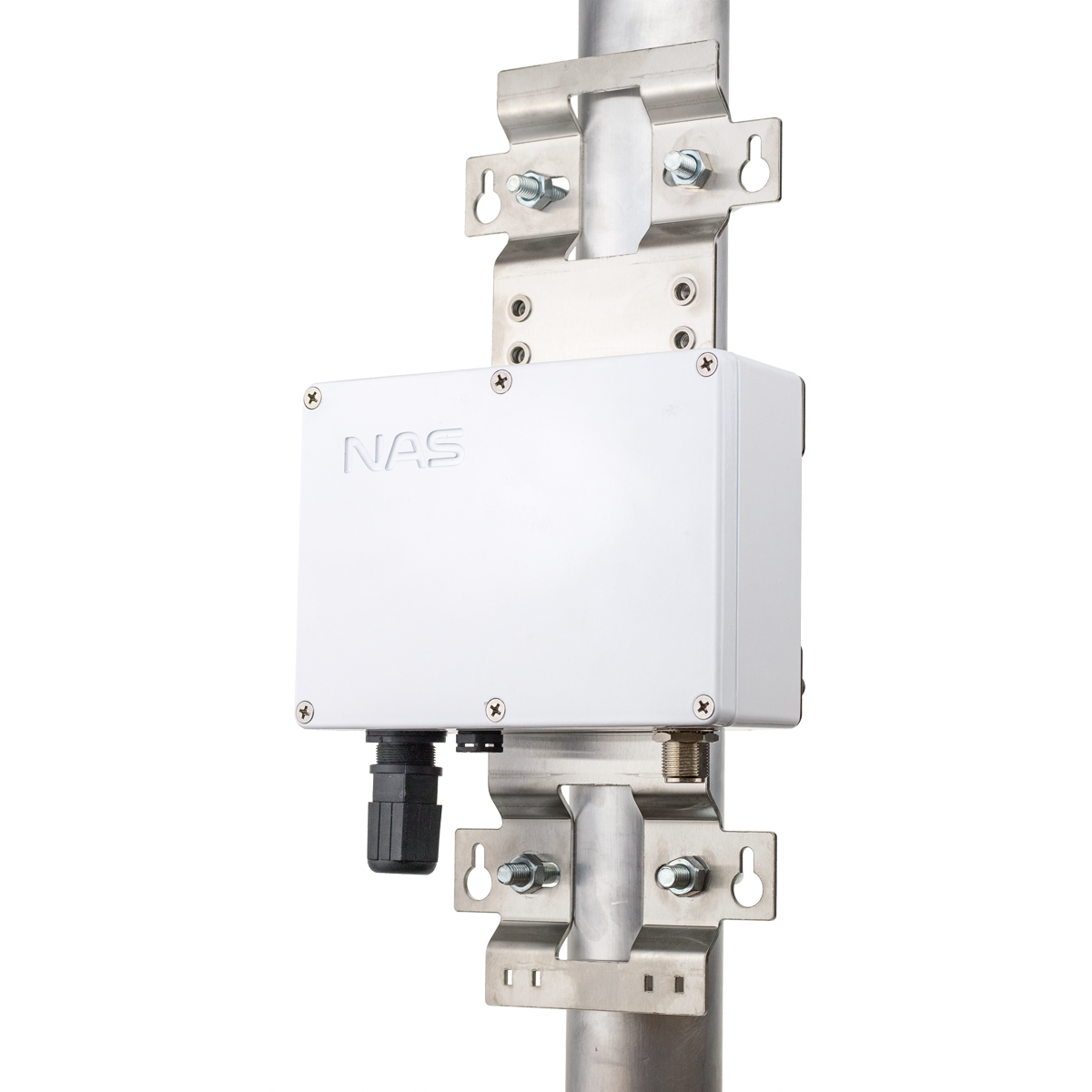

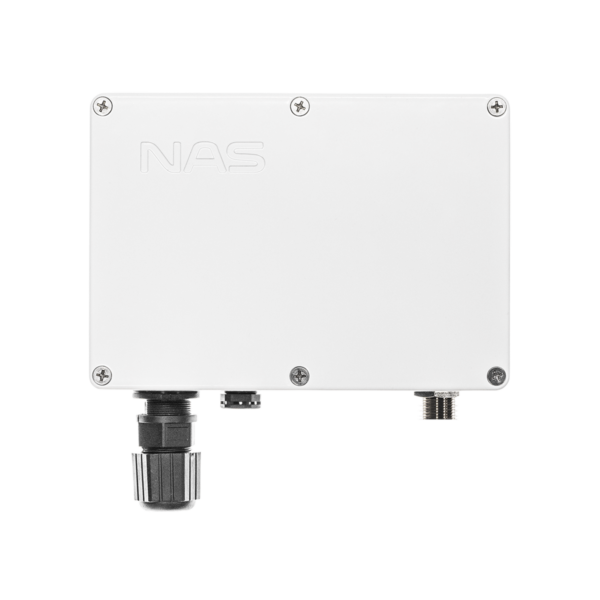

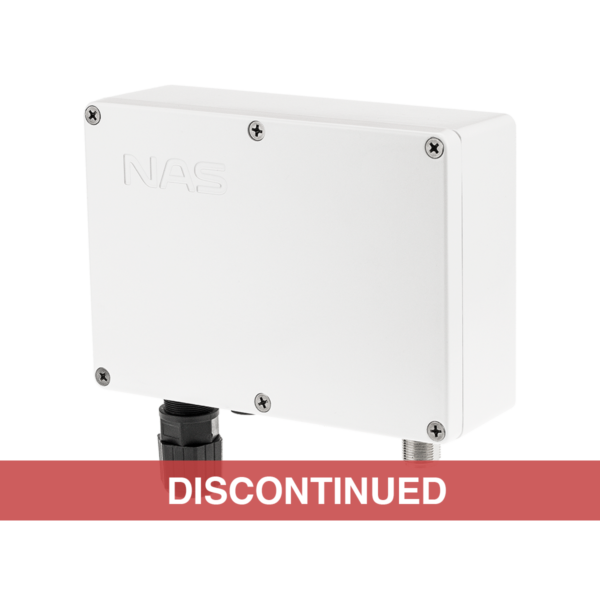

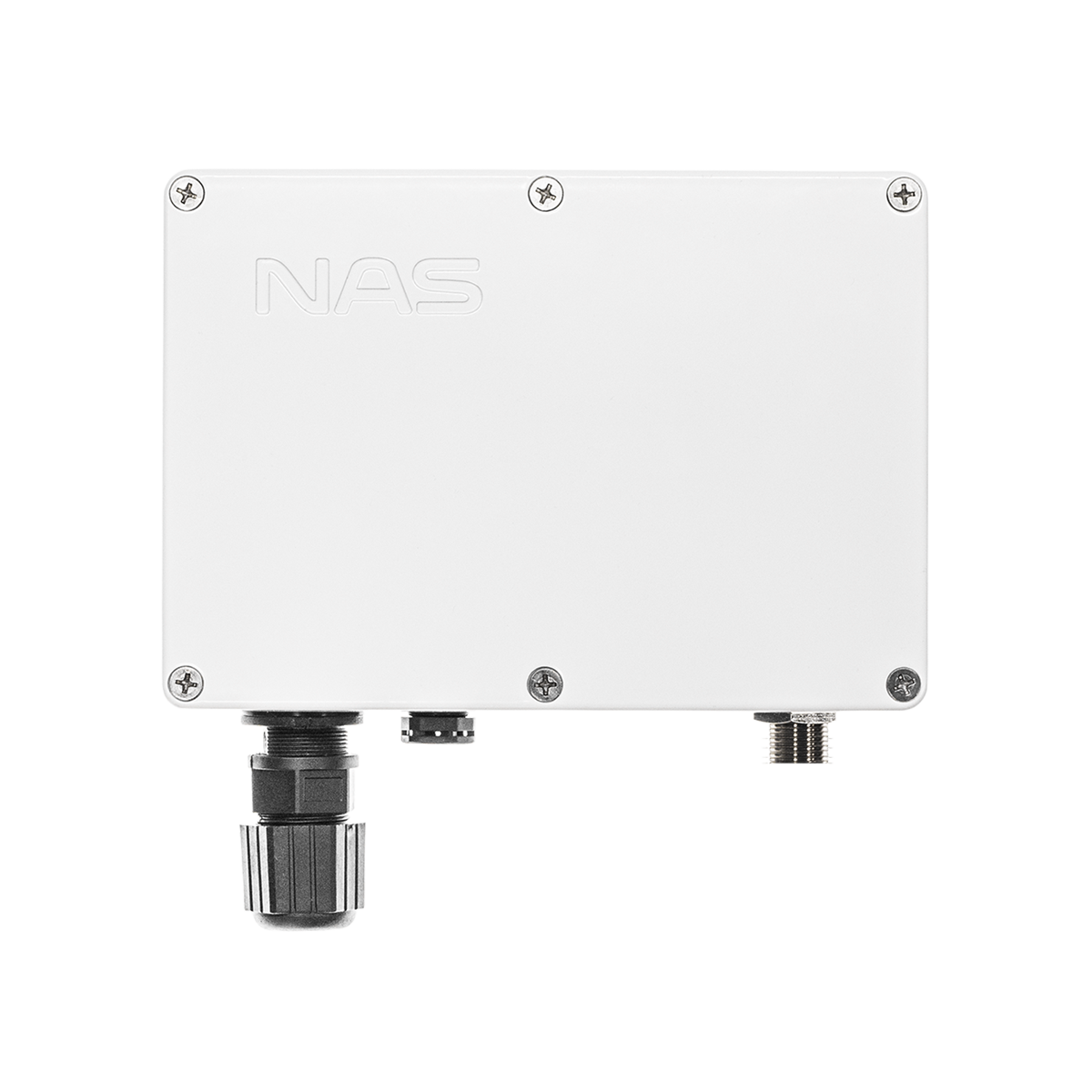

LoRaWAN™ Outdoor Gateway

LoRaWAN™ Outdoor Gateway is the gateway for all LoRa® products towards LoRaWAN™ network, collecting real-time data and providing feedback if necessary. Secure link to LoRaWAN™ network server is established over ethernet or cellular connection.

Based on NAS IER000 LoRaWAN™ concentrator, the gateway supports all LoRaWAN™ devices in different applications.

Ordering code IX1001/IX1011*

Features

  • Long range wireless data transmission
  • Class A and C communication support
  • Ethernet connection
  • Cellular connection*
  • Weatherproof
  • Firmware OTA upgradeable
  • PoE+
  • Internal temperature and humidity sensor
  • Hardware watchdog



*  IX1011 only

Additional information

Physical

Width

171.0 mm

Height

302.0 mm

Depth

57.0 mm

Weight

850 g

IP Rating

IP67

Operational

Operating temperature

-40°C… +70°C

Communication

Ethernet, Cellular(4G)*

Power connection

Standard 802.3at Mode A PoE+

Frequency

868 MHz

Download

LoRaWAN Gateway data sheet

LoRaWAN Gateway quick start guide

Description

* IX1011 only

bool(true)
*For specific order code please see the data sheet. Samples available under MOQ quantity. LoRaWAN™ is an unregistered trademark of Semtech Corporation.
