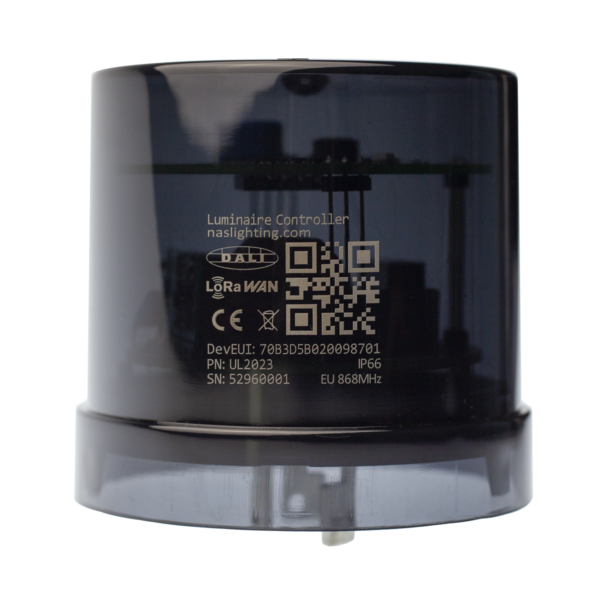

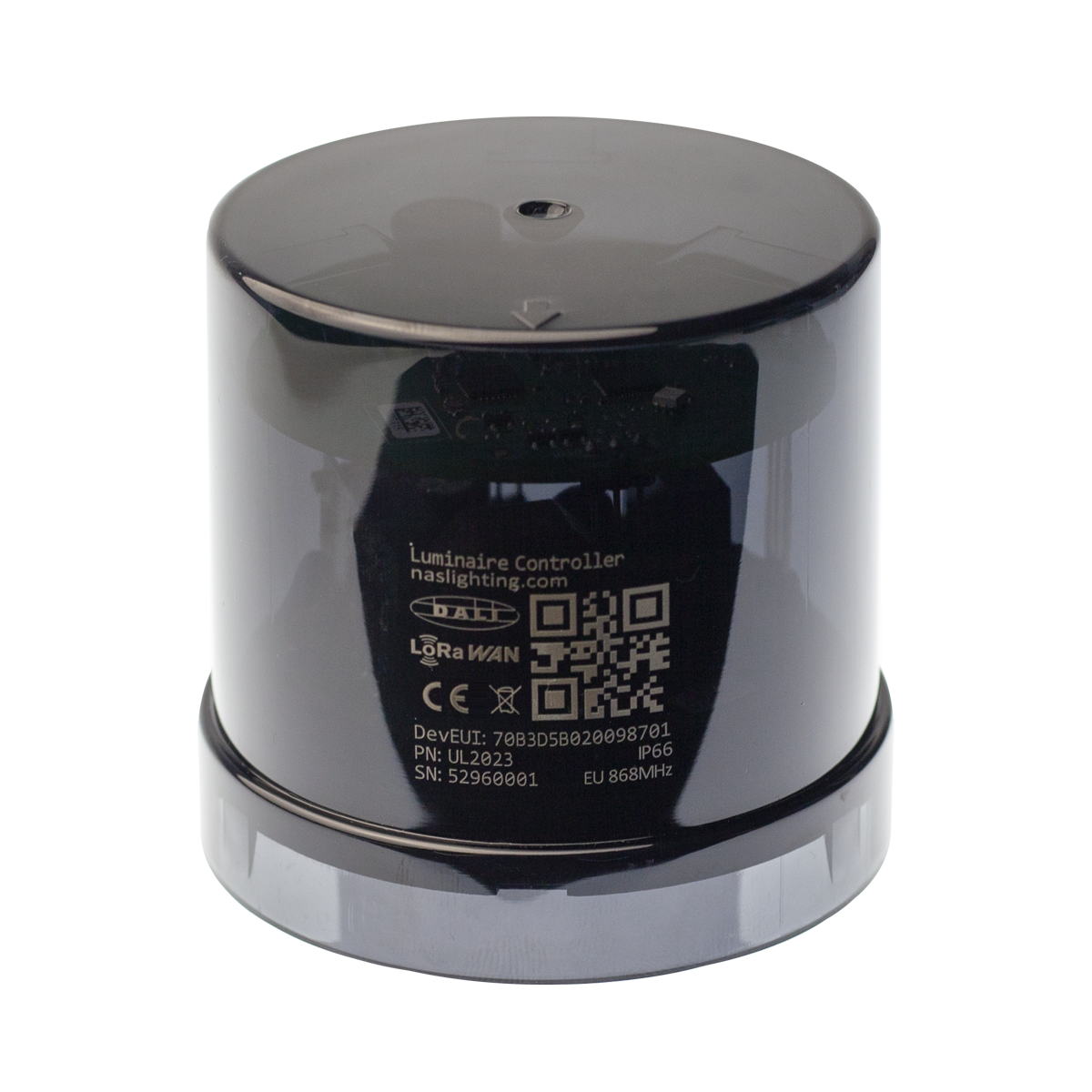

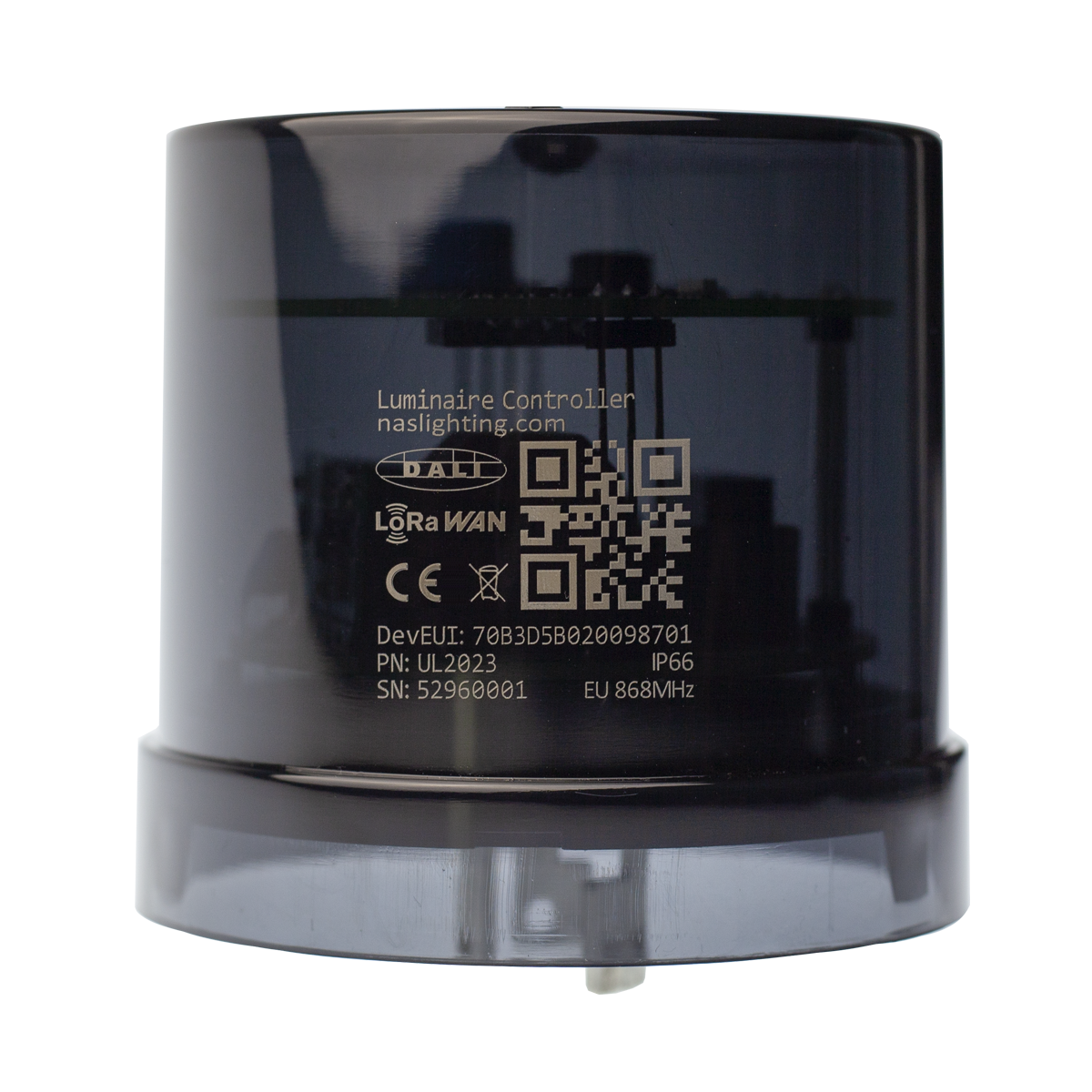

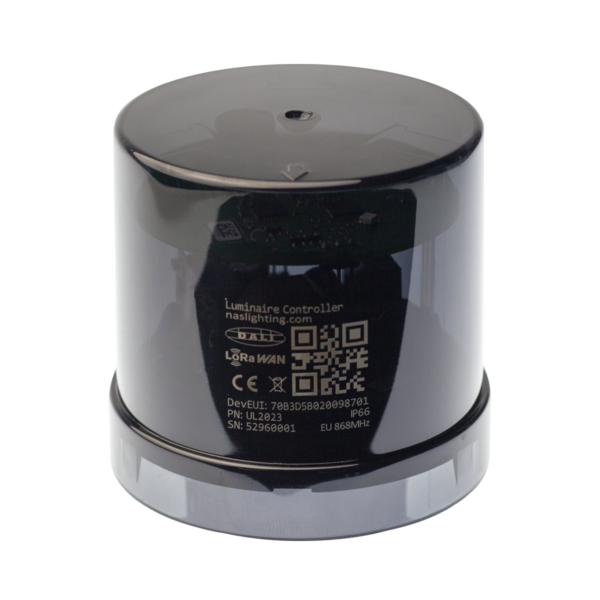

LoRaWAN® Luminaire Controller NEMA G3

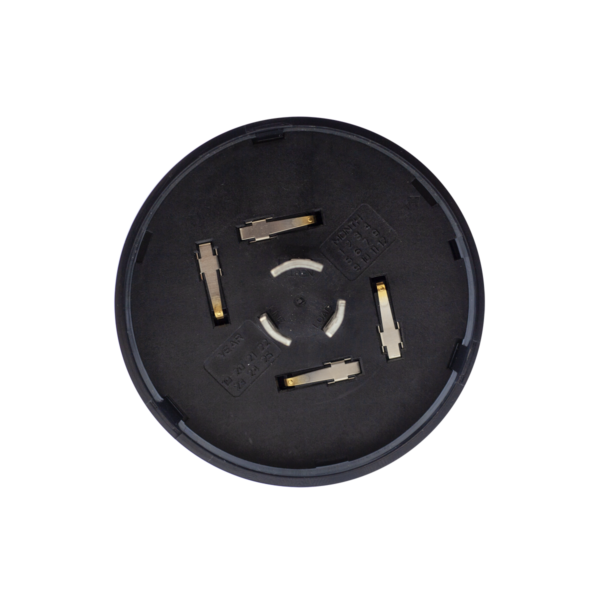

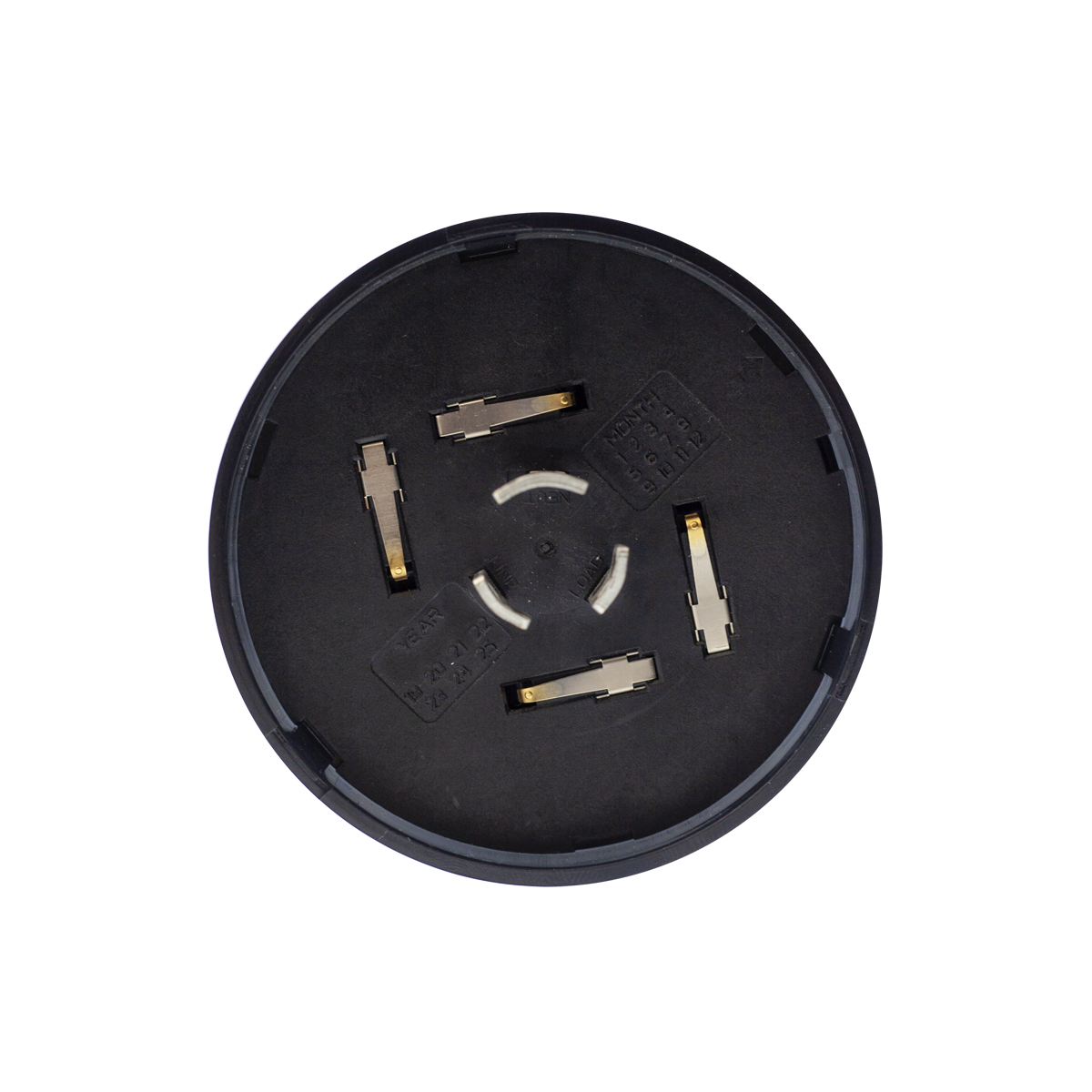

LoRaWAN® Luminaire Controller NEMA G3 is a remote control device for HID or LED luminaires equipped with ANSI C136.41 NEMA receptacle. The luminaire is controlled through DALI or 0..10V analog control interfaces, while providing a reliable power interconnect with three robust twist lock contacts.

Device is connected to the dimmable ballast or LED driver for street lighting. Controller is available for LoRaWAN®, NB-IoT and LTE-M network.*

*NB-IoT and LTE-M will be ready for shipment in Q1.

Ordering code UL2023*

Category:

Features

  • Luminaire intensity control
  • Customizable dimming profiles
  • Configurable ON/OFF switching
  • Power metering
  • Robust push-and-twist lock installation
  • LoRaWAN® activation OTAA
  • 3GPP LTE release 13 Cat-M1 and Cat-NB1 compliant
    • 3GPP release 13 coverage enhancement
  • LTE band support
    • Cat-M1: B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B66
    • Cat-NB1/NB2: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B20, B25, B26, B28, B66

Download

Luminaire Controller NEMA G3 data sheet [EN]

Luminaire Controller NEMA G3 data sheet [DE]

Luminaire Controller NEMA G3 quick start guide

Luminaire Controller Communication Protocols FW 1.0.x+

Luminaire Controller Communication Protocols FW 1.1.x+

Javascript codecs for payloads of NAS products

Payload encoder (FW 1.1.x+)

Payload decoder (FW 1.1.x+)

Payload decoder (FW 1.0.x)

						*For specific order code please see the data sheet. Samples available under MOQ quantity.
					LoRaWAN® is a registered trademark of Semtech Corporation.
