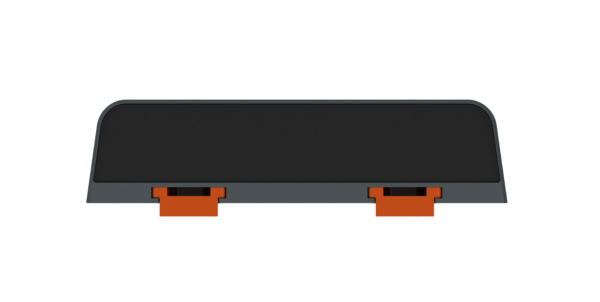

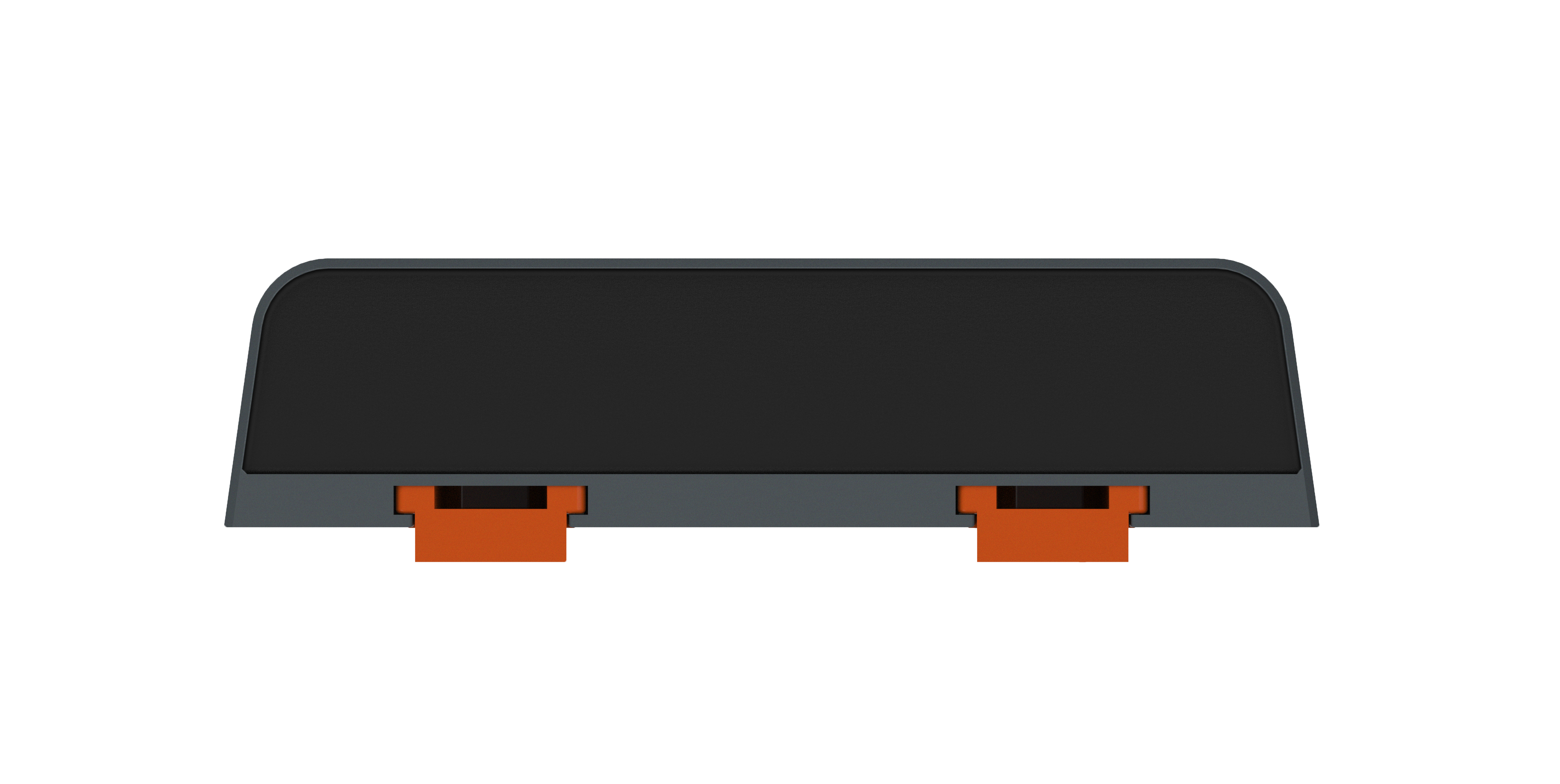

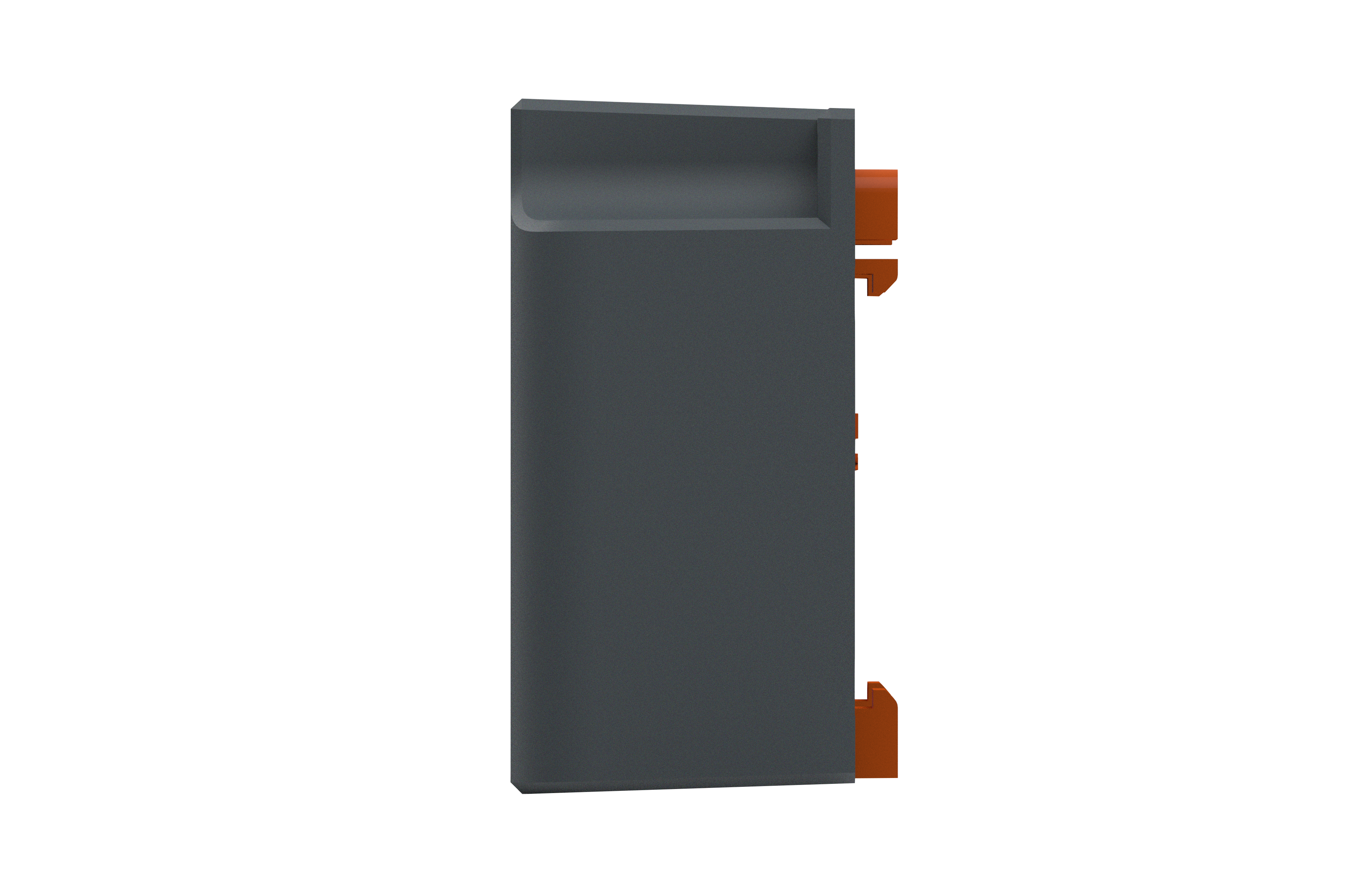

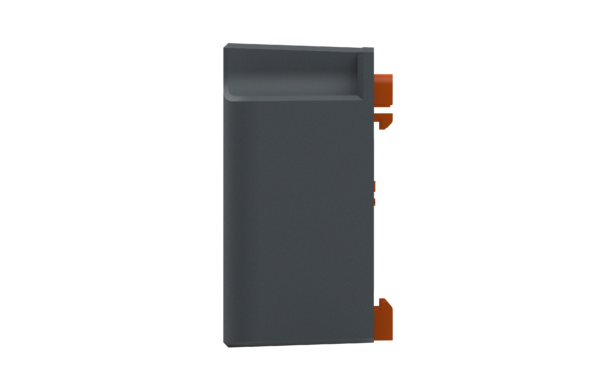

IP68 Luminaire Controller G4
Designed to upgrade existing lighting systems, this Retrofit Luminaire Controller G4 facilitates remote control via DALI and 0…10V analog signals. It’s an efficient solution for enhancing older lighting infrastructures, ensuring compatibility with a broad range of luminaire types. Controller is available for LoRaWAN®, NB-IoT and SensorLink network.*
*NB-IoT will be ready for shipment in Q2.
Features
Control up to 8 DALI / DALI-2 drivers independently*
0..10V analog control output*
Auxiliary light control via secondary relay
Sensor power supply
Power measurement for connected load and via DALI
D4i Energy registers reported for each driver
Versatile astronomical calendar based dimming
Layered time based dimming profiles
Automatic device time synchronisation
Remote control and configuration
Multicast control and configuration
Configuration app LumaLink™ (iOS & Android)
External D4i Control devices*
GPS positioning**
Configurable ON/OFF switching
Autonomous and adaptive operation (configure and forget)
Real time control and feedback
RTC to keep time after power loss
Surge protection
Digital input (LSI) for external events (motion sensor, switch, photocell, etc)
Fully Documented Open Communication Protocol
* software configurable Analog or DALI control output ** with GPS option *** in development”
Description
* Conditions apply
Specs
Length: 28.3mm
Width: 113.2mm
Height: 56.2mm
Weight: ca 250g
Operating temperature: -25°C … +65°C
IP Rating: IP66
Communication (LoRaWAN®)
Activation type: OTAA
LoRaWAN® Specification: v1.1
Communication (NB-IoT)
3GPP LTE release 14 Cat-NB1 and Cat-NB2 compliant
LTE band support
Communication (LumaLink™)
Local configuration and per device authorization
Communication (SensorLink™)*
SensorLink™ Mesh networking
Communication (GPS)**
Precision timestamp Device positioning: up to 1.5m CEP position accuracy GNSS: GPS, QZSS, Glonass***, BeiDou***
* Optional (order code #S) ** Optional (order code #P) *** except for NB-IoT model
*For specific order code please see the data sheet. Samples available under MOQ quantity.
LoRaWAN® is a registered trademark of Semtech Corporation.
