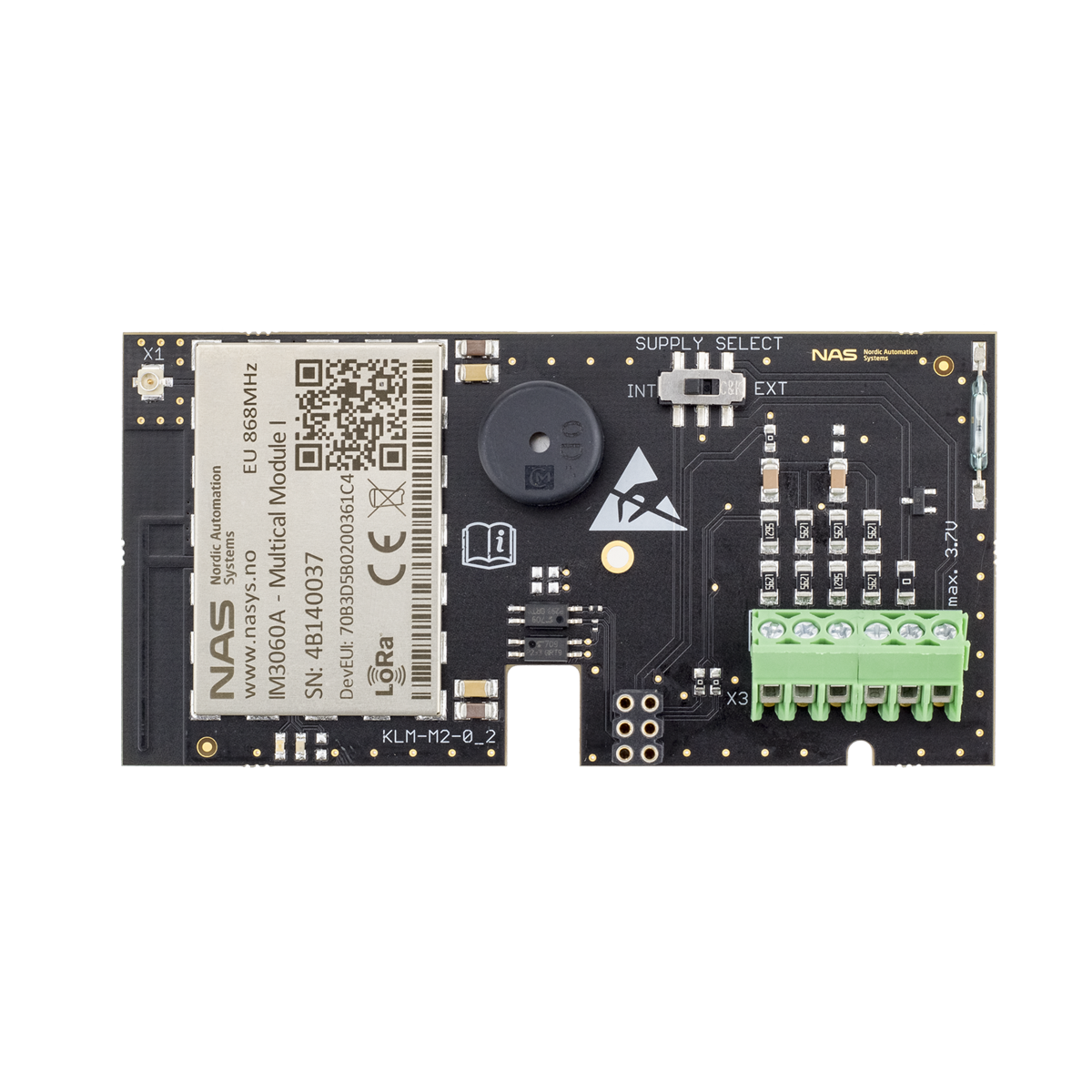

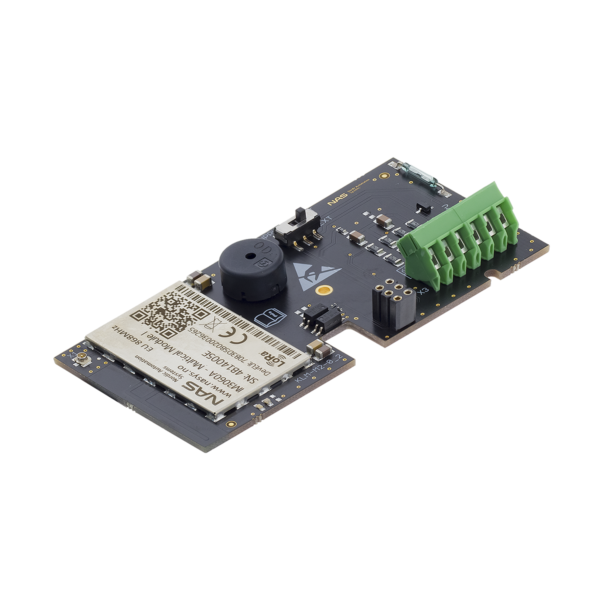

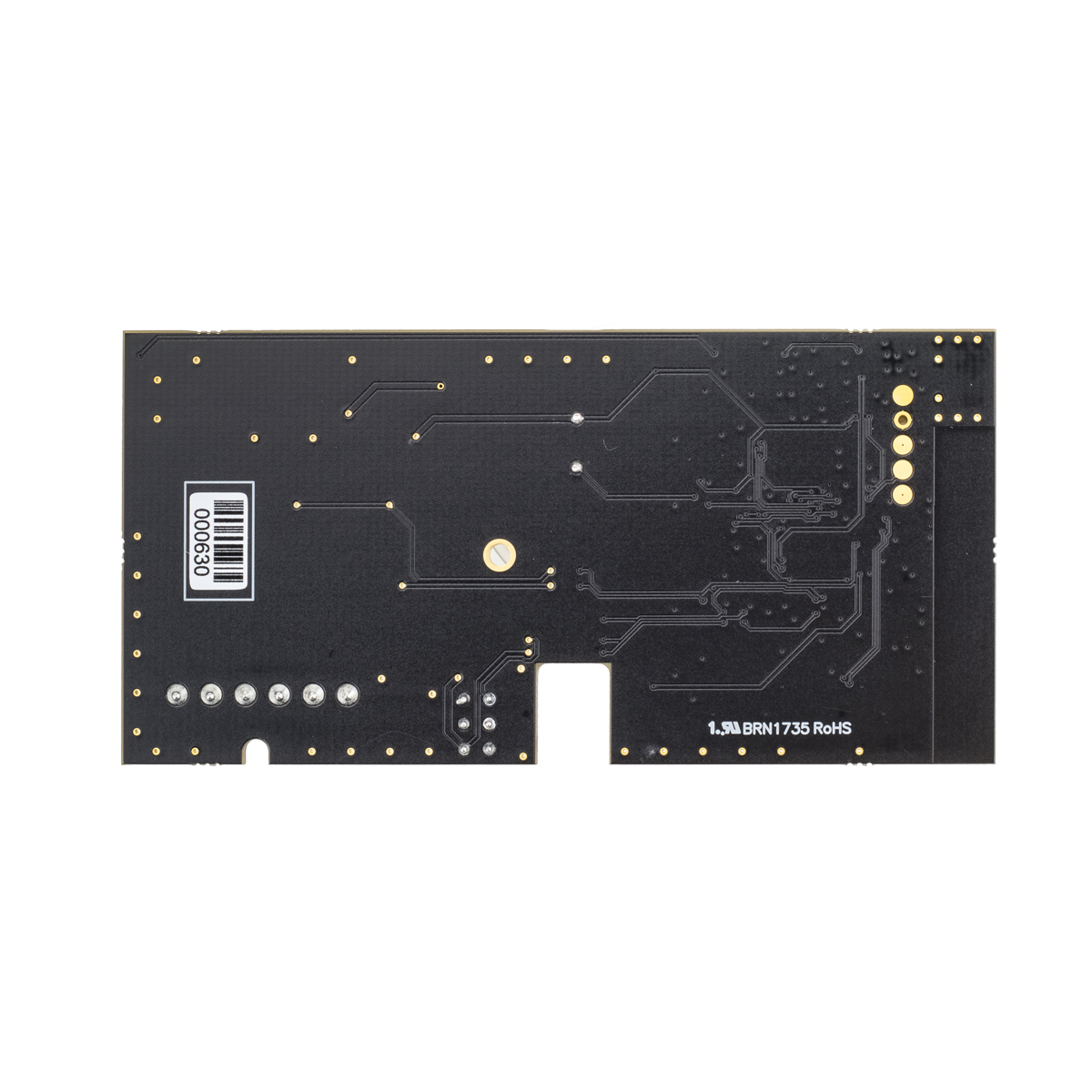

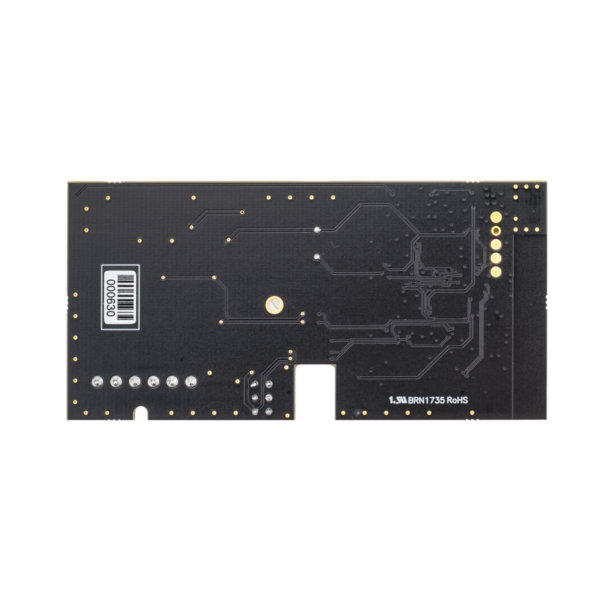

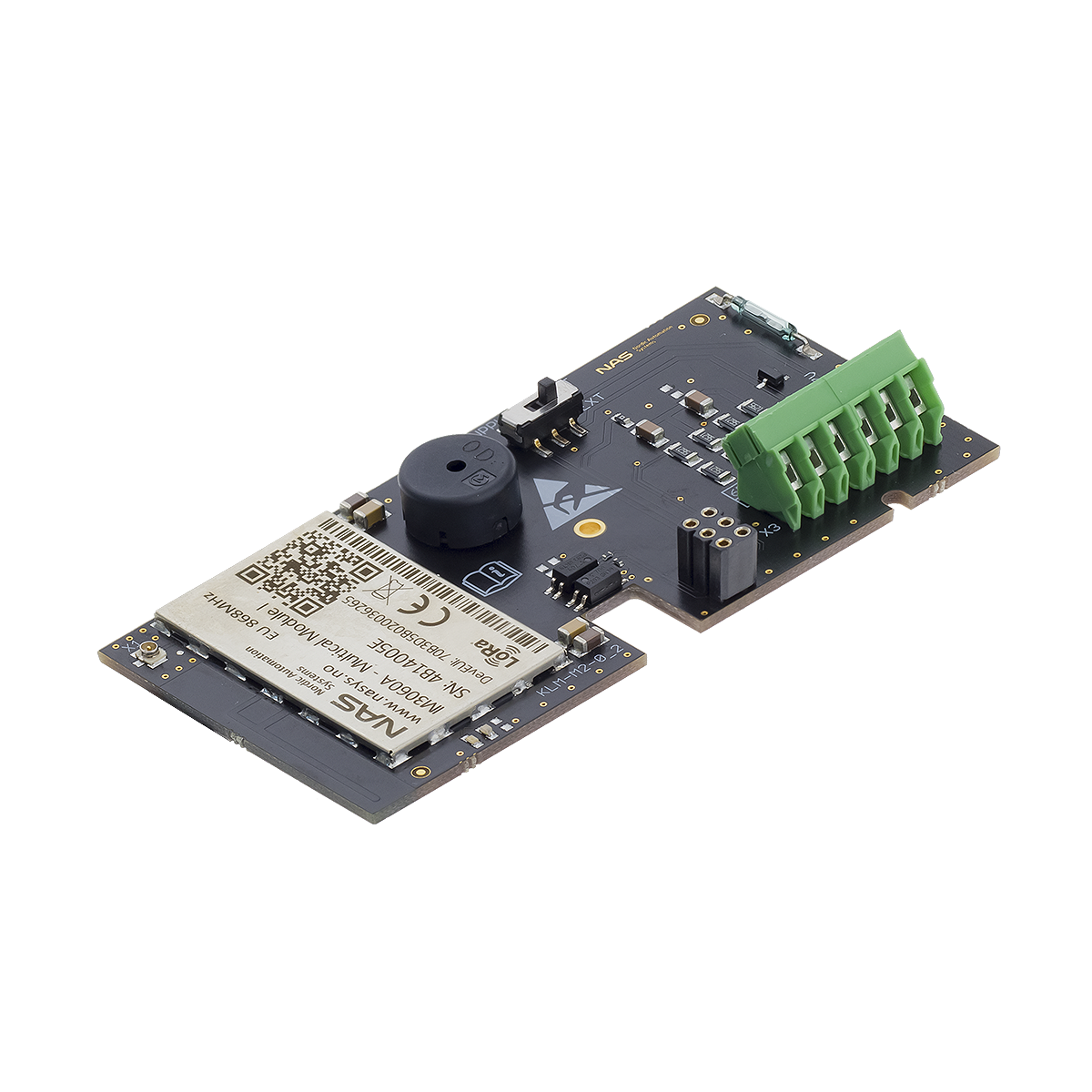

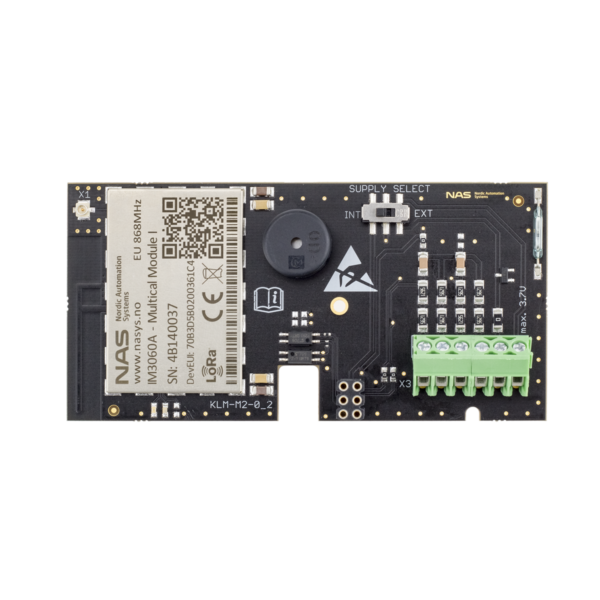

Multical Module I

LoRaWAN Multical Module enables the acquisition of heat consumption data from Kamstrup Multical series meters and transmits it wirelessly to the available LoRaWAN™ network. LoRaWAN™ Multical Module is meant to be attached to the existing meter as internal module.

Efficient

LoRaWAN Multical Module has bidirectional, long range transceiver with low power consumption.

Intelligent

Real-time consumption data is gathered wirelessly and processed automatically. Data is accessible from your LoRaWAN™ provider.

Ordering code IM3060*

Category:

Features

  • Long range wireless data transmission
  • Kamstrup data input port
  • Metering
  • Configurable reporting interval
  • Maintenance free – install &  forget
  • Easy installation
  • Secure communication
  • 4x 4..20mA analog input ports
  • 2x pulse input ports
  • 10…30V 50mA DC input
  • DC output for Kamstrup module
  • Internal BT antenna

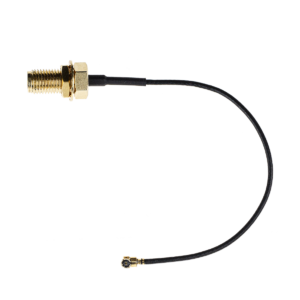

  • U.fl antenna connector
  • Modbus interface

Additional information

Physical

Width

44.3 mm

Height

11.2 mm

Length

89.3 mm

Weight

19 g

Operational

Operating temperature

-40°C … +60°C

Tx power

up to +20dBm

Communication

LoRaWAN™

Rx Sensitivity

-140dBm

Download

Multical Module data sheet

*For specific order code please see the data sheet. Samples available under MOQ quantity.
