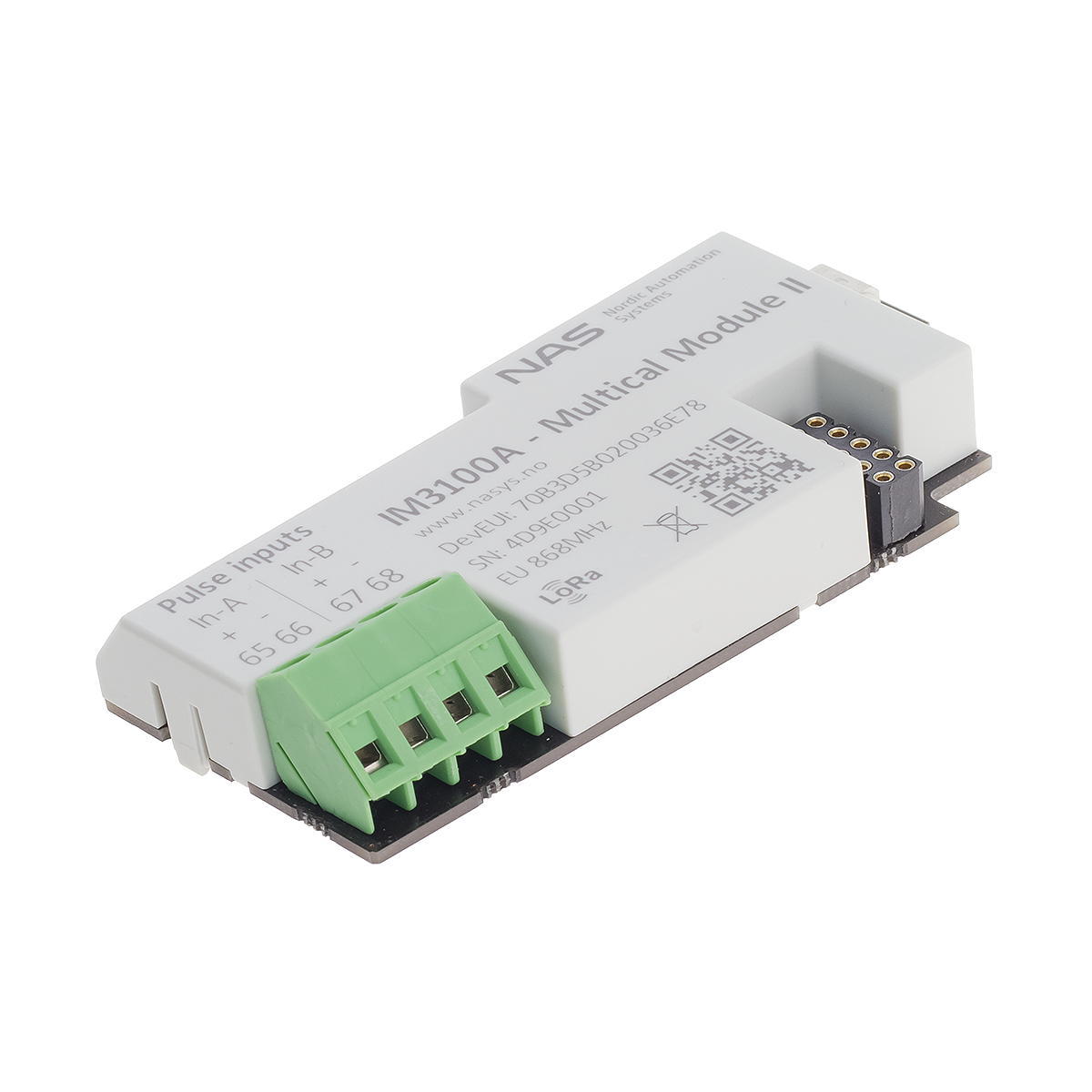

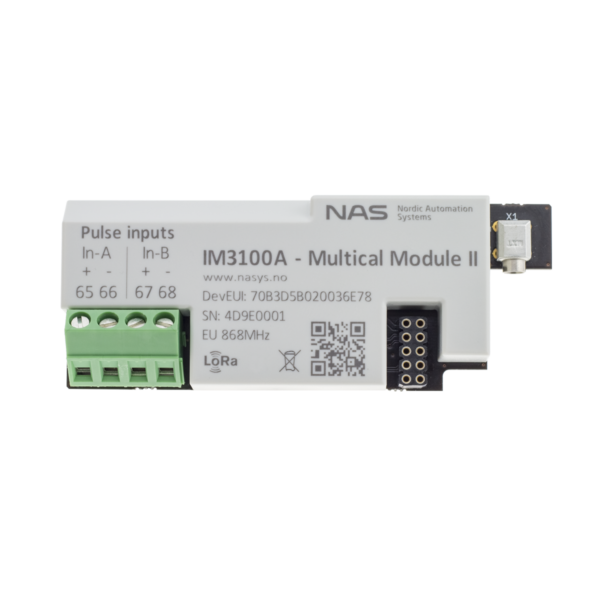

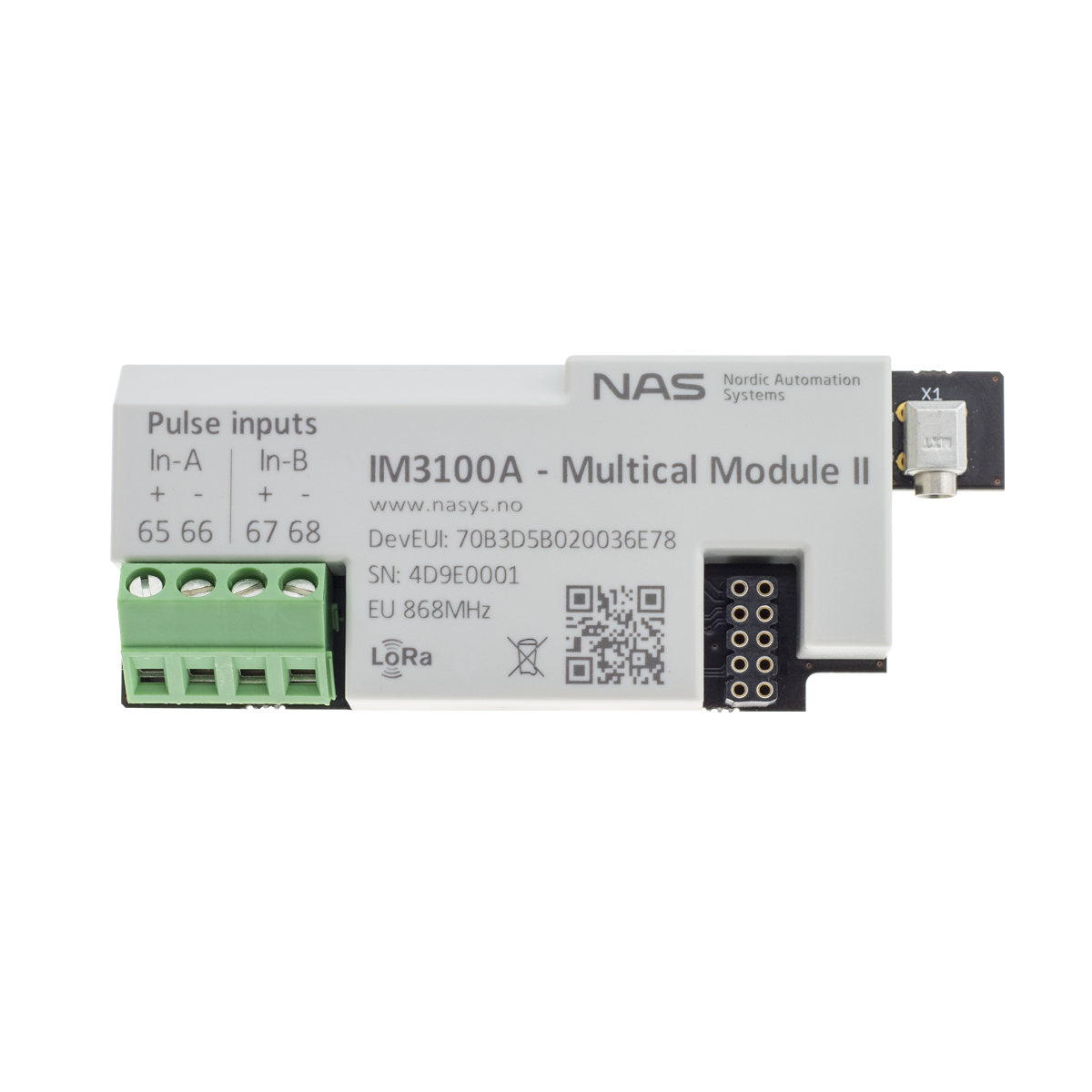

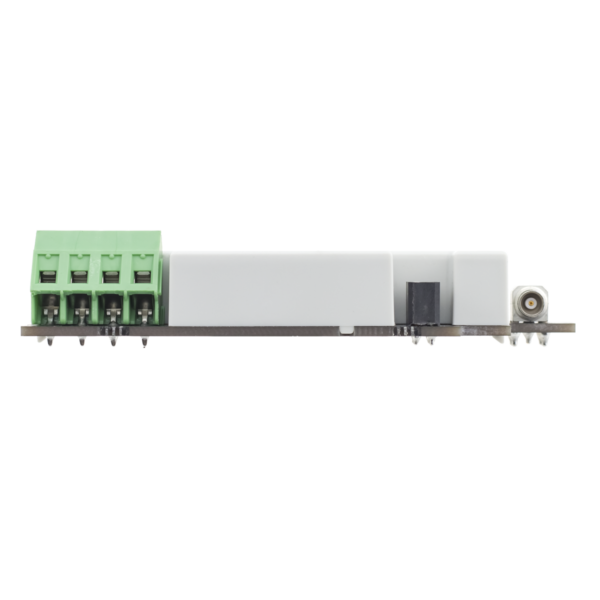

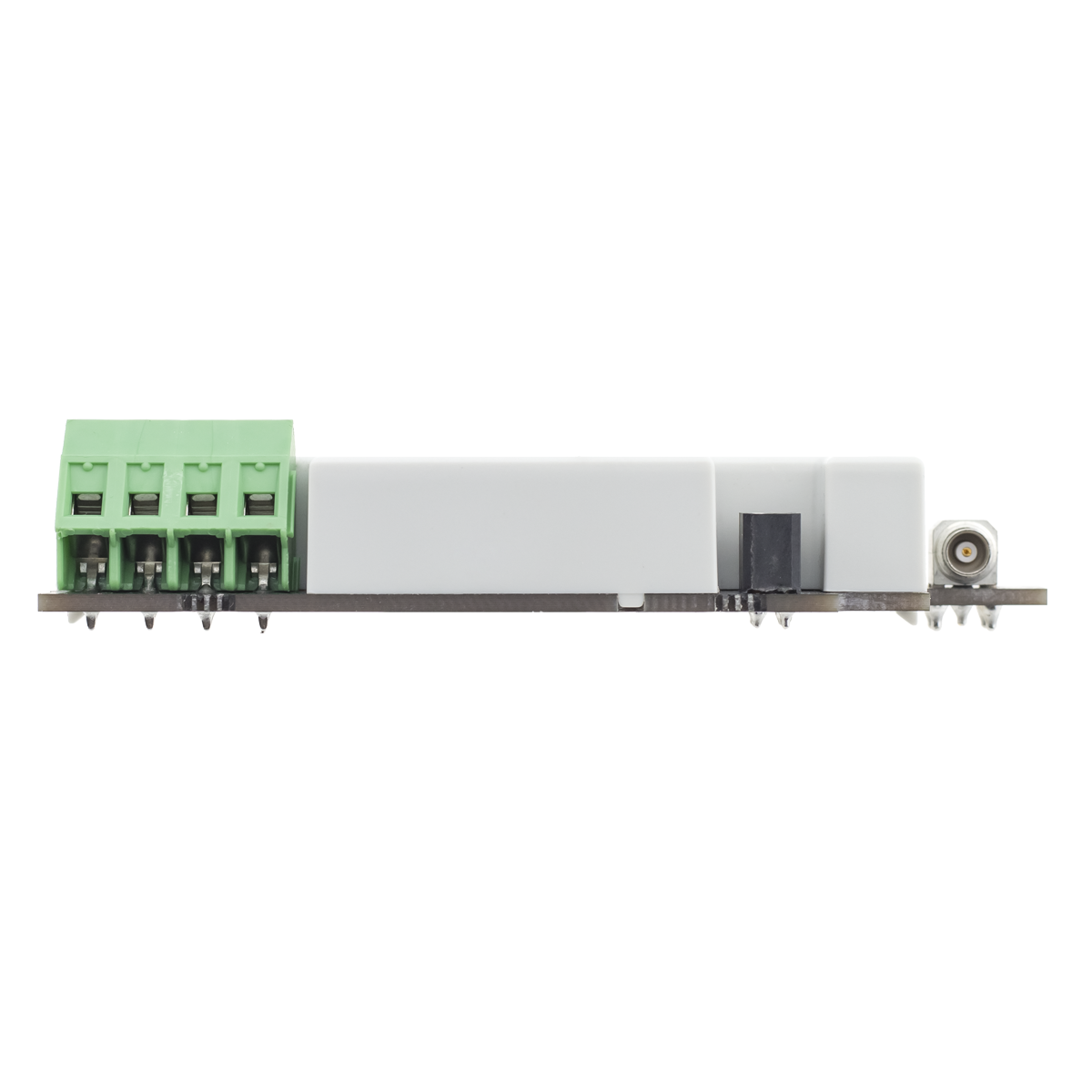

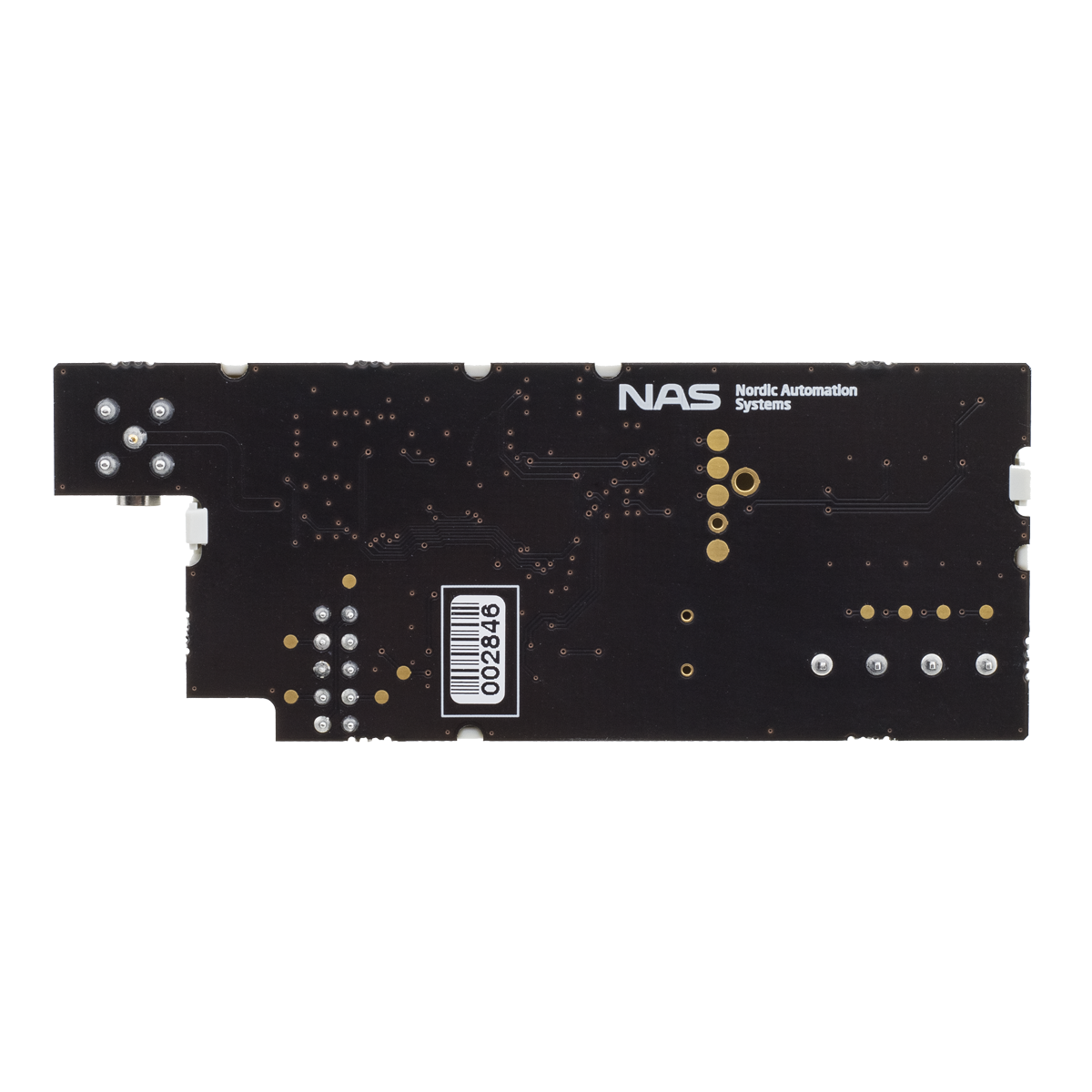

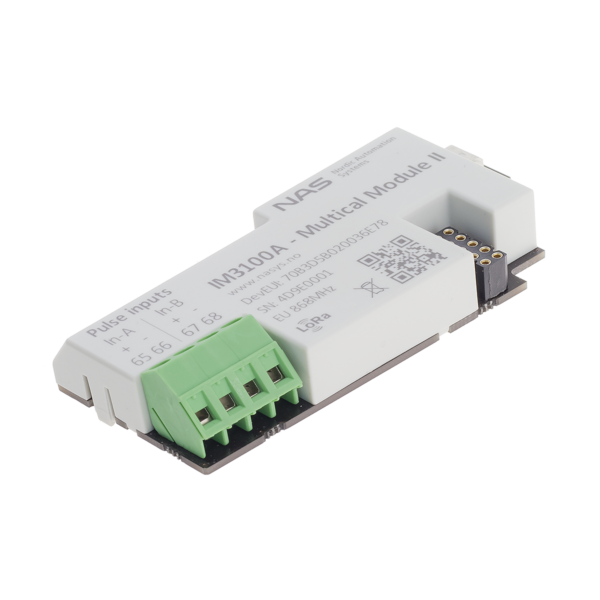

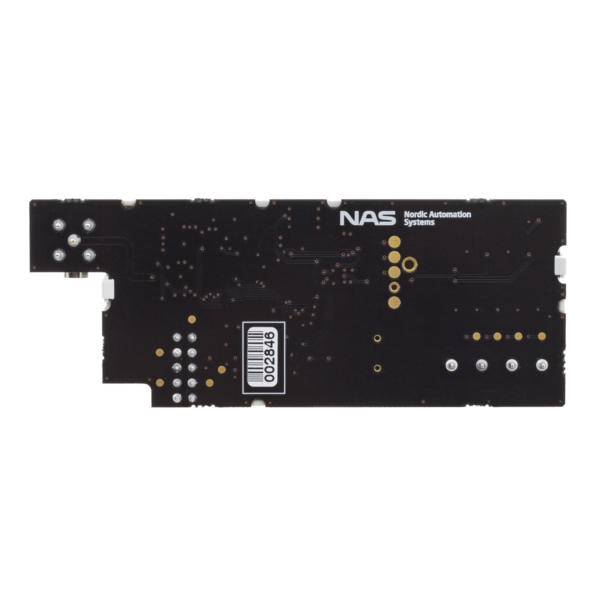

LoRaWAN™ Multical® Module II

LoRaWAN™ Multical® Module II enables the acquisition of heat consumption data from Kamstrup Multical® series meters. With bidirectional, long range transceiver, the real-time data is gathered and transmitted automatically to available LoRaWAN™ network. Module is placed into the existing meter as an internal module.

Compatibility

  • Multical® 403
  • Multical® 603

Ordering code IM3100A*

Category:

Features

  • Long range wireless data transmission
  • 2x pulse input ports
  • Configurable reporting interval
  • Secure communication
  • Internal BT antenna

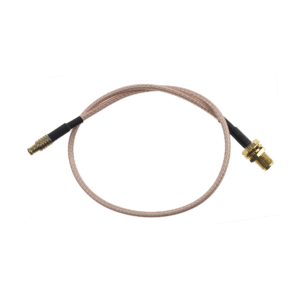

  • MCX antenna connector
  • Easy installation
  • Maintenance free – install &  forget

Additional information

Physical

Width

35 mm

Height

18.9 mm

Length

90 mm

Weight

27.4 g

Operational

Operating temperature

-40°C … +60°C

Tx power

up to +20dBm

Communication

LoRaWAN™

Rx Sensitivity

-140dBm

Activation type

OTAA

Download

Multical Module II data sheet

bool(false)
*For specific order code please see the data sheet. Samples available under MOQ quantity. Multical® is a registered trademark of Kamstup A/S.
LoRaWAN™ is an unregistered trademark of Semtech Corporation.
