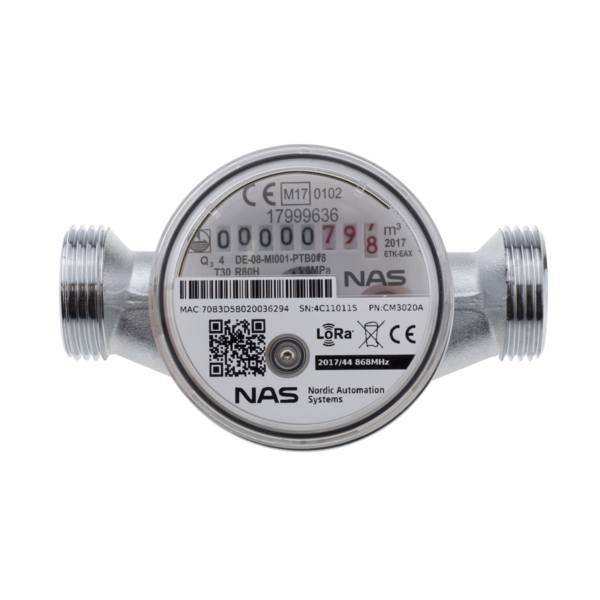

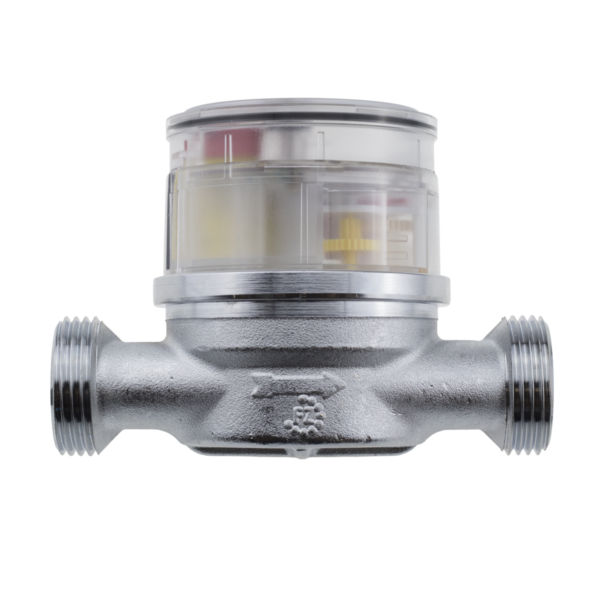

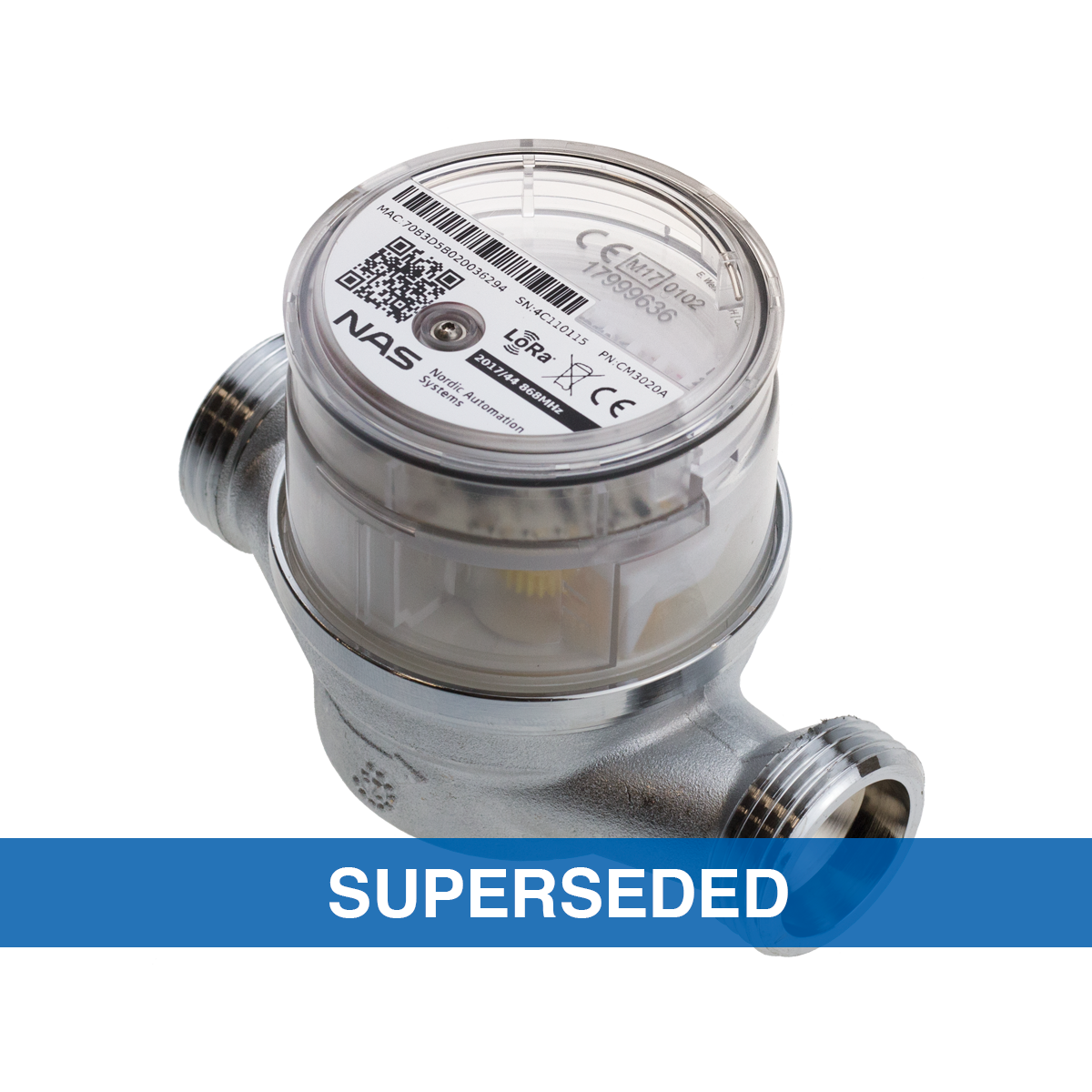

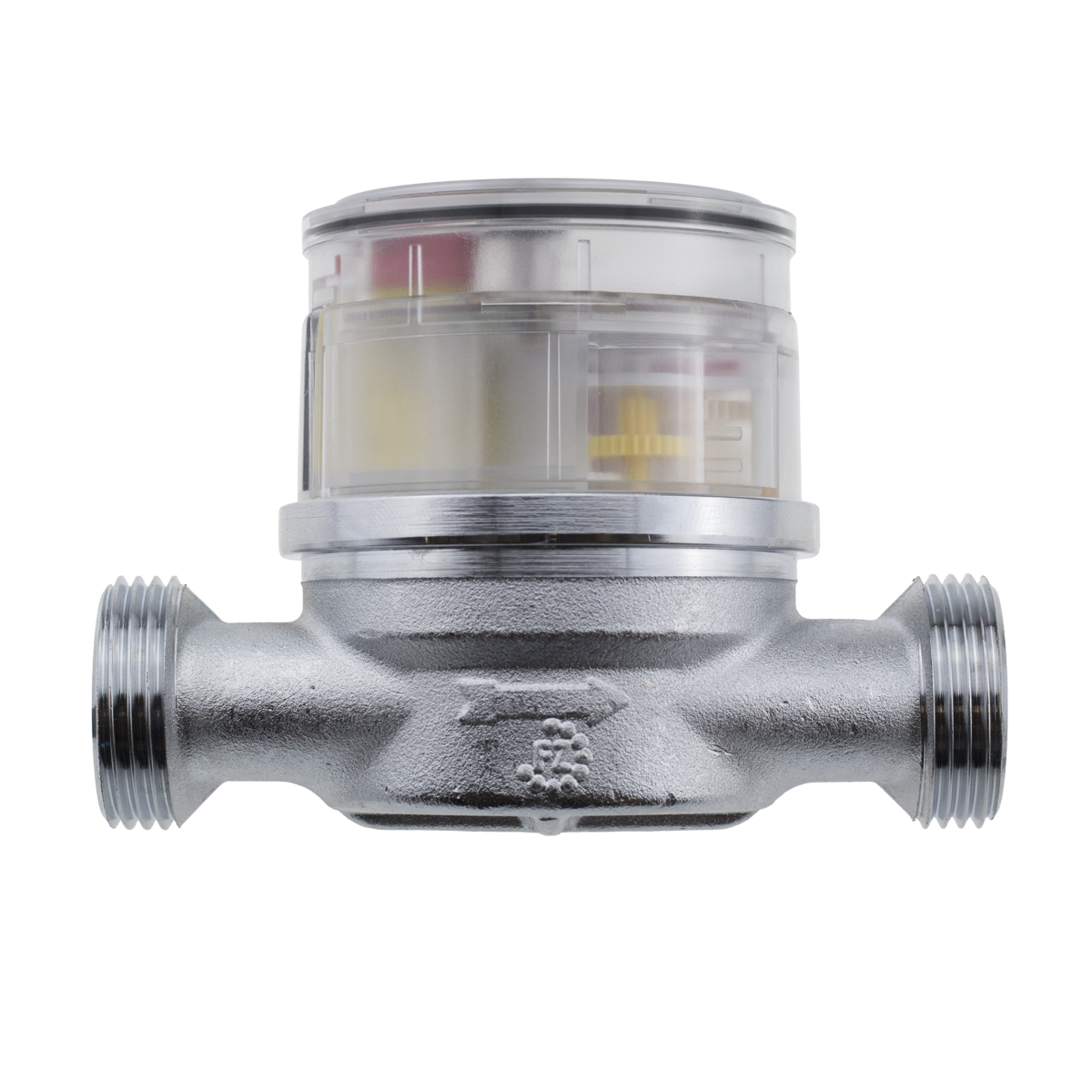

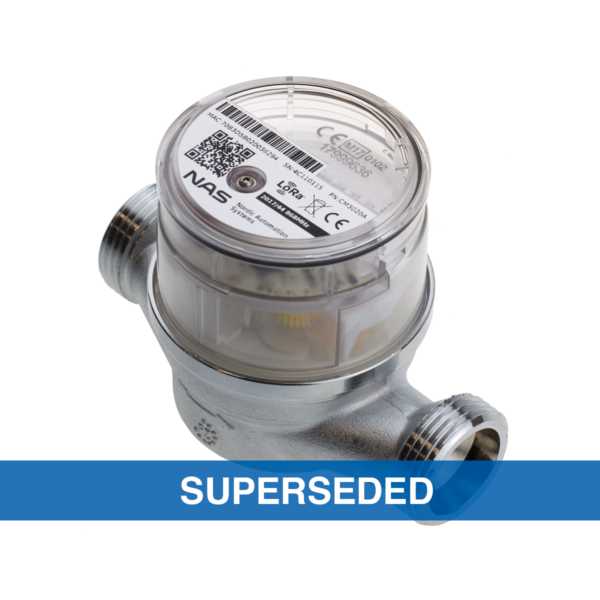

Metromatic™ WMS

Metromatic® WMS single-jet dry meter guarantees precise measuring results and exceptional reliability. The absolute separation of wet and dry area protects the totalizer from deposits and corrosion. Therefore its rollers are always legible.

Equipped with LoRaWAN™ communication module the real-time usage data is gathered and processed automatically. Data is accessible from your LoRaWAN™ provider.

Ordering code CMM000*

Category:

Features

  • Ready for integration into any AMR system
  • MID measurement accuracy class (Q3/Q1) up to R250 horizontal and up to R80 vertical
  • 360° rotatable 8-digit totalizer
  • Nickel-plated brass body
  • Maximum pressure load 1,6 MPa

Additional information

Physical

Length

80 – 130 mm

Height

79 mm

Weight

0,4 – 0,64 kg

Size range

DN15 – DN20

Operational

Thread

3/4"-1"

Temperature range

-50°C…+90°C

Flow rate Q'

3200 – 5050

Nominal flow

Q3 2,5 up to Q3 4

Communication

LoRaWAN™

Activation type

OTAA

Download

Metromatic® WMS product configurator

LoRaWAN™ Modularis Module quick start guide

LoRaWAN™ Modularis Module data sheet

						*For specific order code please see the data sheet. Samples available under MOQ quantity.
					Metromatic™ is a registered trademark of Nordic Automation Systems.
