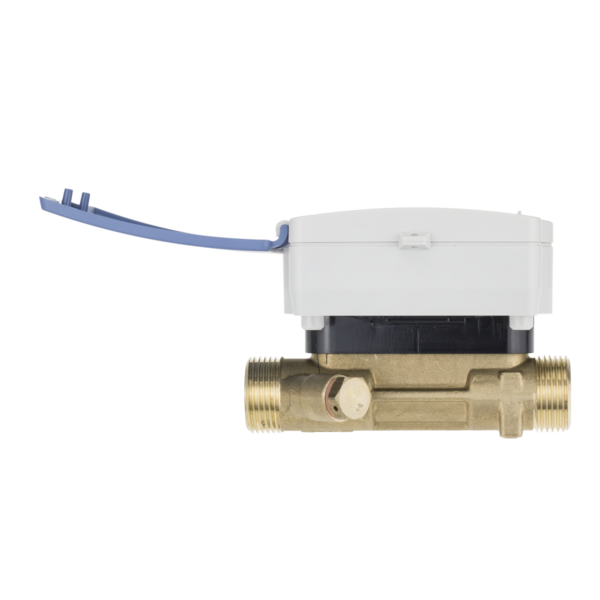

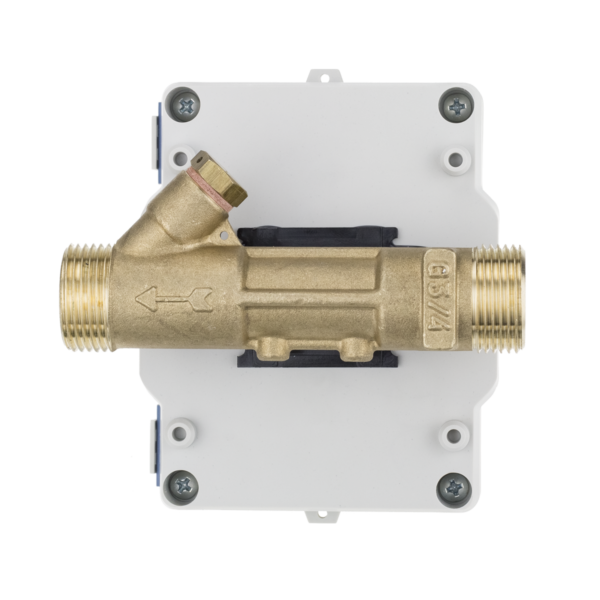

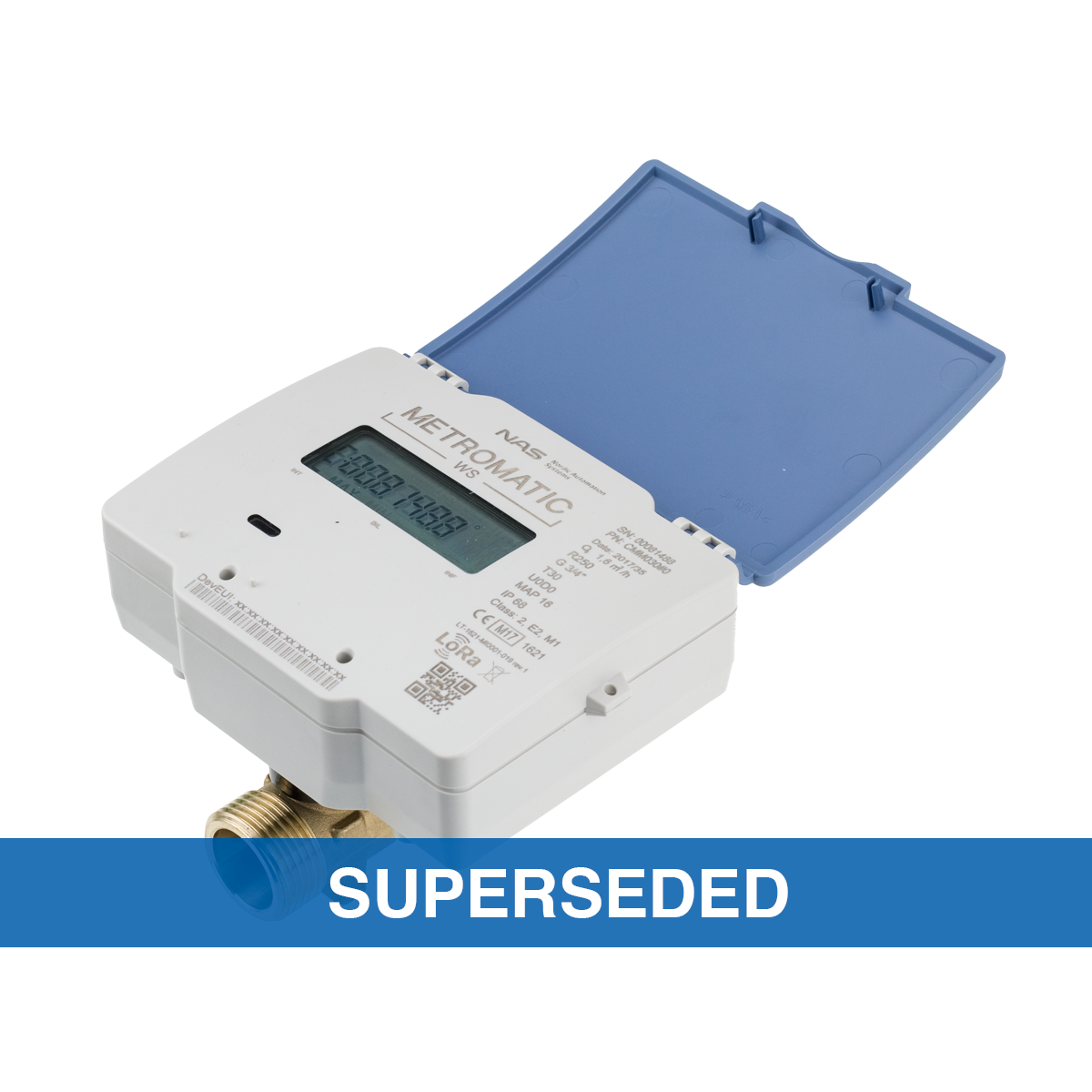

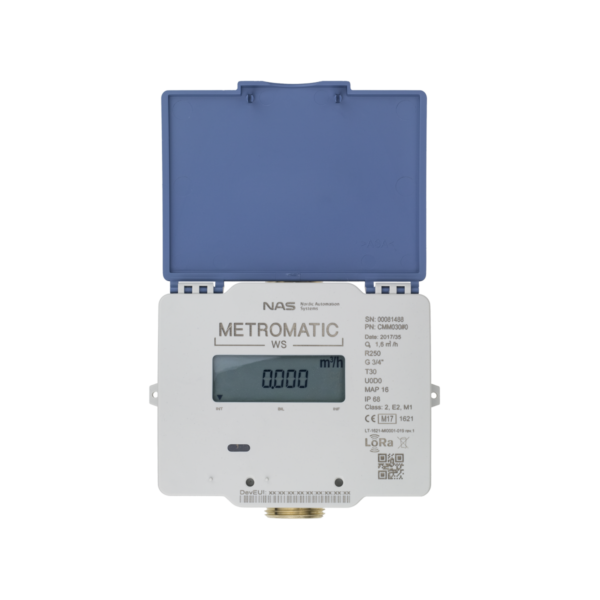

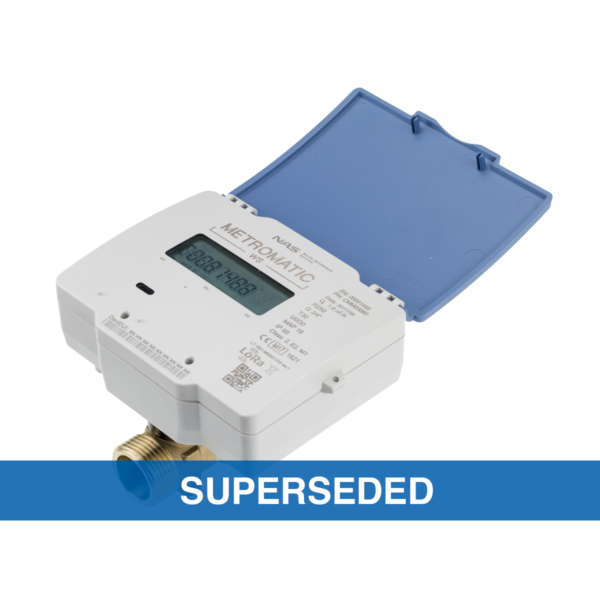

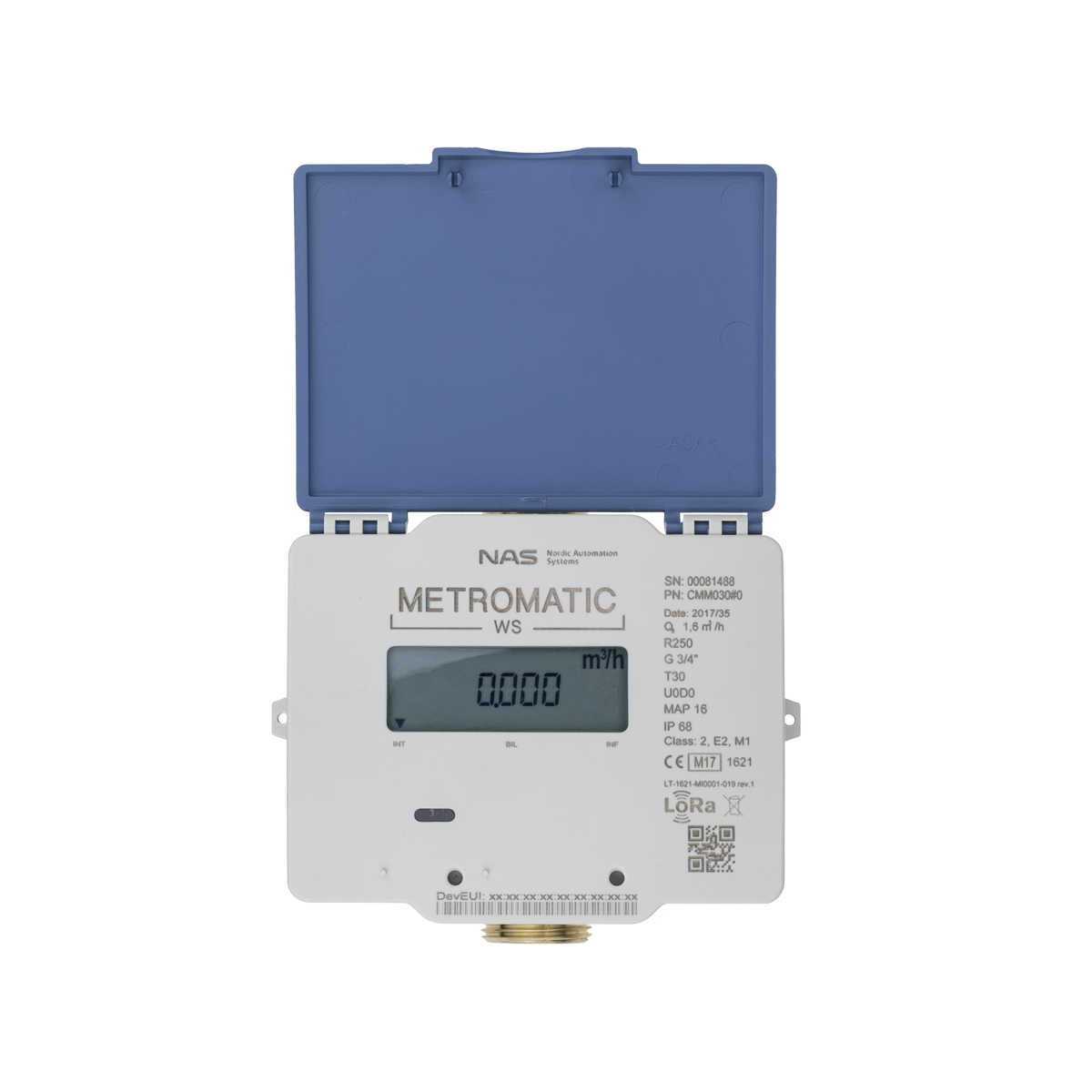

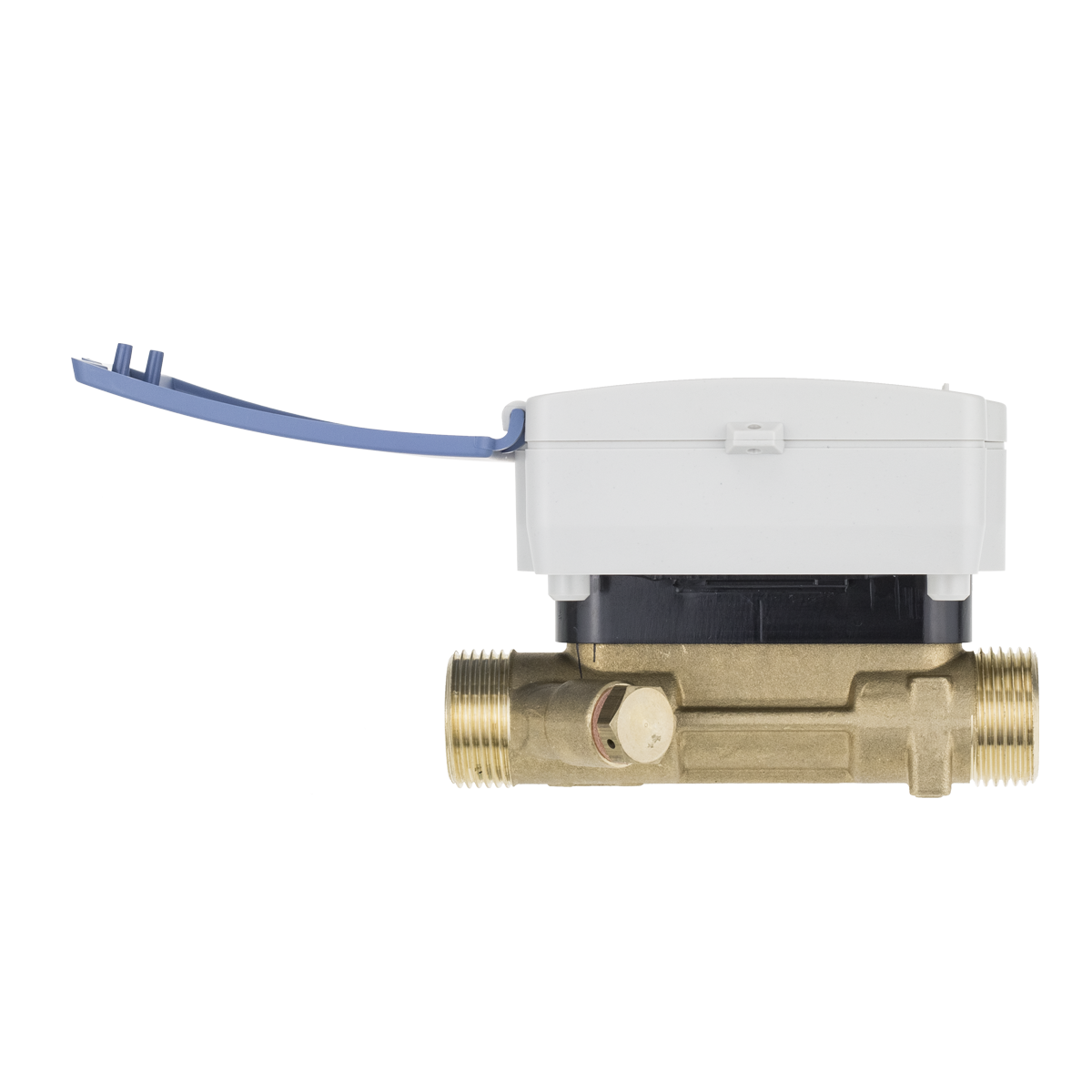

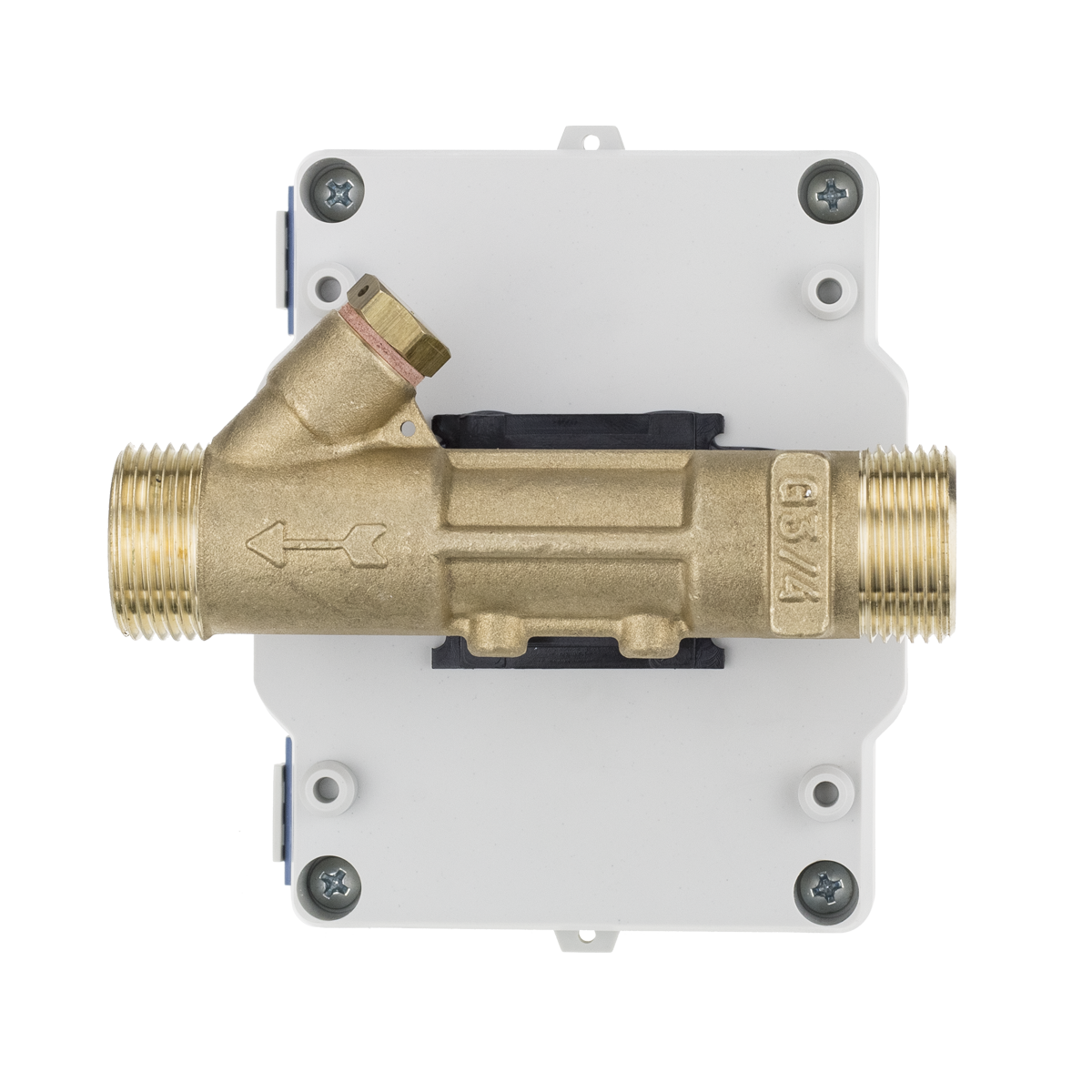

Metromatic™ WS

Ultrasonic water meter Metromatic™ WS is designed for measurement of cold and hot water consumption in households and blocks of flats, as well for industrial applications.

Bi-directional, battery powered, long range-low power transceiver will assures, that the real-time data is gathered and processed automatically.  Data is accessible from your LoRaWAN™ provider.

Ordering code CMM030*

Features

  • Temperature class T30, T30/T90, T90
  • Ambient class B/C
  • Protection class IP68
  • Nominal pressure PN16/25 bar
  • Battery life > 16 years*
  • Measure reverse low (to separate register)
  • Internal data logger

Additional information

Physical

Length

110-350 mm

Width

116.6 – 196 mm

Height

80.4 – 196 mm

IP Rating

IP68

Size range

DN15 – DN100

Operational

Ambient temperature

Class B / EN 14154

Tx power

up to +20dBm

Communication

LoRaWAN™

Rx Sensitivity

-140dBm

Activation type

OTAA

Download

Metromatic WS data sheet

bool(true)
*For specific order code please see the data sheet. Samples available under MOQ quantity. Metromatic™ is a registered trademark of Nordic Automation Systems OÜ.
