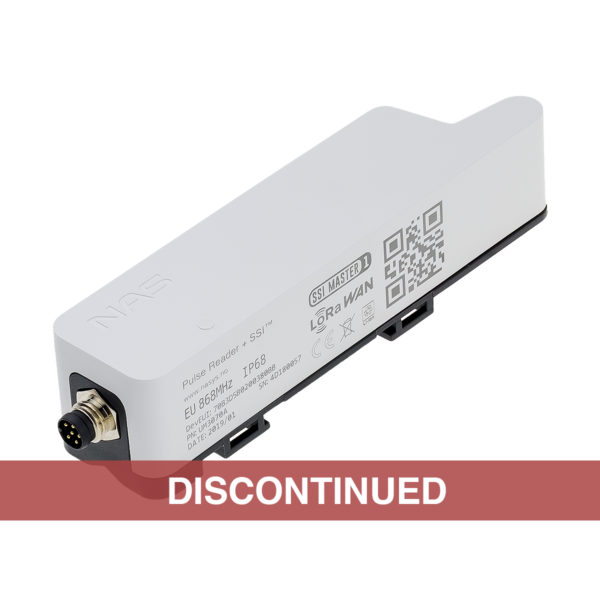

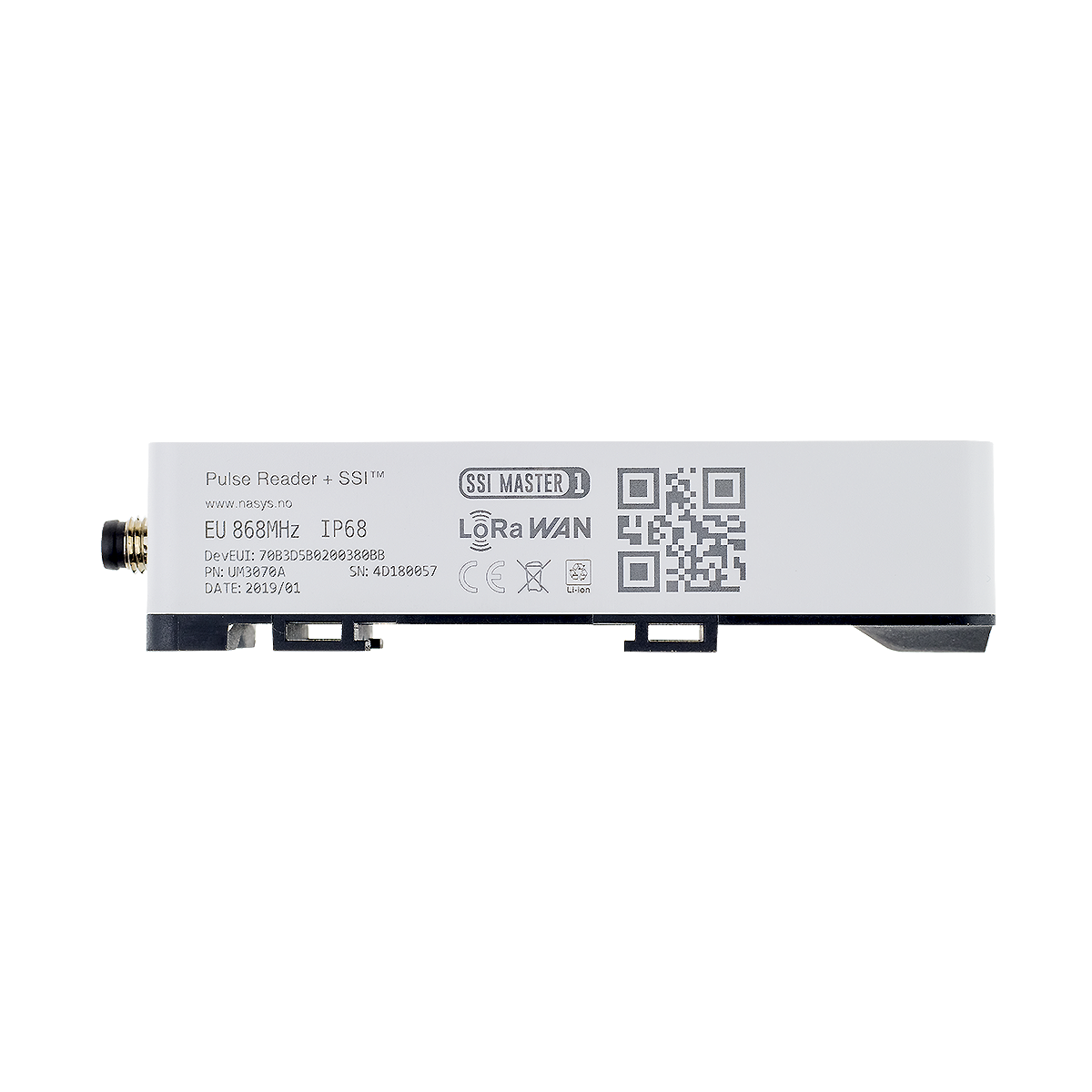

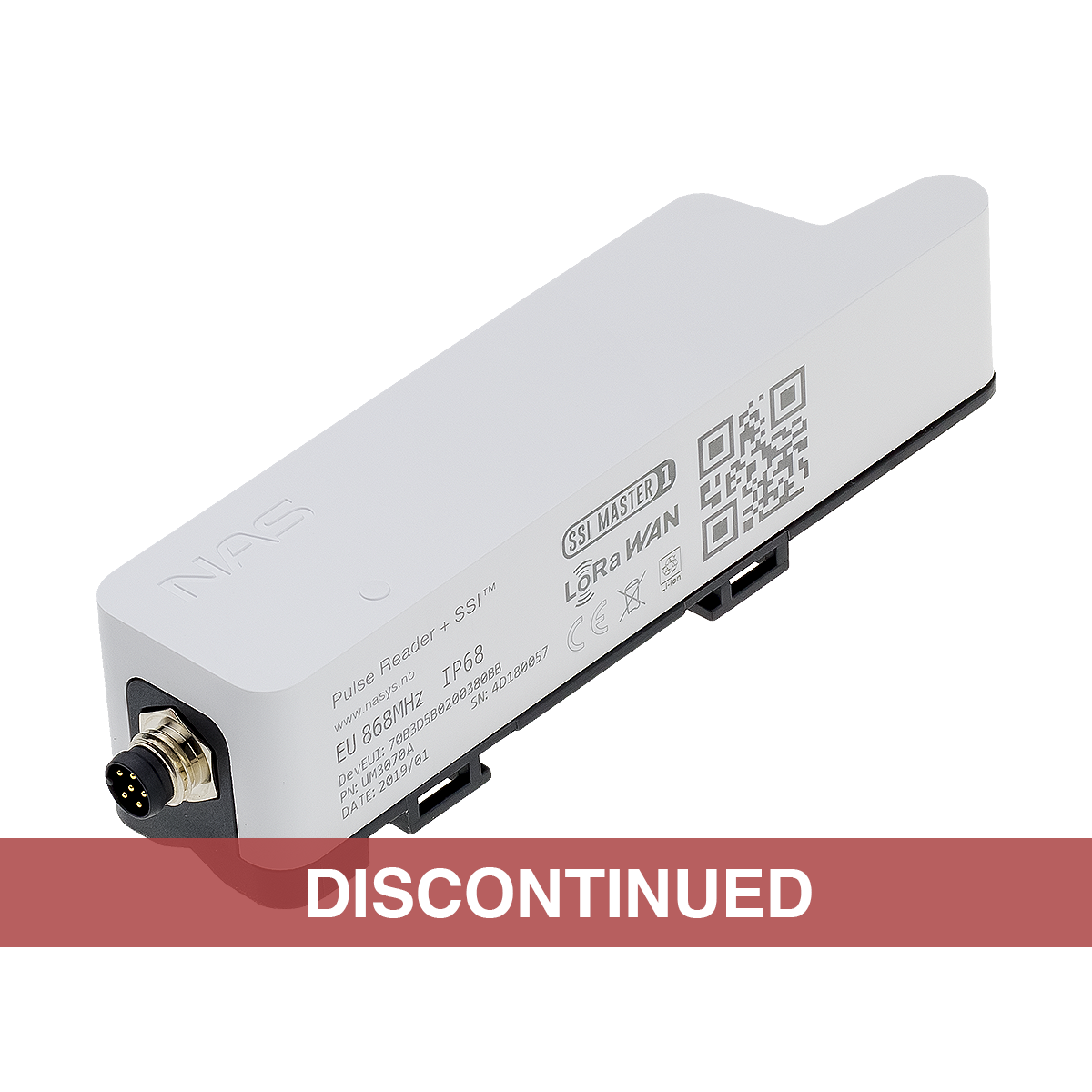

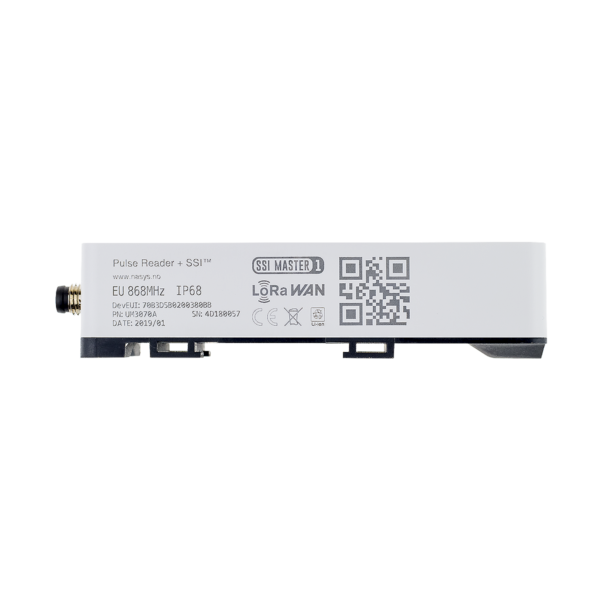

LoRaWAN™ Pulse Reader + SSI™

LoRaWAN™ Pulse Reader + SSI™ enables acquisition of data from the pulse emitting devices or with SSI™ sensors and transmits it to the LoRaWAN™ network. IP68 Pulse Reader + SSI™ is designed to be connected to the existing devices pulse or to the SSI™ sensor.

Data is gathered as well as processed automatically and accessible from your LoRaWAN™ provider.

Ordering code UM3070*

Features

  • Long range wireless data transmission
  • Pulse counting
  • SSI™ (NAS Smart Sensor Interface) interface
  • Pre-installed long-life battery
  • Built-in antenna
  • DIN rail mount
  • Trigger mode
  • Configurable reporting interval
  • Maintenance free – install & forget
  • Easy installation
  • Average life 8 years*
  • Secure communication
  • Thresholds

* Lifetime depends from the device location and reporting interval.

Additional information

Physical

Width

27.2 mm

Height

28.0 mm

Length

109.5 mm

Weight

75 g

IP Rating

IP68

Operational

-20°C … +65°C

Tx power

up to +20dBm

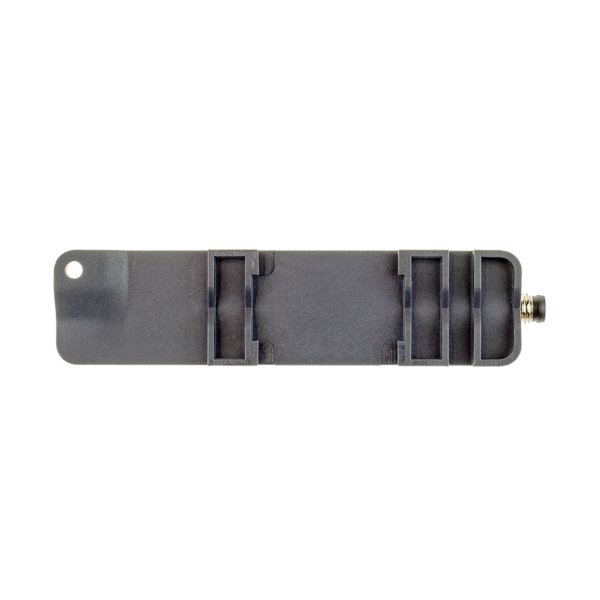

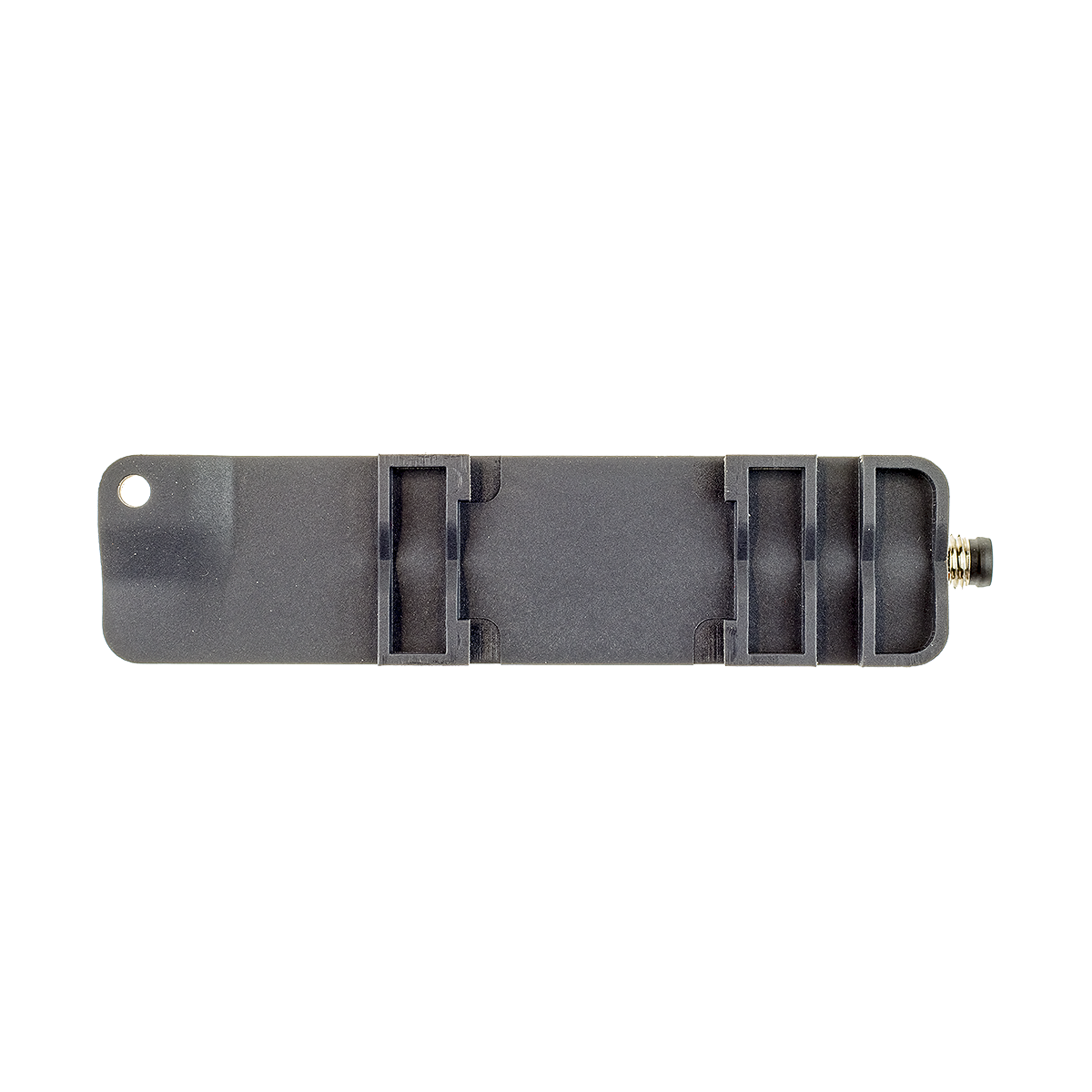

Fixing system

DIN-rail, wall, pipe (cable tie)

Communication

LoRaWAN™

Frequency

868 MHz; 922 MHz; 915 MHz; 923MHz; 780MHz; 922MHz; 433MHz; 470MHz; 866MHz.

Activation type

OTAA

Download

Pulse Reader + SSI™ UM3070 data sheet

bool(true)
*For specific order code please see the data sheet. Samples available under MOQ quantity. LoRaWAN™ is an unregistered trademark of Semtech Corporation.
SSI™ is an unregistered trademark of Nordic Automation Systems OÜ.
