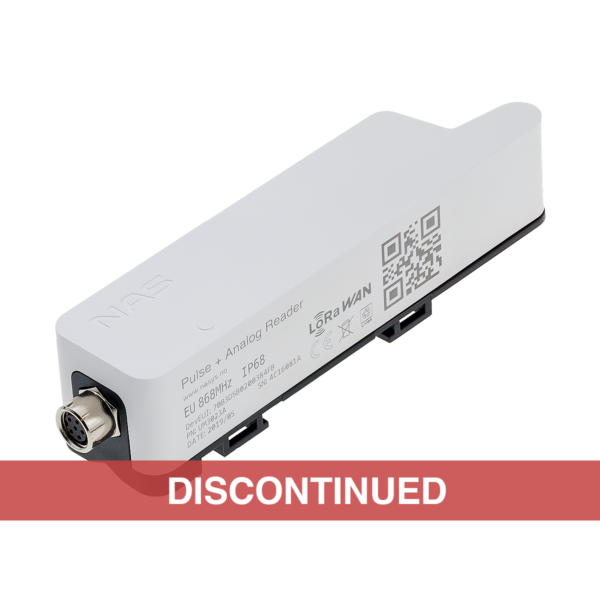

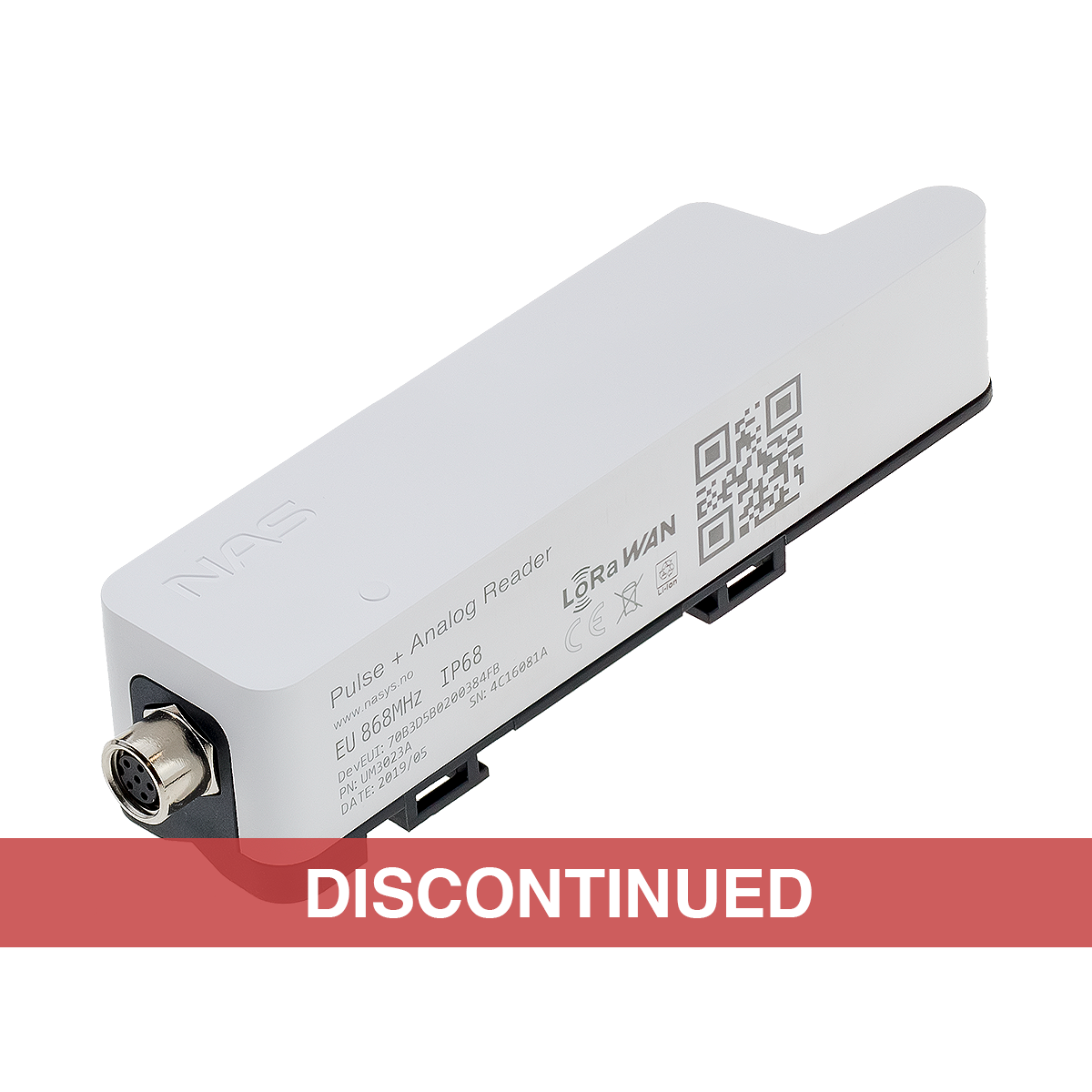

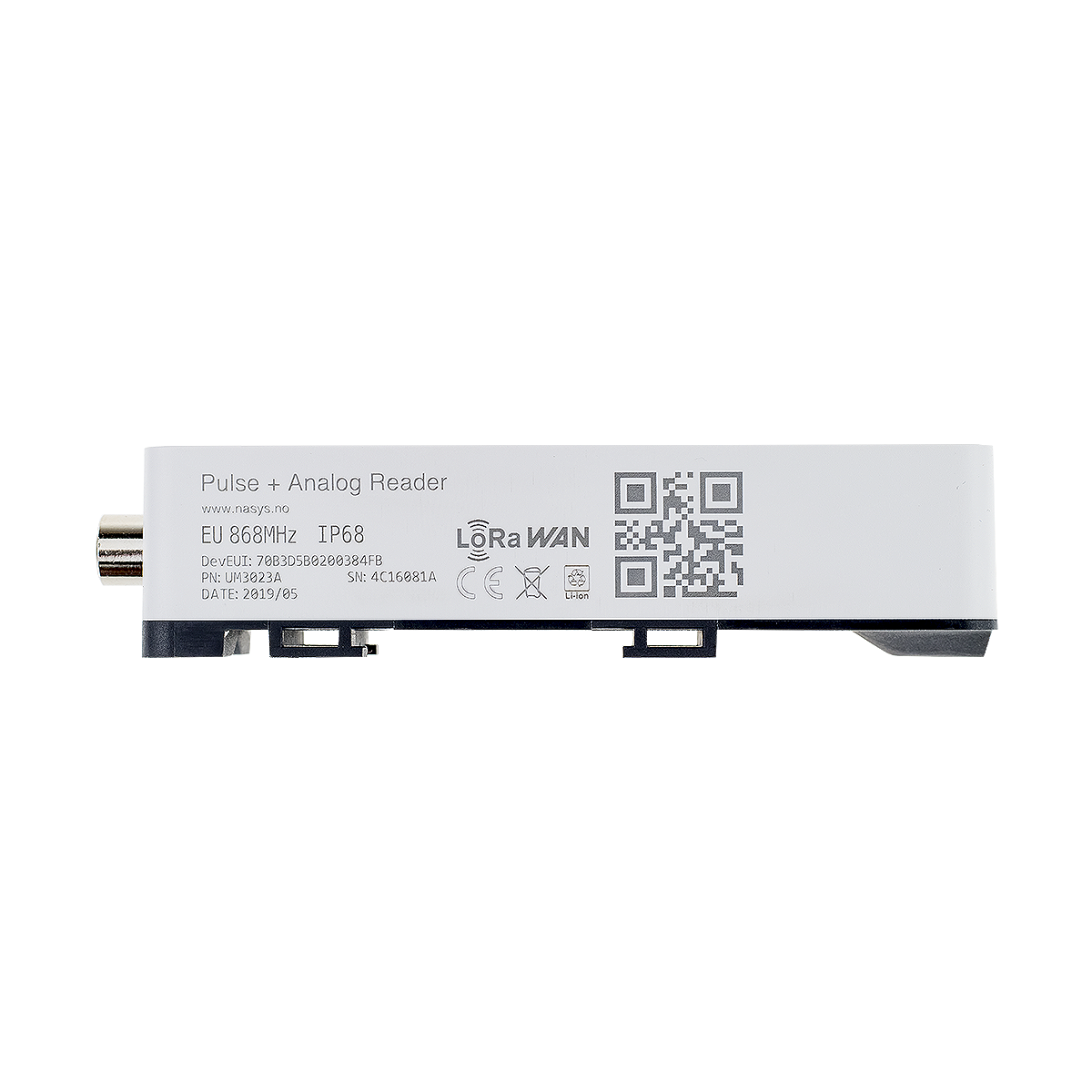

LoRaWAN™ Pulse+Analog Reader

LoRaWAN Pulse + Analog Reader enables acquisition of data from the pulse emitting and from devices with analog interface and transmits it wirelessly to the LoRaWAN™ network. Bidirectional, long-range transceiver is designed to be connected to the existing devices’ pulse or analog signal output.

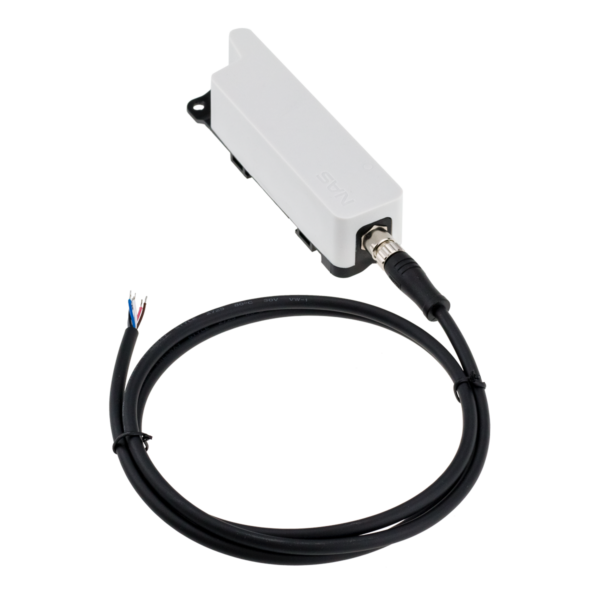

M8 cable is included in LoRaWAN Pulse + Analog Reader package.

Ordering code UM3023*


Features

  • Long range wireless data transmission
  • 2x pulse input ports (2 digital channels)
  • Pulse counting
  • 2 analog channels
  • 4..20mA interface
  • 0..10V interface
  • Pre-installed long-life battery
  • Built-in antenna

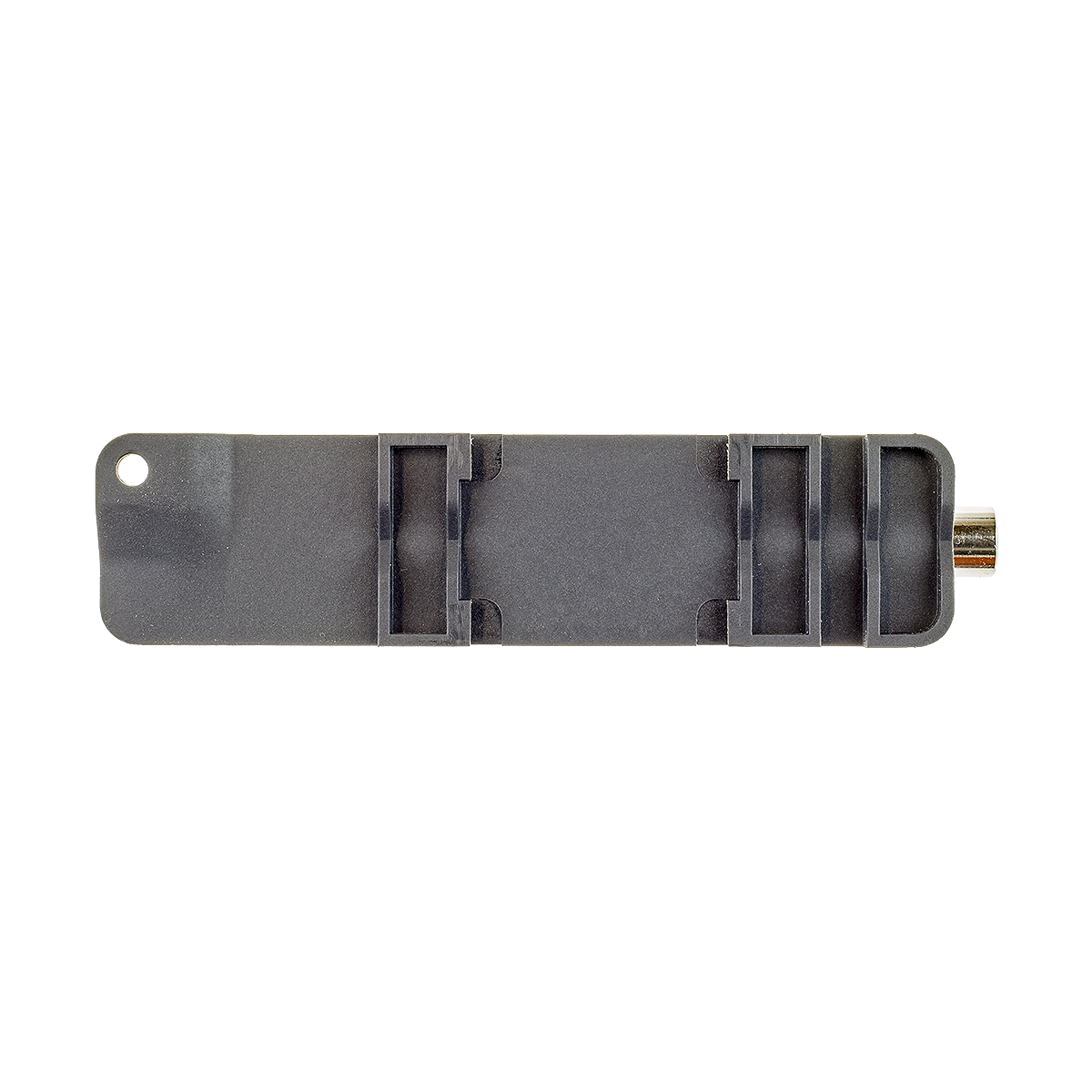

  • DIN rail mount
  • Usage detection
  • Configurable reporting interval
  • Maintenance free – install & forget
  • Easy installation
  • Average life 8 years*
  • Secure communication

* Lifetime depends from the device location and reporting interval.

Additional information

Physical

Width

27.2 mm

Height

28.0 mm

Length

109.5 mm

Weight

75 g

IP Rating

IP68

Operational

Operating temperature

-20°C … +65°C

Tx power

up to +20dBm

Fixing system

DIN-rail, wall, pipe (cable tie)

Communication

LoRaWAN™

Frequency

868 MHz; 922 MHz; 915 MHz; 923MHz; 780MHz; 922MHz; 433MHz; 470MHz; 866MHz.

Activation type

OTAA

Download

Pulse + Analog Reader UM3023 FW >= 0.7.0

Pulse + Analog Reader UM3023 quick start guide

bool(true)
*For specific order code please see the data sheet. Samples available under MOQ quantity. LoRaWAN™ is an unregistered trademark of Semtech Corporation.
