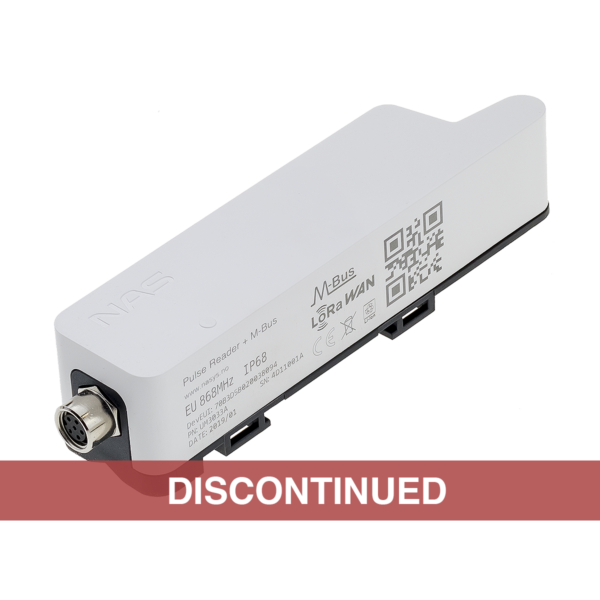

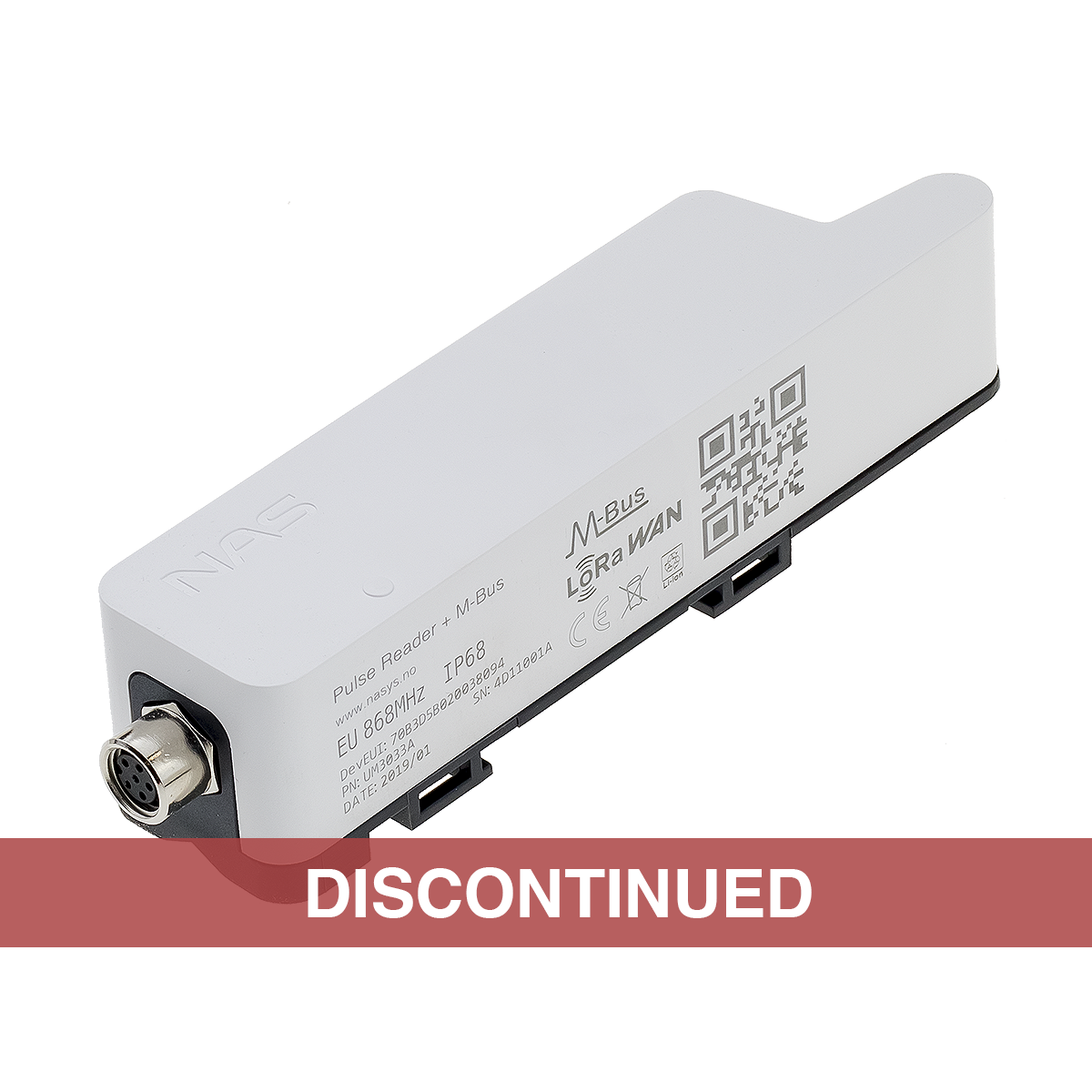

LoRaWAN™ Pulse Reader + M-Bus

LoRaWAN™ Pulse Reader + M-Bus collects data from pulse emitting devices and/or via M-Bus protocol. Battery powered*, long-range transceiver with low power consumption transmits data to the LoRaWAN™ network.

M8 cable is included in LoRaWAN™ Pulse Reader + M-Bus package.

Ordering code UM3033**

Features

  • Long range wireless data transmission
  • Pulse counting
  • M-Bus interface*
  • Pre-installed long-life battery
  • Built-in antenna
  • DIN rail mount
  • Trigger mode
  • Configurable reporting interval
  • Maintenance free – install & forget
  • Easy installation
  • Average life 8 years**
  • Secure communication

*An external power source is needed for M-bus master.

**Lifetime depends from the device location and reporting interval.

Additional information

Physical

Width

27.2 mm

Height

28.0 mm

Length

109.5 mm

Weight

75 g

IP Rating

IP68

Operational

-20°C … +65°C

Tx power

up to +20dBm

Fixing system

DIN-rail, wall, pipe (cable tie)

Communication

LoRaWAN™

Frequency

868 MHz; 922 MHz; 915 MHz; 923MHz; 780MHz; 922MHz; 433MHz; 470MHz; 866MHz.

Activation type

OTAA

Download

Pulse Reader + M-BUS UM3033 data sheet

bool(true)
 *Requires external 24V power source for M-Bus communication. **For specific order code please see the data sheet. Samples available under MOQ quantity. LoRaWAN™ is an unregistered trademark of Semtech Corporation.
