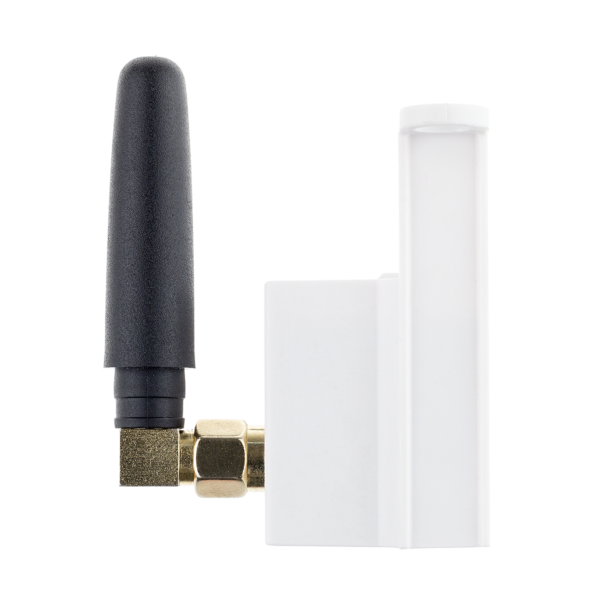

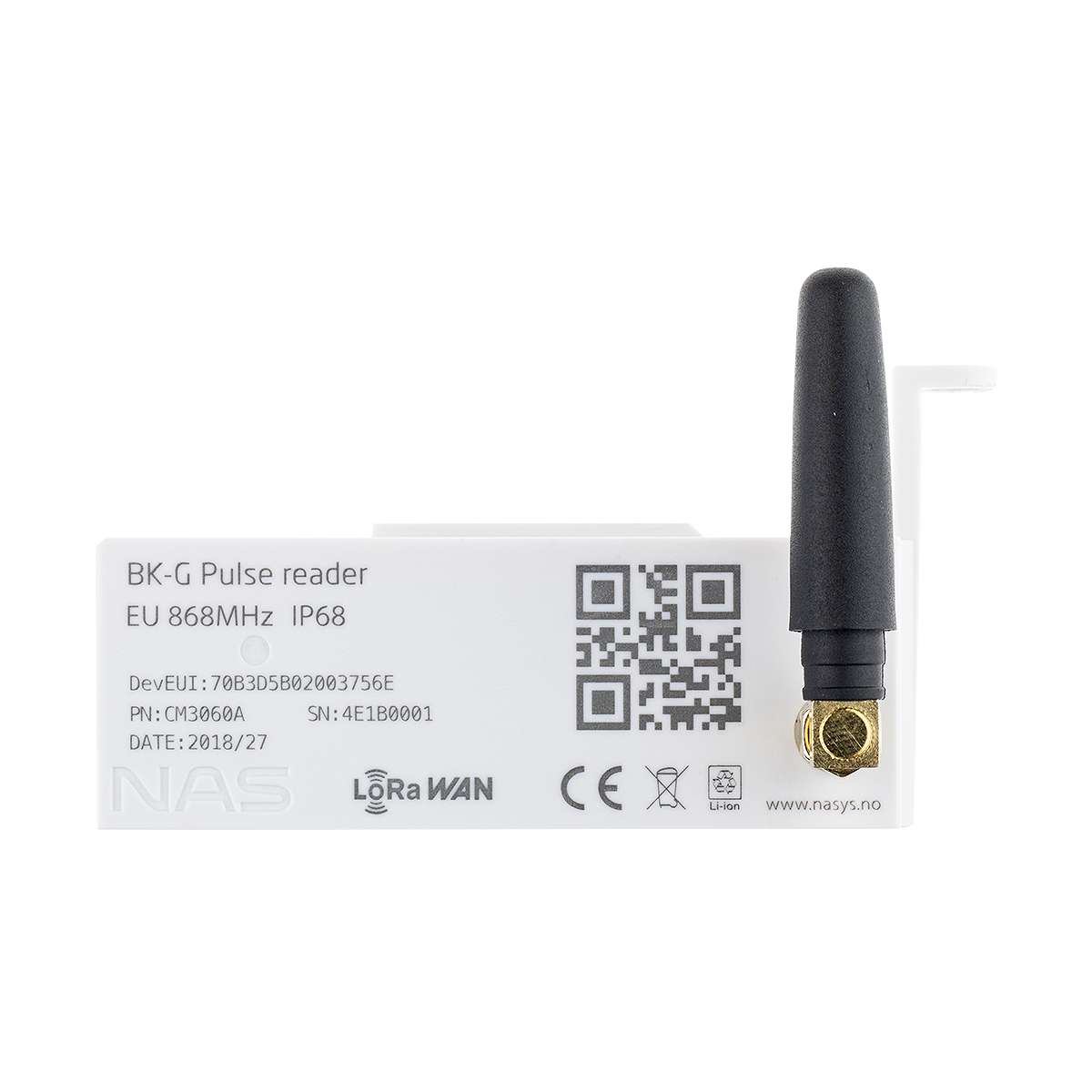

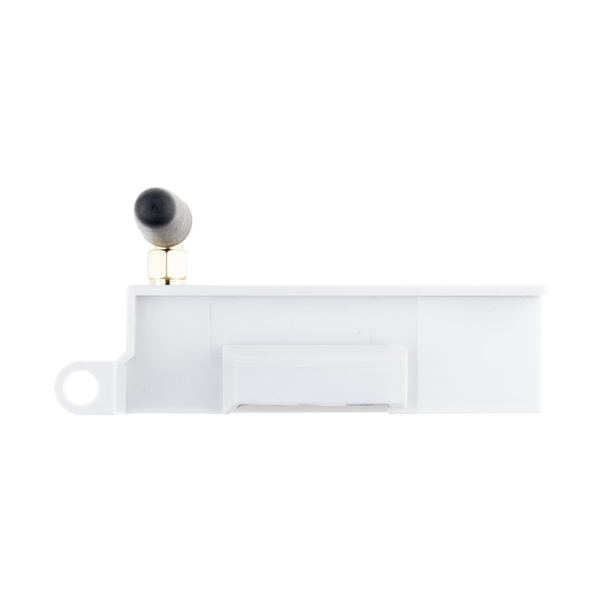

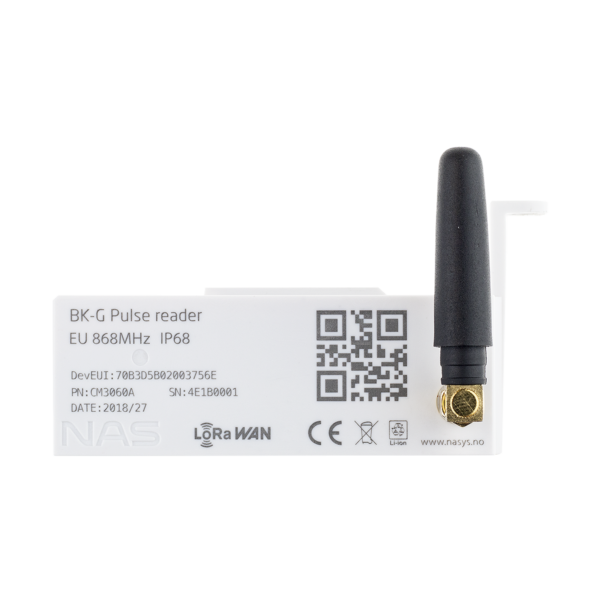

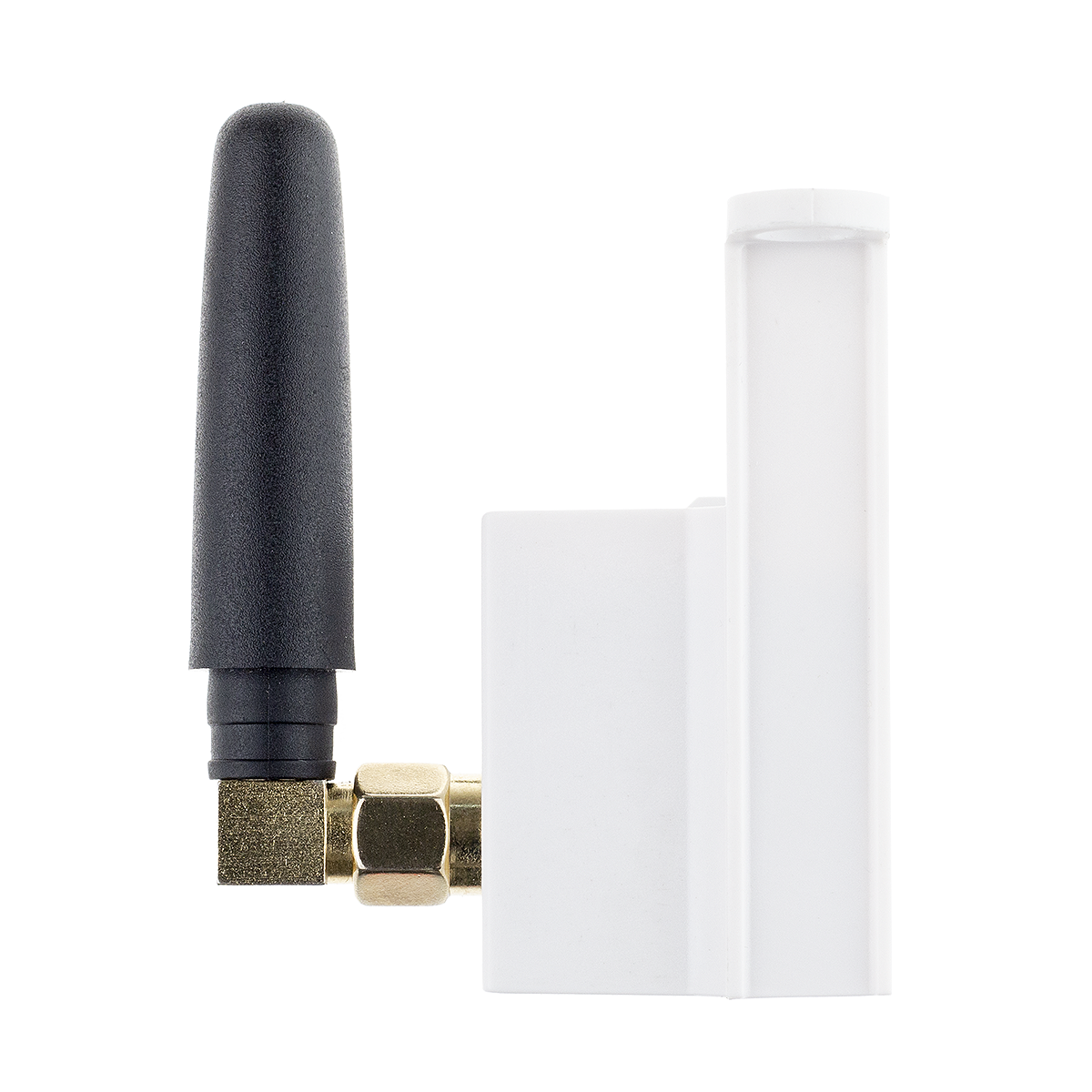

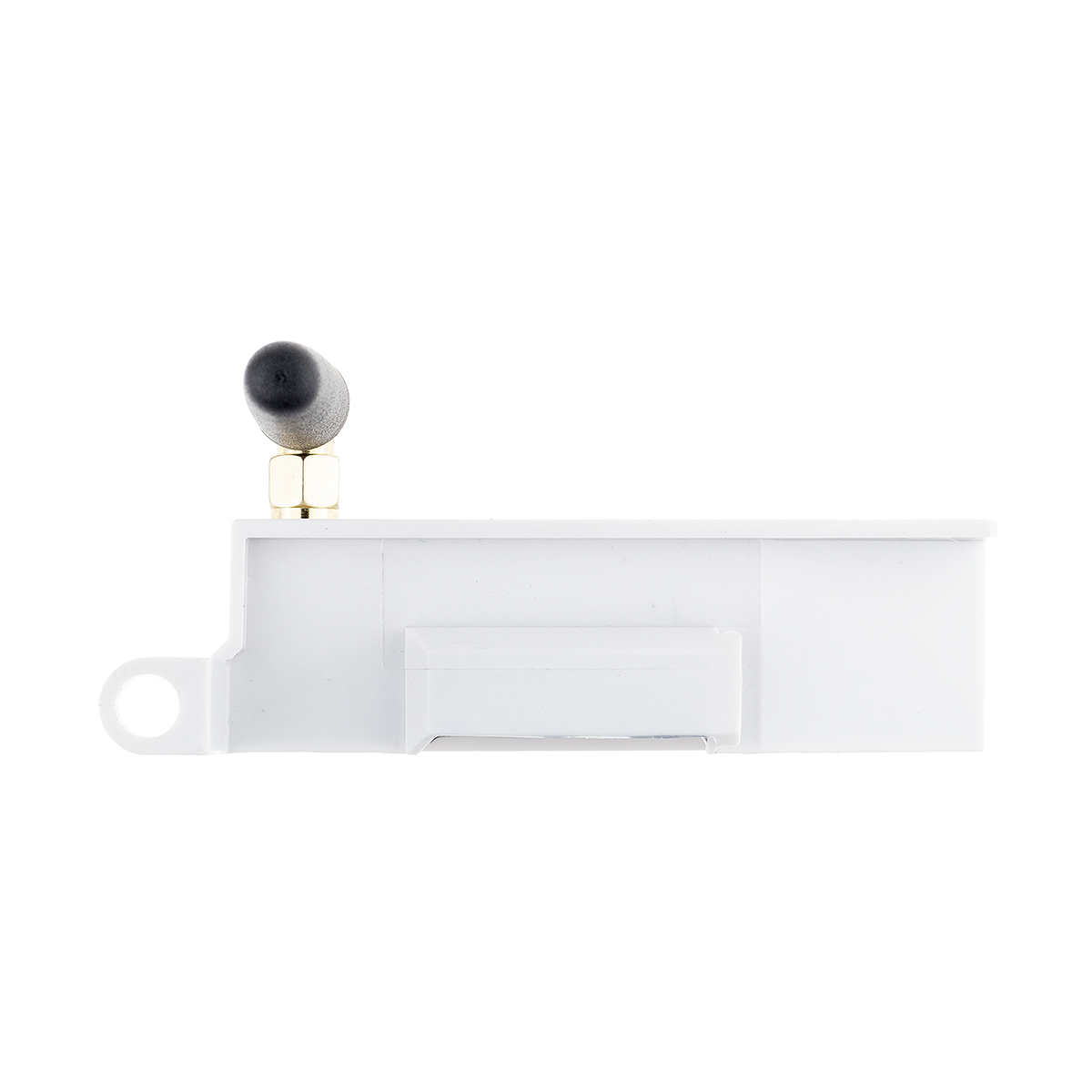

LoRaWAN® BK-G Pulse Reader

LoRaWAN® Pulse reader for Honeywell(Elster) BK-G diaphragm gas meters BK-G1,6 to BK-G100 that are equipped with the index Z3/Z6.

Powered by a long-life battery, the device is designed to be connected to the existing gas meter’s pulse output. Meter reading is transferred wirelessly to the LoRaWAN® network.

Device can be retrofitted anytime without breaking the seal.

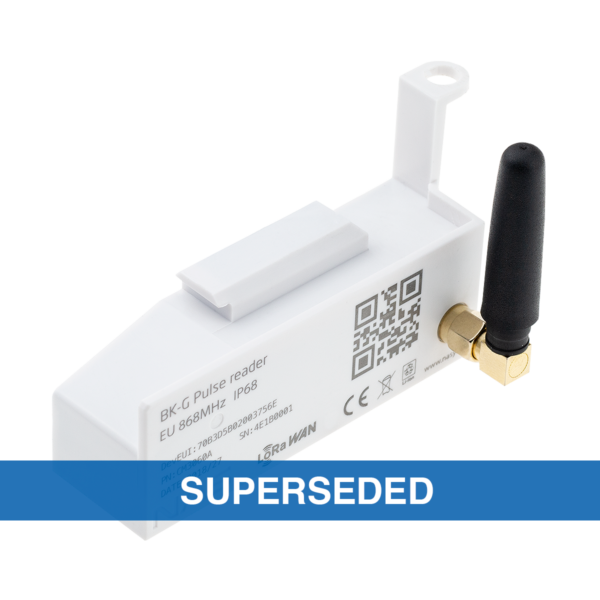

No longer available. Replaced with CM3061

Category:

Features

  • Long range wireless data transmission
  • Pulse counting
  • Pre-installed long-life battery
  • SMA Antenna connector
  • Configurable reporting interval
  • Maintenance free – install & forget
  • Easy installation
  • Average life 10 years*
  • Secure communication

Additional information

Length

93.5 mm

Height

48.5 mm

Width

25 mm

Weight

68 g

IP Rating

IP68

Operating temperature

-20°C … +65°C

Tx power

up to +20dBm

Communication

LoRaWAN™

Rx Sensitivity

-142 dBm

Download

BK-G Pulse Reader data sheet CM3060

BK-G Pulse Reader quick start guide

LoRaWAN® is a registered trademark of Semtech Corporation.
