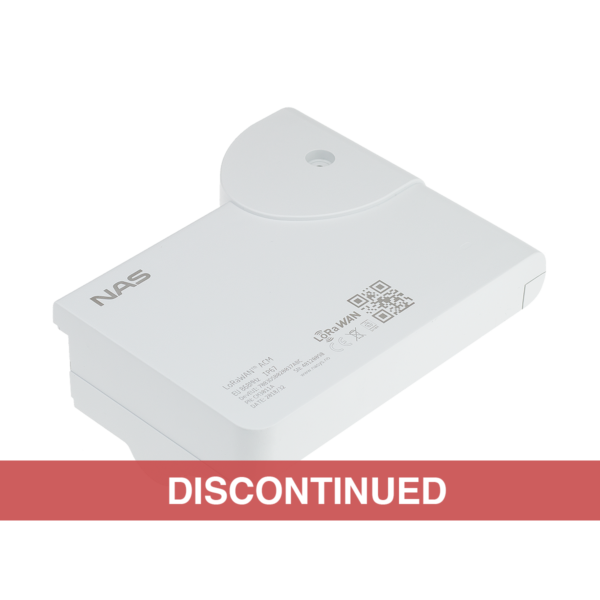

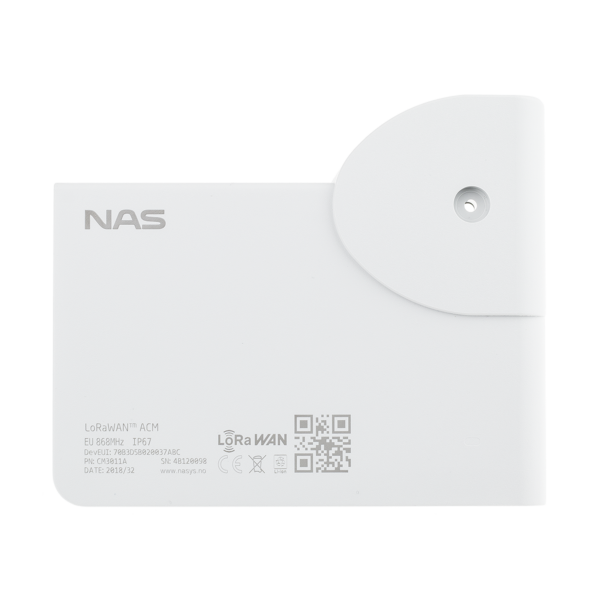

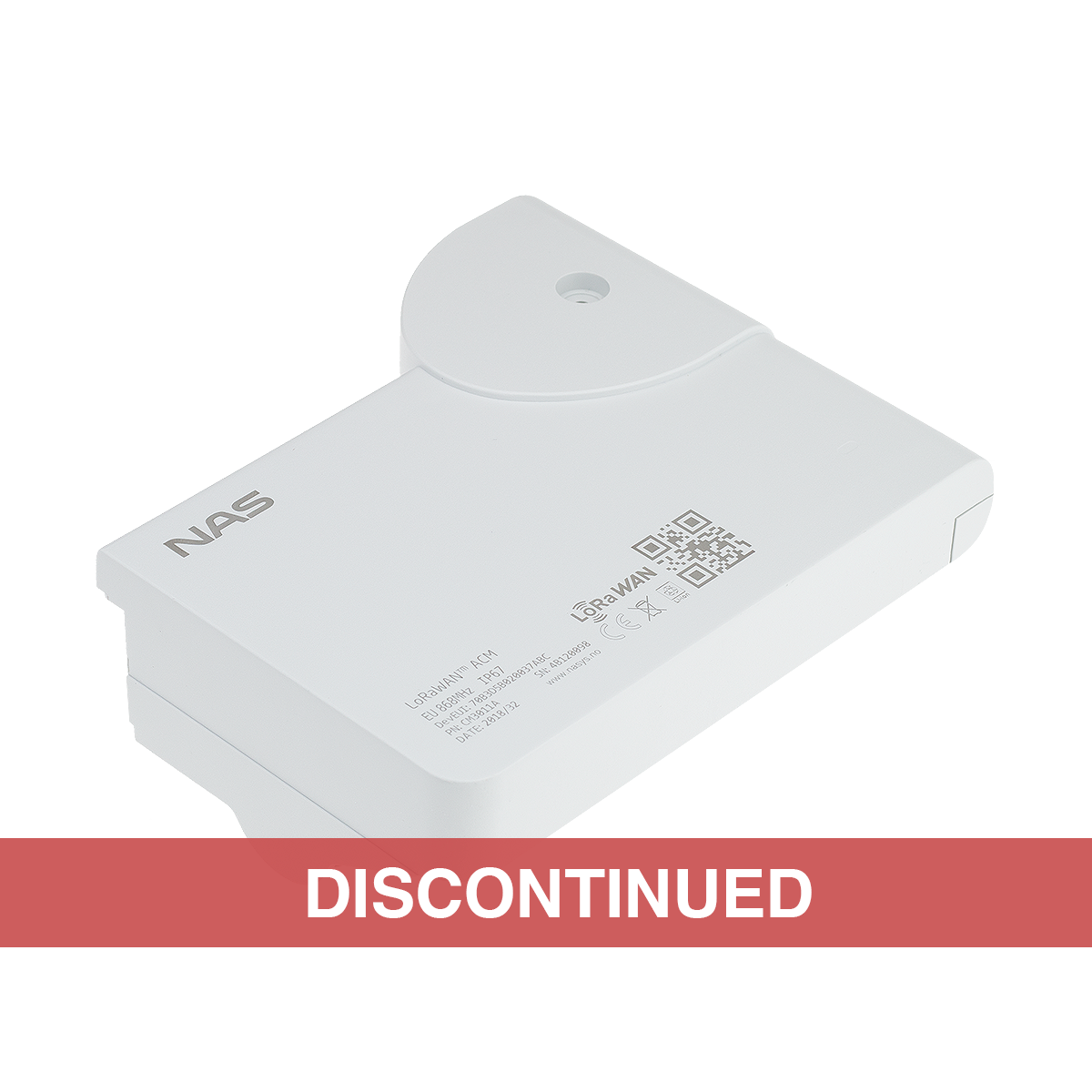

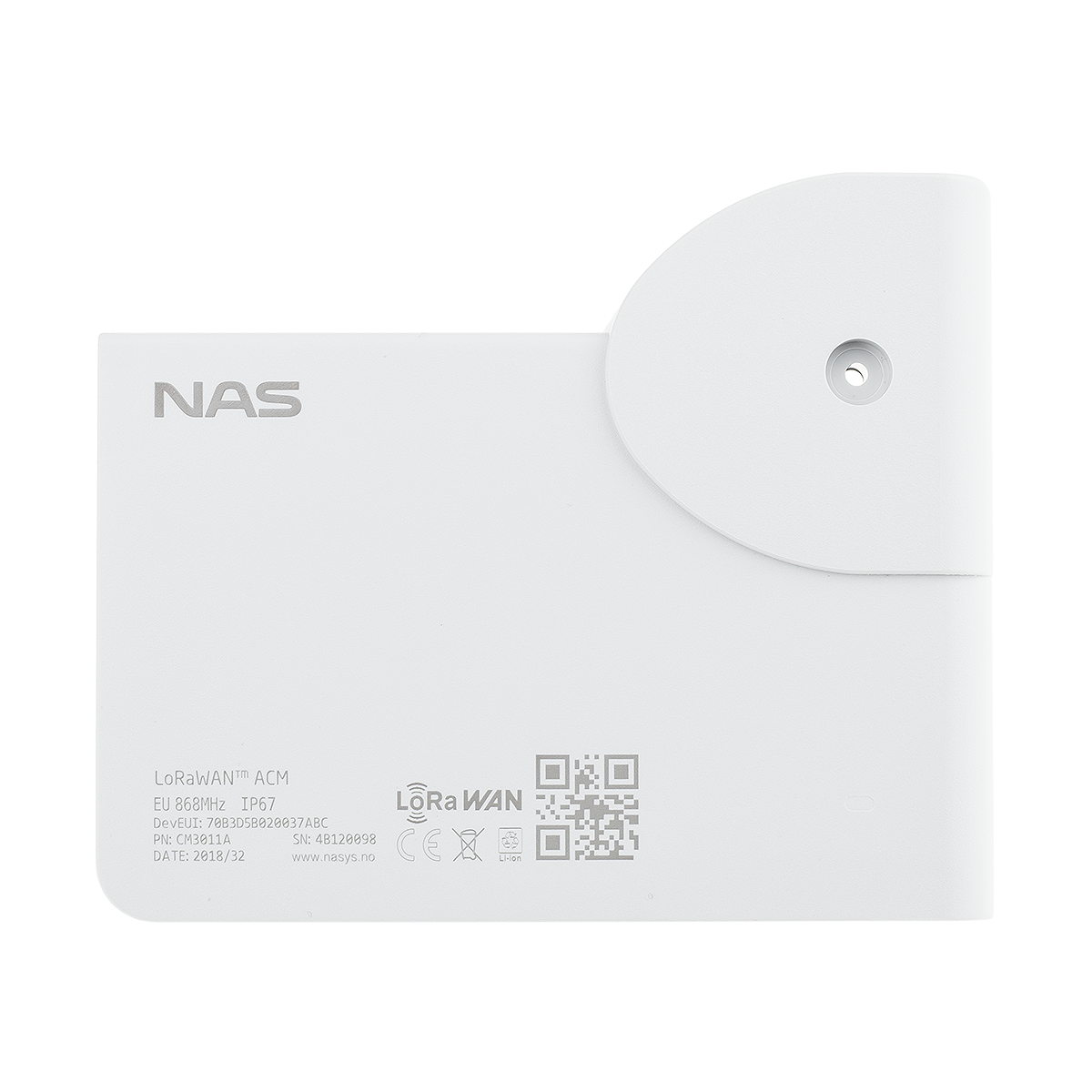

LoRaWAN® ACM

LoRaWAN® Absolute Encoder Communication Module (ACM) enables the acquisition of gas consumption data from Elster/Honeywell Absolute Encoder AE2, AE3 and AE5 gas meters. Real-time data is gathered and transmitted automatically to available LoRaWAN® network.

LoRaWAN® ACM is designed to be attached to existing gas meter.

Compatibility

  • AE02:02.01:01.01 M-BUS OMS
  • AE02:04.01:01.01 M-BUS Standard (EN 13757)
  • AE03:04.01:01.01 M-BUS – GWF
  • AE03:05.01:01.01 “MP” (M-BUS/SCR+ OBIS OMS)
  • AE.05:05.01:01.01 M-BUS/SCR+ OBIS OMS

Ordering code CM3010*

Features

  • Long range wireless data transmission
  • Absolute Encoder AE2 and AE3 reading
  • Pre-installed long-life battery
  • Gas metering
  • Configurable reporting interval
  • Maintenance free – install &  forget
  • Easy installation
  • Average life 10 years*
  • Secure communication

*  Lifetime depends from the device location and reporting interval.



Additional information

Physical

Width

47.0 mm

Height

102.0 mm

Length

123.0 mm

Weight

200g

IP Rating

IP54

Operational

Operating temperature

-20°C … +65°C

Tx power

up to +20dBm

Communication

LoRaWAN™

Rx Sensitivity

-140dBm

Activation type

OTAA

Download

LoRaWAN™ Absolute Encoder Communication Module data sheet

LoRaWAN™ Absolute Encoder Communication Module quick start guide

						*For specific order code please see the data sheet. Samples available under MOQ quantity.
					LoRaWAN® is a registered trademark of Semtech Corporation.
