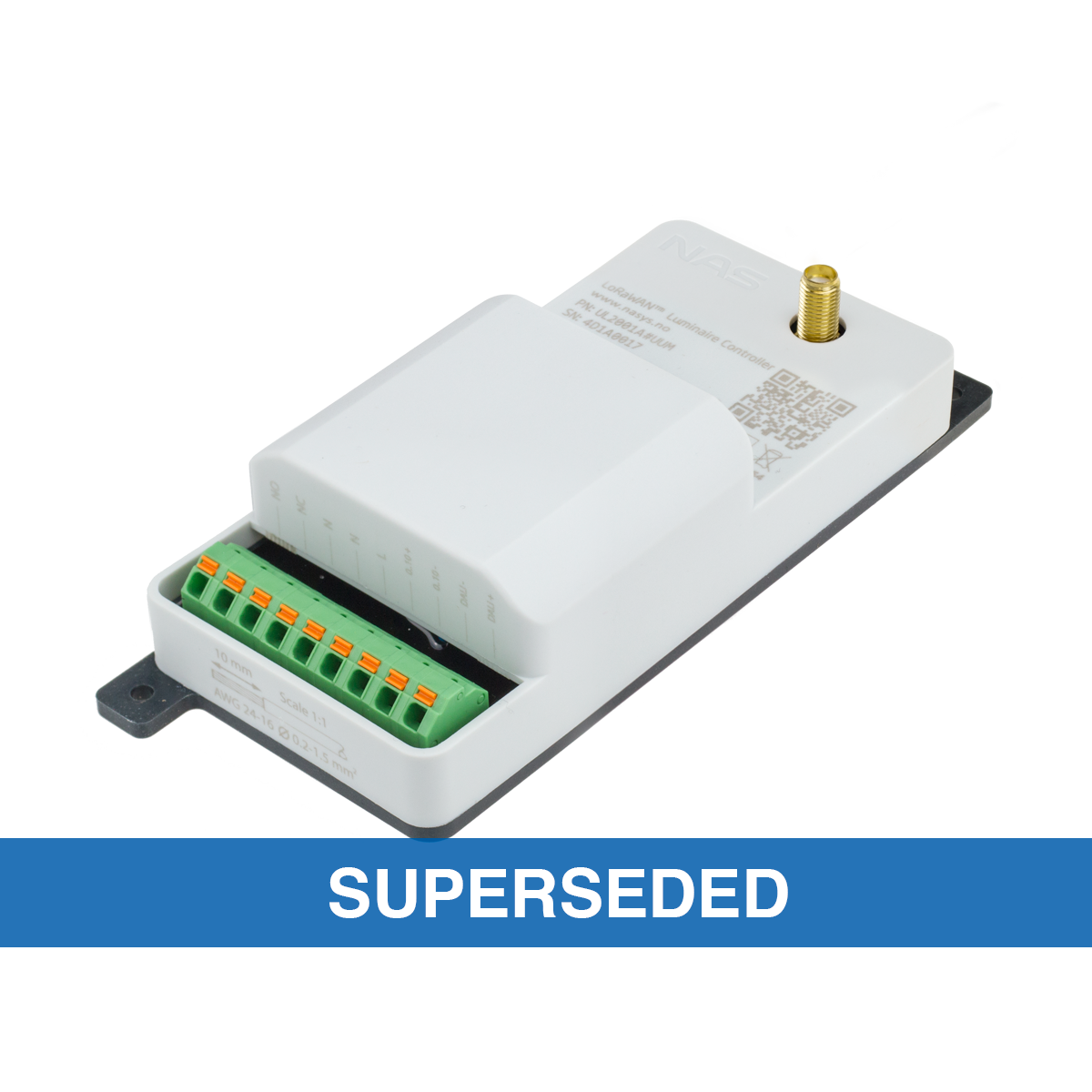

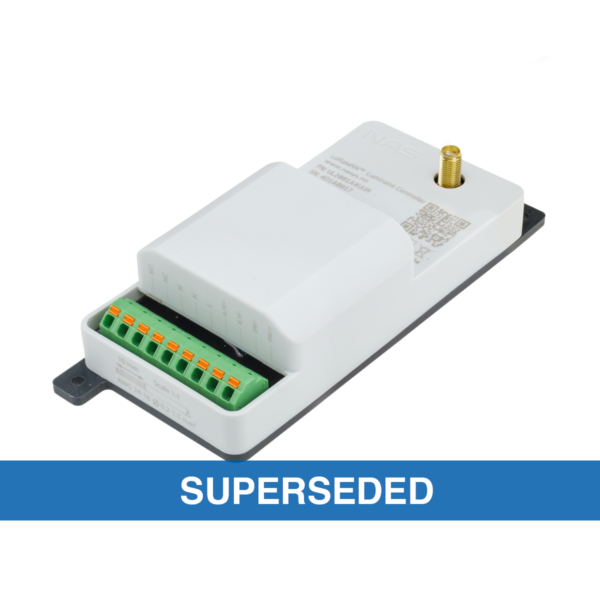

Luminaire Controller

LoRaWAN Luminaire Controller is device for remote control of the LED and HID luminaires using 0…10V analog or DALI control signal. Control commands from/to dedicated application are to be sent/received using LoRaWAN network. Controller initial configuration is  performed  using  local  Bluetooth  connection and dedicated application.

Luminaire control

Supports  customisable  dimming  profiles  together with various configurable inputs (light intensity, movement etc.).

Array control

Allows  to  control  an  array  of  64  luminaires  over  the DALI interface.

Ordering code UL2000/UL2010*

Features

  • DALI interface
  • Relay control
  • Luminaire intensity control
  • Thermistor input
  • Digital input ( e.g. movement sensor)
  • Analog input (e.g. reflected light level)
  • Sensor power supply
  • Up to IP68
  • Surge protection
  • Power measurement

Additional information

Physical

Length

134.0 mm

Width

54.0 mm

Depth

33.0 mm

Weight

ca 99 g

Operational

Operating temperature

-30°C … +60°C

Power consumption

230V -15% .. +10% <1V A

Communication

LoRaWAN™, Bluetooth LE (for configuration)

Frequency

868 MHz

IP Rating

IP54/IP68*

Download

Luminaire Controller data sheet

Description

*IP rating is dependent on product version

*For specific order code please see the data sheet. Samples available under MOQ quantity.
