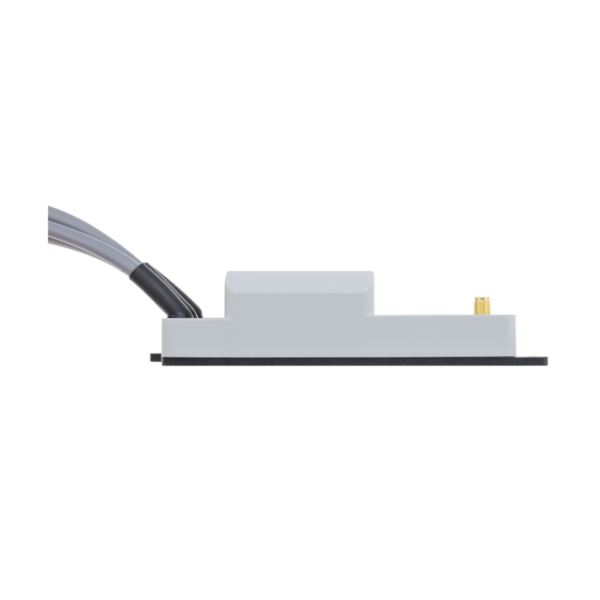

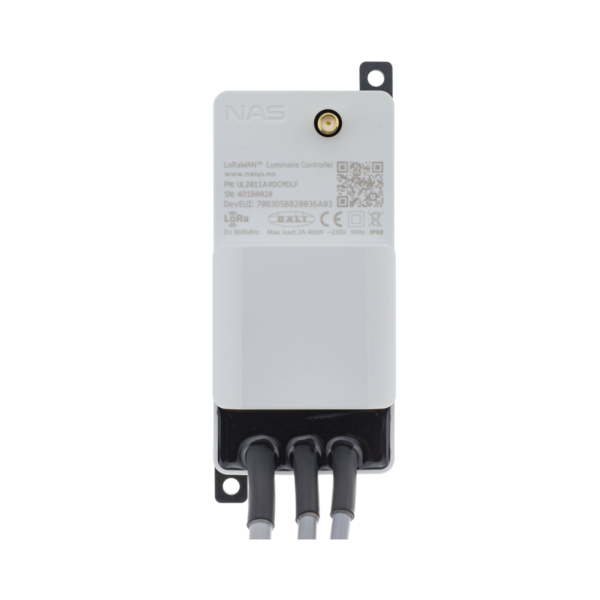

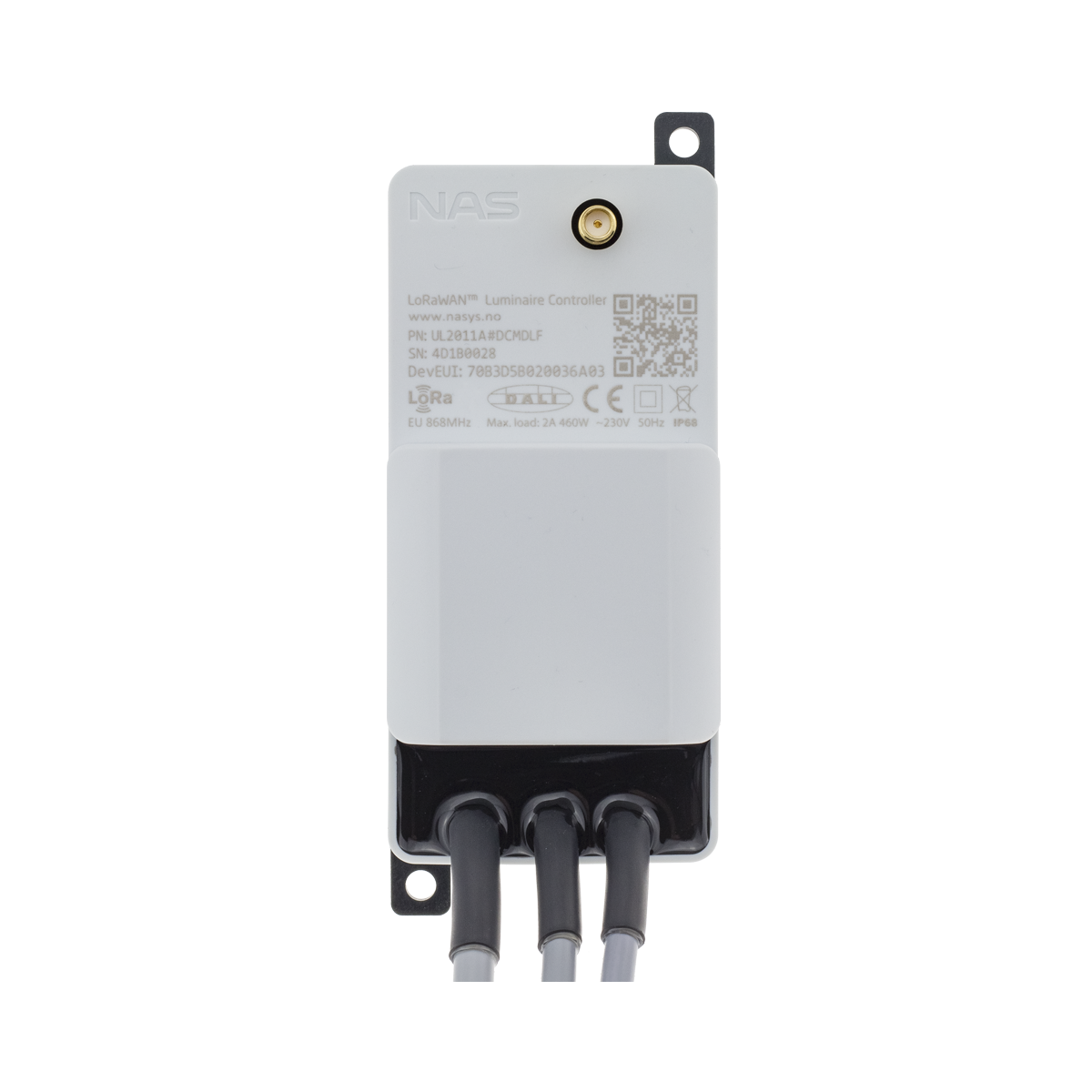

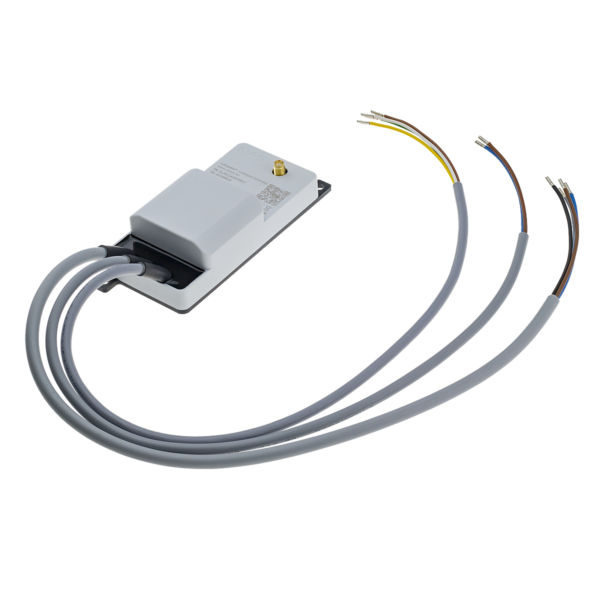

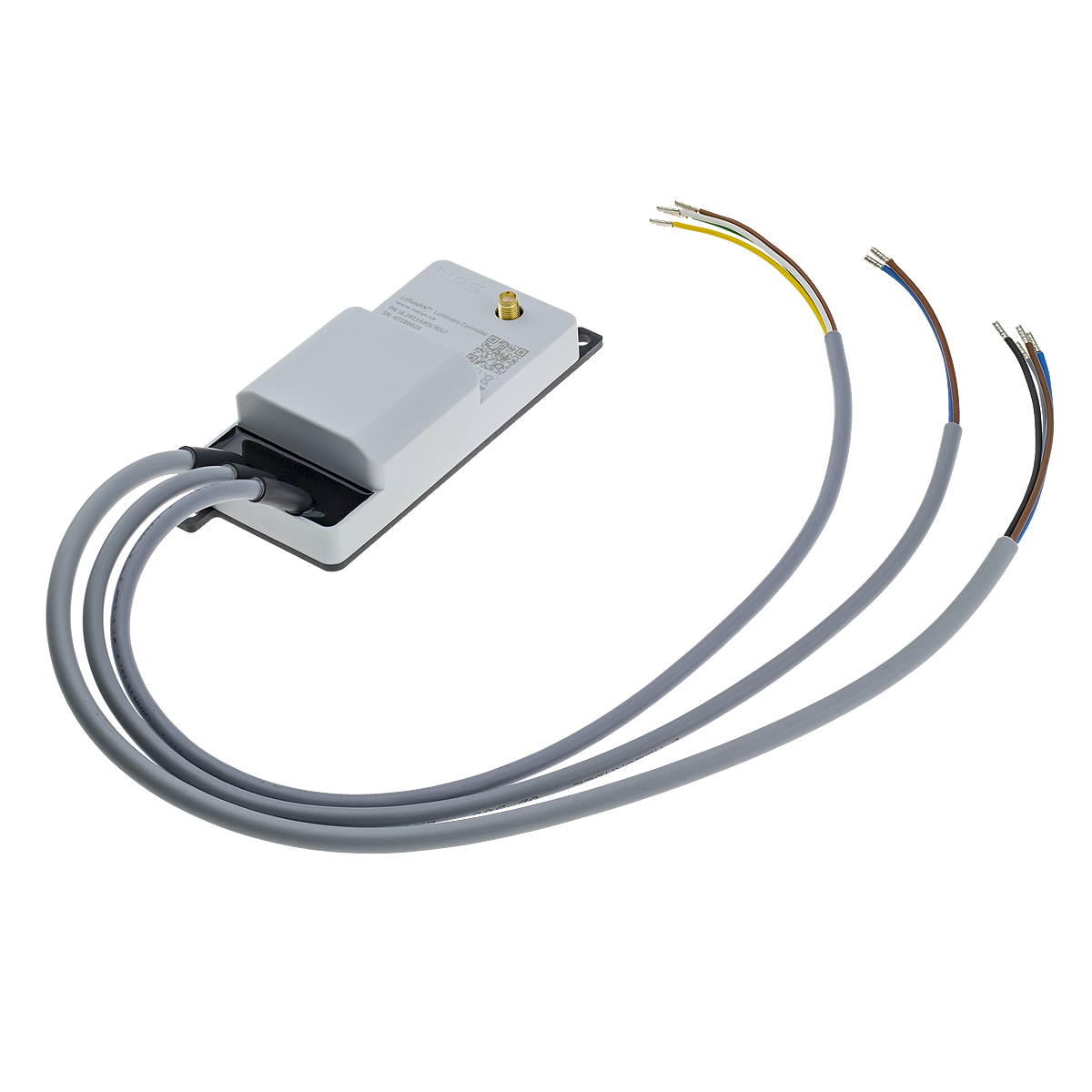

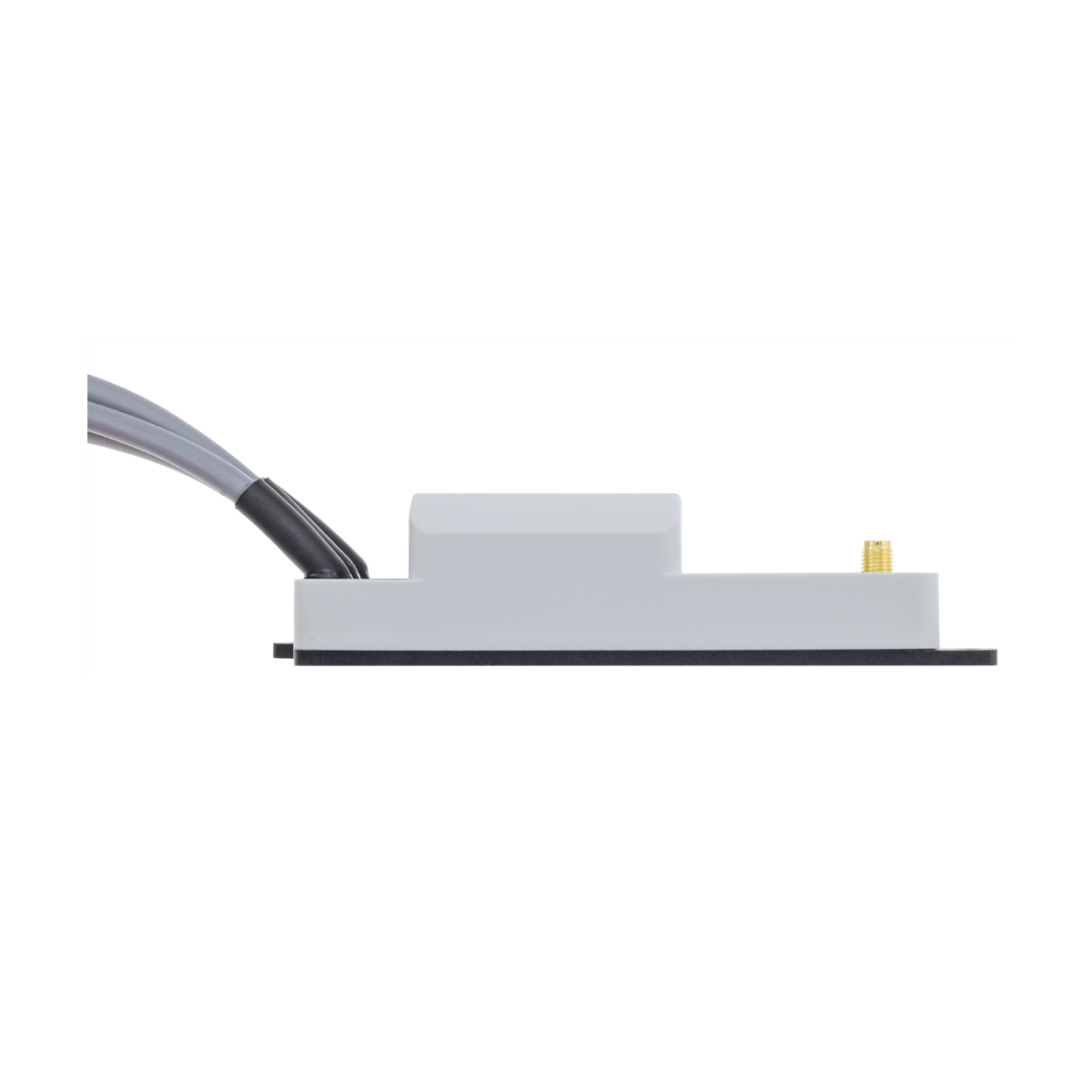

LoRaWAN® Luminaire Controller IP68



LoRaWAN® Luminaire Controller IP68 is intended to remotely control the LED and HID luminaires using 0…10V analog or DALI control signal. Using LoRaWAN® network, the device supports customizable dimming profiles together with various configurable inputs (light intensity, movement etc.).

Luminaire Controller allows controlling an array of 32 luminaires over the DALI interface.

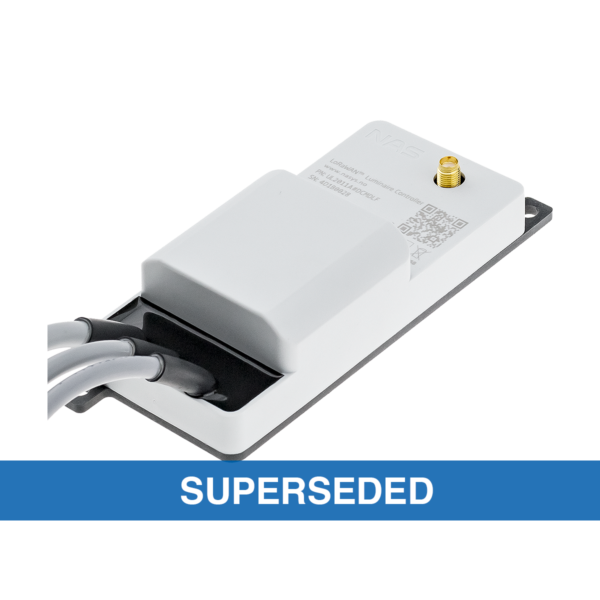

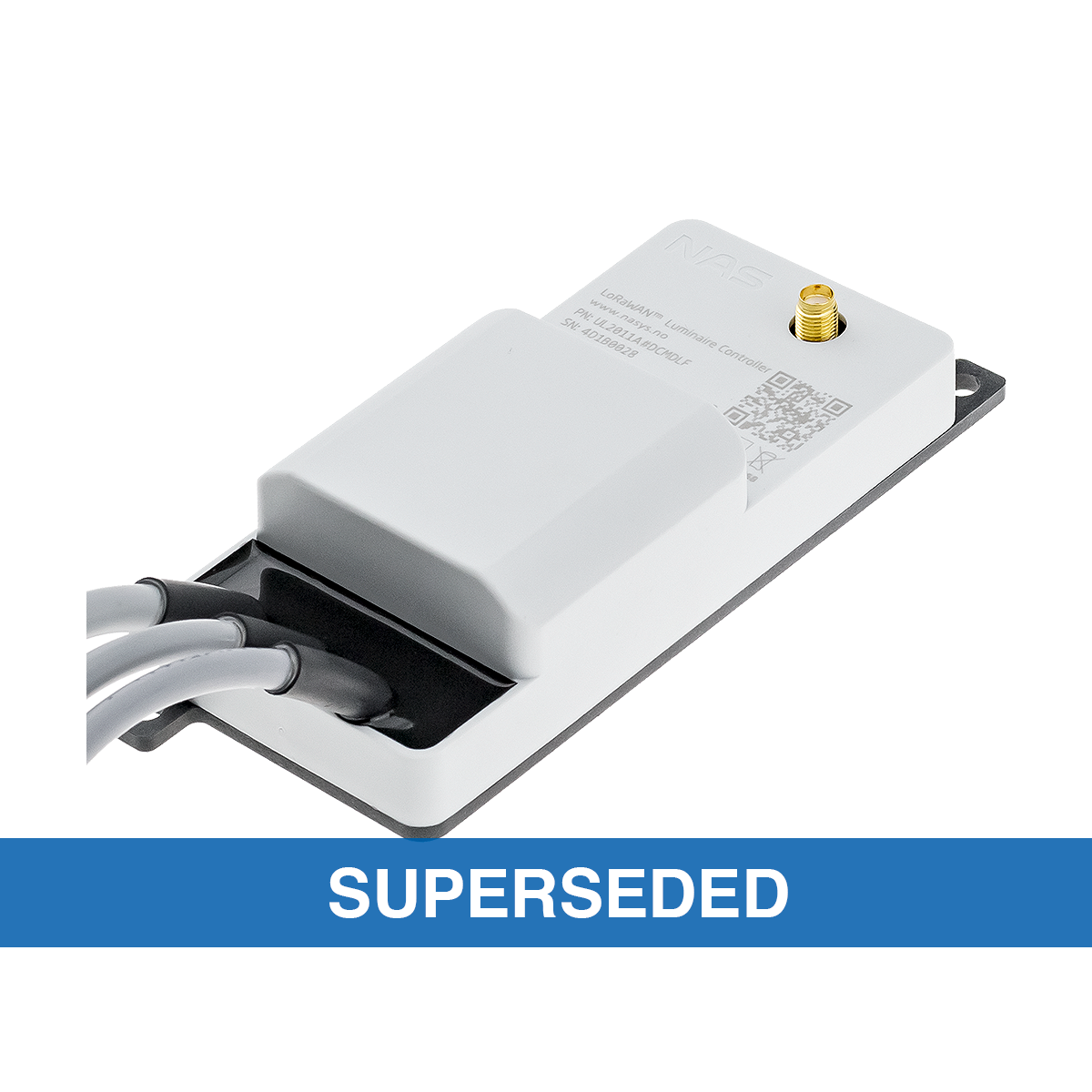

No longer available. Replaced with UL2014.

Category:

Features

  • DALI interface
  • Thermistor input
  • Auxiliary light control (optional)
  • Digital input ( e.g. movement sensor)
  • Analog input (e.g. reflected light level)
  • Sensor power supply
  • Power measurement (optional)
  • Multicast support
  • Redundant real-time clock & calendar

Download

Luminaire Controller data sheet UL2014

Luminaire Controller Communication Protocols FW 1.0.x+

Javascript codecs for payloads of NAS products

Payload encoder (FW 1.1.x+)

Payload decoder (FW 1.1.x+)

Payload decoder (FW 1.0.x)

						*For specific order code please see the data sheet. Samples available under MOQ quantity.
					LoRaWAN® is a registered trademark of Semtech Corporation.
