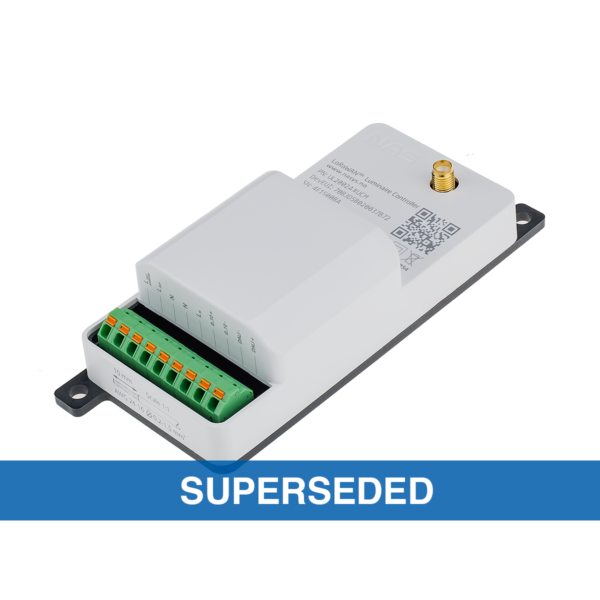

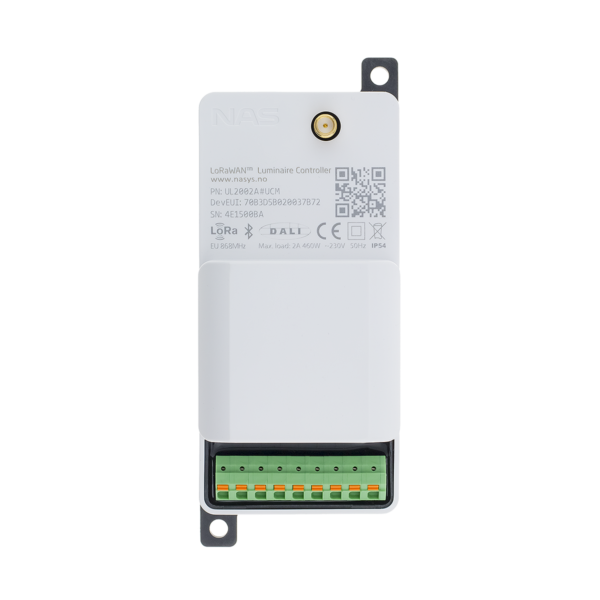

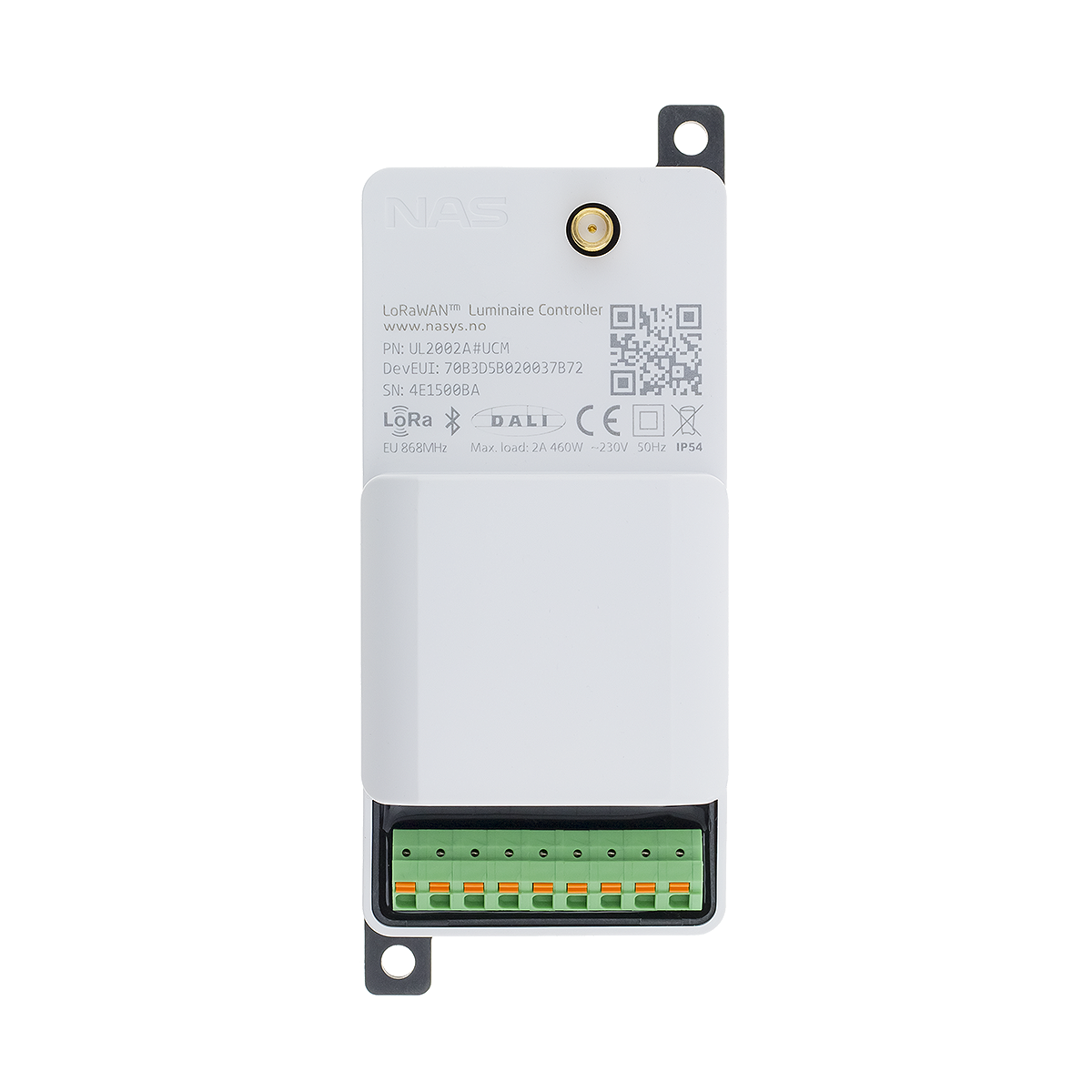

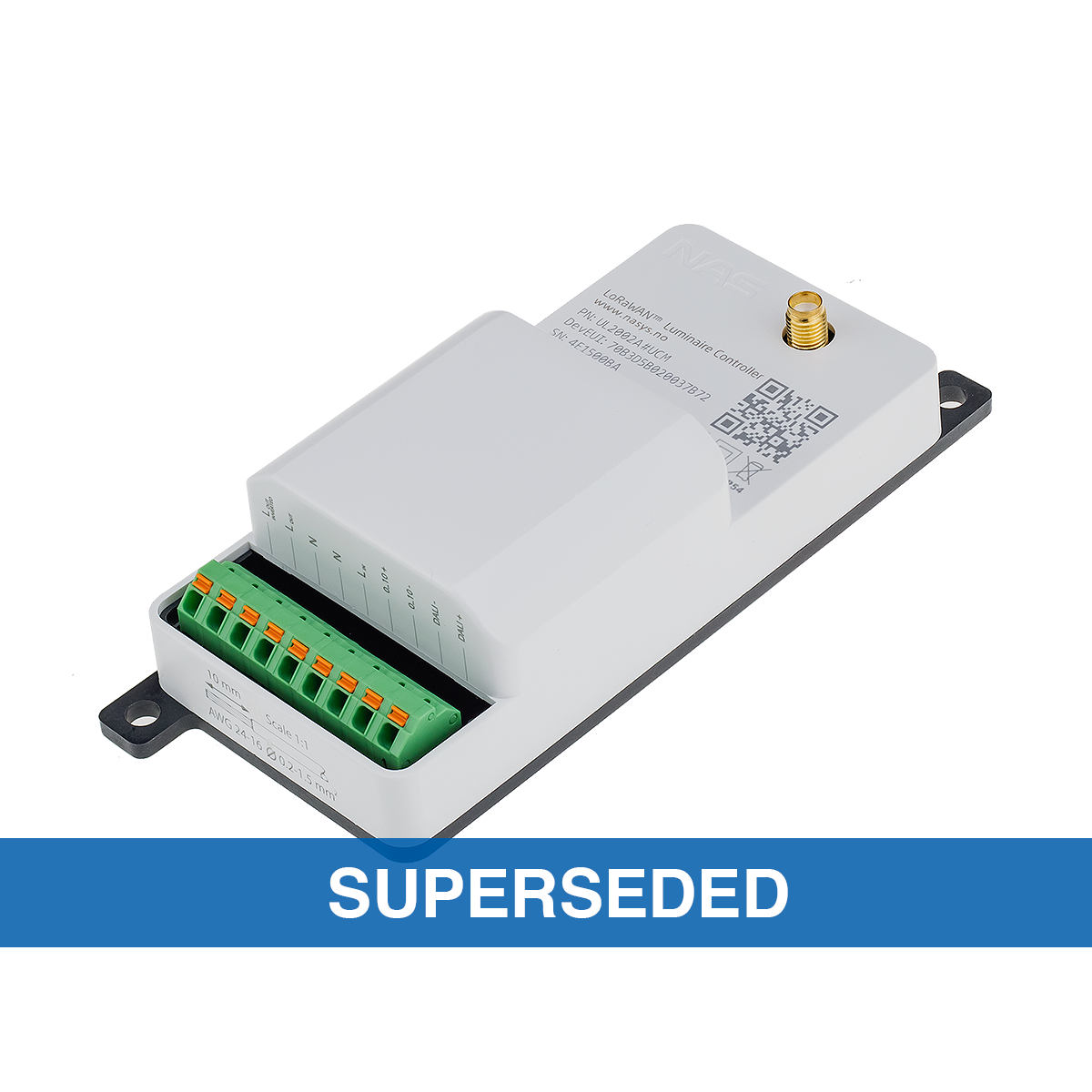

LoRaWAN™ Luminaire Controller IP54

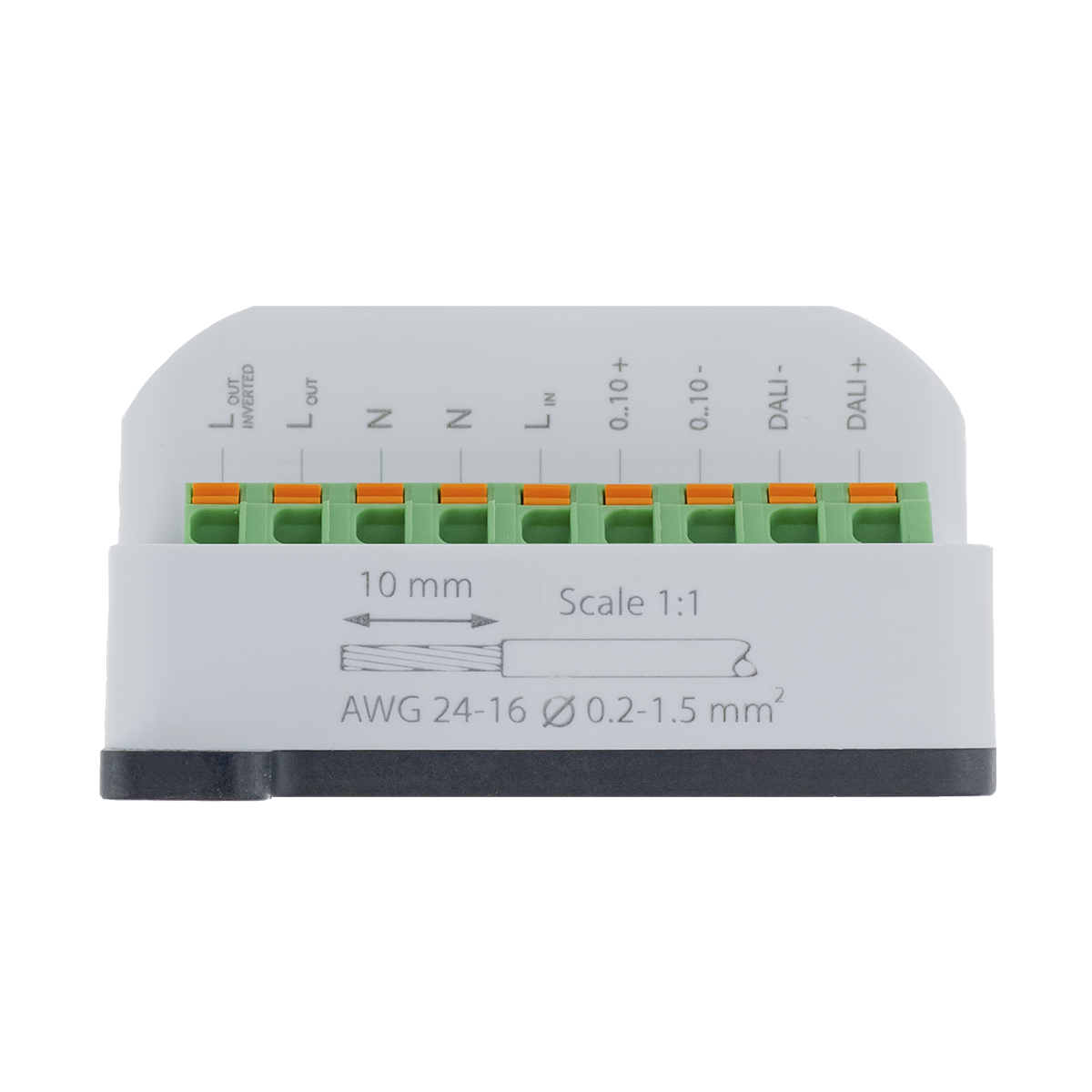

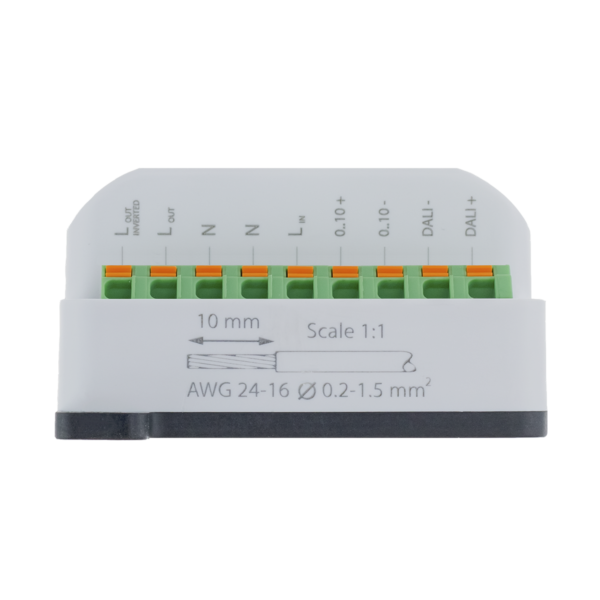

LoRaWAN™ Luminaire Controller IP54 is intended to remotely control the LED and HID luminaires using 0…10V analog or DALI control signal. Using LoRaWAN™ network, the device supports customizable dimming profiles together with various configurable inputs.

Luminaire Controller allows controlling an array of 32 luminaires over the DALI interface.

Ordering code UL2002*

Features

  • DALI interface
  • Relay control
  • Luminaire intensity control
  • Surge protection
  • Power measurement (optional)
  • Bluetooth connection available (FW updatable)
  • Multicast support
  • Redundant real-time clock & calendar

Additional information

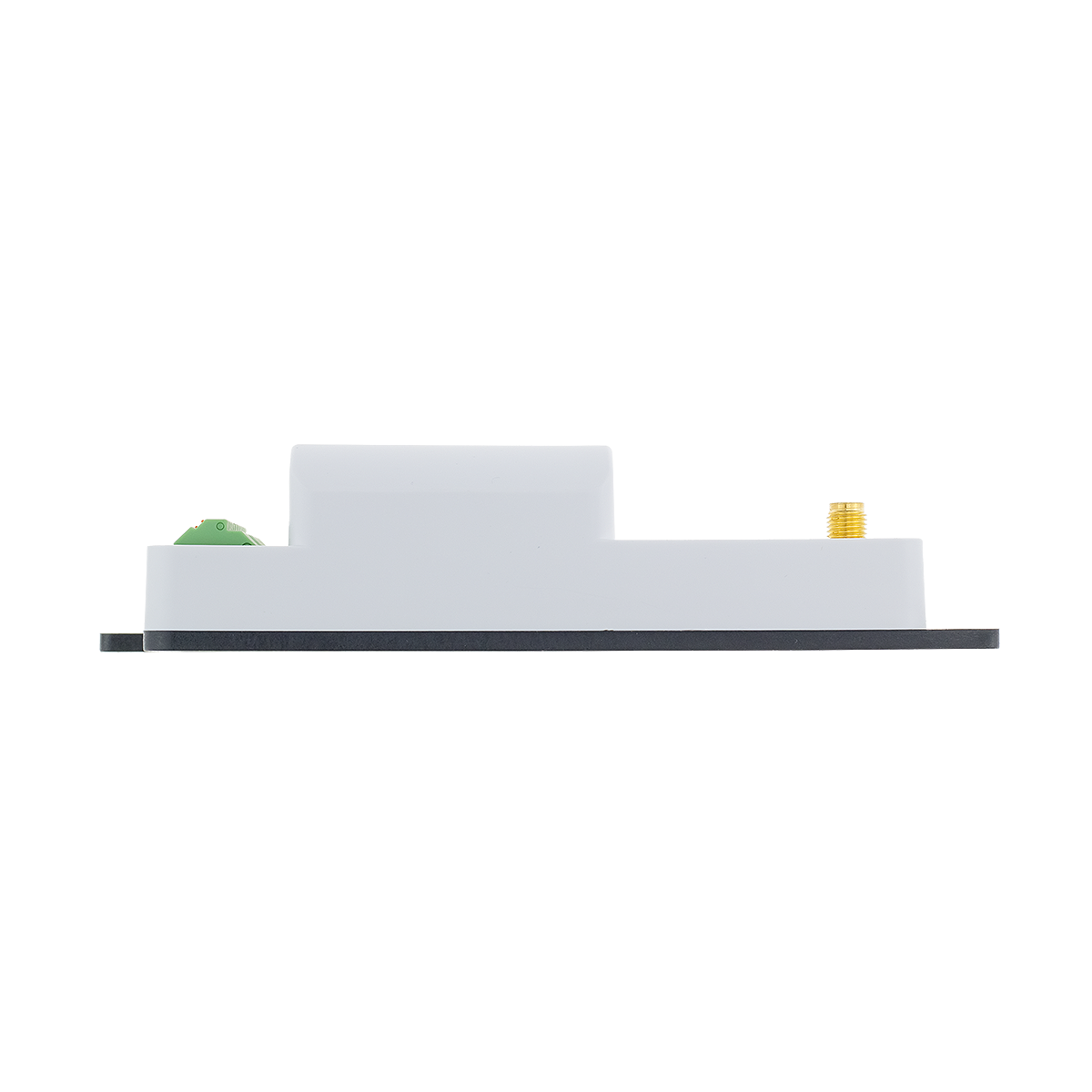

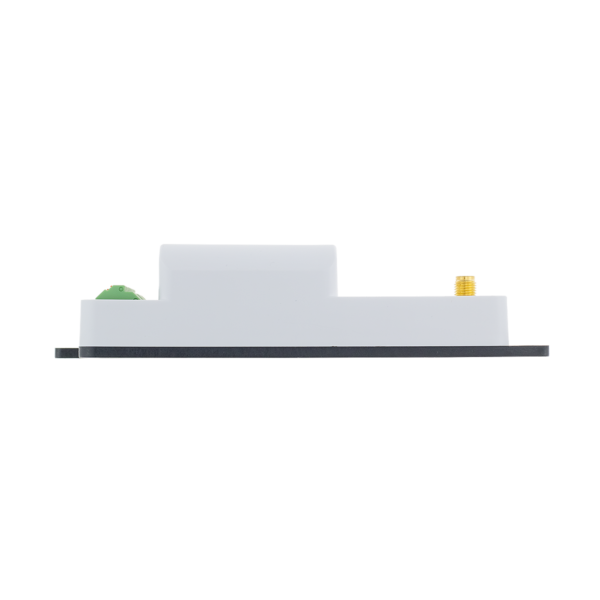

Physical

Length

134.0 mm

Width

54.0 mm

Depth

33.0 mm

Weight

ca 99 g

Operational

Operating temperature

-30°C … +60°C

Power consumption

230V -15% .. +10% <1V A

Communication

LoRaWAN™, Bluetooth LE (for configuration)

IP Rating

IP54

Activation type

OTAA

Download

Luminaire Controller data sheet UL2002

Luminaire Controller quick start guide

bool(true)
*For specific order code please see the data sheet. Samples available under MOQ quantity. LoRaWAN™ is an unregistered trademark of Semtech Corporation.
