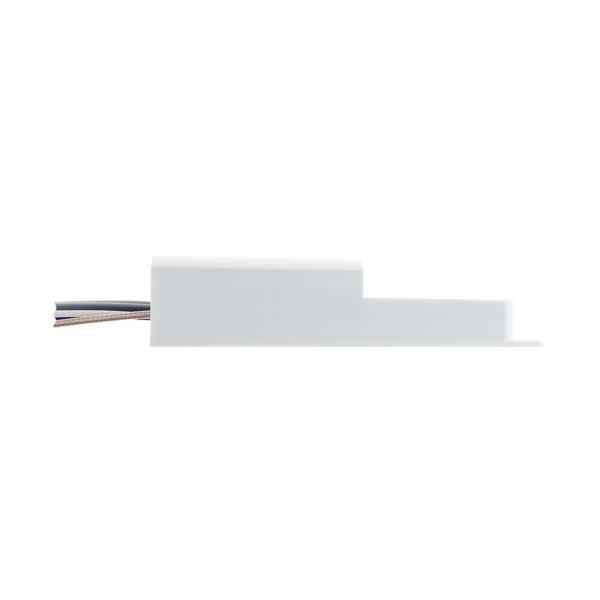

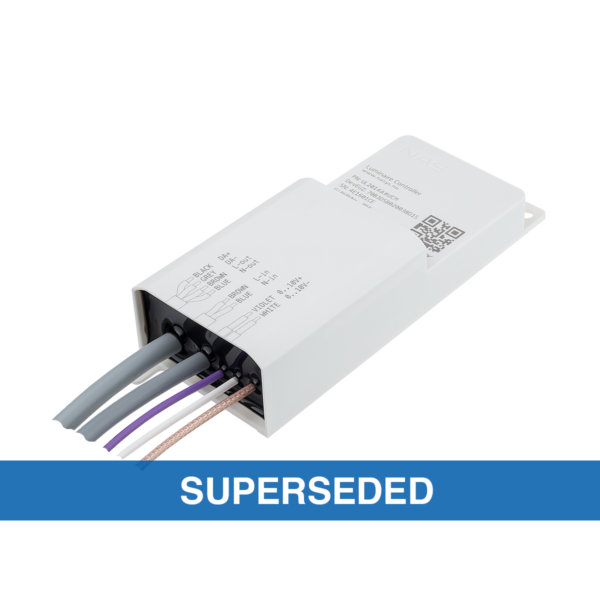

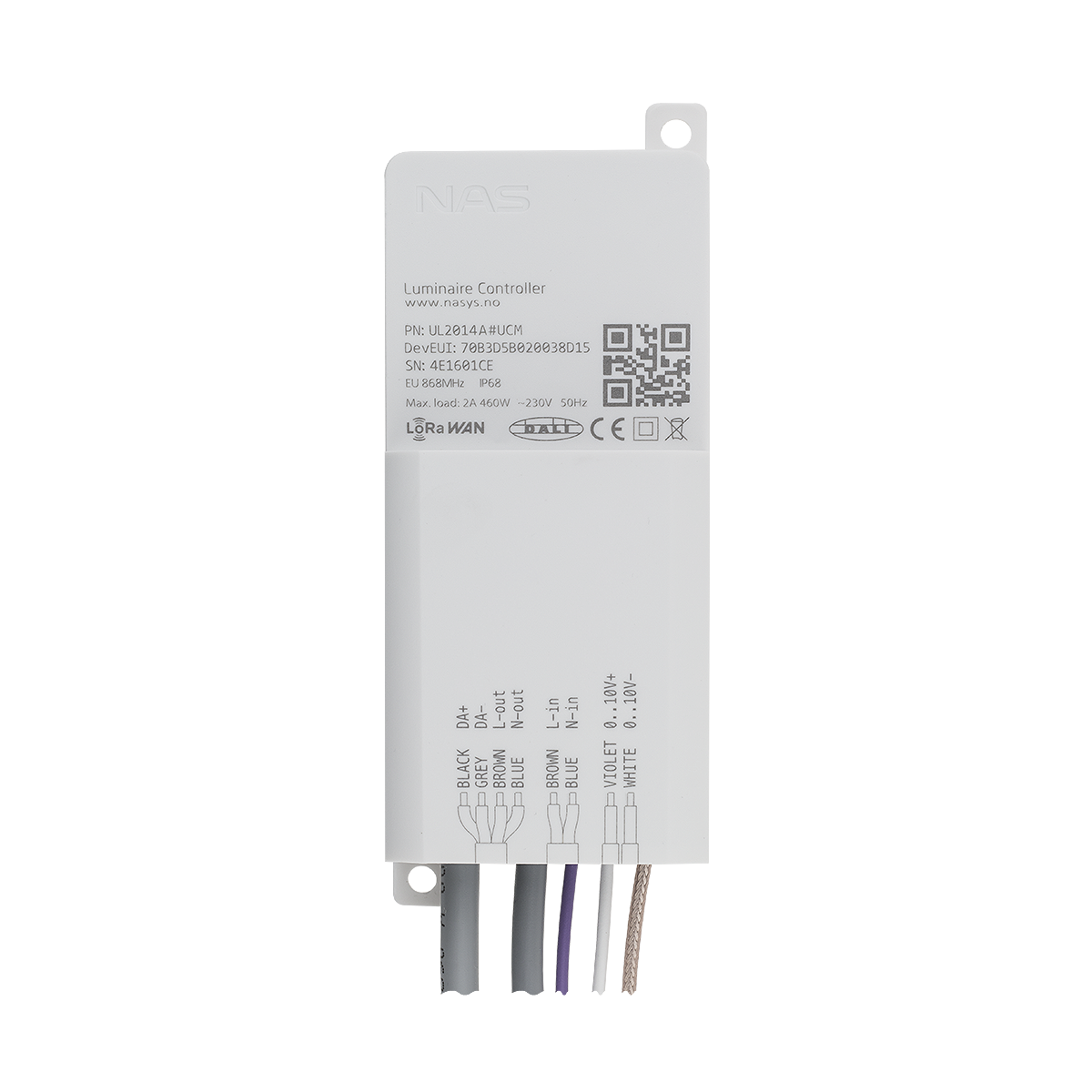

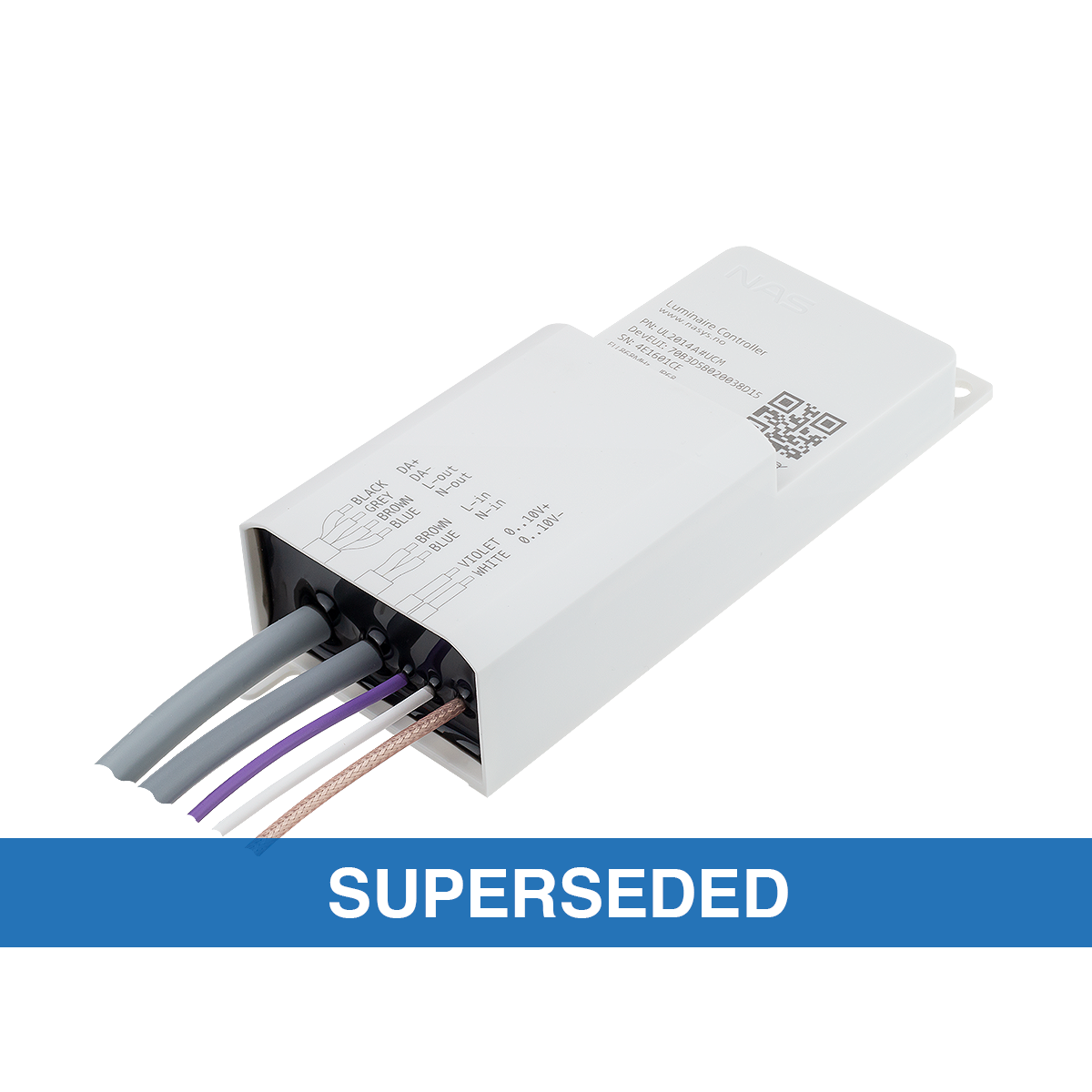

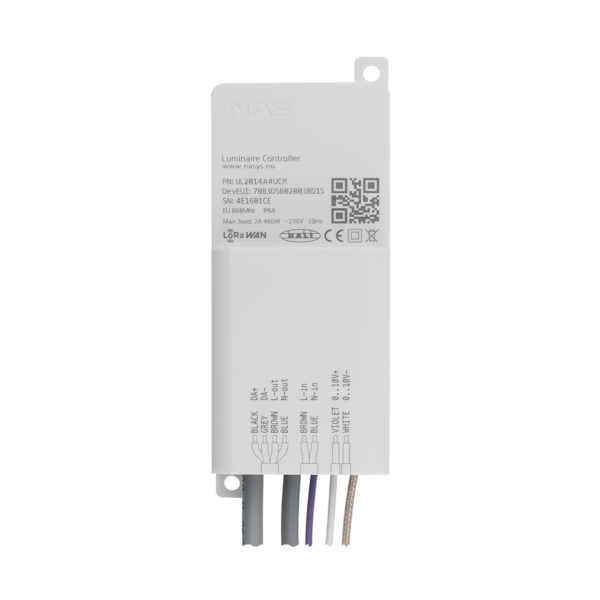

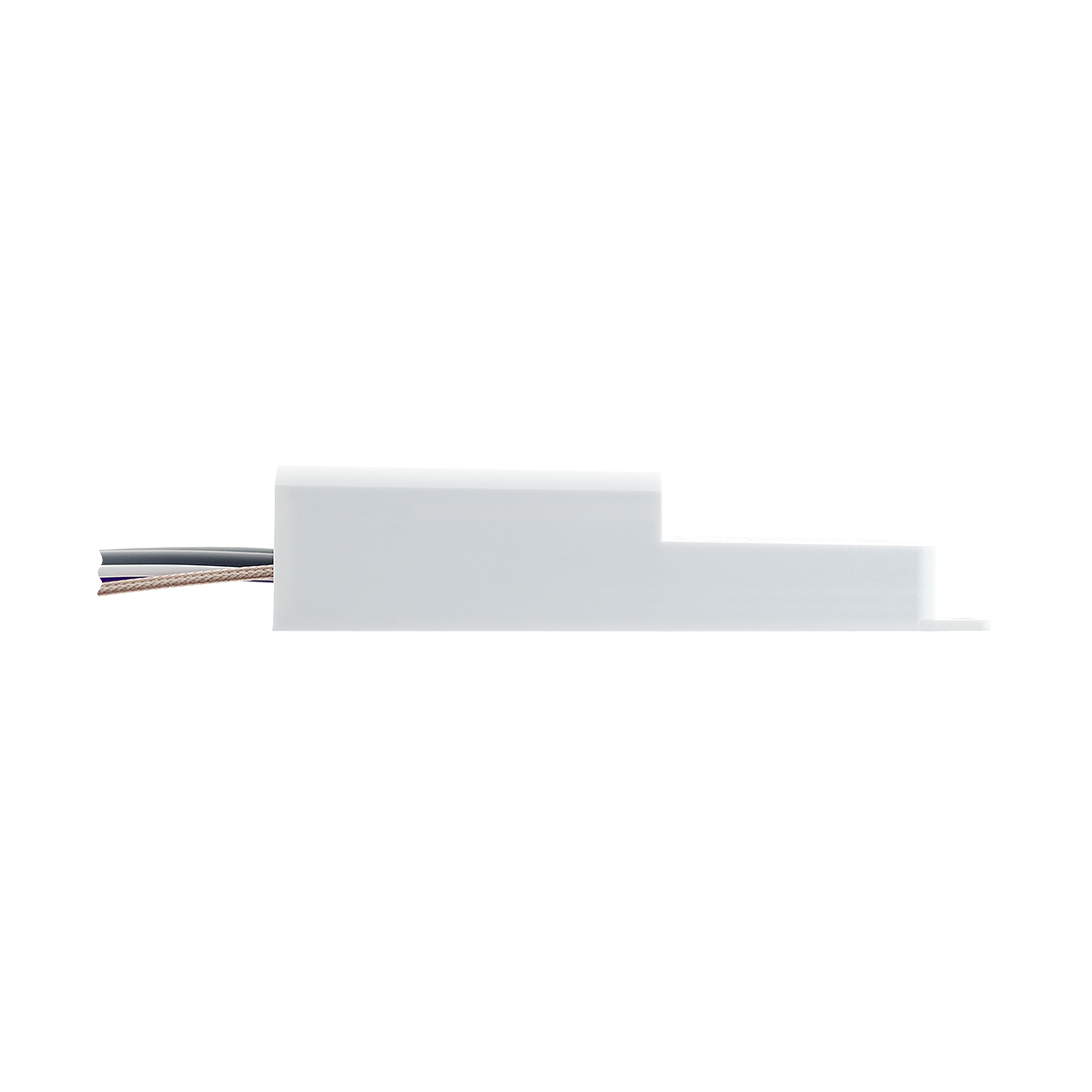

LoRaWAN® Luminaire Controller IP68

LoRaWAN® Luminaire Controller IP68 is intended to remotely control the LED and HID luminaires using 0…10V analog and DALI control signal. Using LoRaWAN® network, the device supports customizable dimming profiles together with various configurable inputs (light intensity, movement etc.).

Luminaire Controller allows controlling an array of 32 luminaires over the DALI interface.

Ordering code UL2014*


Category:

Features

  • DALI interface
  • Thermistor input
  • Luminaire intensity control
  • Digital input ( e.g. movement sensor)
  • Analog input (e.g. reflected light level)
  • Sensor power supply
  • Power metering
  • Surge protection

Additional information

Physical

Length

134.0 mm

Width

54.0 mm

Depth

33.0 mm

Weight

260 g

Operational

Operating temperature

-30°C … +60°C

Power consumption

230V -15% .. +10% <1V A

Communication

LoRaWAN™

IP Rating

IP68

Activation type

OTAA

Download

Luminaire Controller IP68 data sheet

Luminaire Controller IP68 quick start guide

Luminaire Controller Communication Protocols FW 1.0.x+

Luminaire Controller Communication Protocols FW 1.1.x+

						*For specific order code please see the data sheet. Samples available under MOQ quantity.
					LoRaWAN® is a registered trademark of Semtech Corporation.
