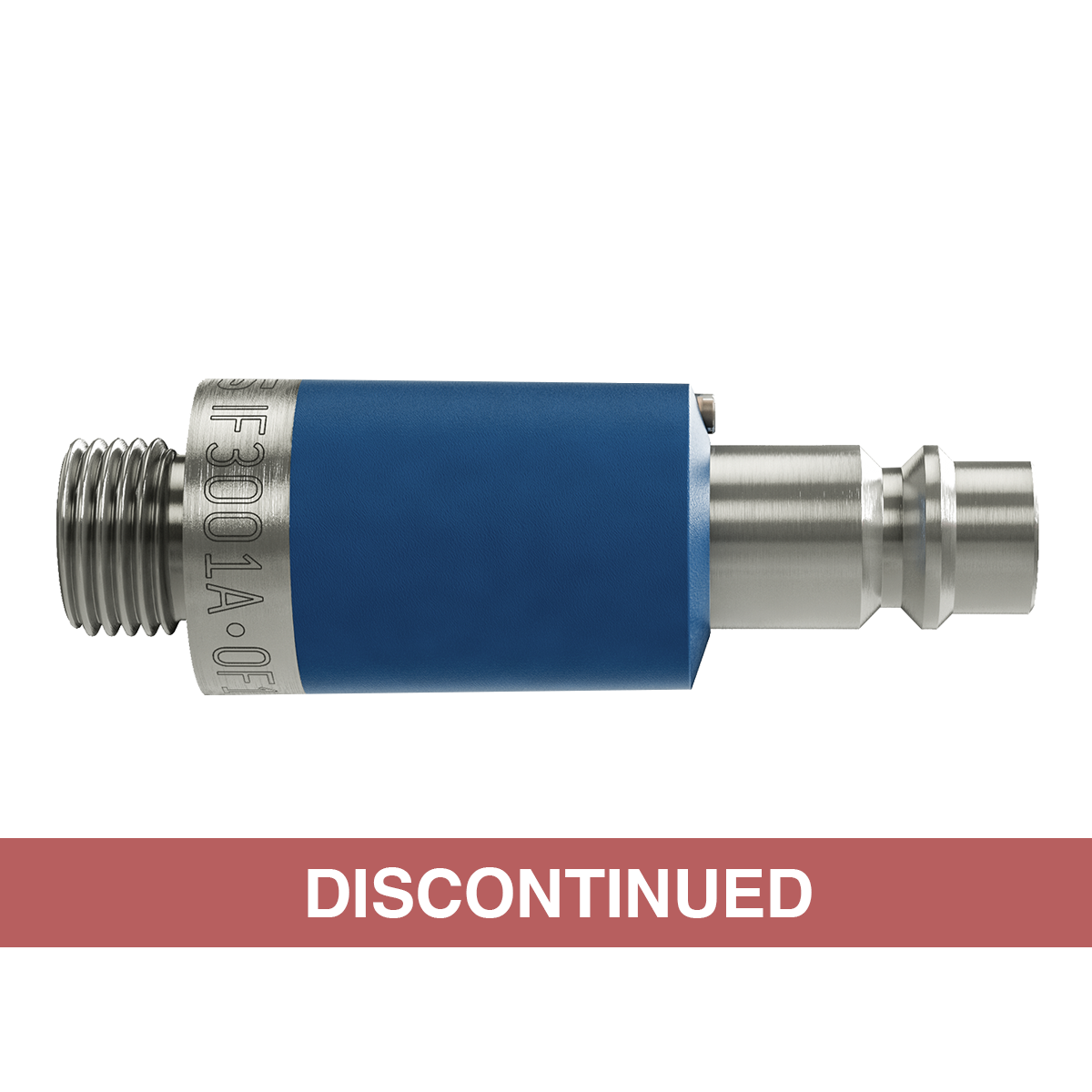

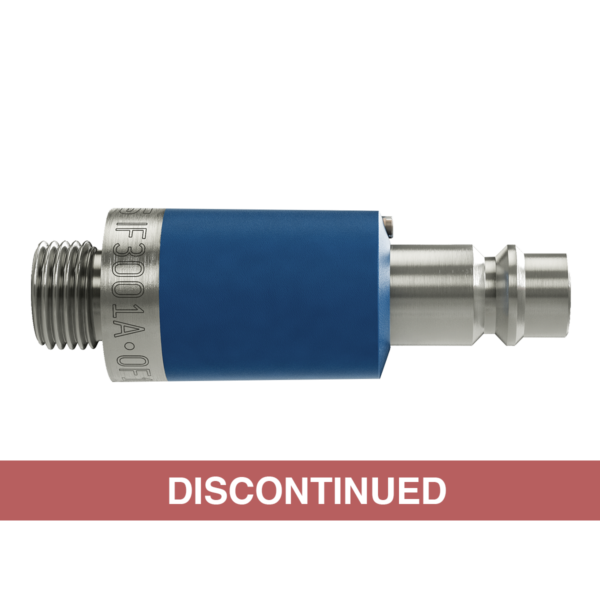

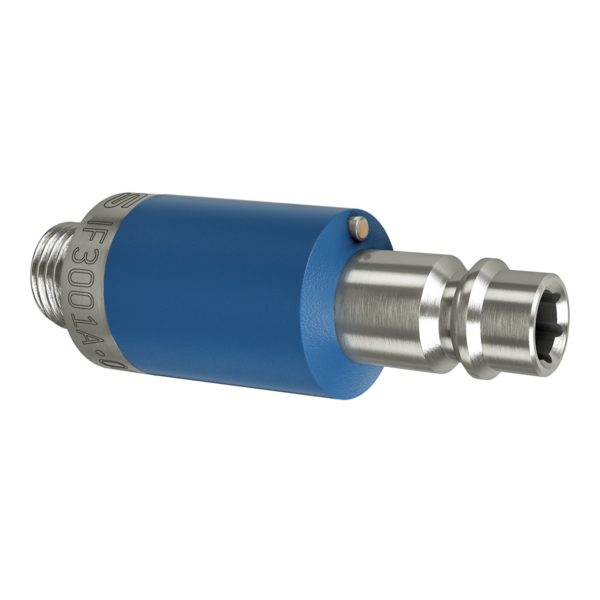

Pneumatic Tool Sensor

The SensorLink™ pneumatic tool sensor is attached to air powered tools by replacing the regular male fitting. The NAS Analytics Platform monitors the tool’s trigger time, vibration level, consumption data and maintenance cycles as well set up reports based on that information.

Efficient

Sensor is equipped with pre-charged lithium polymer battery with no maintenance required during the product lifetime.

Intelligent

Real-time usage data is gathered wirelessly and processed automatically. Data is accessible on any PC or smartphone connected to the internet.

Ordering code IM3001.*

Features

  • Wireless data transmission
  • Pre-charged lithium polymer battery, lifetime up to 2 years
  • Air flow measurement 120-1200 l/min
  • Pressure measuring range 0-10 bar*
  • Trigger time measurement
  • Worker identification
  • Ambient temperature measurement
  • Sensor internal data recording for off-site usage
  • Flowrate 1050l/min @ 0,6 bar drop
  • Factory calibrated
  • Firmware OTA upgradable
  • Various thread and connector types available

    * IM3001AP/IM3001DP only

Additional information

Physical

Length

61.1 mm

Diameter

21.0 mm

Weight

24g Aluminium
47g Stainless steel

Nominal flow diameter

5.0 mm

Thread type

1/4” BSP / G
1/4” NPT

Connector standard

Europrofile

Operational

Operating temperature

0°C..+30°C

Air flow

1050 l/min**

Max. working pressure:

10 bar (145 PSI)

RF range

up to 30 m*

Battery lifetime

up to 2 years*

Communication

2.4 GHz NAS SensorLink
Bluetooth LE

Download

Pneumatic sensor IM3000 data sheet

Pneumatic sensor IM3001 data sheet

Description

* Battery lifetime and signal range are largely dependent on the location and usage. Low temperature reduces battery life. Reinforced and metal walls block reception. Industry average is shown on data sheet.
** Flow capacity is measured at 6 bar (87 PSI) inlet pressure, and pressure drop at 0.6 bar (8.7 PSI).

*For specific order code please see the data sheet. Samples available under MOQ quantity.
