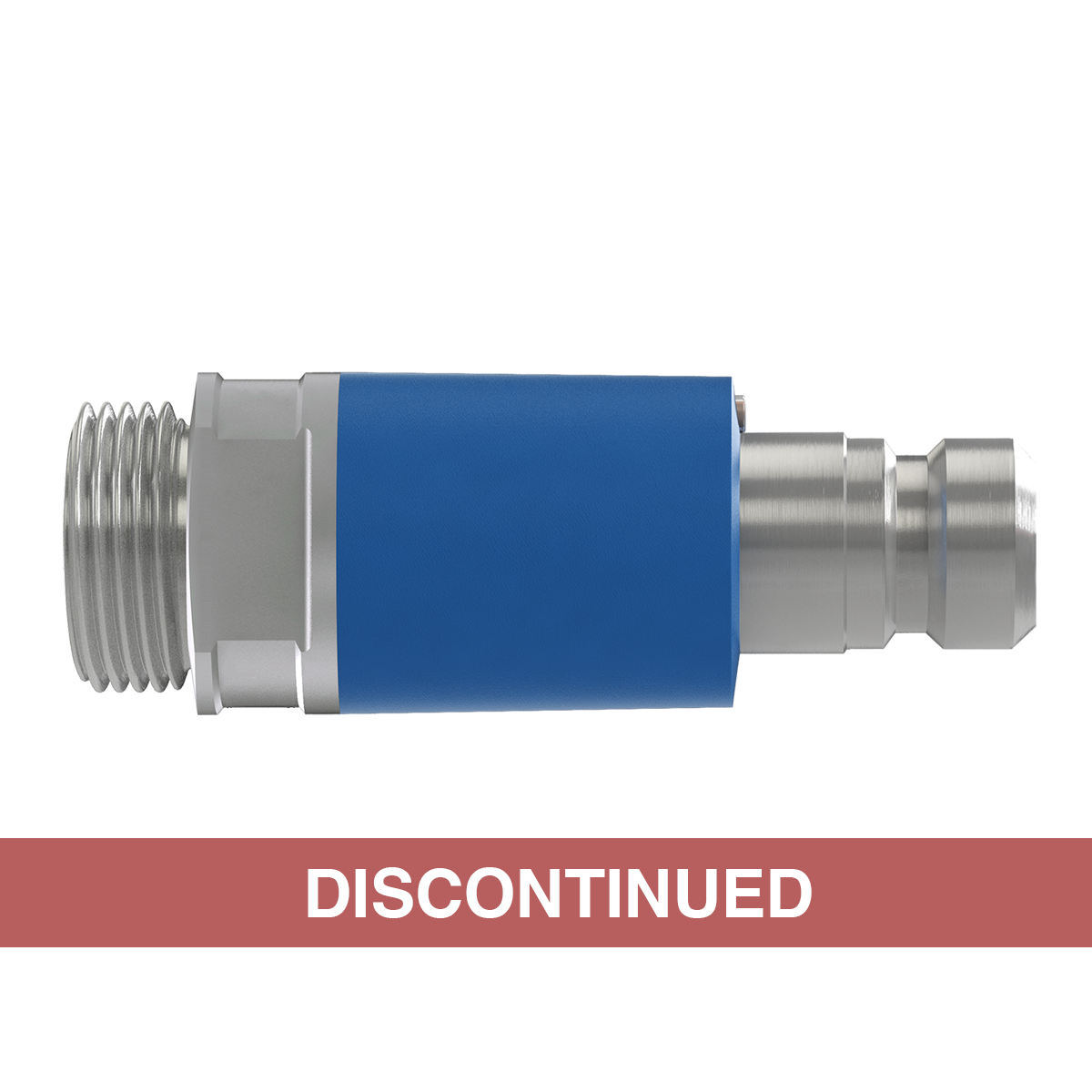

High-Flow Pneumatic Tool Sensor

The SensorLink™ high-flow pneumatic tool sensor is attached to air powered tools by replacing regular male fitting. The NAS Analytics Platform monitors the tool's trigger time, vibration level, consumption data, maintenance cycles and it can set up reports based on that information.

Efficient

Sensor is equipped with pre-charged lithium polymer battery with no maintenance required during the product lifetime.

Intelligent

Real-time usage data is gathered wirelessly and processed automatically. Data is accessible on any PC or smartphone connected to the internet.

Ordering code IM3020.*

Features

  • Wireless data transmission
  • Pre-charged lithium polymer battery, lifetime up to 2 years
  • Air flow measurement 240-2400 l/min
  • Pressure measuring range 0-10 bar*
  • Trigger time measurement
  • Worker identification
  • Ambient temperature measurement
  • Sensor internal data recording for off-site usage
  • Flowrate 2100l/min @ 0,6 bar drop
  • Factory calibrated
  • Firmware OTA upgradable
  • Various thread and connector types available

Additional information

Physical

Length

70.0 mm

Diameter

25.0 mm

Weight

80 g stainless steel

Connector standard

Europrofile 10.4
TEMA 1800 / CEJN 408

Thread type

3/8” BSP/G

Nominal flow diameter

7.2 mm

Operational

Operating temperature

0°C..+30°C

Air flow

2100 l/min*

Pressure accuracy

200 mbar**

RF range

up to 30 m***

Battery lifetime

up to 2 years***

Communication

2.4 GHz NAS SensorLink
Bluetooth LE

Download

High-flow pneumatic sensor data sheet

Description

* IM3020AP/3020BP only
** Battery lifetime and signal range are largely dependent on the location and usage. Low temperature reduces battery life. Reinforced and metal walls block reception. Industry average is shown on data sheet.
*** Flow capacity is measured at 6 bar (87 PSI) inlet pressure, and pressure drop at 0.6 bar (8.7 PSI).

bool(true)
*For specific order code please see the data sheet. Samples available under MOQ quantity.
