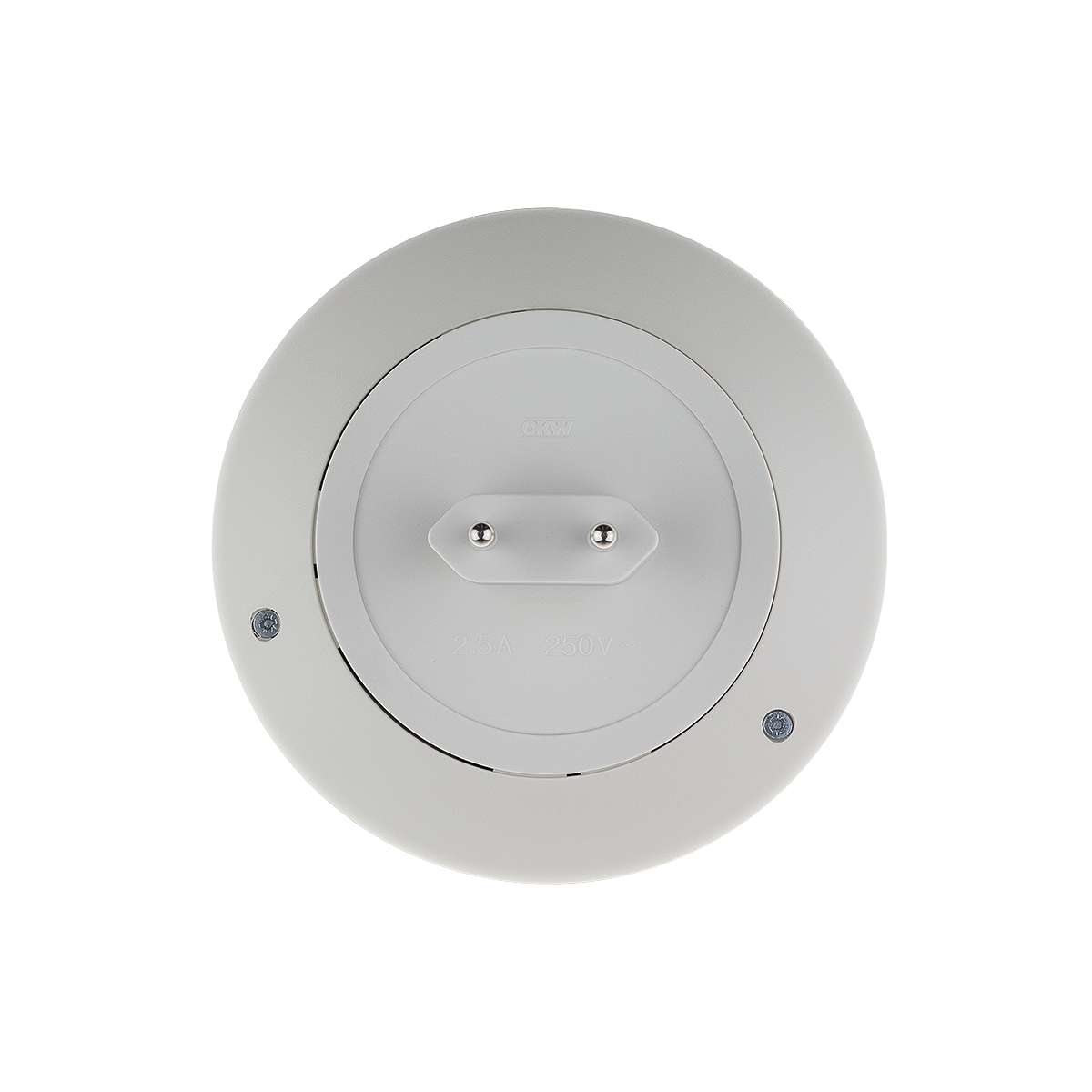

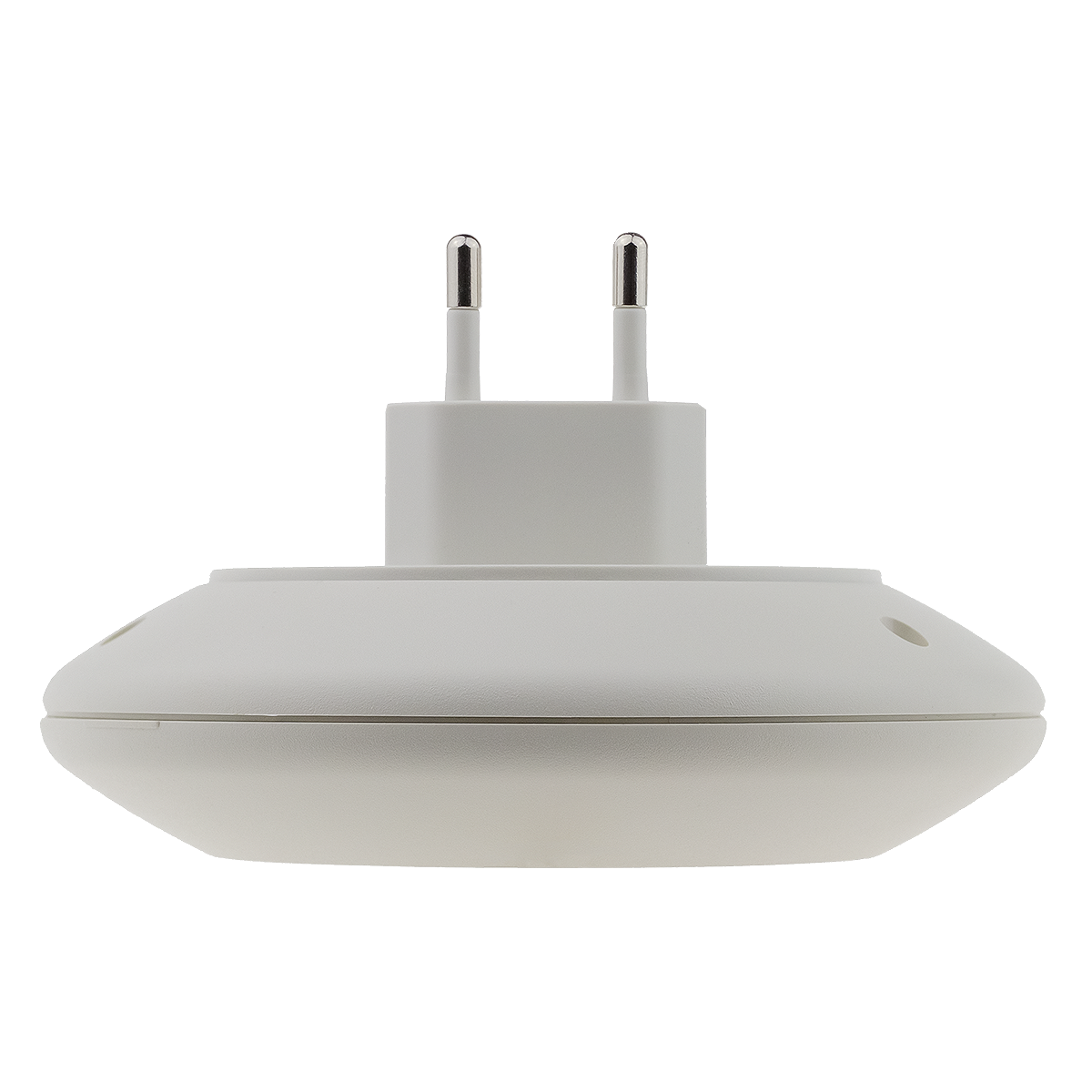

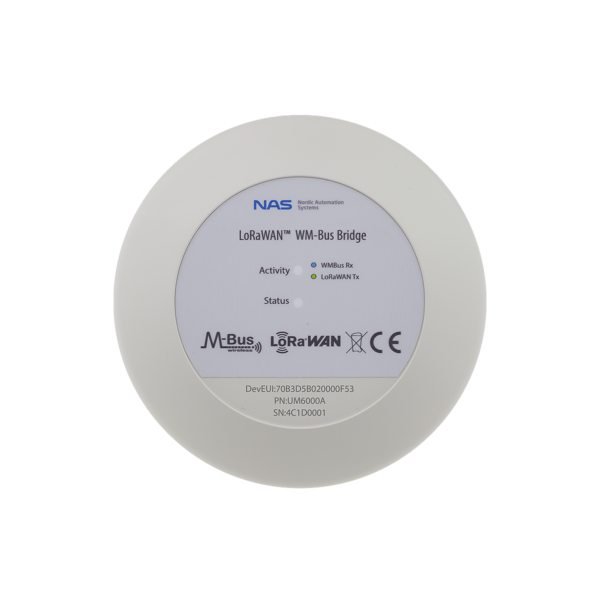

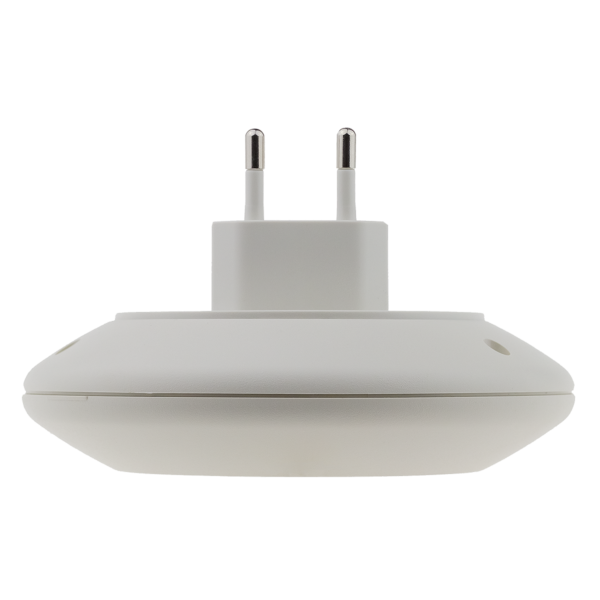

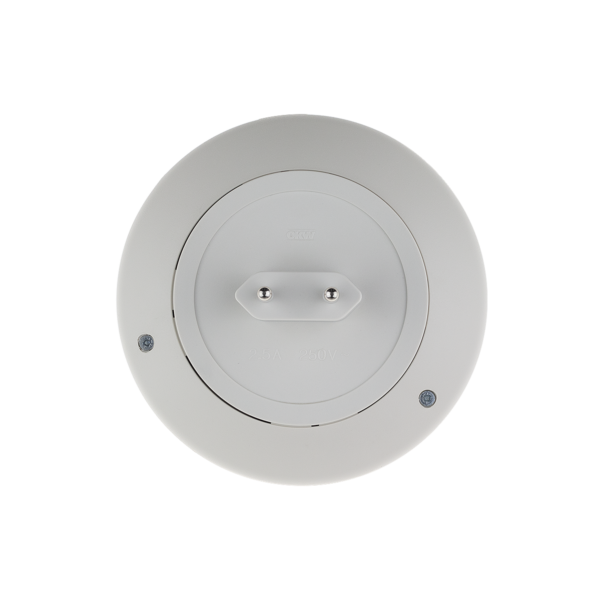

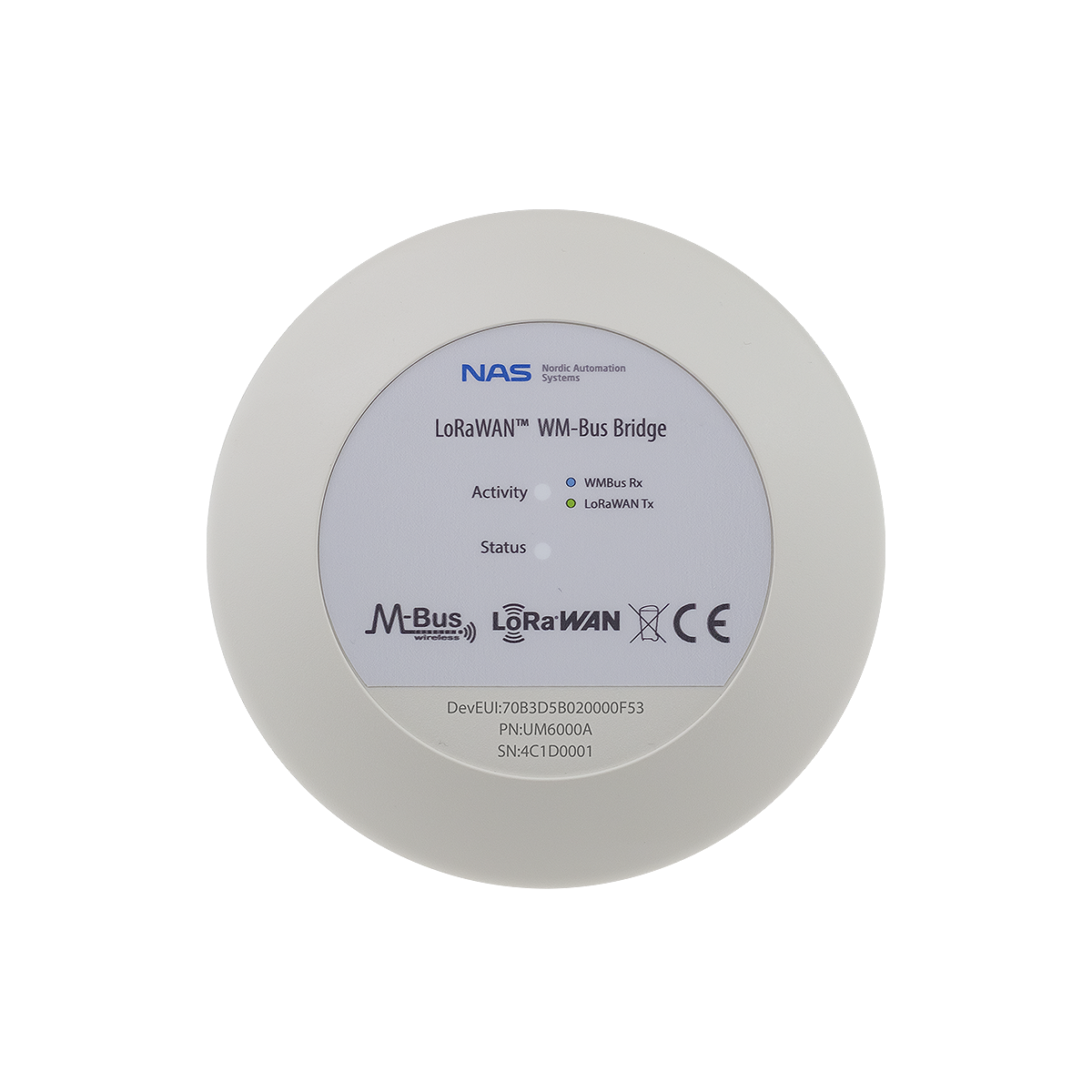

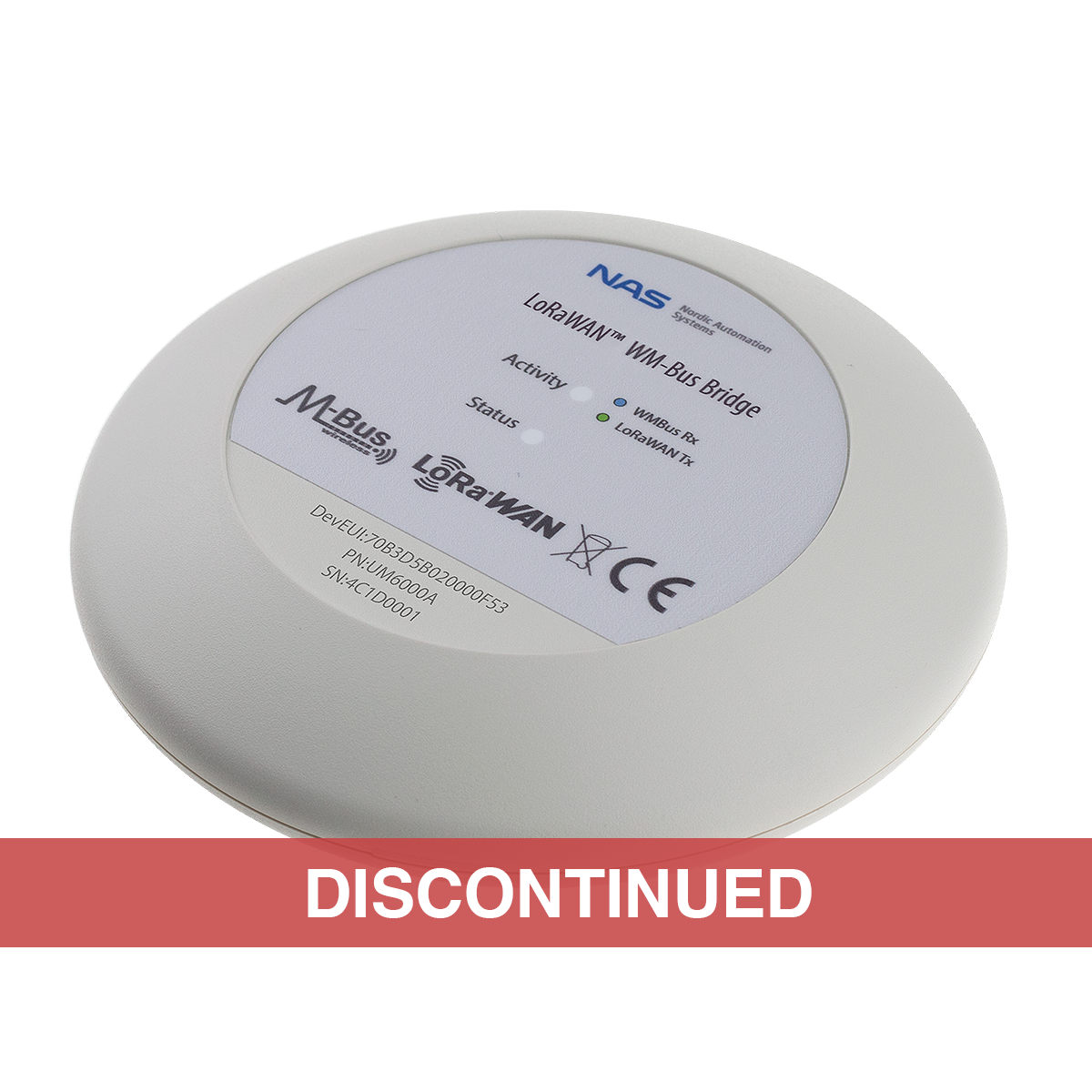

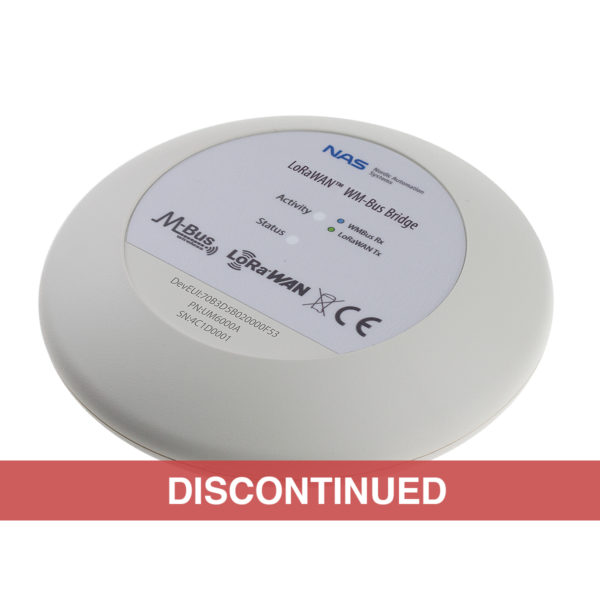

LoRaWAN® WM-Bus Bridge

LoRaWAN® WM-Bus Bridge is designed for receiving wireless M-Bus signals from utility meters and forwarding them via LoRaWAN networks to the service provider. The Bridge is capable to connect up to 16 devices. Communication frequency makes the data more precise.

Ordering code UM6000*

Features

  • Long range wireless data transmission
  • Connects up to 16 devices
  • Supports the following WM-Bus link modes: S1, S1-m, S2, T1, T2, R2, C1 T-A, C2 T-A, C1 T-B, C2 T-B

Additional information

Diameter

110.0 mm

Height

30.0 mm

Weight

95 g

Operating temperature

0… +60°C

IP Rating

40

Tx power

up to +20dBm

Rx Sensitivity

-140dBm

Activation type

OTAA

Download

LoRAWAN WM-BUS Bridge data sheet UM6000

						*For specific order code please see the data sheet. Samples available under MOQ quantity.
					LoRaWAN® is a registered trademark of Semtech Corporation.
