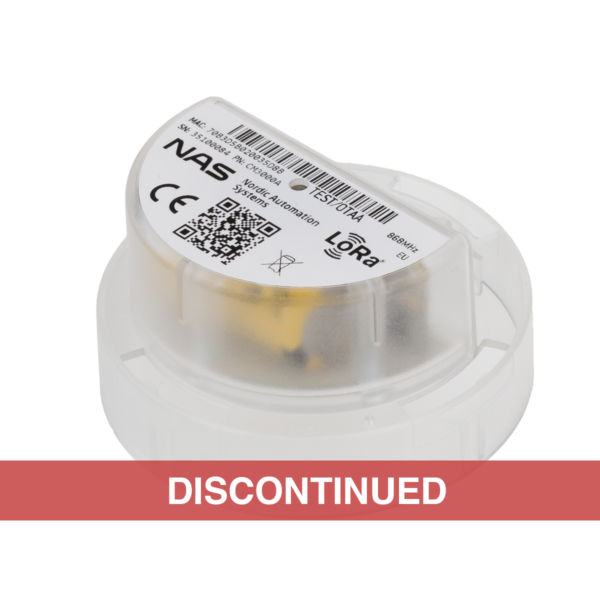

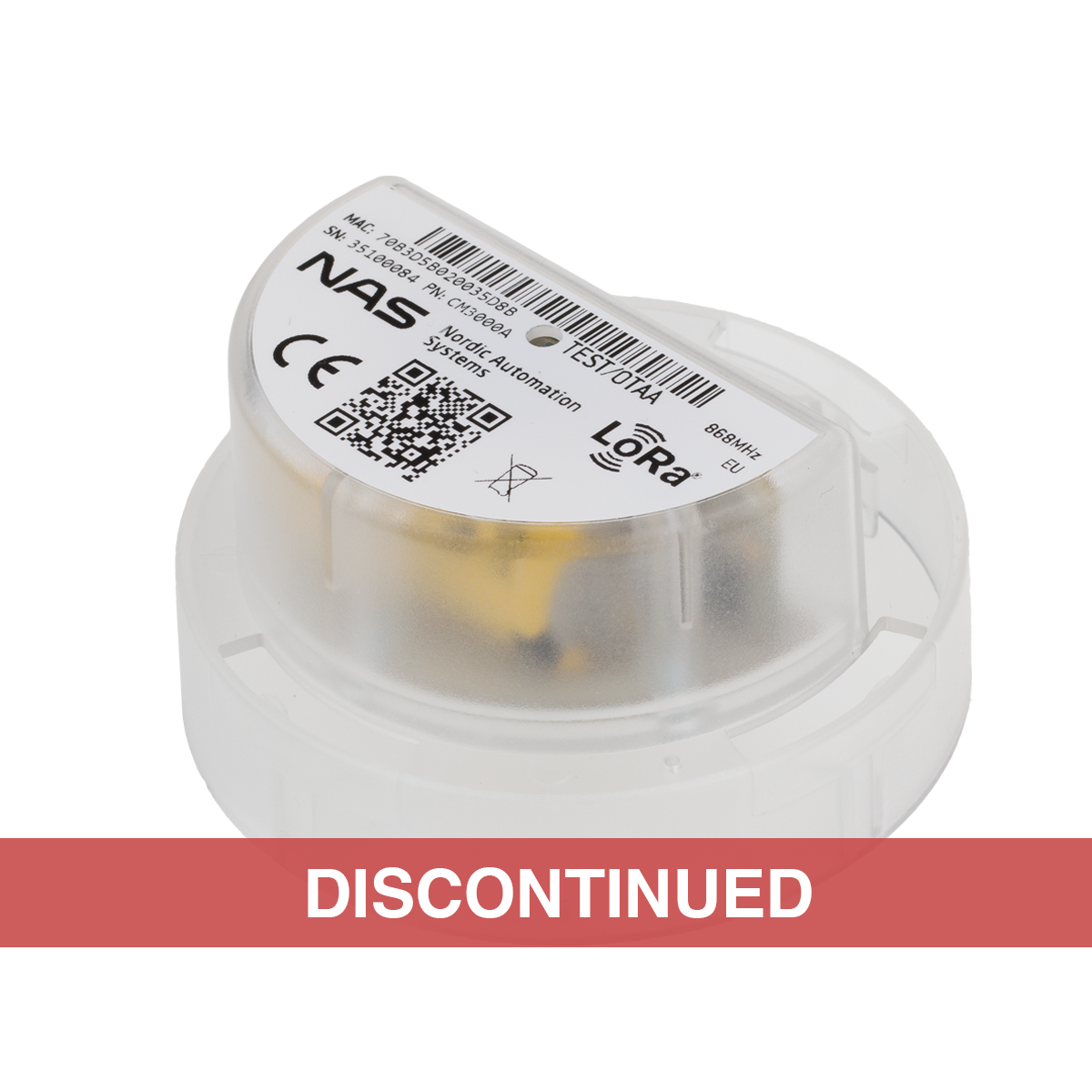

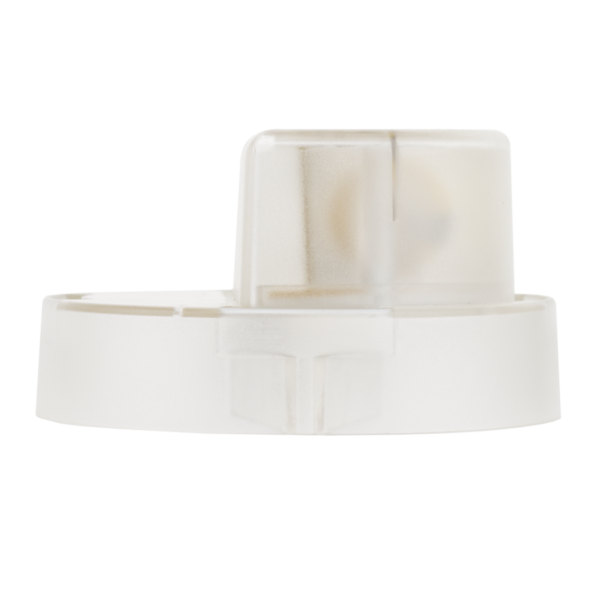

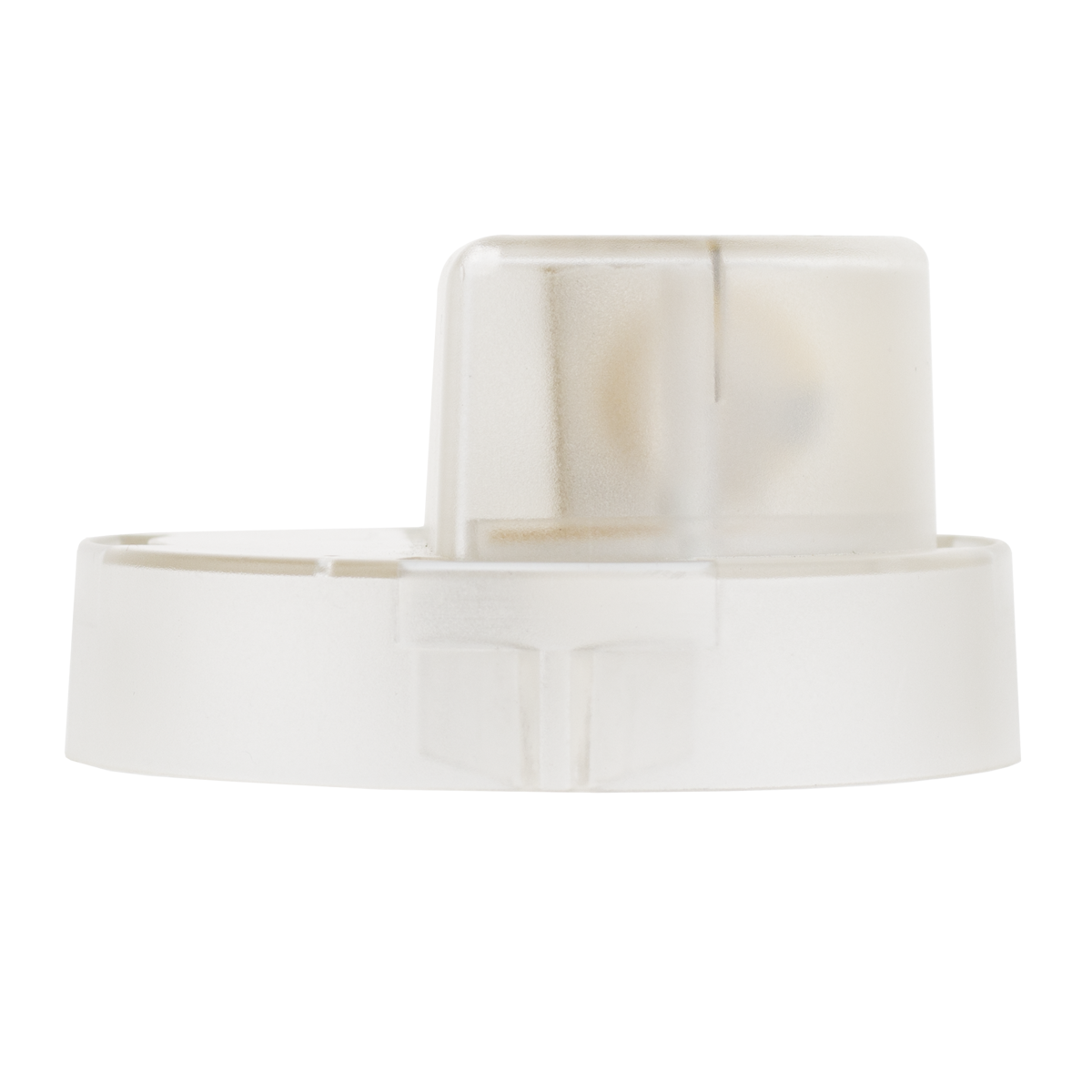

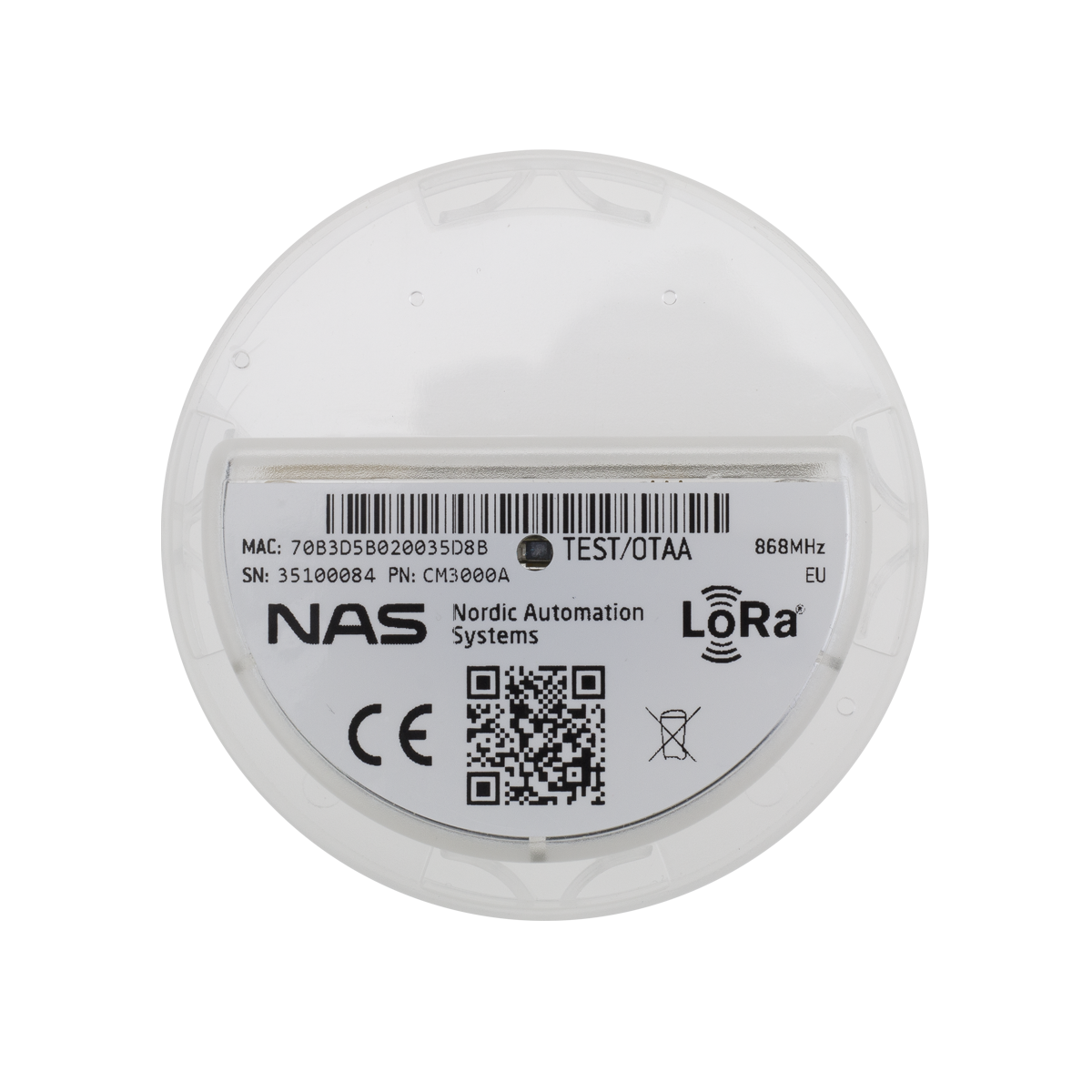

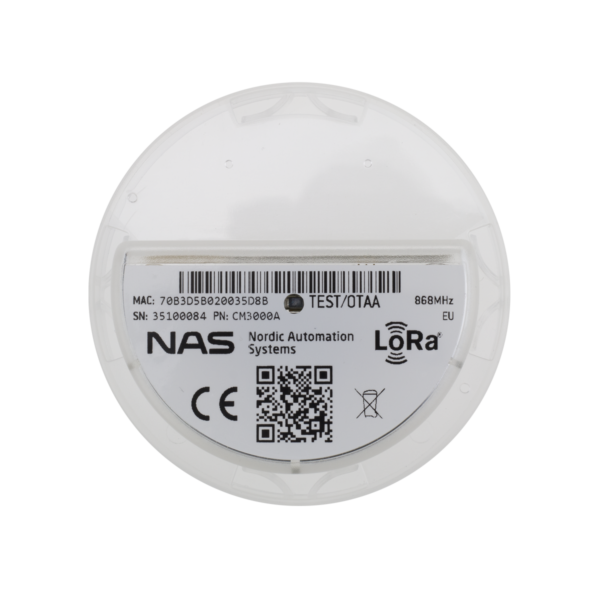

LoRaWAN™ Water Meter Sensor

LoRaWAN™ water meter sensor enables the acquisition of water consumption data and transmits it wirelessly to the available LoRaWAN™ network. LoRaWAN™ water meter sensor is meant to be attached to exisiting water meter.

Efficient

LoRaWAN™ Water Meter Sensor has bidirectional, battery powered, long range transceiver with low power consumption.

Intelligent

Real-time usage data is gathered wirelessly and processed automatically. Data is accessible from your LoRaWAN™ provider.

No longer available. Replaced with CM3020.

Category:

Features

  • Long range wireless data transmission

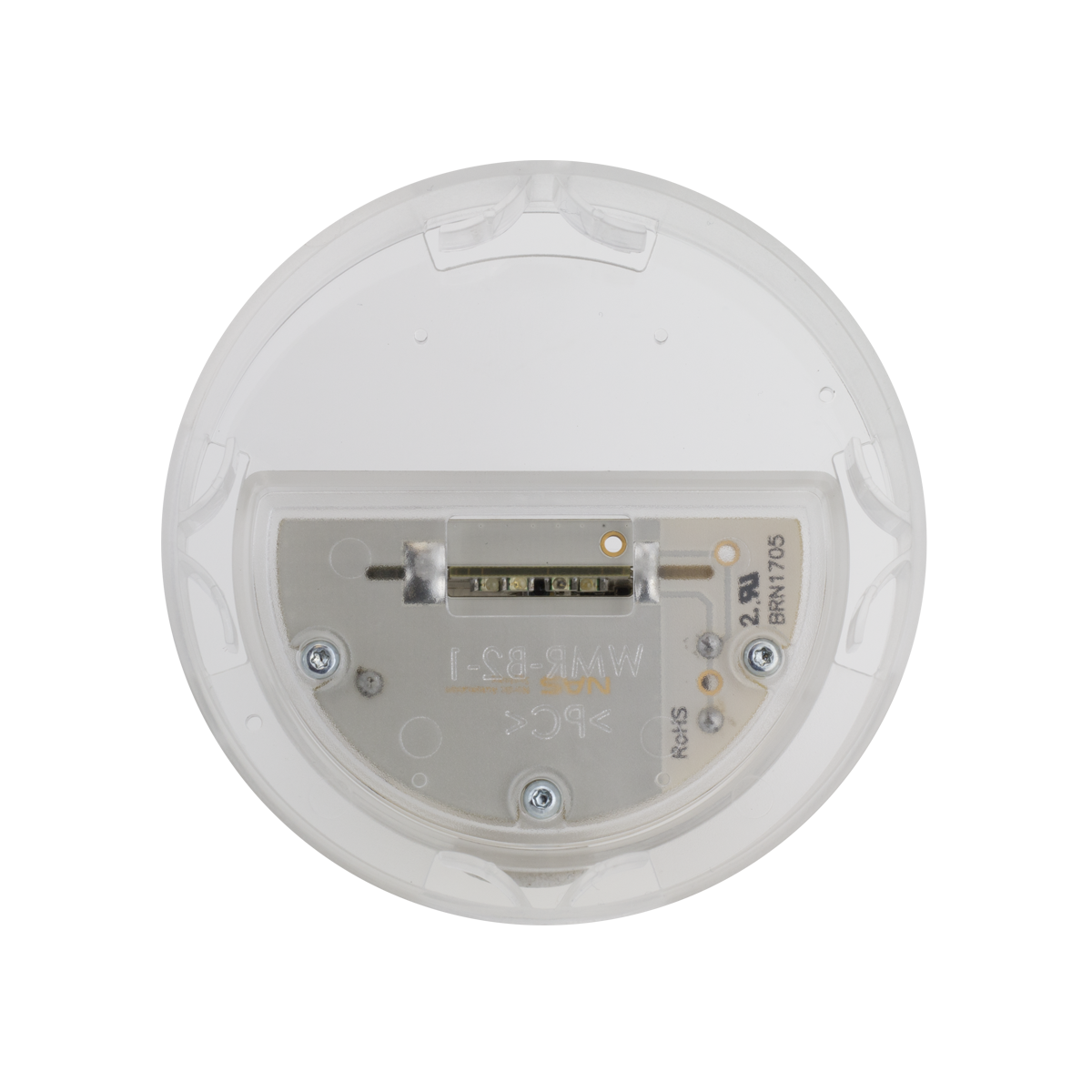

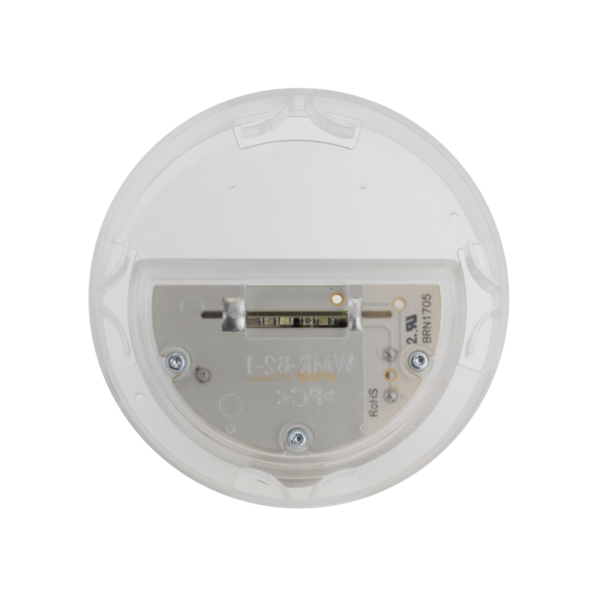

  • Optical detection of the water meter rotating gear movement
  • Magnetic detection of the water meter magnetic dial movement
  • Pre-installed long-life battery
  • Water metering
  • Backflow detection
  • Removal detection
  • Tamper alert
  • Leakage/usage detection
  • Configurable reporting interval
  • Maintenance free – install &  forget
  • Easy installation
  • Average life 10 years*
  • Secure communication

    *Lifetime depends from the reading method (optical or magnetic), device location and reporting interval. With optical reading and hourly reporting the minimal expected lifetime is 2 years.

Additional information

Physical

Diameter

73.0 mm

Height

41.0 mm

Front panel diameter

60mm-67mm

Weight

60 g

IP Rating

IP54

Operational

Operating temperature

-20°C..+65°C

Tx power

up to +20dBm

Communication

LoRaWAN™

Frequency

868 MHz, 922 MHz, 915 MHz

Download

Water meter sensor data sheet
