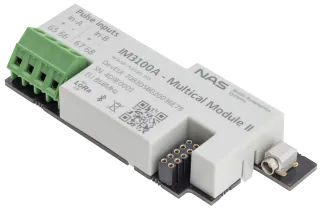

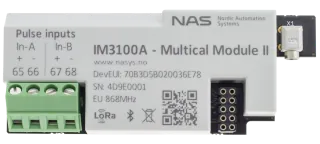

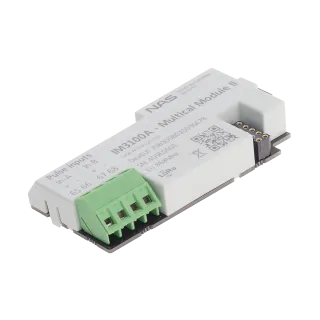

LoRaWAN® Multical Module II
IM3100A
The Multical Module II acquires heat and water consumption data from Kamstrup MULTICAL® 403 and 603 meters. One module per meter, mounted in the meter's module bay.
Features
Long range bidirectional LoRaWAN® transceiver
2× pulse input ports
Configurable reporting interval
Internal BT antenna, MCX antenna connector
Maintenance free
Communication
LoRaWAN® Class A, EU868
Activation
OTAA
Inputs
2× pulse
Antenna
MCX connector
Mounting
Internal module in the meter
MOQ
36 pcs
Accessories
Ordered separately. All accessories
RF2-0040Multical internal antennaInternal 868 MHz antenna for the Multical Module II in MULTICAL® 403 and 603 meters, EU.
RF2-0015SMA antenna, 90°2 dBi, 868/915 MHz, right-angle SMA connector. External antenna for the Multical modules, connected with cable RF2-0001 (Module I) or RF2-0037 (Module II).
RF2-0037MCX to SMA cableMCX straight plug to SMA female coaxial cable, 50 Ω, 30 cm, for an external antenna on the Multical Module II.
