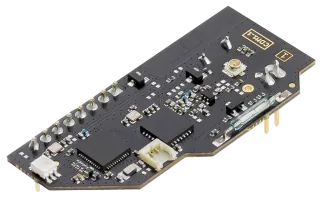

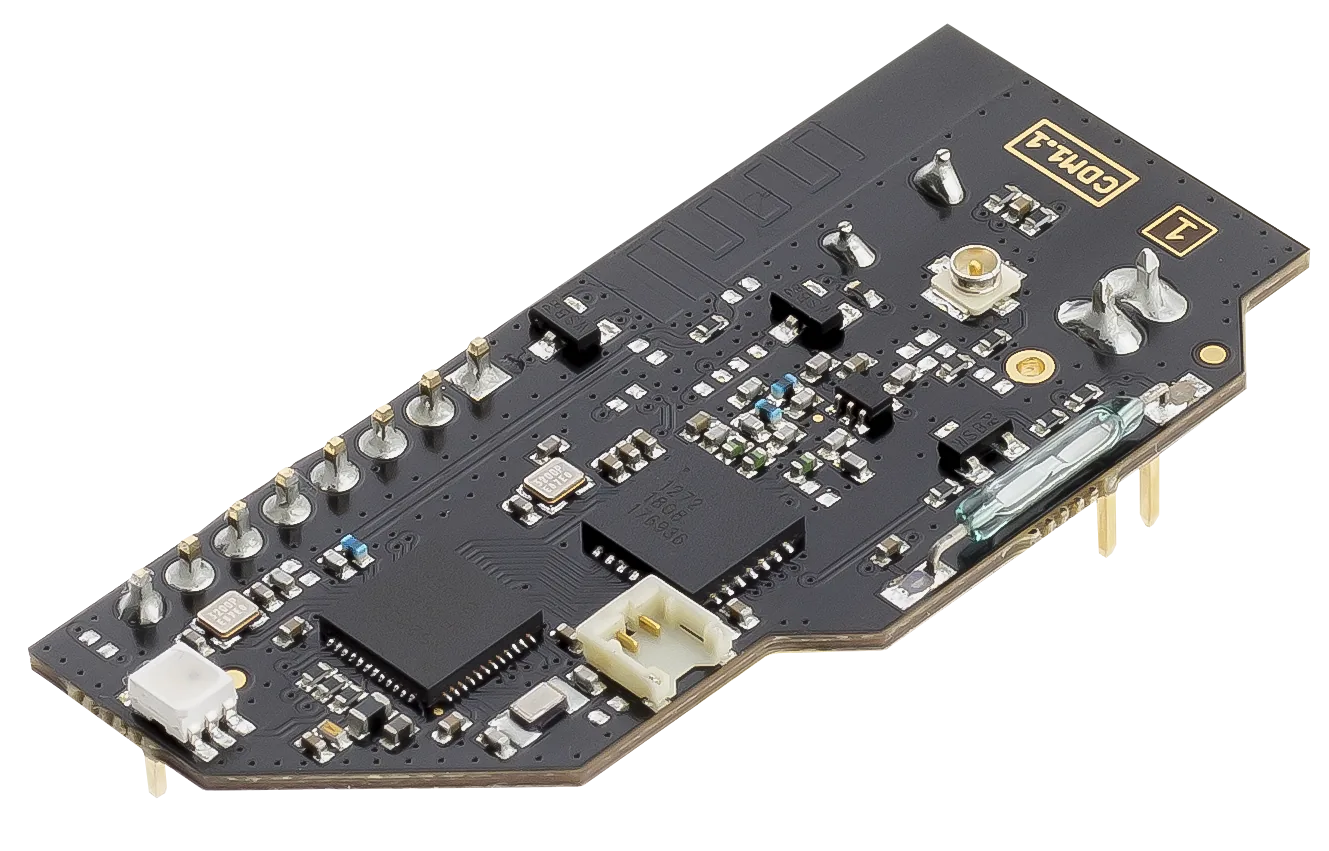

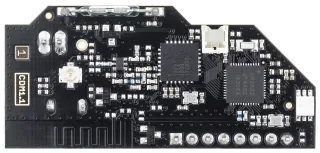

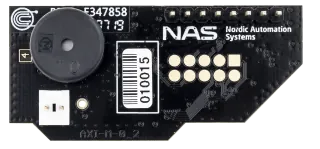

LoRaWAN® Qalcosonic® Module
IM3071A
The Qalcosonic® Module acquires heat and water consumption data from Axioma Qalcosonic® ultrasonic meters. Fitted inside the meter, one module per meter.
Features
Long range bidirectional LoRaWAN® transceiver
Reads the Qalcosonic® meter register directly
Configurable reporting interval
Internal antenna or U.FL connector for an external antenna
Optional NFC antenna (RF2-0043) for on-site setup with the NAS Connect app
Maintenance free
Communication
LoRaWAN® Class A, EU868
Activation
OTAA
Meters
Axioma Qalcosonic® heat and water
MOQ
36 pcs
Mounting
Internal module in the meter

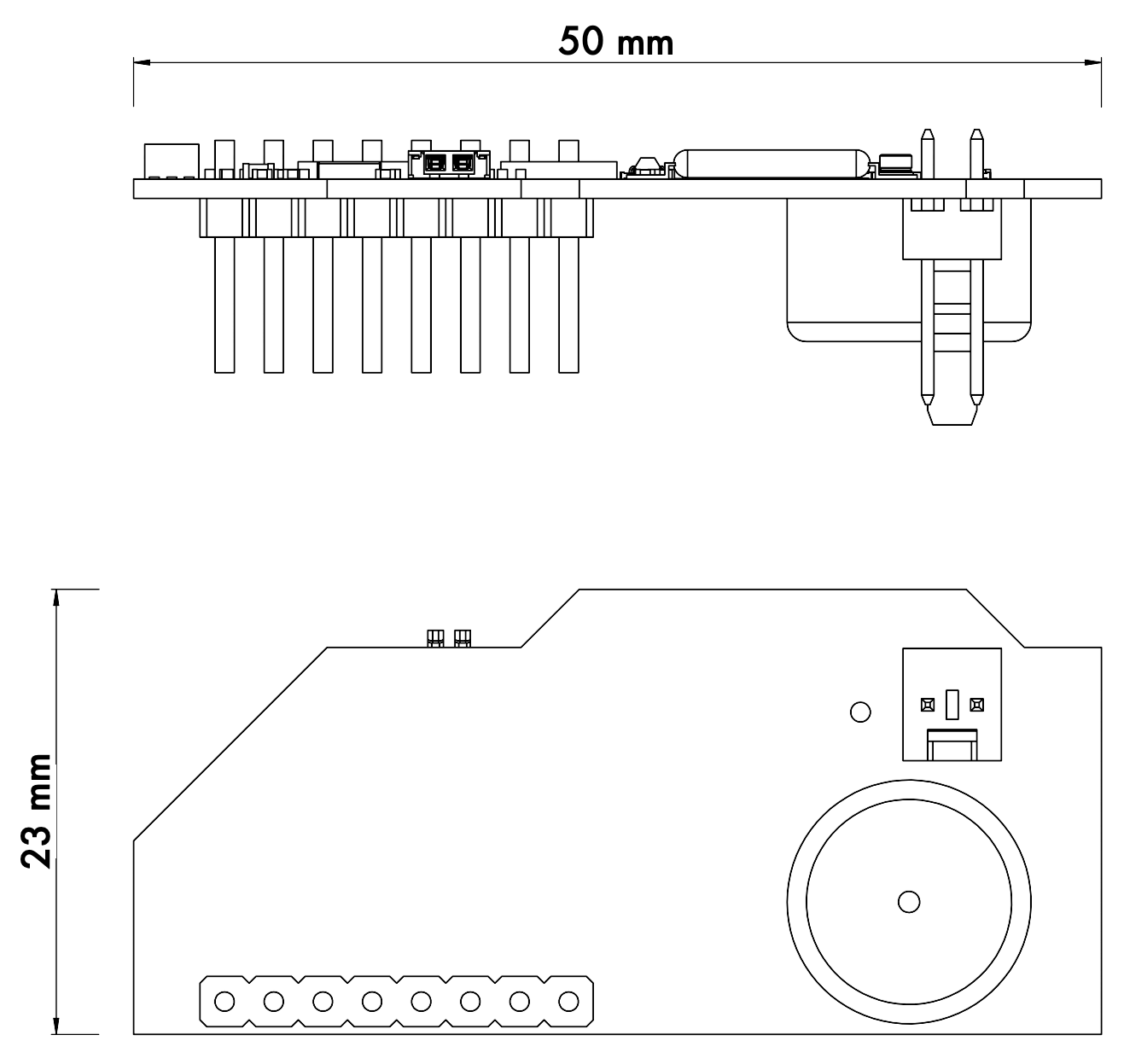

Dimensions
50 × 23 × 15.3 mm
