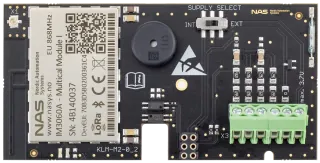

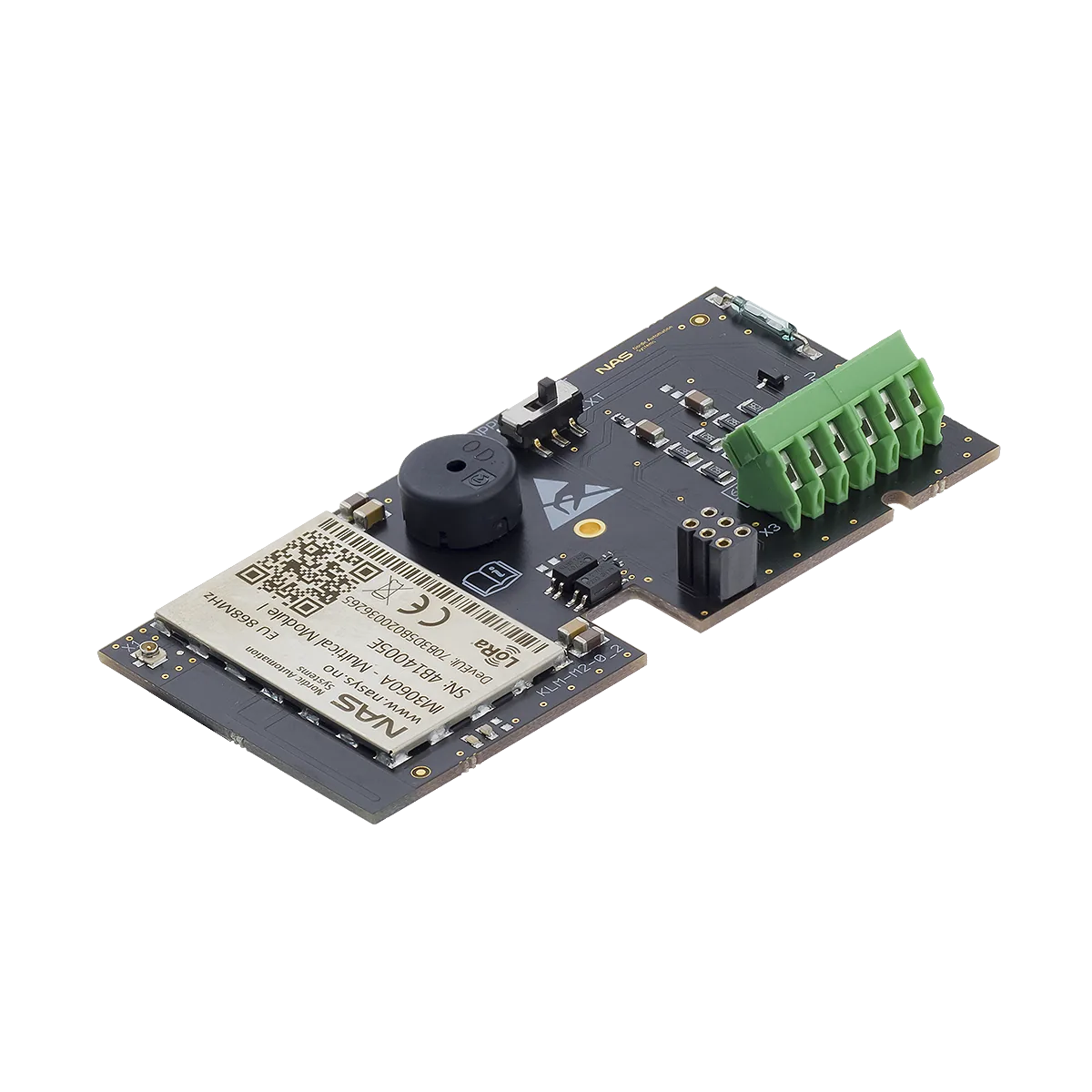

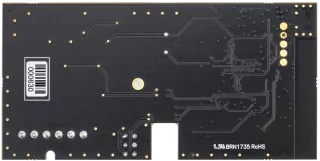

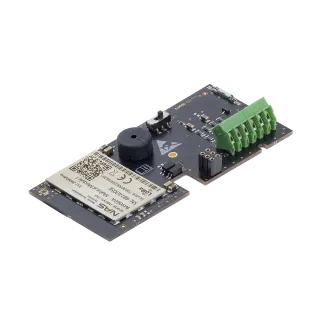

LoRaWAN® Multical Module I
IM3060A
The Multical Module I acquires heat and water consumption data from Kamstrup MULTICAL® 66, 601, 602 and 801 meters. One module per meter, mounted in the meter's module bay.
Features
Long range bidirectional LoRaWAN® transceiver
2× pulse input ports
Configurable reporting interval
DC output for Kamstrup module
Internal BT antenna, MMCX or U.FL antenna connector
MID certified
Maintenance free
Communication
LoRaWAN® Class A, EU868
Activation
OTAA
Inputs
2× pulse
Antenna
U.FL connector
Mounting
Internal module in the meter
MOQ
36 pcs
Accessories
Ordered separately. All accessories
RF2-0015SMA antenna, 90°2 dBi, 868/915 MHz, right-angle SMA connector. External antenna for the Multical modules, connected with cable RF2-0001 (Module I) or RF2-0037 (Module II).
RF2-0001U.FL to SMA cableU.FL to SMA female coaxial cable, 50 Ω, 100 mm, for an external antenna on the Multical Module I.
