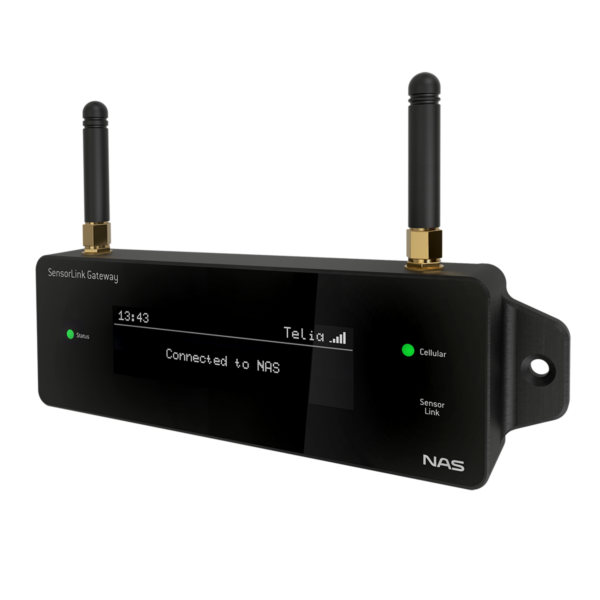

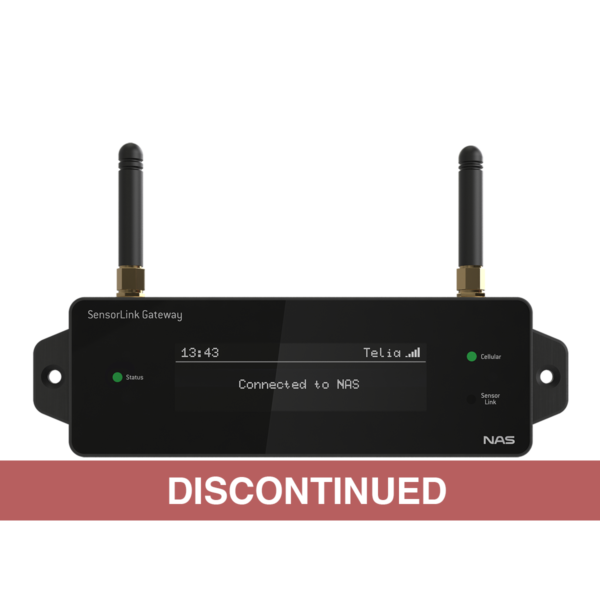

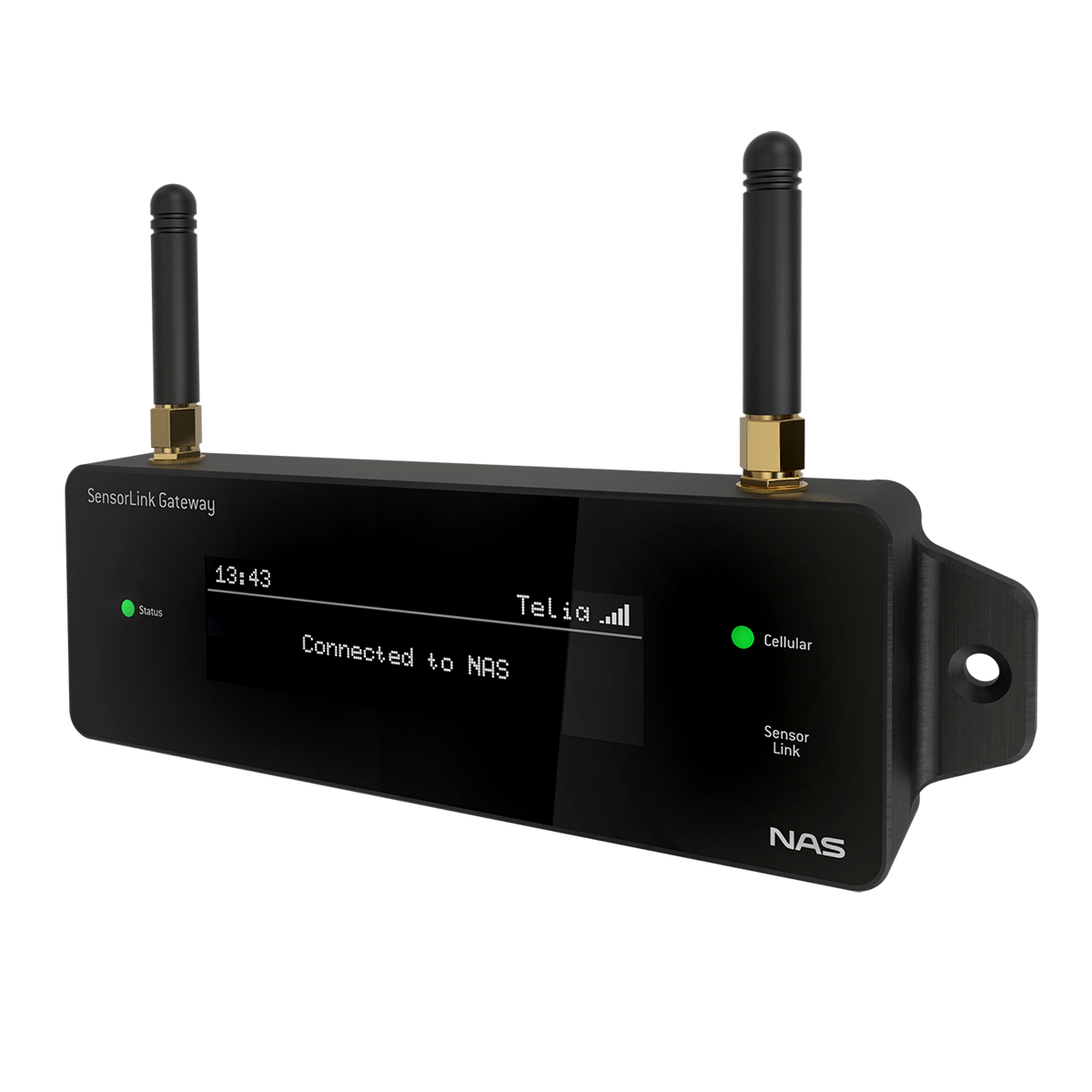

SensorLink Gateway

SensorLink™ Gateway is the gateway for all NAS products towards NAS Analytics platform, collecting real-time data and providing feedback if necessary. Aluminium body and reinforced glass faceplate makes the Gateway durable and easily mountable. Gateway establishes a Link to NAS Analytics over Ethernet or cellular connection.

Plug and play

Easily mountable with automatic startup. No additional software needed.

Robust design

Screw-mountable aluminium body with reinforced glass faceplate.

Ordering code IM1000.*

Features

  • Two-band GSM connection
  • Ethernet connection*
  • Modbus RTU interface*
  • White OLED display
  • Internal data recording for backup
  • Firmware OTA upgradable

    *Optional (Communication interface required)

Additional information

Length

175.0 mm

Width

20.0 mm

Height

102.0 mm

Weight

215 g

IP Rating

IP43

Operational

Operating temperature

-20°C… +60°C

Power consumption

9W

Communication

2.4 GHz NAS SensorLink protocol / Bluetooth LE Modbus RTU*

SecureCloud Connection

900/1800 Mhz GSM
10/100 Mbit/s Ethernet*

Download

Gateway data sheet

Description

*Optional (Communication interface required)

bool(true)
*For specific order code please see the data sheet. Samples available under MOQ quantity.
