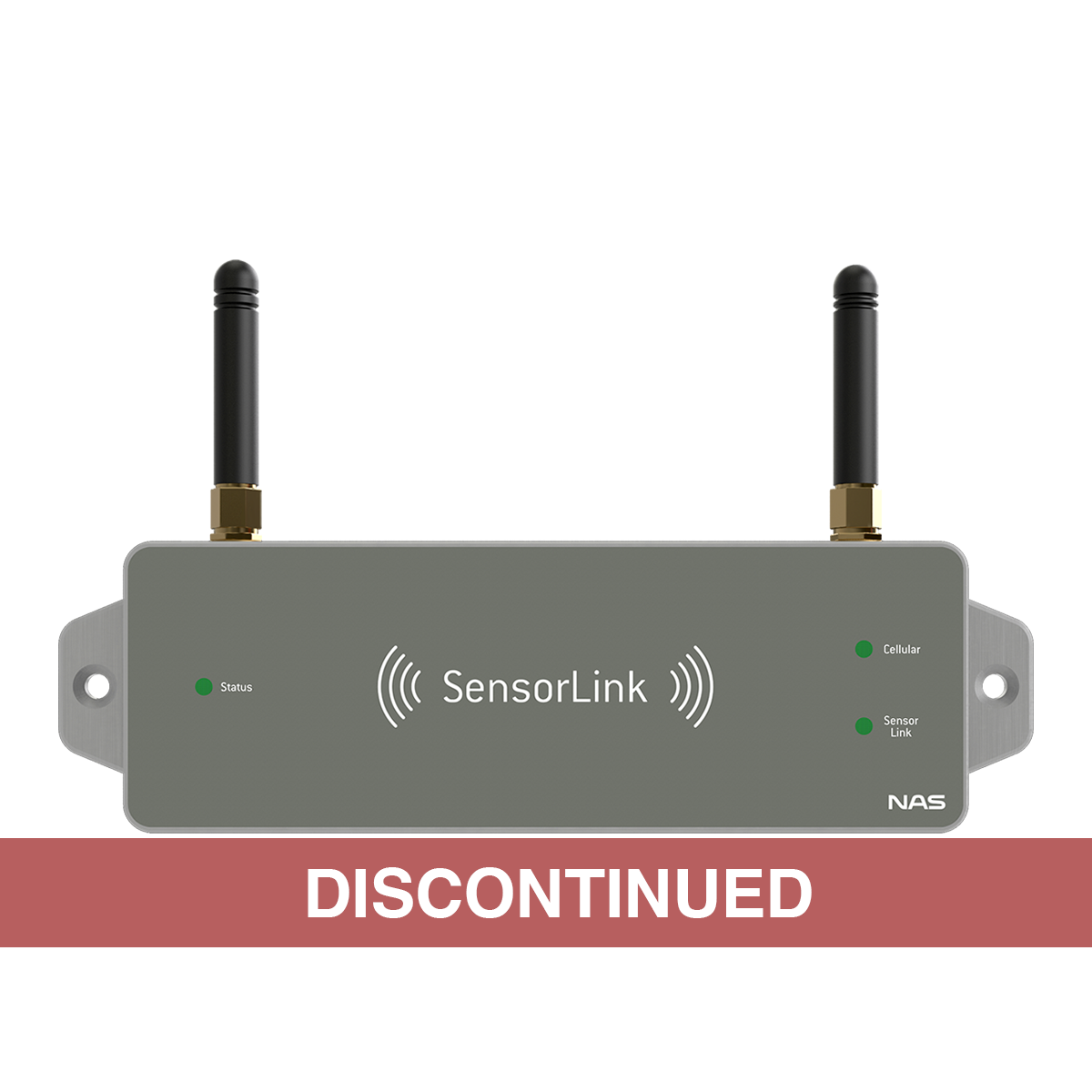

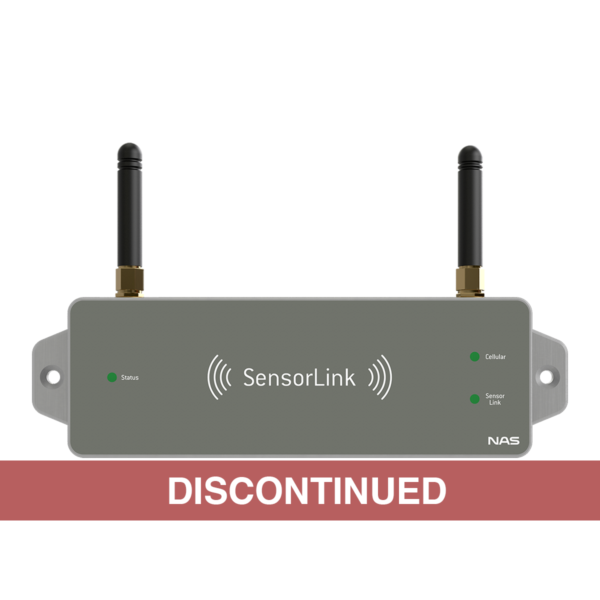

SensorLink Gateway Cellular

SensorLink Gateway Cellular is the gateway for all NAS products towards NAS Analytics platform, collecting real-time data and providing feedback if necessary. Gateway establishes a Link to NAS Analytics over cellular connection.

Plug and play

Easily mountable with automatic startup. No additional software required.

Robust design

Screw-mountable aluminium body.

Ordering code IM1010A.*

Features

  • Two-band GSM connection
  • Modbus RTU interface*
  • Internal data recording for backup
  • Firmware OTA upgradable

*Optional (Communication interface required)

Additional information

Physical

Length

175.0 mm

Width

20.0 mm

Height

102.0 mm

Weight

200 g

IP Rating

IP43

Operational

Operating temperature

-20°C… +60°C

Power consumption

9W

Communication

2.4 GHz NAS SensorLink protocol
Bluetooth LE
Modbus RTU*

SecureCloud Connection

900/1800 Mhz GSM

Download

Gateway cellular data sheet

Description

*Optional (Communication interface required)

bool(true)
*For specific order code please see the data sheet. Samples available under MOQ quantity.
