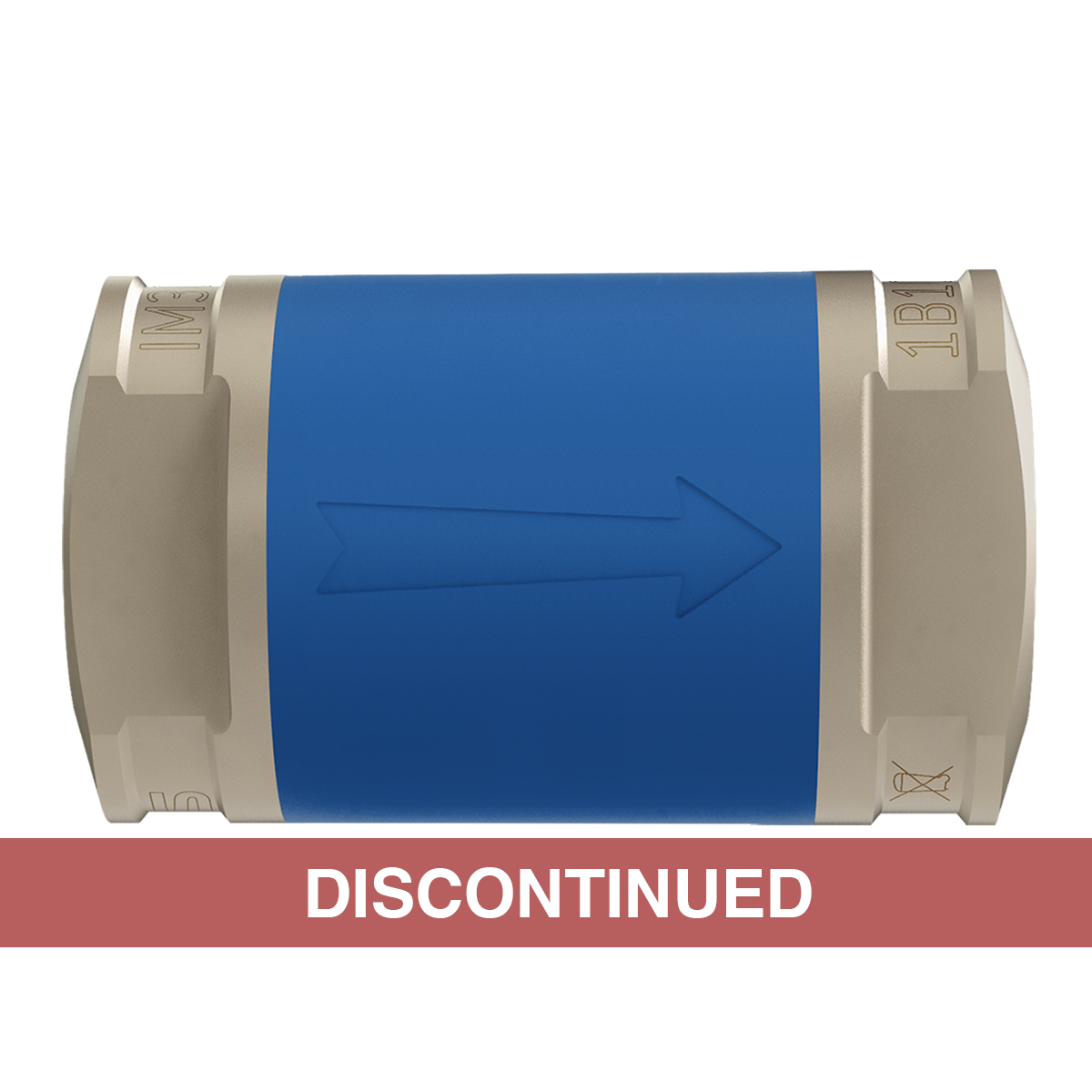

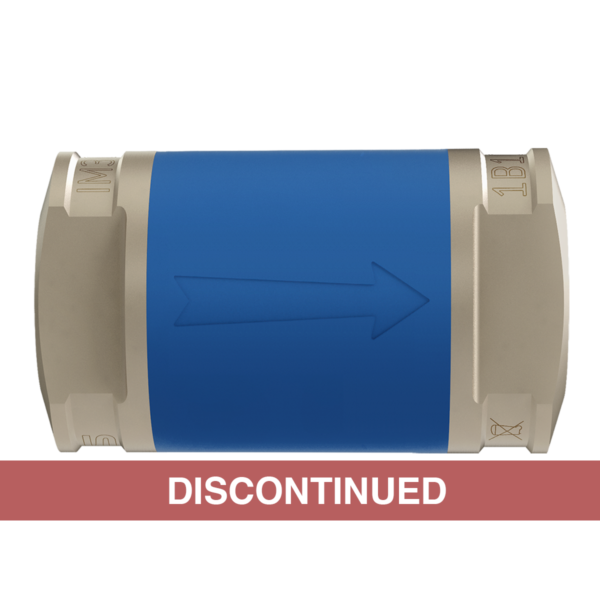

High-Flow Inline Pneumatic Tool Sensor

The SensorLink™ high-flow inline pneumatic sensor is a wireless device which is mounted inline with existing compressed air line. The Analytics Platform monitors the tool’s trigger time, vibration level, consumption data and maintenance cycles, and it can set up reports based on that information.


The sensor has built-in batteries with no maintenance required during the product lifetime.


Real-time usage data is gathered wirelessly and processed automatically. Data is accessible on any PC or smartphone connected to the internet.

Ordering code IM3030.*


  • Wireless data transmission
  • Lifetime up to 2 years
  • Air flow measurement 240-2600 l/min
  • Trigger time measurement
  • Ambient temperature measurement
  • Sensor internal data recording for off-site usage
  • Flowrate 2300l/min @ 0,6 bar drop
  • Pressure measuring range 0-10 bar
  • Factory calibrated
  • Firmware OTA upgradable
  • Various thread types available


Additional information



62.0 mm


34.6 mm


60 g

Nominal flow diameter

7.2 mm

Thread type

3/8” BSP / G
3/8” NPT


Operating temperature

-20°C … +60°C

Air flow

2300 l/min**

Pressure accuracy

200 mbar

RF range

up to 30 m**

Battery lifetime

up to 2 years*


2.4 GHz
NAS SensorLink
Bluetooth LE


High-flow inline pneumatic sensor data sheet


* Battery lifetime and signal range are largely dependent on the location and usage. Low temperature reduces battery life. Reinforced and metal walls block reception. Industry average is shown on data sheet.
** Flow capacity is measured at 6 bar (87 PSI) inlet pressure, and pressure drop at 0.6 bar (8.7 PSI).

						*For specific order code please see the data sheet. Samples available under MOQ quantity.
