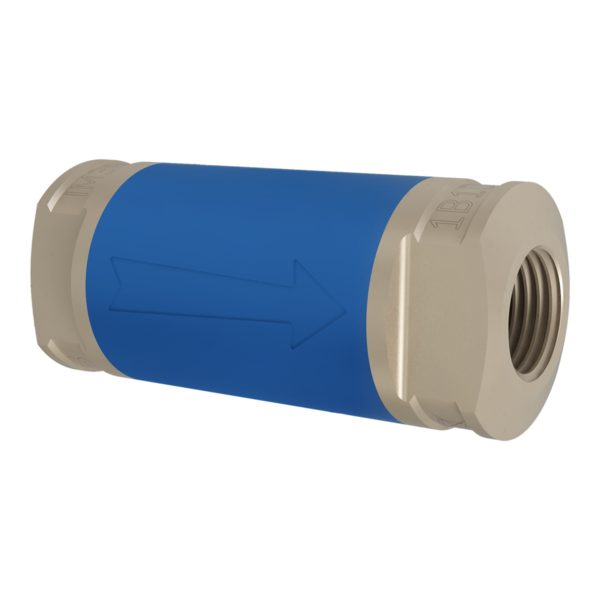

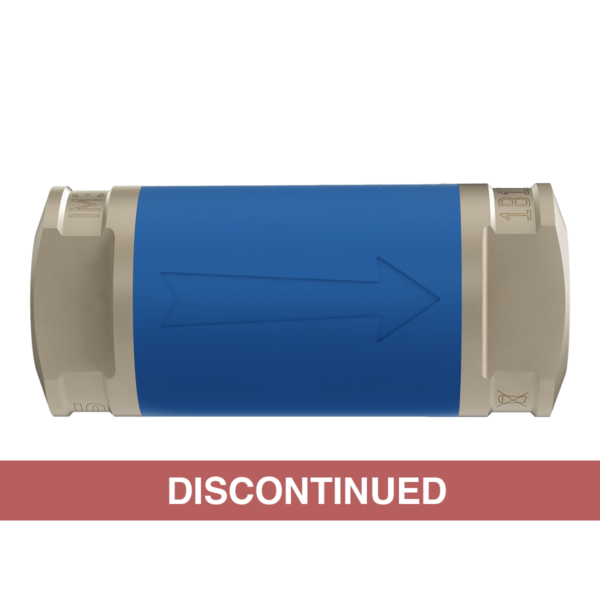

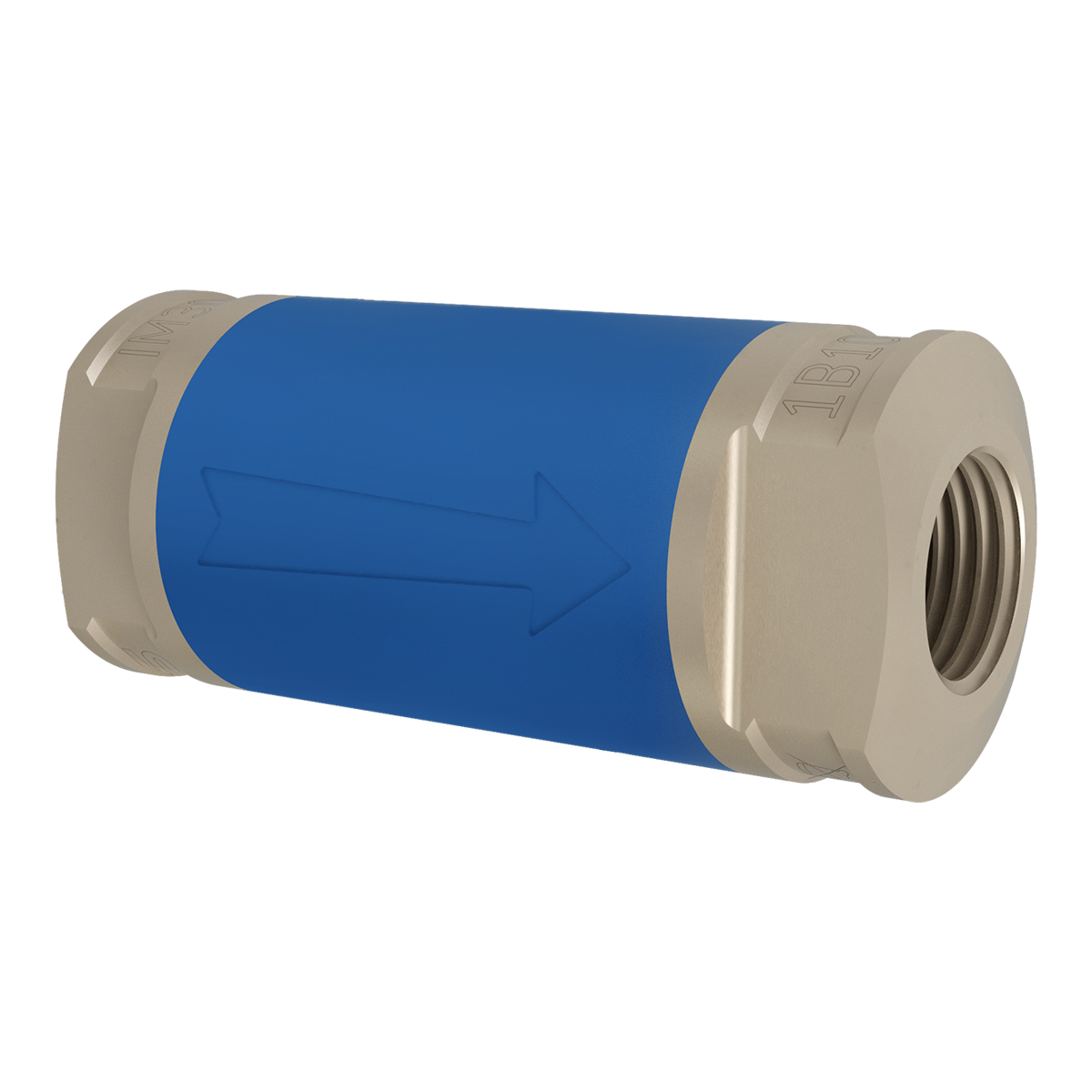

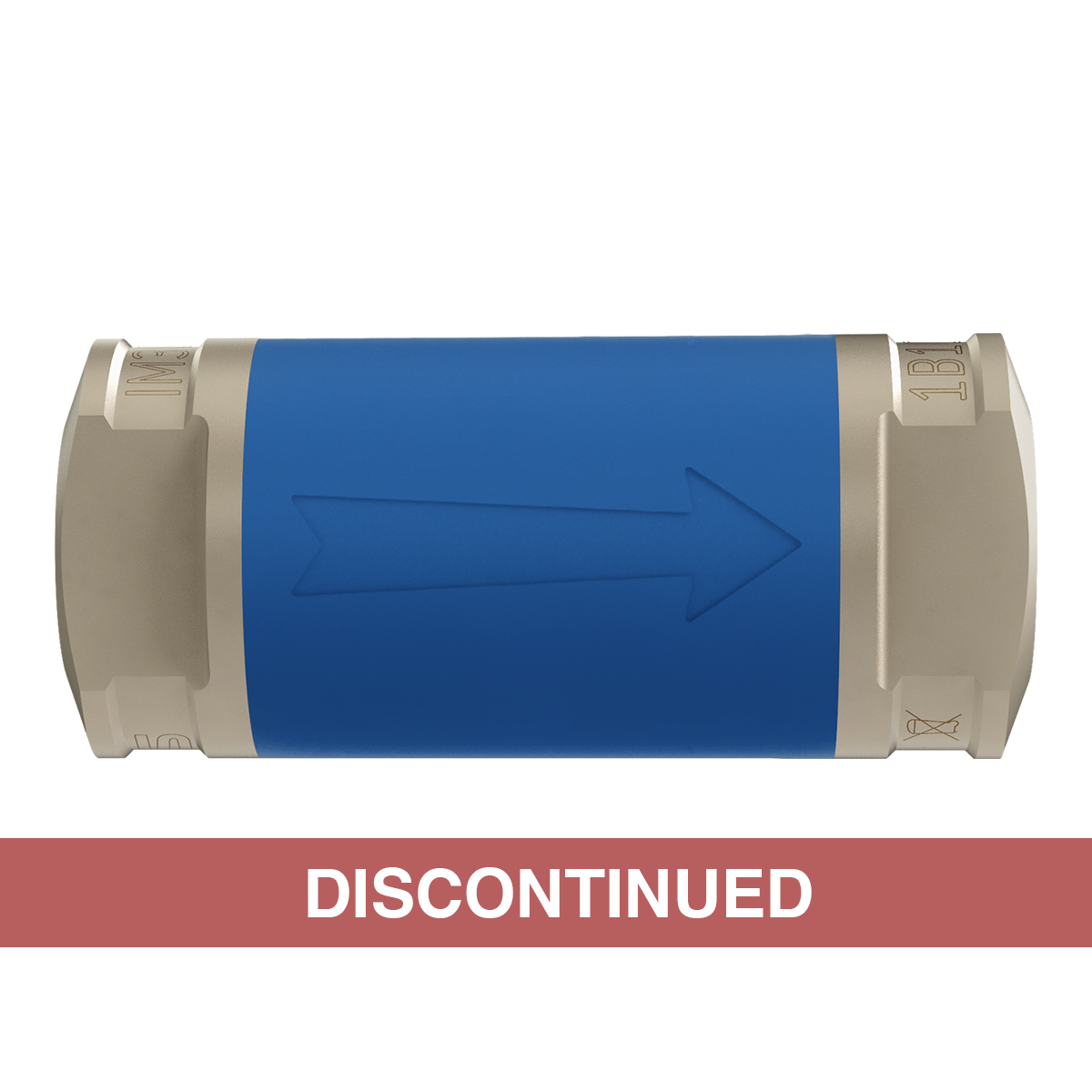

Inline Pneumatic Tool Sensor

The SensorLink™ inline pneumatic sensor is a wireless device, mounted inline within the existing compressed air line. The Analytics Platform monitors the tool’s trigger time, vibration level, consumption data and maintenance cycles, and it can set up reports based on that information.

Efficient

The sensor has built-in batteries with no maintenance required during the product lifetime.

Intelligent

Real-time usage data is gathered wirelessly and processed automatically. Data is accessible on any PC or smartphone connected to the internet.

Ordering code IM3050.*

Features

  • Wireless data transmission
  • Lifetime up to 2 years
  • Air flow measurement 120-1300 l/min
  • Trigger time measurement
  • Ambient temperature measurement
  • Factory calibrated
  • Sensor internal data recording for off-site usage
  • Flowrate 1150l/min @ 0,6 bar drop
  • Pressure measuring range 0-10 bar*
  • Firmware OTA upgradable
  • Various thread types available

    * IM3050AP/IM3050BP only

Additional information

Physical

Length

55.0 mm

Diameter

24.6 mm

Weight

40 g

Nominal flow diameter

5.0 mm

Thread type

1/4” BSP / G
1/4” NPT

Operational

Operating temperature

-20°C..+60°C

Air flow

1150 l/min***

Pressure accuracy

200 mbar*

RF range

up to 30 m**

Battery lifetime

up to 2 years**

Communication

2.4 GHz
NAS SensorLink
Bluetooth LE

Download

Inline pneumatic sensor data sheet

Description

* IM3050AP/IM3050BP only
** Battery lifetime and signal range are largely dependent on the location and usage. Low temperature reduces battery life. Reinforced and metal walls block reception. Industry average is shown on data sheet
*** Flow capacity is measured at 6 bar (87 PSI) inlet pressure, and pressure drop at 0.6 bar (8.7 PSI)

						*For specific order code please see the data sheet. Samples available under MOQ quantity.
