Development Board

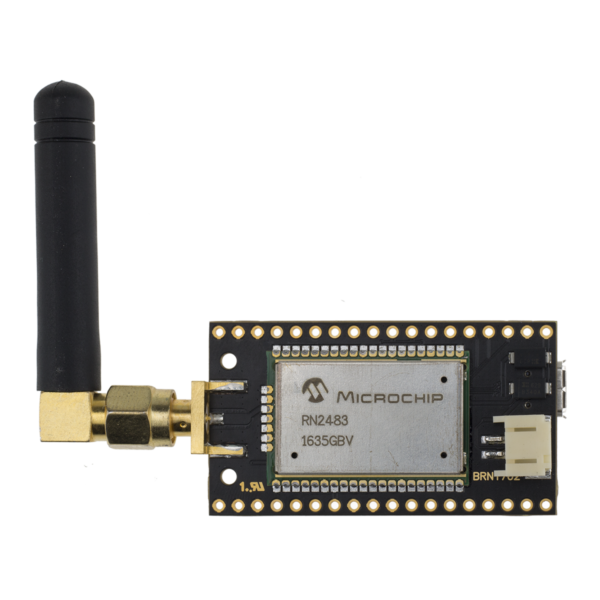

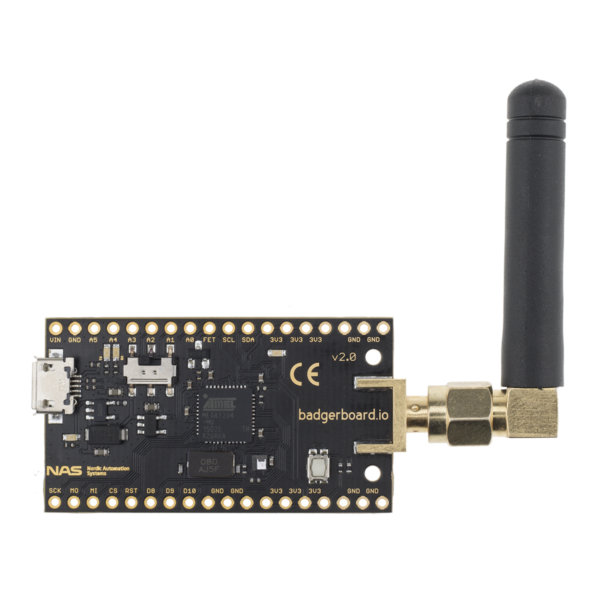

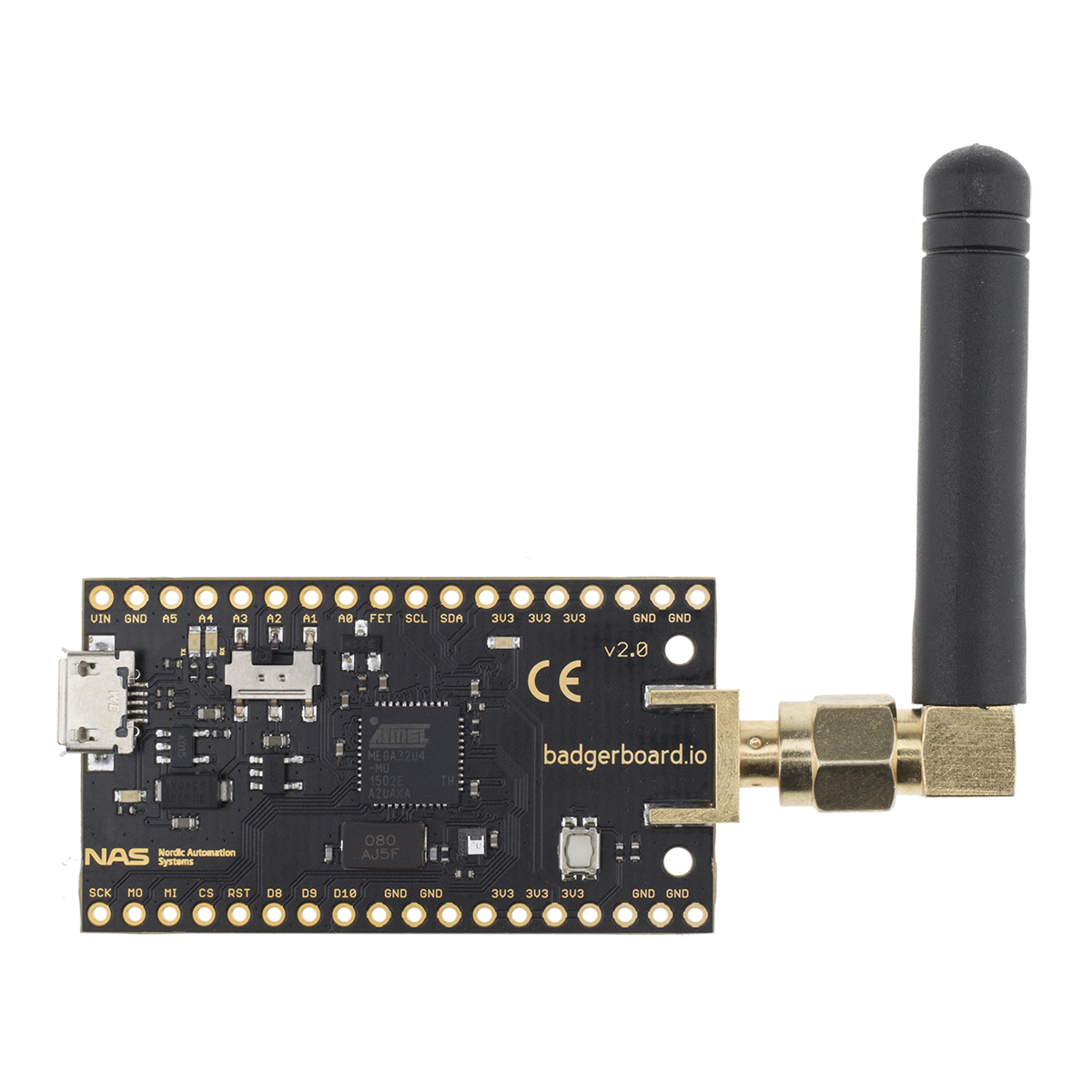

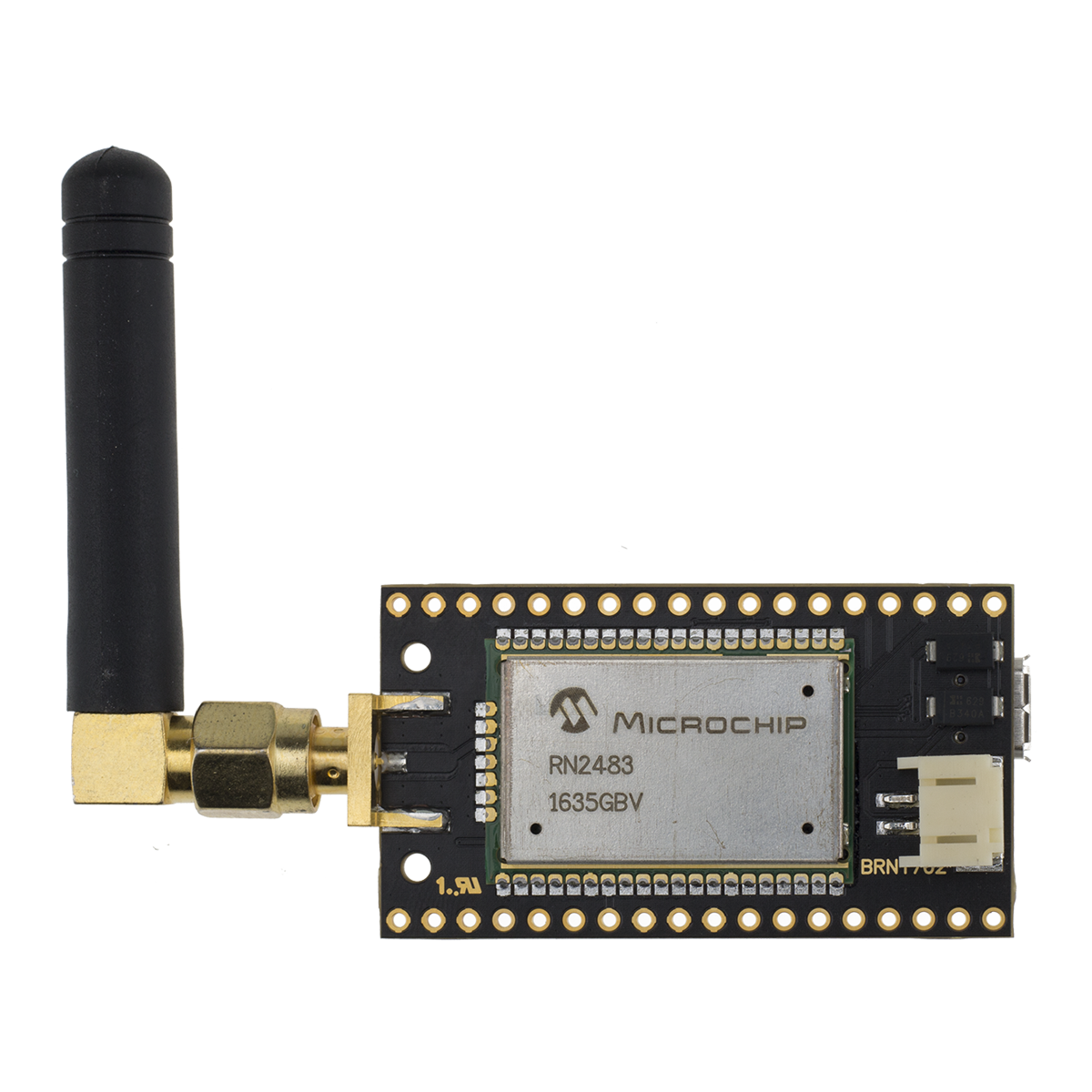

Development Board “Badgerboard” is an Arduino compatible LoRaWAN™ development board. The board have built-in temperature and humidity sensors for instant testing of the LoRaWAN™ network.

Software

Everything is handled by the software libraries – user needs to download the latest IDE and support library to start the development.

Applications

Badgerboard is focused on various IoT applications – it has special hardware on board to facilitate this (transceiver, sensors, battery connector).

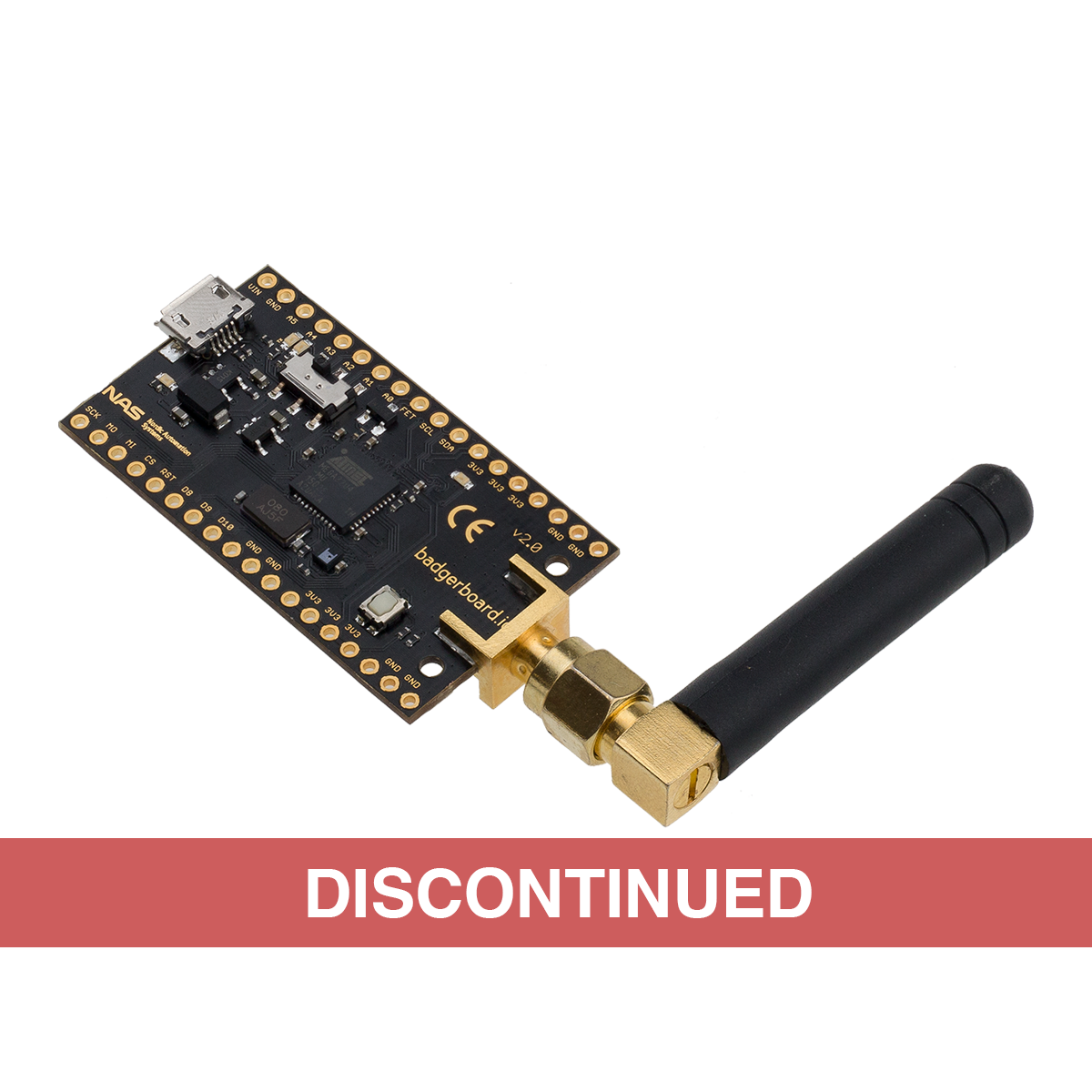

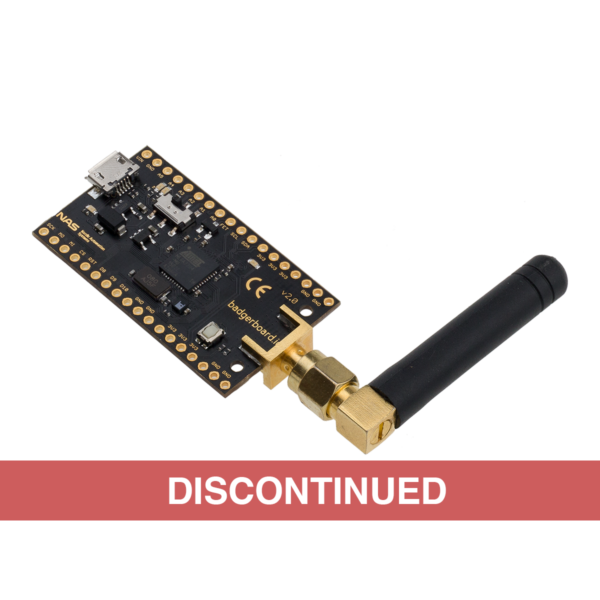

No longer available.

Category:

Features

  • LoRaWAN™
  • LEDs (TX, RX, status, charge)
  • Relay switching (Open-drain FET)
  • SMA antenna included
  • USB programmable
  • JST battery connector
  • On/off button
  • Reset button
  • Built in temperature and humidity sensor
  • LiPo charger
  • Micro USB connector
  • 1x I²C
  • 13x GPIO; 9x ADC; 1x SPI (4xGPIO); 3x PWM

Additional information

Physical

Length

55.6 mm

Width

25.8 mm

Height

10.0 mm

Weight

9 g

Operational

Operating temperature

-20°C..+65°C

Power Consumption

Stand by: 200 uA
Tx: 50 mA
Rx: 20 mA

Communication

I²C, SPI, USB

Frequency

433MHz, 868MHz, 915MHz, 922MHz

Download

Badgerboard data sheet

Badgerboard quick start guide

Badgerboard pinout diagram
