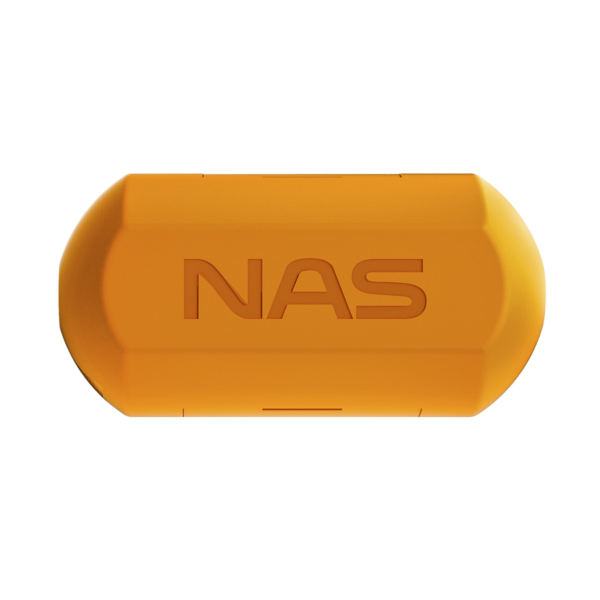

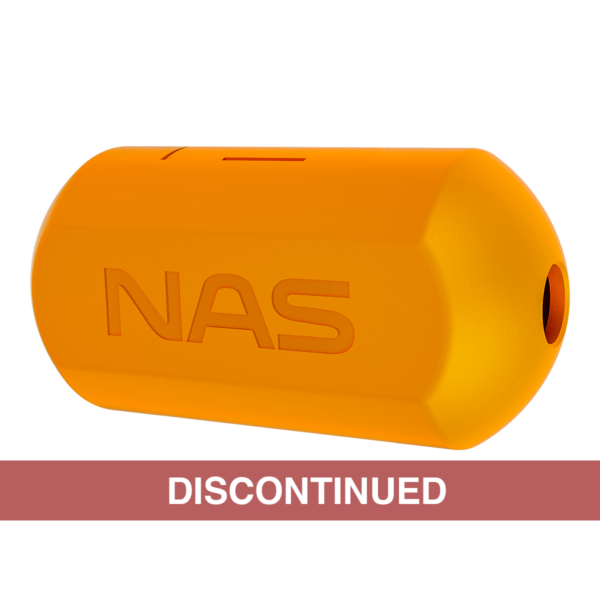

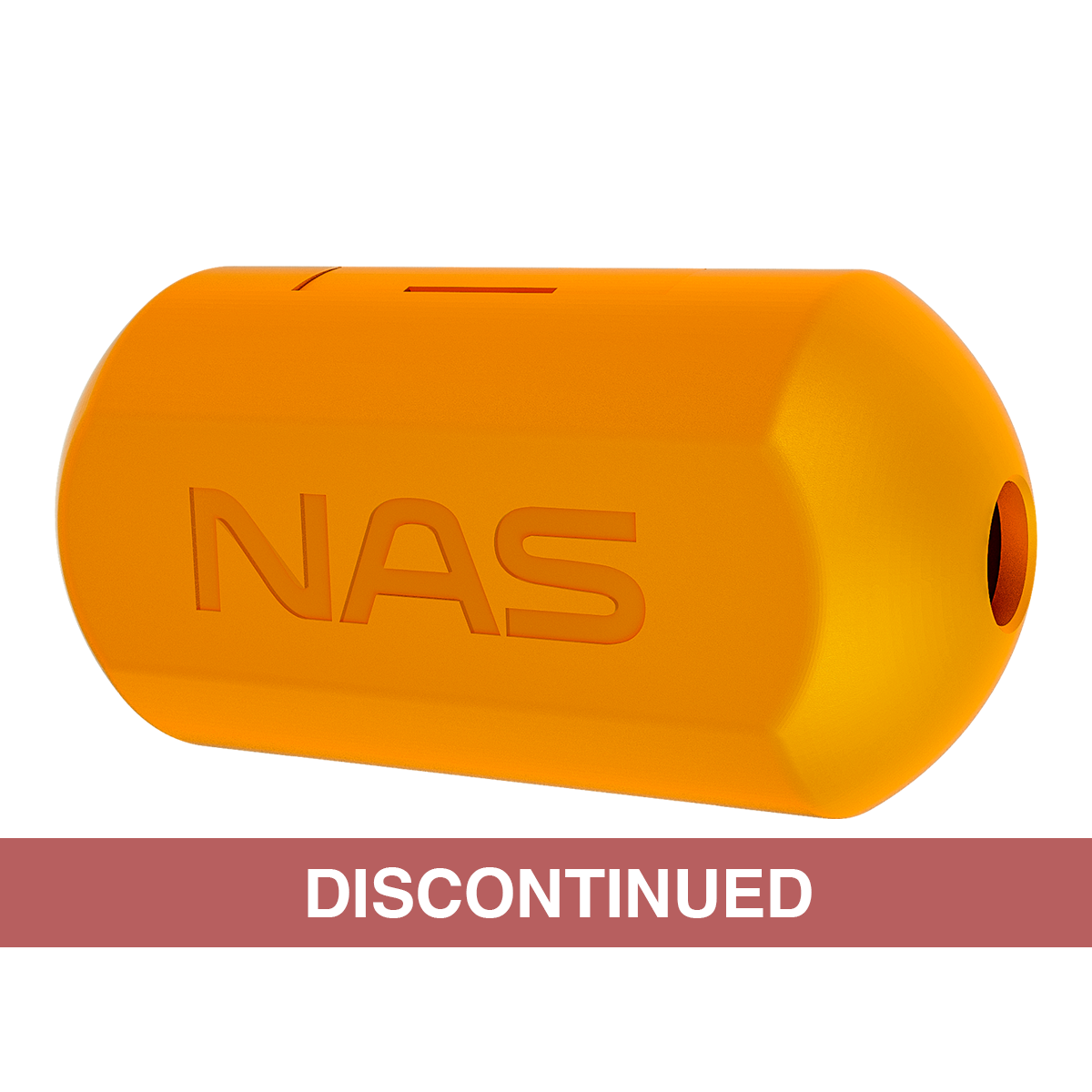

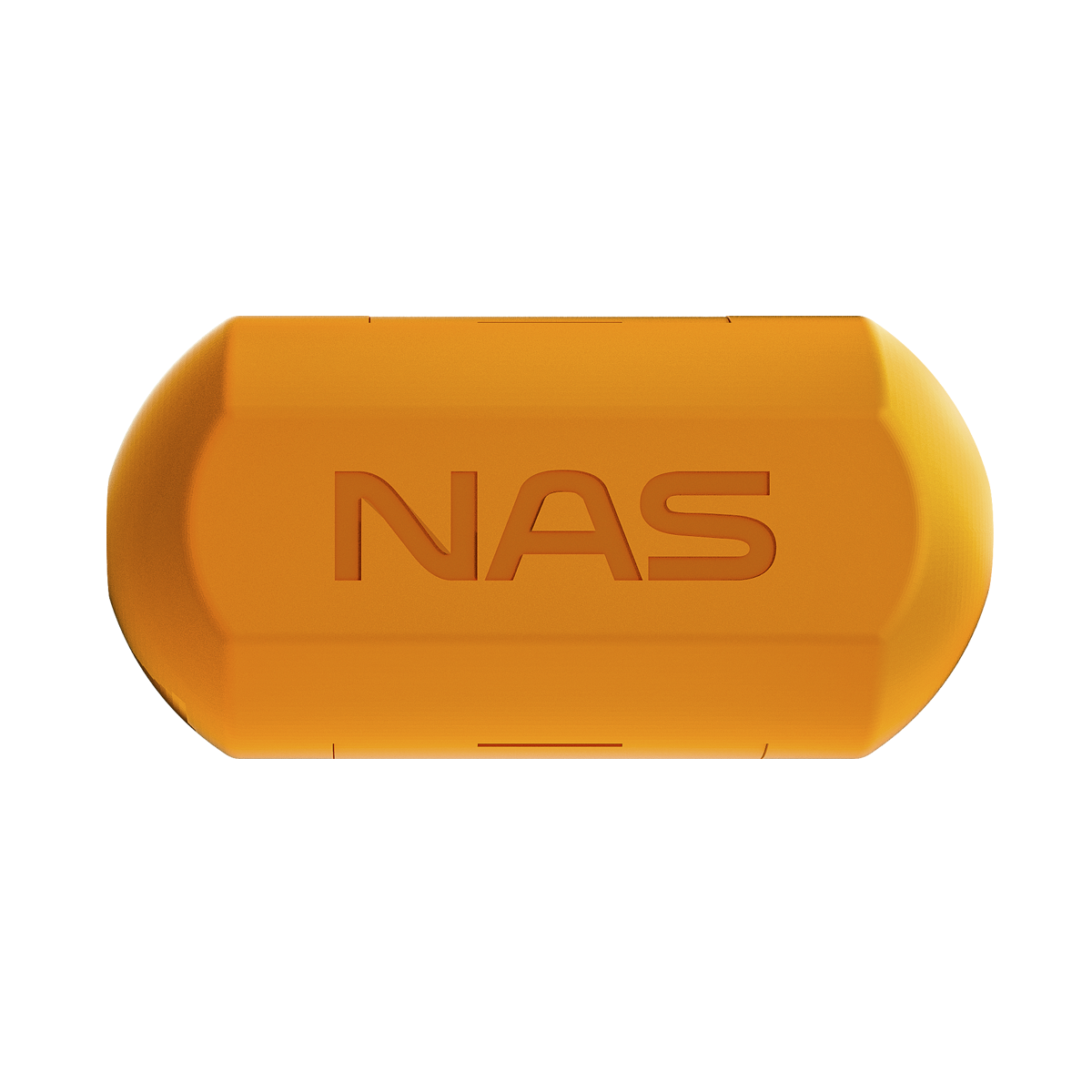

Electric Tool Sensor

Without interfering with the performance of work, electric tool sensor measures real-time consumption data and trigger-time, which is transferred over SensorLink to the Analytics Platform. Sensor can set up reports based on that information.

Efficient

The sensor is equipped with batteries and is maintenance-free during the product lifetime.

Intelligent

Real-time usage data is gathered wirelessly and processed automatically. Data is accessible on any PC or smartphone connected to the internet.

Ordering code IM3010.*

Features

  • Wireless data transmission
  • Lifetime up to 2 years
  • Current measurement 230W-3.6kW @230V
  • For 5.5mm-7mm cables
  • Trigger time measurement
  • Worker identification
  • Ambient temperature measurement
  • Sensor internal data recording for o -site usage
  • Firmware OTA upgradable
  • Efficient clip-on wire design

Additional information

Physical

Length

61.2 mm

Diameter

31.0 mm

Weight

30g

Cable diameter

5.5mm-7mm

Operational

Operating temperature

-10°C..+50°C

Max. working current

16A/3.6kW @ 230V

RF range

up to 50 m*

Battery lifetime

up to 2 years*

Communication

2.4 GHz NAS SensorLink
Bluetooth LE

Download

Electric tool sensor data sheet

Description

* Battery lifetime and signal range are largely dependent on the location and usage. Low temperature reduces battery life. Reinforced and metal walls block reception. Industry average is shown on data sheet.

bool(true)
*For specific order code please see the data sheet. Samples available under MOQ quantity.
