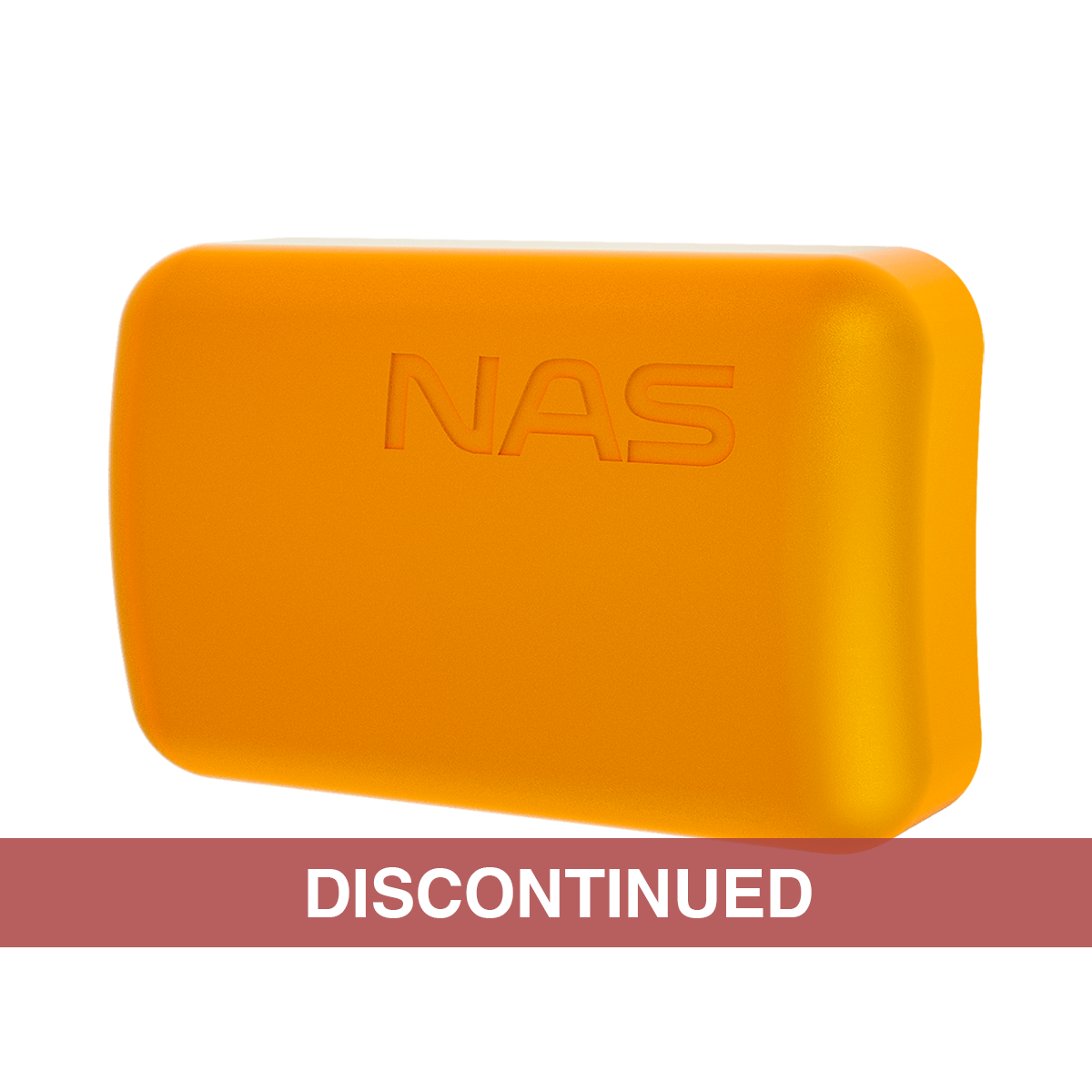

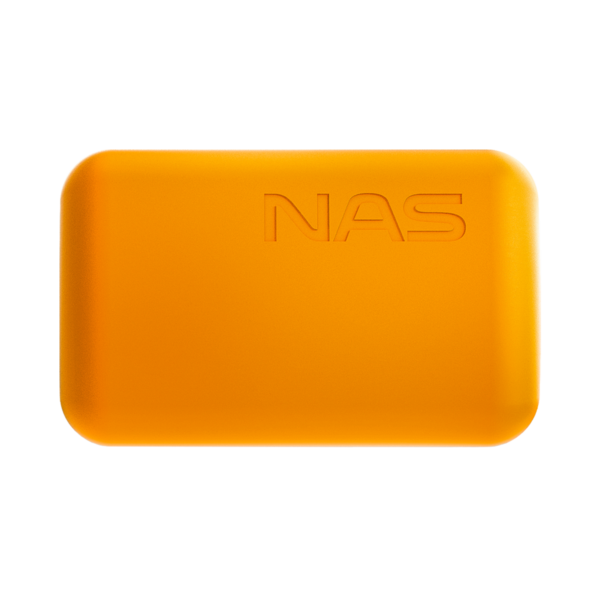

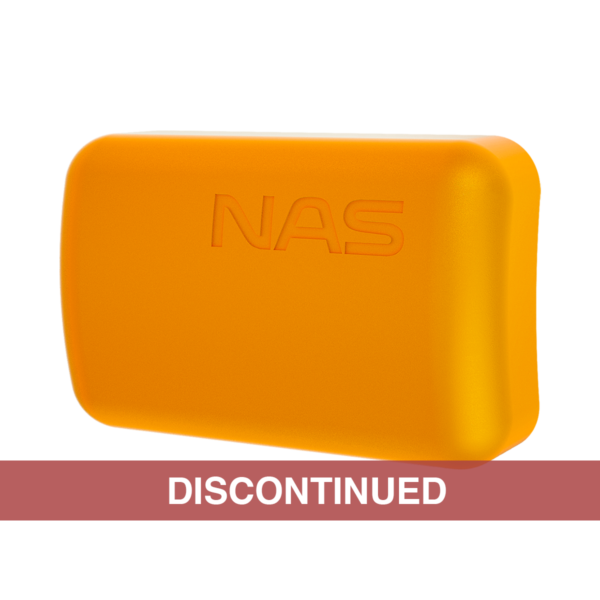

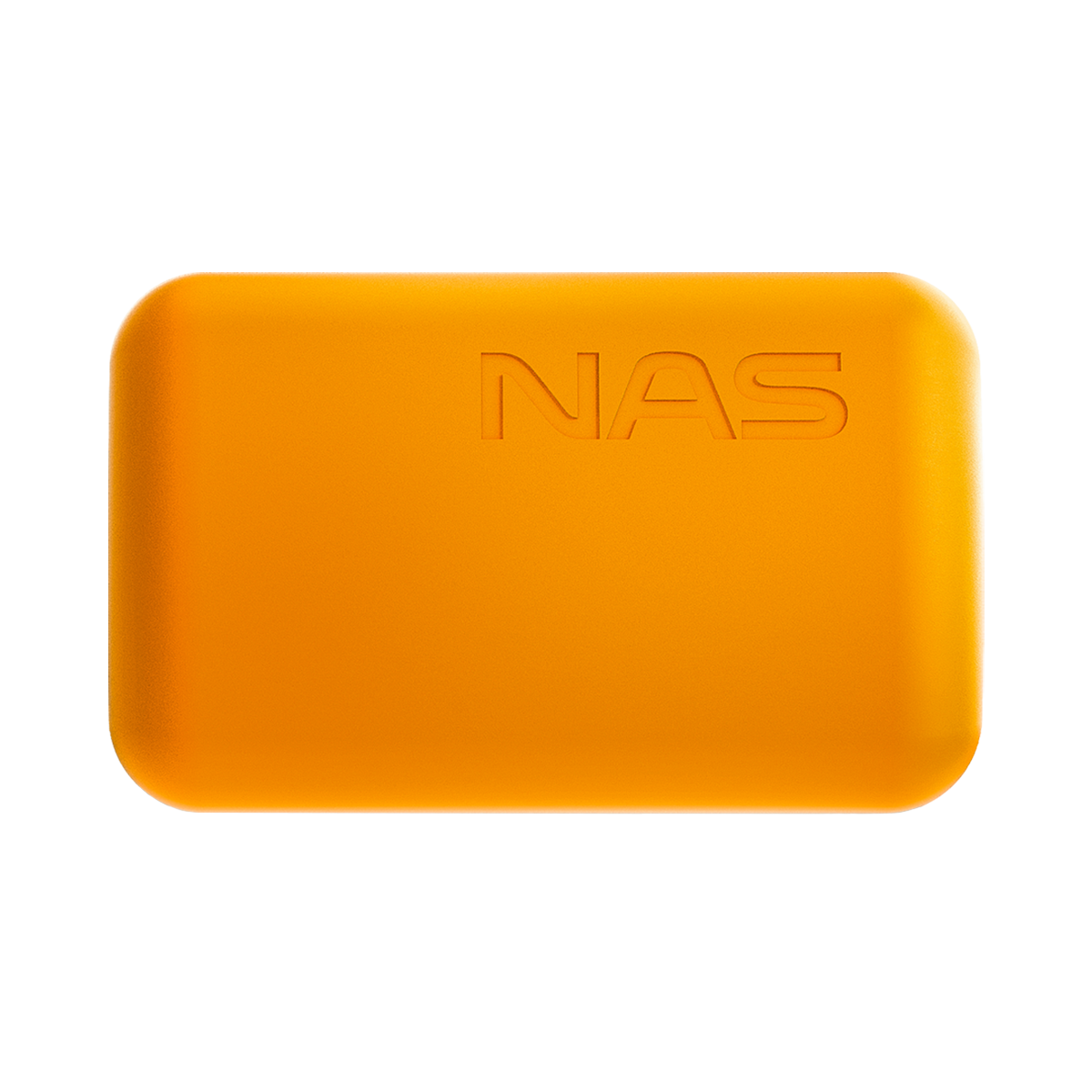

Generic Tool Sensor

The SensorLink™ generic tool sensor is a wireless device that is designed to fit any device. Without interfering with the performance of work, it measures real-time trigger-time, which is transferred over SensorLink to the Analytics Platform and can set up reports based on that information.

Efficient

The sensor is equipped with a lithium battery and is maintenance-free during the product lifetime.

Intelligent

Real-time usage data is gathered and wirelessly processed automatically. Data is accessible on any PC or smartphone connected to the internet.

Ordering code IM3040.*

Features

  • Wireless data transmission
  • Years of lifetime
  • Trigger time measurement
  • Worker identification
  • Ambient temperature measurement
  • Tool motor evaluative measuring
  • Sensor internal data recording for off-site usage
  • Easy glue-on design
  • Firmware OTA upgradable

Additional information

Physical

Width

28.0 mm

Height

10.9 mm

Length

45.0 mm

Weight

30 g

Operational

Operating temperature

-20°C..+60°C

Vibration analysis range

1Hz-200Hz

Max measurable acceleration

8g

Battery lifetime

up to 2 years*

Communication

2.4 GHz NAS SensorLink
Bluetooth LE

Download

Generic tool sensor IM3040A data sheet

Generic tool sensor IM3040B data sheet

Description

* Battery lifetime and signal range are largely dependent on the location and usage. Low temperature reduces battery life. Reinforced and metal walls block reception.

bool(true)
*For specific order code please see the data sheet. Samples available under MOQ quantity.
