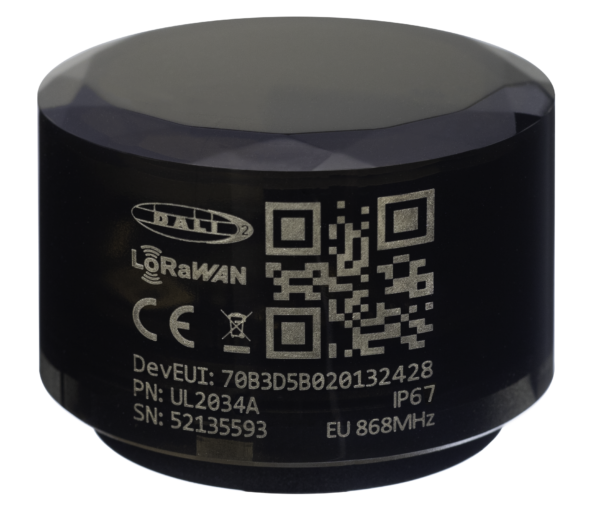

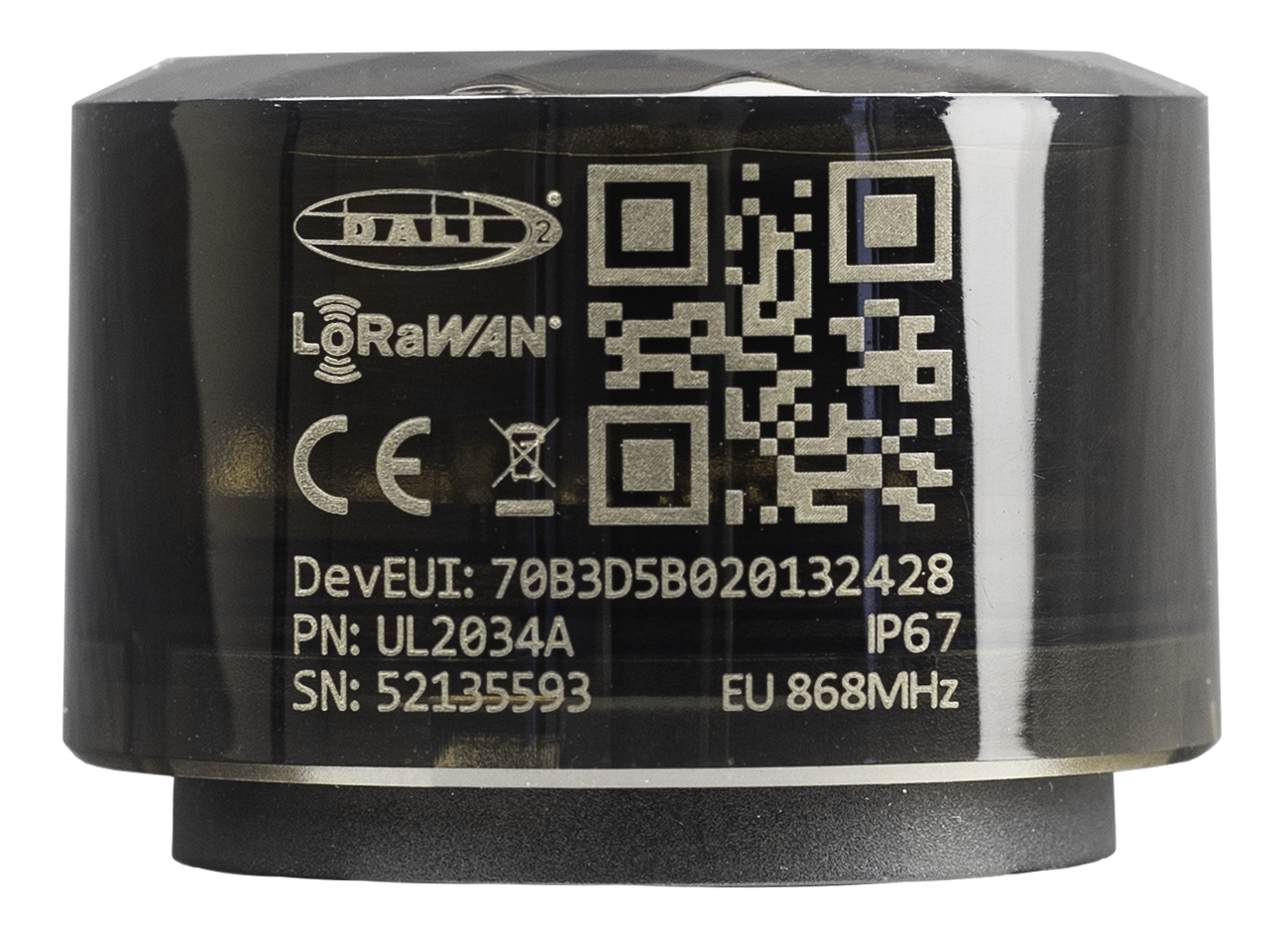

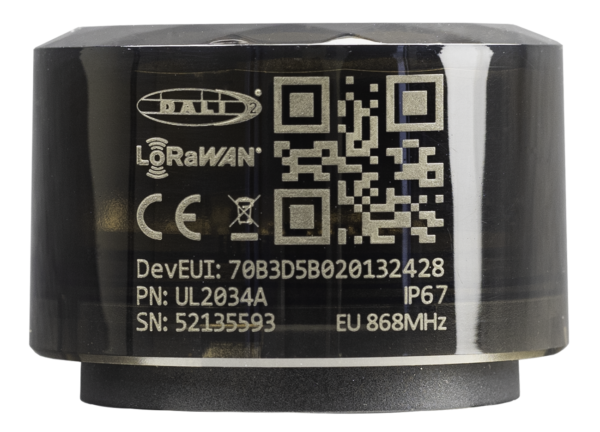

Zhaga® 18 Streetlight Controller G4

The Zhaga® 18 Streetlight Controller G4, communicating via LoRaWAN®, NB-IoT, DECT NR+ or SensorLink technologies, is specifically designed for LED lighting systems. Adhering to Zhaga® Book 18 standards, it provides interoperability and ease of installation. Supporting DALI2 and D4i control signals, this controller is versatile and offers robust, weather-resistant performance.

*NB-IoT and DECT NR+ will be ready for shipment in Q2.

Ordering code UL2034*

Features

  • Control up to 8 DALI / DALI-2 drivers independently
  • Power measurement via DALI
  • D4i Energy registers reported for each driver
  • Versatile astronomical calendar based dimming
  • Layered time based dimming profiles
  • Automatic device time synchronisation
  • Light intensity sensor
  • Remote control and configuration
  • Multicast control and configuration
  • Configuration app LumaLink™ (iOS & Android)
  • GPS positioning*
  • External D4i Control devices**

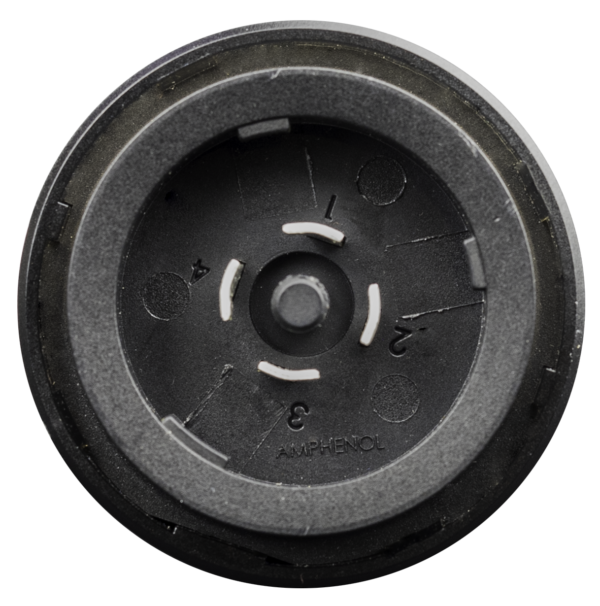

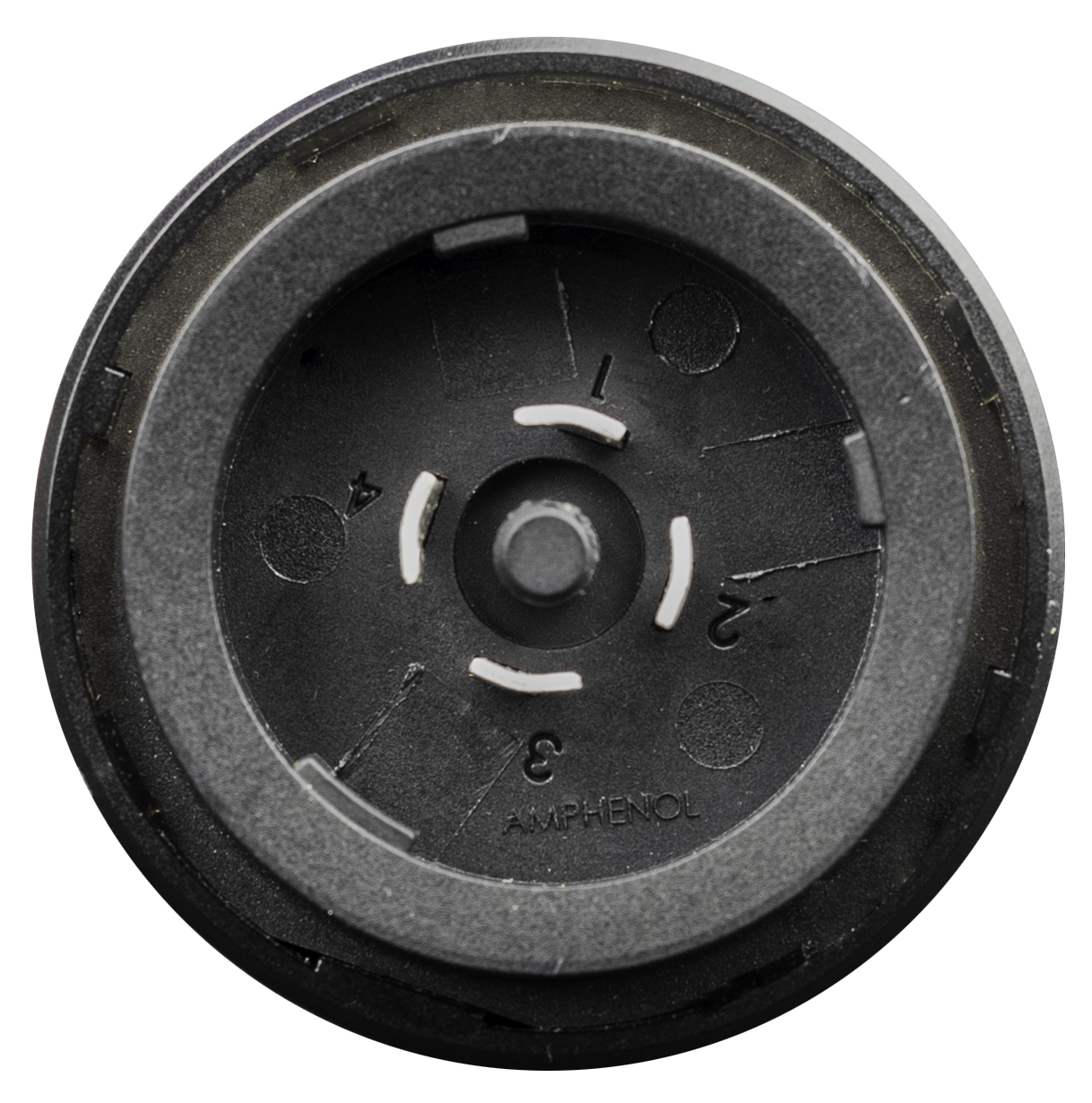

  • Simple push-and-twist lock installation
  • Autonomous and adaptive operation (configure and forget)
  • Real time control and feedback
  • RTC to keep time after power loss
  • Built in tilt sensor
  • Surge protection
  • Digital input (LSI) for external events (motion sensor, switch, photocell, etc)
  • Fully Documented Open Communication Protocol

* with GPS option
** in development

Description

“The Zhaga® 18 Streetlight Controller is a wireless remote control device designed for LED streetlights equipped with the Zhaga® Book 18 compliant connector. The device is easily installed through plug-and-play, making it an excellent fit for various street lighting modules. It can be used for outdoor installations and is suitable for use with existing lighting infrastructure and third-party solutions. Our open communication protocols, an open source JavaScript payload decoder and our LumaLink™ app all contribute to reducing system integration costs.

The Zhaga® 18 Streetlight Controller communicates through LoRaWAN®, NB-IoT, DECT NR+ or SensorLink™ networks. The controller uses the DALI or DALI-2 interface to control the streetlight. Its modern and compact design is ideal for slim LED fixtures. The optional GPS module can simplify map positioning and precise time sync.”

Specs

  • Diameter: 47.3 mm
  • Height: 33.4 mm
  • Weight: ca 40 g
  • Operating temperature: -30°C … +60°C
  • IP Rating IP67
  • Communication (LoRaWAN®)
    • Activation type: OTAA
    • LoRaWAN® Specification: v1.1
  • Communication (NB-IoT)
    • 3GPP LTE release 14 Cat-NB1 and Cat-NB2 compliant
    • LTE band support
      • Cat-NB1/NB2: B3, B8, B20
  • Communication (DECT NR+)
    • NR+ band: 1, 2, 9
  • Communication (LumaLink™)
    • Local configuration over BT LE with NFC activation and per device authorization
    • NanoLite version has only this option for configuration
  • Communication (SensorLink™)*
    • SensorLink™ Mesh networking
  • Communication (GPS)**
    • Precision timestamp
    • Device positioning: up to 1.5m CEP position accuracy
    • GNSS: GPS, QZSS, Glonass***, BeiDou***



* Optional (order code #S, except for DECT NR+ which is itself a Mesh Network)
** Optional (order code #P, except NB-IoT and DECT NR+ where GPS is included)
*** except for NB-IoT and DECT NR+ model

Download

Zhaga® 18 Streetlight Controller G4 data sheet [EN]

Luminaire Controller Communication Protocols FW 1.1.x+

Javascript codecs for payloads of NAS products

Payload encoder (FW 1.1.x+)

Payload decoder (FW 1.1.x+)

Payload decoder (FW 1.0.x)

						*For specific order code please see the data sheet. Samples available under MOQ quantity.
					LoRaWAN® is a registered trademark of Semtech Corporation.
Zhaga® is a registered trademark of Philips Lighting Holding B.V.
