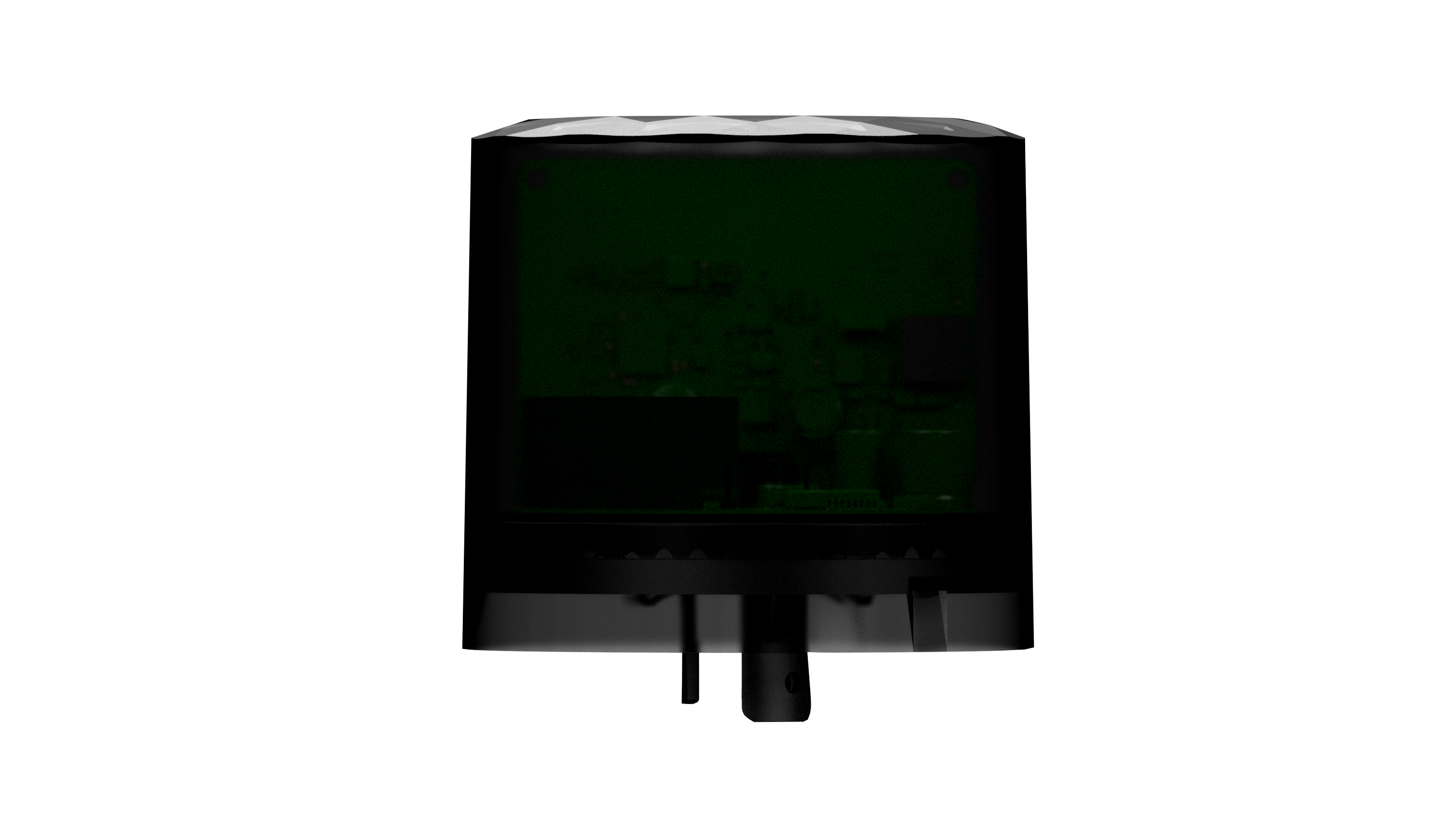

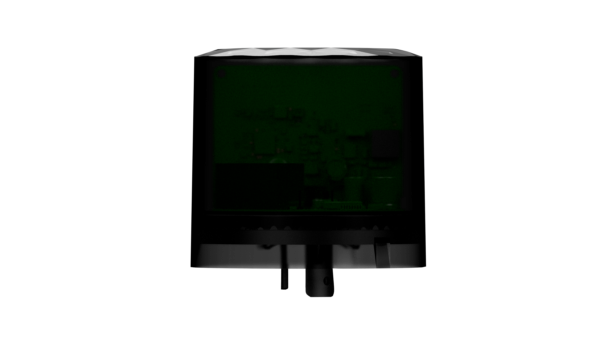

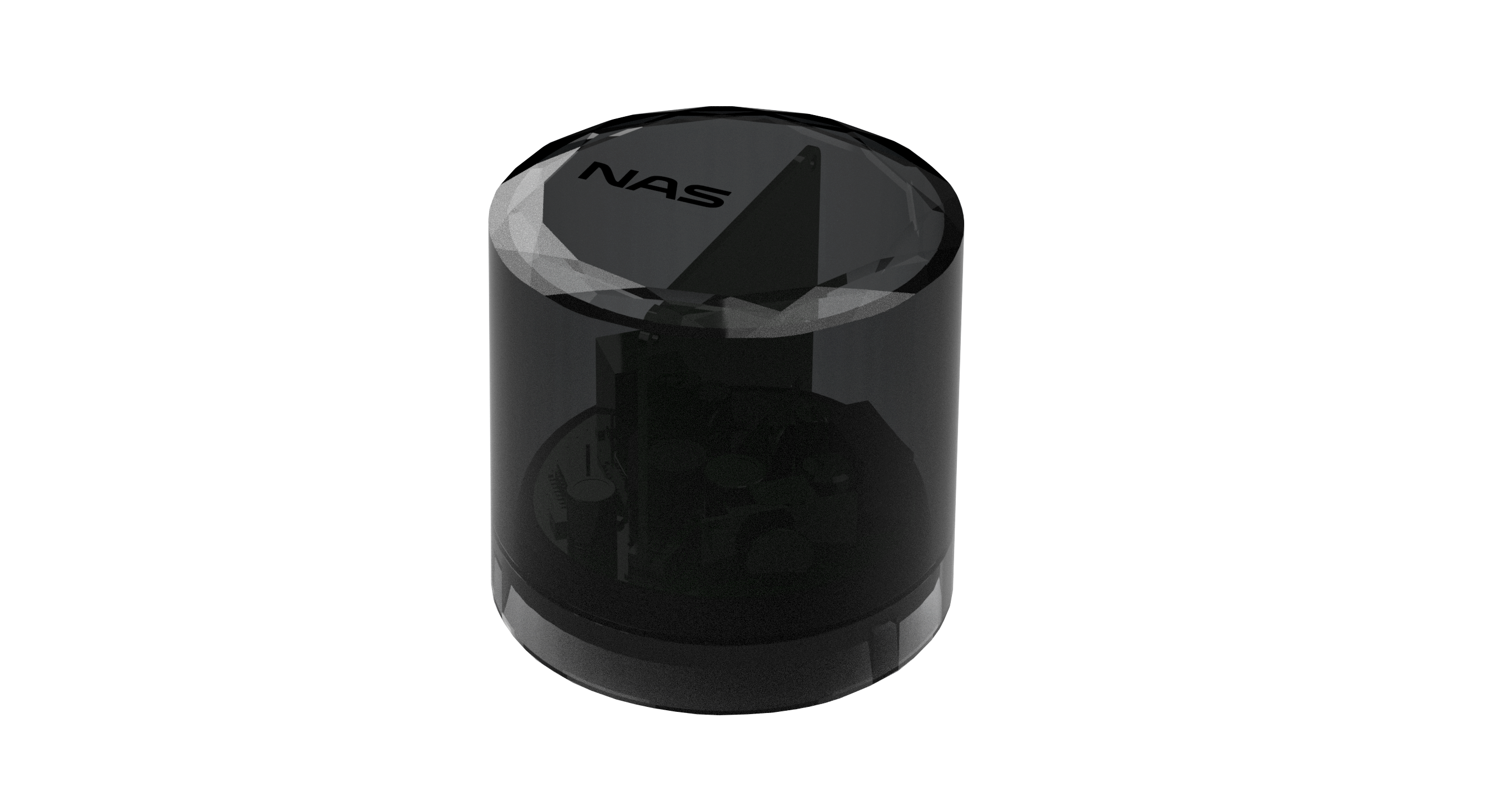

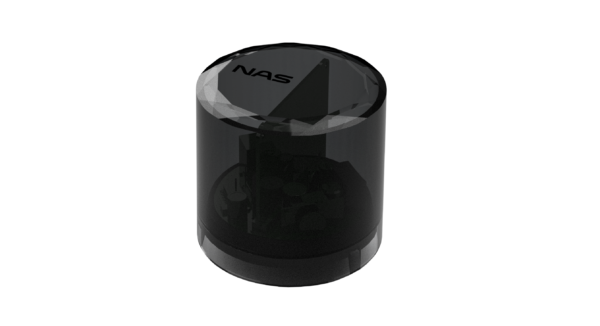

NEMA Streetlight Controller LoRaWAN® G4
UL2024A
A universal NEMA socket interface for LED and HID luminaires, with DALI-2 and 0…10 V analogue control. Built for outdoor duty over the full temperature range.
Features
Up to 8 DALI / DALI-2 drivers, individually addressed, or 0…10 V analogue output
Power measurement for connected load and via DALI
D4i energy registers reported per driver
Astronomical calendar and layered time-based dimming
Configurable ON/OFF switching, RTC after power loss
LumaLink™ configuration app, tilt sensor, surge protection
Fully documented open communication protocol
Operating temperature
−20 °C … +60 °C
IP rating
IP66 · IK09
Communication
LoRaWAN® v1.1 · NB-IoT · NanoLite™
Activation
OTAA
Weight
149 g
Control output
DALI-2® / 0…10 V, software selectable
Measured
Reported over the network and in LumaLink™.
Ambient light
Controller temperature
Relay operating hours
Line voltage
Power and power factor
Energy consumption
D4i energy registers per driver
Monitored
Events and faults raised by the controller.
Line voltage
Power
Lamp / driver fault
Control gear faults
Tilt and collision
GPS position (option P)
Technical data
From the datasheet, rev. 0 · 05.04.2024.
| Communication | LoRaWAN® | NB-IoT | NanoLite™ |
|---|---|---|---|
| Network interface | LoRaWAN® 1.1 Class C | LTE Cat-NB1 / NB2 | None |
| RF frequency | 868 / 915 / 923 MHz | B3 · B8 · B20 | – |
| Rx sensitivity | −137 dBm @ 125 kHz, SF12 | −108 / −107 dBm | – |
| Tx power | up to +22 dBm, by region | up to +23 dBm | – |
| Network security | AES-128 security keys | APN / VPN | – |
| GPS | Option P | Included | Option P |
| SensorLink™ mesh | Option S | n/a | Option S |
| LumaLink™ | Config, diagnostics, firmware | Config, diagnostics, firmware | Config, diagnostics, firmware |
| Firmware update | OTA (2.4 GHz) | OTA (2.4 GHz) | OTA (2.4 GHz) |
Supply
Power supply230 V AC (96 – 285 V)
Max consumption2 W
Surge protection4500 V
Interfaces
DALI control deviceUp to 8 DALI ballasts
DALI power supplyInternal 18 V, auto-detect external
Analogue interface0 … 10 V
Sensors
Light sensorIntegrated, set threshold
Tilt sensor3-axis
Real time clockYes, supercap backup
Lamp control & metering
Dimming range0 – 100 %, linear / log
Control interfaceDALI-2 (IEC 62386), D4i, SR, 0 … 10 V
Internal measurementV, W, Wh, PF, lamp hours · ±3 %
Environmental
Ingress protectionIP66 (IEC 60529)
Impact protectionIK09 (IEC 62262)
Operating temperature−20 °C … +60 °C
Mechanical & compliance
Weight149 g

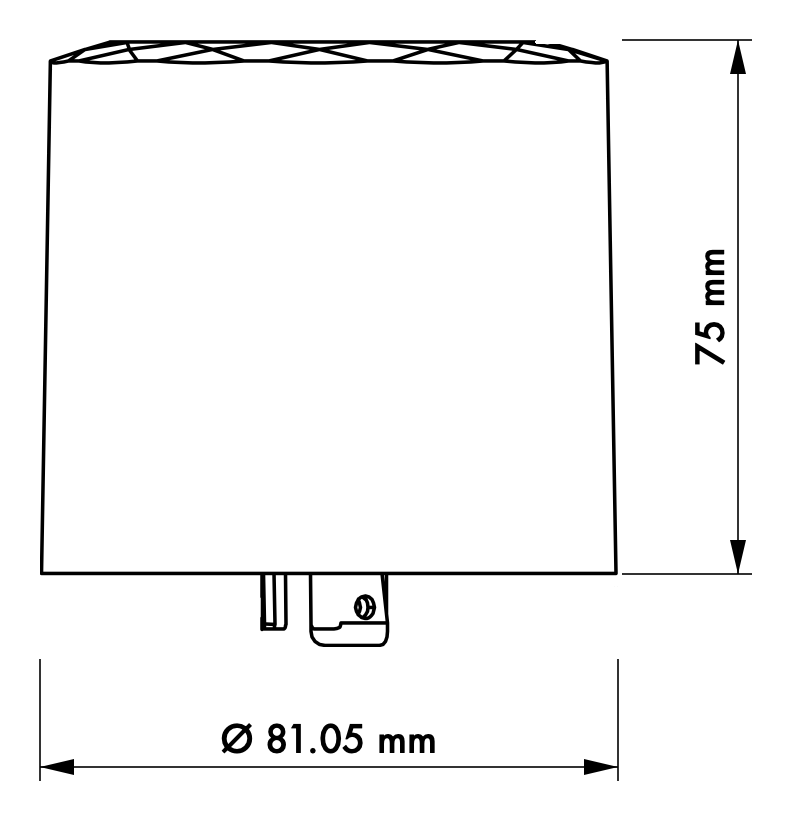

DimensionsØ 81.05 × 75 mm, ABS
ConnectorANSI C136.41
StandardsEN 61347-1 / -2-11, EN 300220, EN 62368, EN 301489, EN 62479, EN 50581
CertificationsCE, SR Signify
Wiring
ANSI C136.41 7-pin receptacle. Control output (DALI or 0…10 V) is software selectable.
1–3Line, load, neutral – per ANSI C136.41
4–5Dimming pair: DALI or 0 … 10 V
6–7Auxiliary, per ANSI C136.41
